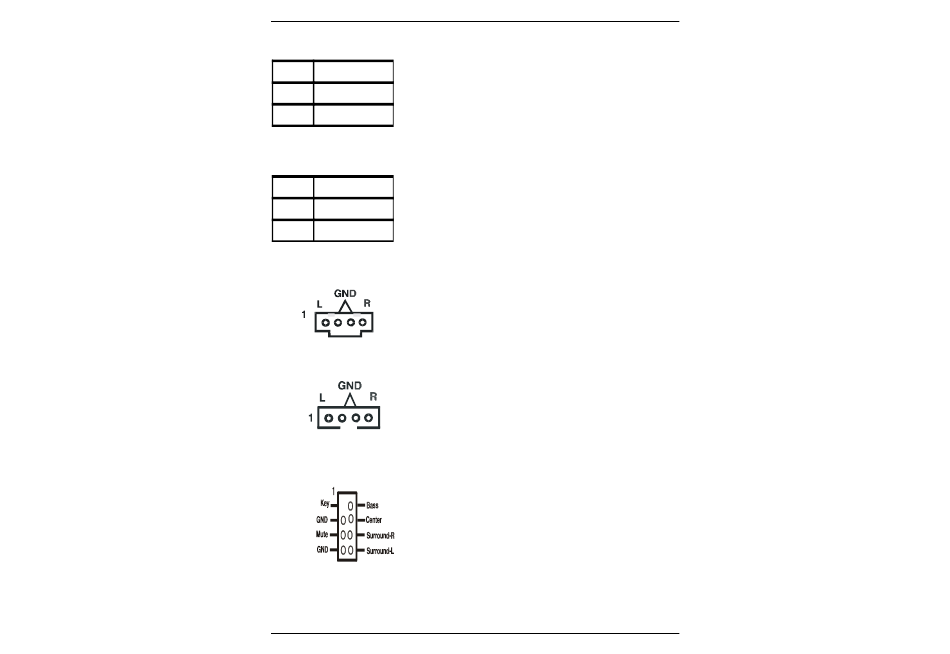

On board Audio (JP8)
This function allows you to enable or disable the
Pin Definition
on board audio. You must set the jumper cap to
pins 1-2 to enable or set pins 2-3 to disable this
1~2 Enable(default)
function.
2~3 Disable
On board LAN (JP11)
This function allows you to enable or disable the on
Pin Definition
board LAN. You must set the jumper cap to pins 1-
2 to enable or set pins 2-3 to disable this function.
1~2 Enable(default)
2~3 Disable
CD-ROM Audio-in Connector (CN2/CN2A)
Use the audio cable enclosed with your CD-ROM disk
drive to connect the CD-ROM to your mainboard.
This will enable your CD-ROM's audio function.
Auxiliary Audio-in Connector (CN3)
This connector is for use with a secondary CD-ROM,
DVD-ROM or CDR/CDRW disk drive.
AC3 Surround/Center + Bass Connector (CN4B)
This connector is for Surround and Center+Bass
speaker output ext. Plug in the optional AC3 Surround/
Center+Bass jack extension into this connector. The
black colored jack is for surround speaker output and
the orange colored jack is for center+bass speaker
output.
Hardware Setup
