Oriental motor EZT1 User Manual

USER MANUAL
Teaching Pendant
Before Using the Product
■ Notes to the User
● This product must be handled by qualified personnel with expert knowl-
edge of electrical and mechanical engineering.
● Should you require the inspection or repair of internal parts, please
contact the Oriental Motor branch or sales office from which you pur-
chased the product.
● Oriental Motor shall not be liable whatsoever for any patent-related
problem arising in connection with the use of any information, circuit,
equipment or device described in this document.
● Characteristics, specifications and dimensions are subject to change
without notice.
● This document is protected under the applicable copyright laws. No
part of this document may be reproduced, stored, changed, duplicated
or transmitted digitally (via printing, copying, microfilming or any other
manner) without prior written consent from Oriental Motor.
●
is a trademark of Oriental Motor Co., Ltd.
is a trademark of Oriental Motor Co., Ltd., and is registered
in Japan and other countries.
Other product names and company names mentioned in this manual
may be trademarks or registered trademarks of their respective com-
panies and are hereby acknowledged. The third-party products men-
tioned in this manual are recommended products, and references to
their names shall not be construed as any form of performance guar-
antee. Oriental Motor is not liable whatsoever for the performance of
these third-party products.
© Copyright ORIENTAL MOTOR CO., LTD. 2006
■ Overview of the Product

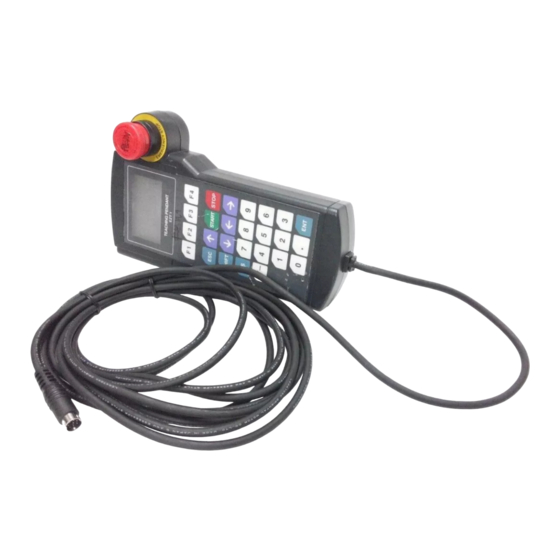

The EZT1 teaching pendant is used to set and monitor operation data for
the controller.
This manual serves as a user's guide for the EZT1 teaching pendant.
Operating any slider, cylinder or motor requires the creation of operation
data via a teaching pendant.
For details, see the user manual for the controller to be used in combi-
nation with the product, as well as the manual for data setting, and follow
the instructions provided in those manuals.
■ Compliance with the EC Directives
A CE marking is affixed to the teaching pendant.
The installation conditions needed to satisfy the EC directives shall be
as described in the user manual for the controller to be used in combi-
nation with the product.
■ Safety Precautions
For details, see the user manual for the controller to be used in combi-
nation with the product and follow the instructions provided in those man-
uals.
HL-0122-3
EZT1
Thank you for purchasing an Oriental Motor product.
Always keep the manual where it is readily available.
Receipt, Storage and Disposal of the Product
The customer should inspect the exterior of the equipment before accept-
ing the product.
Check the delivered product by verifying it against the specification on
the order sheet. If the product is damaged, please contact the Oriental
Motor branch or sales office from which you purchased the product.
Leave the product in the packing carton until immediately before instal-
lation. If the product is not to be used for an extended period of time,
store it in a place that satisfied the following conditions:
● A clean place not subject to excessive humidity or salt
● A place away from direct sunlight
● An ambient temperature of 0°C to +50°C (+32°F to +122°F) (non-
● A relative humidity of 85% or below (noncondensing)
● A place not exposed to corrosive gases
● A place not subject to continuous vibration
When disposing of the product, treat it as industrial waste.
Engage a certified waste-disposal service to carry out the disposal.
Names and Functions of Parts in the Teaching Pendant
■ Key Layout
The teaching pendant has 22 setting keys and four function keys.
The functions assigned to the function keys vary according to the screen.
Packing list
●
Teaching pendant 1 unit
●
Teaching pendant user manual 1 copy
freezing)
TEACHING PENDANT
EZT1
F1 F2 F3 F4
ESC
START STOP
SHIFT
7 8 9
BS
+/- 5 6
4
1 2 3
0
ENT
Emergency stop button
Function keys
Setting keys
