Copyright © 2021 by TOPDON TECHNOLOGY CO., LTD. All rights reserved.
No part of this publication may be reproduced, stored, or transmitted in any
form without the written permission of the copyright owner.
Trademark
TOPDON is a registered trademark of TOPDON TECHNOLOGY CO., LTD in
China and other countries. All other marks are trademarks or registered trade-
marks of their respective owners.
Disclaimer
The contents of this document are subject to changes without notice due
to continued improvements in design, manufacture, and methodologies.
TOPDON is not liable for the damage or losses due to the use of this docu-
ment.
FCC Warnning:
Any Changes or modifications not expressly approved by the party responsi-
ble for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
www.topdon.com
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-Ninja Box and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Topdon T-Ninja Box

  • Page 1 Disclaimer The contents of this document are subject to changes without notice due to continued improvements in design, manufacture, and methodologies. TOPDON is not liable for the damage or losses due to the use of this docu- ment. FCC Warnning: Any Changes or modifications not expressly approved by the party responsi- ble for compliance could void the user's authority to operate the equipment.
  • Page 2 The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Le matériel a été évalué pour répondre aux exigences générales d’exposi- tion aux radiofréquences.Le dispositif peut être utilisé dans des conditions d ‘exposition portables illimitées. www.topdon.com...
  • Page 3 • Never place the test equipment into apparatus with strong electromagnetic • Do not attempt to replace the internal rechargeable lithium battery. Contact the dealer for factory replacement. • Use the included battery and charger. Risk of explosion if the battery is replaced with an incorrect type. www.topdon.com...
  • Page 4 • BENCH mode cable • MCU converter V1 • MCU converter V2 • MCU cable with multiple leads • EEPROM chip adaptor • Benz infrared analog acquisition key • MCU cable with multiple leads • EEPROM converter • User Manual www.topdon.com...
  • Page 5: Table Of Contents

    Table of Contents 1 About this Manual ...................1 1.1 Target Reader ..................1 1.2 Typographic Conventions ..............1 1.3 Symbols ....................1 2 About T-Ninja Box ....................2 2.1 Product Overview ................2 2.2 Power Source ..................3 ...............4 2.4 Accessories ..................4 3 Diagnostics .....................7 3.1 Common Operations ................7...
  • Page 6: About This Manual

    1 About this Manual This manual introduces the basic information of T-Ninja Box and instruction on the product usage. T-Ninja Box is a powerful anti-theft solution and an ideal choice for professional repair shops and vehicle maintenance businesses. It has achieved vehicle key, Engine and gearbox programming, featuring powerful multiple parts reprogramming and wide range of vehicle coverage.
  • Page 7: About T-Ninja Box

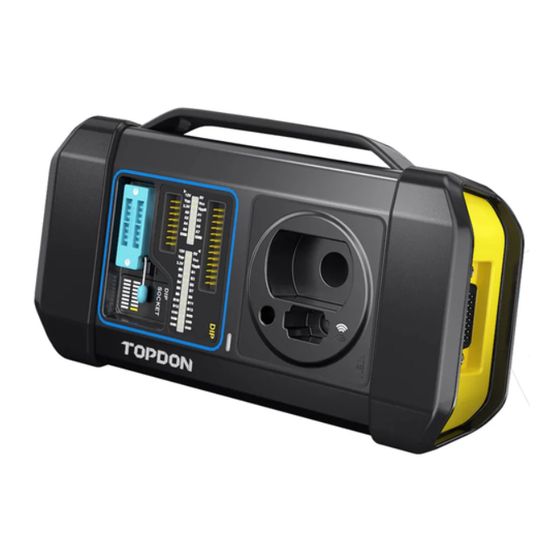

    2 About T-Ninja Box 2.1 Product Overview www.topdon.com...
  • Page 8 DB15 diagnostic connector cable. DIY slot To insert vehicle DIY board. Technical Specifications Input voltage DC 12V Input current 500 mA Working temperature 0 to 50 ℃ Storage temperature - 20 to 70 ℃ Dimension 39 x 107 x 298 mm www.topdon.com...
  • Page 9: Power Source

    The fourth generation of Connect the programmer and EEPROM data vehicle dashboard,and then acquisition place the probe(the yellow cable (without lead) to the designated area. dismantling dashboard) www.topdon.com...
  • Page 10 Place the EEFROM chip onto EEPROM chip the adaptor, and then plug it adaptor into the programmer socket. To connect the programmer Benz infrared with the key lock, insert the analog acquisition key into the programmer for further key operations. www.topdon.com...
  • Page 11 Photo Accessory Name Description Solder the desired chip on the EEPROM converter, and EEPROM then plug the board into the converter programmer(chip soldering is required) MCU cable with To connect the programmer multiple leads and MCU. www.topdon.com...
  • Page 12: Diagnostics

    3 Diagnostics T-Ninja Box diagnostic function supports key programming, engine and gear- box replacement for various of vehicles, you can retrieve ECU information, read, erase, and write in for a range of chips as shown in the product options. 3.1 Common Operations •...
  • Page 13: Establish Wireless Connection

    1. Slide down the status bar from the top. , go to Wireless and network -> Bluetooth. 2. Tap 3. Select the T-Ninja Box to be connected, wait until the connection is successful. • 3.1.3 Perform Common Operations You should enter the function interface before using the programmer.
  • Page 14: Diagnostic Operations

    The USB cable shown in t h e f o l l o w i n g diagram is not included in the packing list for now, n e v e r t h e l e s s , using a USB cable could effectively enhance your data transmission speed. www.topdon.com...
  • Page 15 You can use key programming function to backup old key data and write in data for new keys. Below procedure shows you how to perform key TOPDON diagnostic product. It contains backup current key data and new key generation. 1. Backup current key data.
  • Page 16 Select Key Operation. d. Select Key Learning. e. Tap OK after reading the onscreen instruction. www.topdon.com...
  • Page 17 Tap OK. g. Tap OK to save the key data. www.topdon.com...
  • Page 18 2. Generate a new key. a. Select the desired blank key position. b. Place the new key into the programmer key slot and tap OK. YES. d. If the key generation is done, tap OK t www.topdon.com...
  • Page 19: Gearbox Programming

    For information on how to connect to a gearbox, refer to the onscreen connection diagram • Operating on gearbox programming The following procedure shows you how to perform gearbox programming for a BMW using TOPDON diagnostic product, which contains gearbox connec- tion and erasure of gearbox data. www.topdon.com...
  • Page 20 1. Connecting to the gearbox. On the programmer function interface, select EGS System to enter gear- box programming. b. Select the correct chassis type. c. You will then see a corresponding connection diagram. Tap OK. www.topdon.com...
  • Page 21 2. Erasing gearbox data. Select EGS Erasure. b. Tap DOWNLOAD. c. Tap OK. www.topdon.com...
  • Page 22 Tap DOWNLOAD. e. Tap OK. f. Tap YES. g. Tap YES. www.topdon.com...
  • Page 23: Engine Programming

    For information on how to connect to a car engine, refer to the on- screen connection diagram. • Operating on Engine Programming The following procedure shows you how to perform engine program- ming for a Volkswagen using TOPDON diagnostic product, which contains www.topdon.com...
  • Page 24 ID retrieval, engine connection, data backup and data restoration. 1. Retrieve chip ID. a. Tap Engine. b. Select Engine Brand. c. Select Search for ECU model. www.topdon.com...
  • Page 25 Check ECU model (printed on the sticker on the back of your Engine), enter the engine type in the dialogue box (Take the following picture as an example, the engine type should be MED17.7.7). e. Tap OK. www.topdon.com...
  • Page 26 2. Connect to an engine. a. Select View Wiring Diagram. b. Read the connection diagram, perform the proper connection based on the engine type and then tap OK. c. Select Read chip ID. www.topdon.com...
  • Page 27 When the following dialogue box appears, tap OK. 3. Backup data. a. Select Backup EEPROM Data. www.topdon.com...
  • Page 28 Tap OK. 4. Restore EEPROM data. Tip: Use EEPROM restoration only if you encounter an irreversible error. www.topdon.com...
  • Page 29 Select Restore EEPROM Data. d. When the data is successfully restored, tap OK. www.topdon.com...
  • Page 30: Software Upgrade

    To update Diagnostic Software & APP: 1. On the main diagnostic screen, tap Software Update to enter the update center. Check the software you want to upgrade, and then tap Update. 2. Once downloading completes, the software packages will be installed automatically. www.topdon.com...
  • Page 31 • You can stop the process by tapping Stop, and tap Continue to resume the process later. • In case of network connection failure, tap Retry. 3. You will see the following dialogue box once the installation is completed. www.topdon.com...
  • Page 32: Warranty

    5. Warranty TOPDON One Year Limited Warranty TOPDON warrants to its original purchaser that TOPDON products will be free from defects in material and workmanship for 12 months from the date of purchase (Warranty Period). For the defects reported during the Warranty Period, TOPDON will, according to its technical support analysis and confir- mation, either repair or replace the defective part or product.
