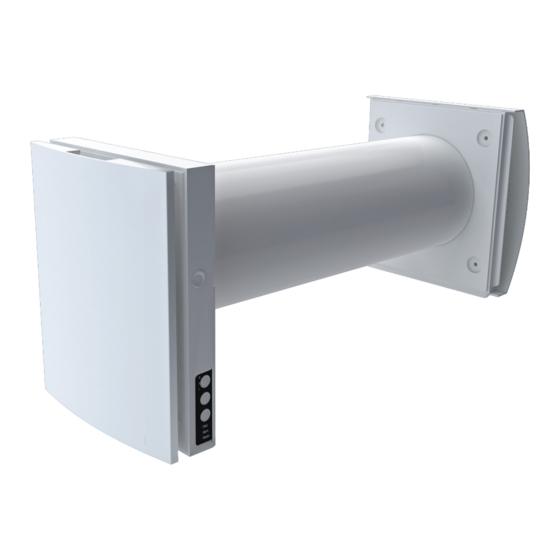

- Page 1 USER‘S MANUAL SIKU RV 50 C Pro Comfo V2 SIKU RV 30 C Pro Duo Comfo V2 Single-room reversible energy recovery ventilator...
-
Page 2: Table Of Contents
This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the SIKU RV 30/50 C Pro (Duo) Comfo V2 unit and all its modifications. - Page 3 SIKU RV 30/50 C Pro (Duo) Comfo V2 • Do not change the power cable length at your own discretion. Do not bend the power • Do not lay the power cable of the unit in cable. Avoid damaging the power cable. Do close proximity to heating equipment.
-
Page 4: Purpose
SIKU RV 30/50 C Pro (Duo) Comfo V2 PURPOSE The ventilator is designed to ensure continuous mechanical air exchange in flats, cottages, hotels, cafés and other domestic and public premises. The ventilator is equipped with a regenerator that enables supply of fresh filtered air heated by means of extract air heat energy recovery. -
Page 5: Technical Data
The unit is rated for indoor application with the following conditions: • for SIKU RV 50 C Pro Comfo V2: Temperature ranging from -15 °C (5 °F) up to +40 °C (+104 °F) and relative humidity up to 50 % •... -
Page 6: Unit Design And Operating Principle
Sound absorbing mat Sound insulating material that provides attenuation of operation noises. TwinFresh Expert cartridge SIKU RV 50 C Pro Comfo V2 cartridge Assembly unit consisting of fans, a regenerator and air filters. Generates air flow and provides energy regeneration. - Page 7 SIKU RV 30/50 C Pro (Duo) Comfo V2 LOUVER SHUTTERS OPERATION PRINCIPLE SIKU RV 50 C Pro Comfo V2 The indoor unit is equipped with automatic shutters. During the ventilator operation the automatic shutters are opened and let the air flow freely through the ventilator.
-
Page 8: Installation And Set-Up
SIKU RV 30/50 C Pro (Duo) Comfo V2 INSTALLATION AND SET-UP READ THE USER’S MANUAL BEFORE INSTALLING THE UNIT. DO NOT BLOCK THE AIR DUCT OF THE INSTALLED VENTILATOR WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. - Page 9 SIKU RV 30/50 C Pro (Duo) Comfo V2 3. Stick the delivered cardboard master plate on the indoor wall using a mounting tape. The large opening in the master plate must be axially aligned with the air duct. For aligning the master plate with respect to the horizon line it is recommended to use a builder’s level.
- Page 10 SIKU RV 30/50 C Pro (Duo) Comfo V2 7. Install the cartridge into the air duct as figured below. The pointer must be directed upwards. Then fix the wire with the protruding clamp and connect the socket connector to the circuit board.
-
Page 11: Connection To Power Mains And Control
SIKU RV 30/50 C Pro (Duo) Comfo V2 CONNECTION TO POWER MAINS AND CONTROL POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL. - Page 12 SIKU RV 30/50 C Pro (Duo) Comfo V2 WIRING DIAGRAM FOR IN SERIES CONNECTION Master Slave 1 Slave N Power input +12V +12V +12V 100-240 V/50 (60) Hz to the next ventilator WIRING DIAGRAM FOR IN PARALLEL CONNECTION Master Slave 1...
- Page 13 SIKU RV 30/50 C Pro (Duo) Comfo V2 POSITIONING OF THE DIP SWITCHES Turning the ventilator off is allowed. The switch position enables switching the ventilator off with the button on the side control panel. Turning the ventilator off is not allowed.
- Page 14 Its blinking indicates shutdown of a specific ventilation unit in the network. In case of an emergency shutdown of a SIKU RV 50 C Pro Comfo V2 unit in the network the defective ventilation unit is marked with the Alarm blinking Alarm indicator.
- Page 15 The front panel incorporates an operating LED indicator. During the dark time the indicator light intensity drops down. AIR FLOW BLOCKING FOR THE SIKU RV 30 C Pro Duo Comfo V2 Press the side tabs to detach the front part of the indoor unit from its back part and close the air duct.
-
Page 16: Technical Maintenance
SIKU RV 30/50 C Pro (Duo) Comfo V2 TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! Maintenance of the ventilator means regular cleaning of the ventilator surfaces of dust and cleaning and/or replacement of the filters. - Page 17 • After the set filter replacement periodicity (90 days) has expired the Filter indicator starts glowing. For the SIKU RV 50 C Pro Comfo V2 unit the filter timer is reset once the cartridge connector is disconnected from the circuit board. Reset the filter timer for the SIKU RV 30 C Pro Duo Comfo V2 unit by turning the DIP switch 8 off and back on again.
-
Page 18: Troubleshooting
SIKU RV 30/50 C Pro (Duo) Comfo V2 TROUBLESHOOTING POSSIBLE REASONS AND TROUBLESHOOTING Problem Possible reasons Troubleshooting Make sure the power supply line is connected No power supply. correctly, otherwise troubleshoot the connection When switching on the error. ventilator, the fan does not Turn the ventilator off. -
Page 19: Manufacturer's Warranty
SIKU RV 30/50 C Pro (Duo) Comfo V2 MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/ EU and CE-marking Directive 93/68/EEC. - Page 20 SIKU RV 30/50 C Pro (Duo) Comfo V2 www.siku.cc...
- Page 21 SIKU RV 30/50 C Pro (Duo) Comfo V2 www.siku.cc...
- Page 22 SIKU RV 30/50 C Pro (Duo) Comfo V2 www.siku.cc...
-
Page 23: Certificate Of Acceptance
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. Customer’s Signature Seller’s Stamp INSTALLATION CERTIFICATE The SIKU RV _____________ unit has been connected to power mains pursuant to the requirements stated in the present user’s manual. Seller Address Phone Number Installation Technician’s Full Name... - Page 24 SIKU VertriebsgmbH Tel.: +43 2262 61 521 Bundesstraße 5 Fax: +43 2262 61 520 2102 Bisamberg www.siku.cc BDA_50535_50536_SIKU_RV30C-V2_RV50C-V2_EN-03 Austria office@siku.cc...
