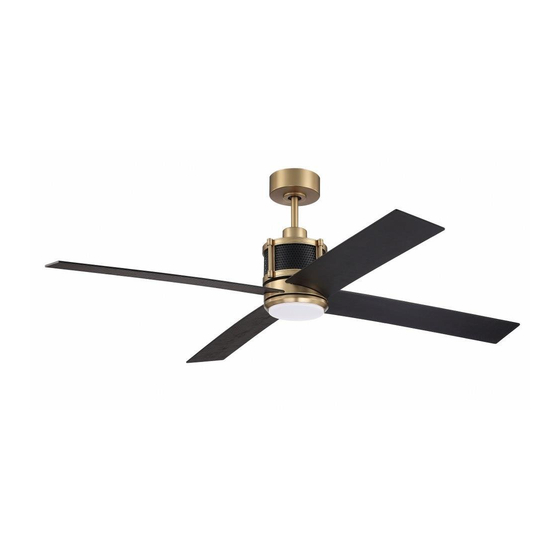

Gregory

Installation Guide

For Model:

GRG56

WARNING:

DC Motor will not

operate until blades

are installed

4007498

net weight of fan: 15.1 lb (6.85 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Gregory and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Gregory

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Gregory Installation Guide Table of Contents: Safety Tips. pg. 3 For Model: Unpacking Your Fan. pg. 4 GRG56 Parts Inventory. pg. 4 Installation Preparation. pg. 5 Hanging Bracket Installation. pg. 5 Fan Assembly.
Page 2 Activating Your New Smart Fan; Downloading the Bond Home App • Using your smart device, navigate to the application store (Apple App store or Google Play), download the free Bond Home app and create account. • Ensure the fan and receiver are receiving power from the house supply using the remote control to turn the fan and light ON and OFF.
Page 3: Safety Tips
(2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 3901 South 20 Avenue, DFW Airport, TX, 75261; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 4: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included.
Page 5: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that inches the hanging location allows the blades a clearance of (76 cm) 7 feet 7 feet (2.13m) from the floor and 30in. (76cm) from (2.13 m) any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft.
Page 6: Fan Assembly. Pgs
5. Fan Assembly. stop pin set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Remove pin and clip. Lower hanging ball and remove stop pin hanging ball and then slide hanging ball off of the downrod. clip [Refer to diagram 1.] diagram 1...
Page 7: Wiring
5. Fan Assembly. (cont.) wood ceiling joist With the hanging bracket secured to the outlet box and able safety cable loop to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.
Page 8: Canopy Assembly
7. Canopy Assembly. hanging bracket Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw screw in hanging bracket and push up.
Page 9: Light Kit Assembly
motor 9. Light Kit Assembly. housing motor plate Remove 1 screw from motor plate on underside of motor housing and partially loosen the other 2 screws. Align slotted holes in center of fitter plate with loosened screws in motor plate, fitter allowing molex connections from motor plate...
Page 10: Automated Learning Process./Activating Code
10. Automated Learning Process./Activating Code. CAUTION: The remote control transmitter can be programmed to multiple receivers or fans. If this is not desired, turn wall switch off to any other REMOTE CONTROL TRANSMITTER programmable receiver or fan. (back side) Remove battery cover on back side of remote control transmitter.
Page 11: Remote Control Operation
11. Remote Control Operation. REMOTE CONTROL TRANSMITTER I I I 1--Fan SPEED buttons: Use to control fan speeds 1-6 2--Fan OFF button: Use to turn the fan off 3--REVERSE function button: Use to control direction of fan rotation 4--LIGHT button: Use to control light IMPORTANT: The Automated Learning Process takes approximately 5 minutes to complete.
Page 12: Smart Ceiling Fan Wi-Fi Control
12. Smart Ceiling Fan Wi-Fi Control. (Optional) Without Wi-Fi activation, you will not enjoy the expanded features and functionality of your ceiling fan: Breeze speed setting, Creating Schedules and Voice Activation. To enjoy all the potential of your new device, refer to the following steps to complete Smart setup.
Page 13: Testing Your Fan
13. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and wall switch (if applicable). Test fan speeds with the different fan speed buttons (I - VI) on remote control transmitter. Test the light ON/OFF function by pressing button;...
Page 14: Troubleshooting
WARNING: Failure to disconnect power supply prior CRAFTMADE LIMITED LIFETIME WARRANTY: to troubleshooting any wiring issues may result in CRAFTMADE warrants this fan for use as intended under serious injury. the following provision: CRAFTMADE will replace any fan which has faulty performance due to a defect in material Problem: Fan fails to operate.
