Page 2 Version Info Version Date Remarks V2.0 2019.10...
Page 3 Preface Preface Dear customers, Congratulations! Thank you for buying Micsig instrument. Please read this manual carefully before use and particularly pay attention to the “Safety Precautions”. If you have read this manual, please keep it properly for future reference. The information contained herein are furnished in an “as-is” state, and may be subject to change in future versions without notice.
Page 4: Table Of Contents
Table of Contents Table of Contents TABLE OF CONTENTS ............................I CHAPTER 1. SAFETY PRECAUTIONS ..................1 1.1 S ..........................1 AFETY RECAUTIONS 1.2 S ........................5 AFETY ERMS AND YMBOLS CHAPTER 2. QUICK START GUIDE OF OSCILLOSCOPE ............ 8 2.1 I ........................
Page 5 2.6 P ......................14 OWER ON OFF THE SCILLOSCOPE 2.7 U ................15 NDERSTAND THE SCILLOSCOPE ISPLAY NTERFACE 2.8 I ................20 NTRODUCTION ASIC PERATIONS OF OUCH CREEN 2.9 M ........................... 23 OUSE PERATION 2.10 C ....................24 ONNECT ROBE TO THE SCILLOSCOPE 2.11 U ..............................
Page 6 Table of Contents 3.2 M ......................... 39 ULTIFUNCTIONAL 3.3 C ..............................40 URSOR 3.4 H ..........................40 ORIZONTAL YSTEM 3.5 V ............................ 41 ERTICAL YSTEM 3.6 T ............................42 RIGGER YSTEM 3.7 H ......................... 44 OMEPAGE CREEN APTURE ........................44 3.8 S ECOND UNCTION...
Page 7 4.5 Z .............................. 60 CHAPTER 5 VERTICAL SYSTEM ..................63 5.1 O ) ..........65 LOSE AVEFORM HANNEL EFERENCE AVEFORMS 5.2 A ....................... 70 DJUST ERTICAL ENSITIVITY 5.3 A ........................71 DJUST ERTICAL OSITION 5.4 O ..........................71 HANNEL 5.4.1 Set Channel Coupling ............................ 72 5.4.2 Set Bandwidth Limit ............................
Page 8 Table of Contents CHAPTER 6 TRIGGER SYSTEM .................... 83 6.1 T ...................... 84 RIGGER AND RIGGER DJUSTMENT 6.2 E ............................96 RIGGER 6.3 P .......................... 100 ULSE IDTH RIGGER 6.4 L ............................108 OGIC RIGGER 6.5 N ) ......................113 RIGGER PTIONAL 6.6 R...
Page 9 CHAPTER 7 ANALYSIS SYSTEM ..................132 7.1 A ........................133 UTOMATIC EASUREMENT 7.2 F ...................... 144 REQUENCY ETER EASUREMENT 7.3 C ..............................146 URSOR CHAPTER 8 SCREEN CAPTURE, MEMORY DEPTH AND WAVEFORM STORAGE ..152 8.1 S ........................153 CREEN APTURE UNCTION 8.2 V...
Page 10 Table of Contents CHAPTER 10 DISPLAY SETTINGS ..................183 10.1 W ........................... 185 AVEFORM ETTINGS 10.2 G ..........................185 RATICULE ETTING 10.3 P .......................... 186 ERSISTENCE ETTING 10.4 H ......................189 ORIZONTAL XPANSION ENTER 10.5 C ......................189 OLOR EMPERATURE ETTING 10.6 T ......................
Page 11 CHAPTER 12 SERIAL BUS TRIGGER AND DECODE (OPTIONAL) ........ 209 12.1 UART (RS232/RS422/RS485) B ..............214 RIGGER AND ECODE 12.2 LIN B ......................225 RIGGER AND ECODE 12.3 CAN B ......................233 RIGGER AND ECODE 12.4 SPI B ......................240 RIGGER AND ECODE 12.5 I2C B...
Page 12 Table of Contents 13.4 F ............................. 287 ANAGER 13.5 C ............................288 ALCULATOR 13.6 B .............................. 288 ROWSER 13.7 G ............................... 289 ALLERY 13.8 C ............................292 ALENDAR 13.9 E ..........................292 LECTRONIC OOLS 13.10 C ..............................293 LOCK 13.11 P ............................
Page 13 14.1.2 Connection of Host Computer ........................301 14.1.3 Main Interface Introduction ........................302 14.1.4 Operation Interface Introduction ....................... 305 14.1.5 Storage and View of Pictures and Videos ....................306 14.2 M ........................309 OBILE EMOTE ONTROL 14.3 FTP ................................ 311 14.4 SCPI ..............................
Page 14 Table of Contents 16.2 P ..........................325 OLLUTION EGREE CHAPTER 17 TROUBLESHOOTING ..................327 CHAPTER 18 SERVICES AND SUPPORT ................334 ANNEX ............................ 336 ................336 NNEX AINTENANCE AND ARE OF SCILLOSCOPE B: A ..........................338 NNEX CCESSORIES...
Page 15: Chapter 1. Safety Precautions
Chapter 1. Safety Precautions Chapter 1. Safety Precautions 1.1 Safety Precautions The following safety precautions must be understood to avoid personal injury and prevent damage to this product or any products connected to it. To avoid possible safety hazards, it is essential to follow these precautions while using this product.
Page 16 ⚫ Do not operate without covers. Do not operate the product with covers or panels removed. ⚫ Do not operate with suspected failures. If you suspect that there is damage to this product, have it inspected by service personnel designated by Micsig.
Page 17 Chapter 1. Safety Precautions ⚫ Use adapter correctly. Supply power or charge the equipment by power adapter designated by Micsig, and charge the battery according to the recommended charging cycle. ⚫ Avoid exposed circuitry. Do not touch exposed connections and components when power is present.
Page 18 Measurement Category Definition Measurement category I is for measurements performed on circuits not directly connected to the MAINS. Examples are measurements on circuits not derived from MAINS, and specially protected (internal) MAINS derived circuits. In the latter case, transient stresses are variable; for that reason, the user must understand the transient withstand capability of the equipment.
Page 19: Safety Terms And Symbols
Chapter 1. Safety Precautions 1.2 Safety Terms and Symbols Terms in the manual These terms may appear in this manual: Warning. Warning statements indicate conditions or practices that could result in injury or loss of life. Caution. Caution statements indicate conditions or practices that could result in damage to this product or other property.
Page 20 Symbols on the product The following symbols may appear on the product: Hazardous Voltage Caution Refer to Manual Protective Ground Terminal Chassis Ground Measurement Ground Terminal Please read the following safety precautions to avoid personal injury and prevent damage to this product or any products connected to it.
Page 21 Chapter 1. Safety Precautions ⚫ User only insulated voltage probes supplied with the instrument, or the equivalent product indicated in the schedule. ⚫ Before use, inspect voltage probes, test leads, and accessories for mechanical damage and replace when damaged. ⚫ Remove voltage probes and accessories not in use. ⚫...
Page 22: Chapter 2. Quick Start Guide Of Oscilloscope
Chapter 2. Quick Start Guide of Oscilloscope This chapter contains checks and operations of the oscilloscope. You are recommended to read them carefully to understand appearance, power on/off, settings and related calibration requirements of the Smart series oscilloscope. ⚫ Inspect package contents ⚫...
Page 23: Inspect Package Contents
If any damage to oscilloscope is found by the appearance inspection or it fails to pass the performance test, please contact Micsig’s agent or local office. If the instrument is damaged due to transportation, please retain the package and contact the transportation company or Micsig’s agent, and Micsig will make arrangement.
Page 24: Use The Bracket
2.2 Use the Bracket Put the front panel of the oscilloscope flatly on the table. Use your two index fingers to hold the underside of the bracket and open the bracket by slightly upwards force, as shown in Figure 2-1. Figure 2-1 Open Bracket...
Page 25: Side Panel
Chapter 2. Quick Start Guide of Oscilloscope 2.3 Side Panel Figure 2-2 Side Panel...
Page 26: Rear Panel
2.4 Rear Panel Figure 2-3 Rear Panel a) Ch1 – Ch4 are signal measurement channels b) Aux out is an auxiliary channel, which is mainly used to measure the waveform refresh rate of the oscilloscope and cascade the current oscilloscope signal to other oscilloscopes.
Page 27: Front Panel
Chapter 2. Quick Start Guide of Oscilloscope 2.5 Front Panel Figure 2-4 Front Panel of Tablet Oscilloscope...
Page 28: Power On/Off The Oscilloscope
2.6 Power on/off the Oscilloscope Power on/off the oscilloscope First time start ⚫ Connect power adapter to the oscilloscope, and the oscilloscope should not be pressed on the adapter cable. ⚫ Press the power button to start the instrument. Power on ⚫...
Page 29: Understand The Oscilloscope Display Interface
Caution: Forced power-off may result in loss of unsaved data, please use with caution. 2.7 Understand the Oscilloscope Display Interface This section provides a brief introduction and description of the Smart Series oscilloscope user’s interface. After reading this section, you can be familiar with the oscilloscope display interface content within the shortest possible time.
Page 30 Figure 2-5 Oscilloscope Interface Display...
Page 31 Chapter 2. Quick Start Guide of Oscilloscope Description Micsig logo Oscilloscope status, including RUN, STOP, WAIT, Auto Trigger point Sampling rate, memory depth The area in “[]” indicates the position of waveform displayed on the screen throughout the memory depth...
Page 32 Description Trigger level indicator CH1、CH2、CH3、CH4 cchannel icons and vertical sensitivity icon. Tap the channel icons to open channels and corresponding channel menu, or close channels, operate in a loop; click to adjust the vertical sensitivity of channels; display the vertical sensitivity of channels; display sampling method.
Page 33 Chapter 2. Quick Start Guide of Oscilloscope Description Horizontal time base control icon. Tap the left/right time base buttons to adjust the horizontal time base of the waveform. Tap the time base to open the time base table. Tap to select the desired time base.
Page 34: Introduction Basic Operations Of Touch Screen
2.8 Introduction Basic Operations of Touch Screen The Smart Series oscilloscope operates mainly by tap, swipe, single-finger drag, and two-finger drag. Figure 2-6 Basic Operations of Smart Oscilloscope...
Page 35 Chapter 2. Quick Start Guide of Oscilloscope Tap button on the touch screen to activate the corresponding menu and function. Tap any blank space on the screen to exit the menu. Swipe Single-finger swipe: to open/close menus, including main menu, shortcut menu button and other channel menu operations.
Page 36 Figure 2-7 Slide out of Main Menu Tap the options in the main menu to enter the corresponding submenu. The opening methods of channel menu and math menu are slightly different from that of the main menu. Tap the channel icon and math icon to open the corresponding menu.
Page 37: Mouse Operation
Chapter 2. Quick Start Guide of Oscilloscope Single-finger drag For coarse adjustments of vertical position, trigger point, trigger level, cursor, etc. of the waveform. Refer to “4.1 Waveform” and “5.3 Adjust Vertical Position” for details. Horizontal Move 2.9 Mouse Operation Connect the mouse to the “USB Host”...
Page 38: Connect Probe To The Oscilloscope
Figure 2-8 Mouse Cursor 2.10 Connect Probe to the Oscilloscope Connect the probe to the oscilloscope channel BNC connector. Connect the retractable tip on the probe to the circuit point or measured equipment. Be sure to connect the probe ground wire to the ground point of the circuit.
Page 39: Use Auto
Chapter 2. Quick Start Guide of Oscilloscope Maximum input voltage of the analog input Category I 300Vrms, 400Vpk. 2.11 Use Auto Once the oscilloscope is properly connected and a valid signal is input, tap the Auto Set button to quickly configure the oscilloscope to be the best display effects for the input signal.
Page 40 Source can be automatically triggered, and the triggered source channel can be automatically set to select priority to the current signal or to the maximum signal. Open the main menu. Tap “Auto” to open the auto set menu, including channel open/close setting, threshold voltage setting and trigger source setting.
Page 41 Chapter 2. Quick Start Guide of Oscilloscope Note: The application of Auto Set requires that the frequency of measured signal is no less than 20Hz, the duty ratio is greater than 1% and the amplitude is at least 2mVpp. If these parameter ranges are exceeded, Auto Set will fail. Figure 2-10 Auto Set Waveform...
Page 42 Auto Range - Continuously automatic, the oscilloscope continuously adjusts the vertical scale, horizontal time base and trigger level in a real-time manner according to the magnitude and frequency of signal. It is defaulted as off and needs to be opened in the menu. This function is mutually exclusive with “Auto Set”. Open the main menu and tap “Auto”...
Page 43 Chapter 2. Quick Start Guide of Oscilloscope Figure 2-11 Open Auto Range Auto Range is usually more useful than Auto Set under the following situations: It can analyze signals subject to dynamic changes. It can quickly view several continuous signals without adjusting the oscilloscope. This function is very useful if you need to use two probes at the same time, or if you can only use the probe with one hand because the other hand is full.
Page 44: Load Factory Settings
2.12 Load Factory Settings Open the main menu, tap “User Settings” to enter the user setting page. Tap “Factory Settings” and the dialog box for loading factory settings will pop-up. Press “OK” and load the factory settings. The dialog box for loading factory settings is shown in Figure 2-12.
Page 45: Passive Probe Compensation
Chapter 2. Quick Start Guide of Oscilloscope ⚫ Auto-calibration should be done without probe. ⚫ Auto-calibration process takes about two minutes. ⚫ If the temperature changes above 10℃, we recommended users perform the auto-calibration. 2.14 Passive Probe Compensation Before connecting to any channels, users should make a probe compensation to ensure the probe match the input channel.
Page 46 Connect the probe to the calibration output signal terminal and connect the probe ground to the ground terminal. As shown in Figure 2-13. Figure 2-13 Probe Connection Open the channel (if the channel is closed). Adjust the oscilloscope channel attenuation coefficient to match the probe attenuation ratio.
Page 47 Chapter 2. Quick Start Guide of Oscilloscope button or manually adjust the waveform vertical sensitivity and horizontal time base. Observe the shape of the waveform, see Figure 2-14. Figure 2-14 Probe Compensation If the waveform on the screen is shown as “under-compensation” or “over-compensation”, please adjust the trimmer capacitor until the waveform shown on the screen as “correct-compensation”.
Page 48 Figure 2-15 Probe Adjustment The safety ring on the probe provides a safe operating range. Fingers should not exceed the safety ring when using the probe, so as to avoid electric shock.
Page 49: Modify The Language
Chapter 2. Quick Start Guide of Oscilloscope Connect the probe to all other oscilloscope channels (Ch2 of a 2-channel oscilloscope, or Ch 2, 3 and 4 of a 4- channel oscilloscope). Repeat this step for each channel. Warning ⚫ Ensure the wire insulation is in good condition to avoid probe electric shock while measuring high voltage. ⚫...
Page 50: Chapter 3 Operate The Oscilloscope With Buttons
This chapter contains operating details of the oscilloscope with buttons. The button areas can be used to either operate oscilloscope without touch screen, or used with the touch screen. You are recommended to read this chapter carefully to understand the operation of buttons of the Smart series oscilloscope. ⚫ Function buttons ⚫...
Page 51 Chapter 3 Operate the Oscilloscope with Buttons Figure 3-1 Button Areas...
Page 52: Function Buttons
3.1 Function Buttons Auto on the right function button area to turn on the Auto Set function. Each time you press “Auto”, the oscilloscope can recognize the type of input signal and adjust the control mode. It automatically adjusts the vertical scale, horizontal scale and trigger settings.
Page 53: Multifunctional Area
Chapter 3 Operate the Oscilloscope with Buttons Note: Auto, Run/Stop and Single SEQ button functions can also be accessed by simply clicking on the menu options in the pull-up menu. 3.2 Multifunctional Area Menu opening and closing Press to open or close the main menu. Press to open or close the bottom menu.
Page 54: Cursor
“7.1 Press in the function area to open or close the automatic measurement menu. For details, please refer to Automatic Measurement” in Chapter 7. 3.3 Cursor To operate the cursor, must be on. ⚫ Cursor activation: Press to open the vertical cursor, and press open the horizontal cursor.
Page 55: Vertical System
Chapter 3 Operate the Oscilloscope with Buttons Adjust the horizontal position: In the horizontal adjustment area, turn the “Position” knob to move the waveform horizontal position of all analog channels. Press the “Position” knob to move the trigger position of all analog channels (current) to the center of the horizontal direction.
Page 56: Trigger System
Adjust the vertical position: Turn the “position” button to adjust the vertical position of the current channel. Press the “position” knob to move the current channel waveform to the vertical center of the screen. Menu switch: Press to open the current channel menu, turn the X knob to shuttle through the menu, press to select the menu and automatically enter the next menu.
Page 57 Chapter 3 Operate the Oscilloscope with Buttons Trigger source switching: Press to switch the trigger source; Adjust the trigger hold-off time: Open the trigger hold-off time adjustment frame, as shown in the figure below. Turn the “X” knob for coarse adjustment, and turn the “Y” knob for fine adjustment. Figure 3-2 Button Area Bus threshold level adjustment and switching: is on, and the adjusting and switching methods are the...
Page 58: Homepage, Screen Capture
3.7 Homepage, Screen Capture , switch to the oscilloscope homepage. For details, please refer to “Chapter 13 Homepage Home: Press Functions”. to enable the on-screen screen capture function of the oscilloscope. Click the screen Screen capture: Press capture option for the oscilloscope application. Note: The Home button function can also be accessed by simply clicking on the menu option in the pull-up menu.
Page 59 Chapter 3 Operate the Oscilloscope with Buttons Note: When the touch function is off, if you want to enter the homepage interface, the touch function will be automatically turned on. Quick save: is on, press to save all channel waveforms as reference waveforms and capture the current screen.
Page 60: Chapter 4 Horizontal System
Chapter 4 Horizontal System This chapter contains the detailed information of the horizontal system of the oscilloscope. You are recommended to read this chapter carefully to understand the set functions and operation of the horizontal system of the Smart series oscilloscope. ⚫...
Page 61 Chapter 4 Horizontal System Figure 4-1 Horizontal system...
Page 62: Move The Waveform Horizontally
4.1 Move the Waveform Horizontally Put one finger on the waveform display area to swipe left and right, for the coarse adjustment of the waveform position horizontally of all analog channels; after moving the waveform, tap the fine adjustment button in the lower left corner of the screen for fine adjustment.
Page 63: Adjust The Horizontal Time Base (Time/Div)
Chapter 4 Horizontal System 4.2 Adjust the Horizontal Time Base (time/div) Method 1: Soft Keys buttons to adjust the horizontal time base of all analog channels (current channels). Tap button to increase the horizontal time base; tap button to zoom out the horizontal time base (see Figure 4-3 Adjust the Horizontal Time Base).
Page 64 Figure 4-3 Adjust the Horizontal Time Base Method 2: Time Base Knob to open the time base list (see Figure 4-4 Horizontal Time Base List), then tap the list to select the appropriate time base. The time base with the blue filled background is the currently selected time base.
Page 65: Pan And Zoom Single Or Stopped Acquisitions
Chapter 4 Horizontal System Figure 4-4 Horizontal Time Base Knob 4.3 Pan and Zoom Single or Stopped Acquisitions After the oscilloscope is stopped, the stopped display screen may contain several acquired data with useful information, but only the data in the last acquisition can be horizontally moved and zoomed. The data of the single...
Page 66: Roll, Xy
acquisition or stopped acquisition is moved horizontally and zoomed. For details, refer to “4.1 Move the Waveform Horizontally” and “4.2 Adjust the Horizontal Time Base (time/div)”. 4.4 Roll, XY In the main menu, tap the soft key , then select the desired time base mode. The time base mode is divided into YT, ROLL, and XY.
Page 67 Chapter 4 Horizontal System In YT mode, the relative relationship between vertical voltage and horizontal time is displayed. Y axis represents the voltage, X axis represents the time, and the waveform is displayed after triggering (waveform displayed from left to right). Note: When the time base is large (such as 200ms and above), sometimes the waveform will not be displayed for a long time;...
Page 68 Figure 4-6 ROLL Mode In ROLL mode, press to stop waveform display; press again to clear waveform display and restart acquisition; press to execute single sequence, it will stop automatically after completing a full screen acquisition. ROLL mode is generally used to observe waveforms with frequencies below 5 Hz.
Page 69 Chapter 4 Horizontal System ROLL mode is defaulted as open. When the time base is greater than 100ms, it automatically enters the ROLL mode. If the signal to be triggered under a large time base needs to be viewed, turn off the ROLL mode. Roll mode on and off: In the main menu, tap the soft key .
Page 70 You can use XY mode to compare the frequency and phase relationship of two signals. XY mode can be used for sensors to display stress-displacement, flow-pressure, voltage-frequency or voltage- current, for example: plotting a diode curve. You can also use the cursor to measure the waveform in XY mode. Figure 4-8 XY Mode...
Page 71 Chapter 4 Horizontal System XY Mode Example This exercise shows the usual practice of XY display mode by measuring the phase difference between two signals of the same frequency using the Lissajous method. Connect sine wave signals to CH1 and connect sine wave signals of the same frequency and different phases to CH2.
Page 72 Figure 4-9 XY Time Base Mode Signal, Center on the Display Screen Tap the “Cursor” button to open the horizontal cursor. Set the cursor y2 at the top of the signal and the cursor y1 at the bottom of the signal. Record the Δy value in the upper right corner of the screen.
Page 73 Chapter 4 Horizontal System Figure 4-10 Phase Difference Measurement and Using the Cursor The following formula is used to calculate the phase difference. For example, if the first Δy value is 9.97V, the second Δy value is 5.72V: Error! Reference source was not found. ; phase difference error! Reference source was not found.
Page 74: Zoom Mode
4.5 Zoom Mode Zoom is a horizontally expanded version of the normal display. Open the zoom function, the display is divided into two parts (see Figure 4-11 Zoom Interface). The upper part of the display screen shows the normal display window view and the lower part shows the zoomed display window.
Page 75 Chapter 4 Horizontal System Zoom window view is the enlarged portion of the normal display window. You can use “Zoom” to view a portion of the normal window that is horizontally expanded to learn more about signal analysis. Zoom on/off: Open the pull-up menu and tap button to turn the zoom function on/off.
Page 76 Note: The minimum time base is displayed in the normal window when the waveform in the screen is exactly within the memory depth. If the current time base is smaller than the minimum time base in the normal window at the current memory depth, when the zoom window is opened, the time base in the normal window is automatically set to the minimum time base in the normal window at the current memory depth.
Page 77: Chapter 5 Vertical System
Chapter 5 Vertical System This chapter contains the detailed information of the vertical system of the oscilloscope. You are recommended to read this chapter carefully to understand the set functions and operation of the vertical system of the Smart series oscilloscope.
Page 78 The figure below shows the “CH1 Channel Menu” displayed after opening the CH1 channel menu. Figure 5-1 Channel Menu Display Interface The ground level of each displayed analog channel signal is indicated by the channel indicator icon on the far left of the display screen.
Page 79: Open/Close Waveform (Channel, Math, Reference Waveforms)
Chapter 5 Vertical System 5.1 Open/Close Waveform (Channel, Math, Reference Waveforms) The channel icons on the right side of the oscilloscope waveform display area (tap to switch to math channel and reference channel) correspond to the six channels of CH1, CH2, CH3, CH4, math function and reference channel.
Page 80 Figure 5-2 Current Channel and Non-Current Channel The display content of the oscilloscope channel display interface includes the sampling mode, vertical scale, vertical scale sensitivity button, probe ratio, bandwidth limitation, etc. of the channel, as shown in Figure 5-3.
Page 81 Chapter 5 Vertical System Figure 5-3 Channel Display Interface When CH1 is on, but the state is not the current channel, tap CH1 waveform or vertical sensitivity or channel indicator or vertical sensitivity button or current channel selection button to set CH1 as the current channel, as shown in Figure 5-4.
Page 82 Figure 5-4 Channel Open, Close and Switching...
Page 83 Chapter 5 Vertical System Figure 5-5 Using the Current Channel Selection Button Tap the current channel icon at the bottom of the screen to pop up the current channel switching menu and press the button to light it up, as shown in Figure 5-5. Tap the button in the menu to switch the current channel. When this function is opened:...
Page 84: Adjust Vertical Sensitivity
the current channel may be switched in the channel switching menu; the current channel menu can be moved anywhere on the screen; only the open channel is displayed in the channel switching menu; when the math or reference waveform is opened, the current channel switching menu is automatically opened. 5.2 Adjust Vertical Sensitivity Tap the vertical sensitivity buttons on the right side of the channel icon to adjust the vertical display of...
Page 85: Adjust Vertical Position
Chapter 5 Vertical System 5.3 Adjust Vertical Position The method of adjusting vertical position is as follows: Coarse adjustment: In the waveform display area, hold the waveform and put one finger to slide up and down for changing the vertical position of the waveform. Fine adjustment: After the waveform moves vertically, click the fine adjustment button in the lower left corner of the screen to fine adjust the vertical position of the waveform for the current channel.
Page 86: Set Channel Coupling
Figure 5-6 Channel Switching Icon and Menu 5.4.1 Set Channel Coupling Tap the icon under “Coupling Mode” and select “DC”, “AC” and “GND” channel coupling modes in the pop-up box.
Page 87 Chapter 5 Vertical System DC: DC coupling. Both the DC component and the AC component of the measured signal can pass, and can be used to view waveforms as low as 0 Hz without large DC offset. AC: AC coupling. Measured DC signal is blocked, and only the AC component can be allowed to pass, and used to view waveforms with large DC offsets.
Page 88 Figure 5-7 DC Coupling Figure 5-8 AC Coupling...
Page 89 Chapter 5 Vertical System Figure 5-9 GND Coupling Note: This setting is only valid for the current channel. To switch from the current channel, just tap the channel icon, channel indicator icon or horizontal position pointed by the channel indicator icon for direct switching. You do not need to exit the menu.
Page 90: Set Bandwidth Limit
5.4.2 Set Bandwidth Limit Open the channel menu, find the “Bandwidth” selection box in the channel menu, set bandwidth limit, high-pass filtering and low-pass filtering as needed. Full Bandwidth: Allows signals of all frequencies to pass. 20M Bandwidth: Only signals with frequencies below 20MHz are allowed to pass, and signals above 20MHz are effectively attenuated.
Page 91 Chapter 5 Vertical System The difference in bandwidth limitation can be visualized by the waveform. The full bandwidth is shown in Figure 5-10, the 20M bandwidth is shown in Figure 5-11, the high pass is shown in Figure 5-12, and the low pass is shown in Figure 5-13.
Page 92: Waveform Inversion
Figure 5-12 High Pass Figure 5-13 Low Pass 5.4.3 Waveform Inversion After selecting “Invert”, the voltage value of the displayed waveform is inverted. Inversion affects the way the channel is displayed. When using a basic trigger, you need to adjust the trigger level to keep the waveform stable.
Page 93: Set Probe Type
Chapter 5 Vertical System Figure 5-14 Before Inversion Figure 5-15 After Inversion 5.4.4 Set Probe Type Probe types are divided into voltage probe and current probe. Probe type adjustment steps: Open the channel menu, find the “Probe Type” checkbox in the channel menu, then select:...
Page 94: Set Probe Attenuation Coefficient
⚫ Vol - corresponding the voltage probe. ⚫ Cur - corresponding the current probe. 5.4.5 Set Probe Attenuation Coefficient When measuring with a probe, the correct measurement result can only be obtained by setting the correct probe attenuation ratio. In order to match the actual probe attenuation ratio, it is necessary to adjust the channel attenuation factor correspondingly under the channel menu.
Page 95 Chapter 5 Vertical System Probe attenuation ratio Probe attenuation ratio Probe attenuation ratio Probe attenuation ratio Menu attenuation ratio Menu attenuation ratio Menu attenuation ratio Menu attenuation ratio 0.001:1 0.1:1 100mx 10:1 1000:1 0.002:1 0.2:1 200mx 20:1 2000:1 0.005:1 0.5:1 500mx 50:1 5000:1...
Page 96: Vertical Expansion Reference
5.4.6 Vertical Expansion Reference When using vertical expansion, click the center or zero point. Center: Click the center, adjust the vertical scale, and the oscilloscope waveform is expanded with the screen center as reference Zero point: Click the zero point, adjust the vertical scale, and the oscilloscope waveform is expanded with the waveform zero point as reference.
Page 97: Chapter 6 Trigger System
Chapter 6 Trigger System This chapter contains the detailed information of the trigger system of the oscilloscope. You are recommended to read this chapter carefully to understand the set functions and operation of the trigger system of the Smart series oscilloscope.
Page 98: Trigger And Trigger Adjustment
6.1 Trigger and Trigger Adjustment What is Trigger? The oscilloscope can capture a waveform only when it meets a preset condition first. This action of capturing the waveform according to the condition is Trigger. The so-called capture waveform is that the oscilloscope grabs a signal and displays it.
Page 99 Chapter 6 Trigger System The oscilloscope can stably display a periodic signal. Figure 6-1 Stably Displayed Periodic Signal Figure 6-2 Non-Stably Displayed Periodic Signal...
Page 100 Grab the segment you want to observe from a fast and complex signal Figure 6-3 Abnormal Signal in Periodic Signals Figure 6-4 Abnormal Signal Captured by Setting Trigger Level...
Page 101 Chapter 6 Trigger System What is Forced Trigger? When the oscilloscope does not meet the trigger condition, the artificial or automatic oscilloscope trigger is the forced trigger. It means that the oscilloscope only grabs a signal segment for display regardless of whether the condition is met or not.
Page 102 Figure 6-5 Oscilloscope Trigger Mode Setting If a signal feature is not understood, the oscilloscope should be set as “Auto” mode, which can ensure that the oscilloscope can also display the waveform when other trigger settings are not correct. Although the waveform is not necessarily stable, it can provide the intuitive judgment for our further adjustment of the oscilloscope.
Page 103 Chapter 6 Trigger System When we set a specific trigger condition for a specific signal, especially when the time interval for satisfying the trigger condition is long, we need to set the trigger mode to “Normal” so as to prevent the oscilloscope from automatic forced trigger.
Page 104 messages. The number of delay ranges available (pre-trigger and post-trigger messages) depends on the selected time base and memory depth. Adjust trigger position (horizontal delay) Fingers swipe left and right in the waveform display area, the trigger point will move horizontally, the horizontal delay time changes, and the delay time is displayed at the top center of the screen, that is, the distance between the trigger point and the center line...
Page 105 Chapter 6 Trigger System When the trigger point is located on the left side to the center line of the waveform display area, the delay time is displayed as a positive value; When the trigger point is located on the right side to the time reference point , and the delay time is displayed as a negative value;...
Page 106 Figure 6-8 Trigger Level Adjust trigger level The trigger level can be coarsely adjusted and finely adjusted. Coarse adjustment: Slide up and down in the trigger level adjustment area.
Page 107 Chapter 6 Trigger System Fine adjustment: After moving the trigger level, tap the fine adjustment button in the lower left corner of the screen for fine adjustment of the trigger level. Note: Fine adjustment requires activation of the trigger level control function. Set trigger hold-off time The trigger hold-off time can set up the waiting time of the oscilloscope after the trigger and before the trigger circuit is reconnected.
Page 108 Hold-off Time Oscilloscope Trigger Position Figure 6-9 Trigger Hold-Off Time Set trigger hold-off time: Tap “Trigger” on the main menu to open the trigger menu. Under “Common”, tap the box after “Rejection Time” to open the hold-off time adjustment interface. The trigger time is displayed on the upper left, the fine adjustment time scale is displayed on the upper right, and the coarse time scale is displayed below, as shown in Figure 6-10.
Page 109 Chapter 6 Trigger System When adjusting the time, drag or tap the coarse adjustment scale for coarse adjustment, and then drag the fine adjustment scale for fine adjustment of the hold-off time. Trigger hold-off operation prompt It is typically used for complex waveforms. The correct rejection setting is usually slightly smaller than one repetition of the waveform.
Page 110: Edge Trigger
is displayed in the upper left corner of the screen before starting operations in the circuit (this means the pre-trigger buffer is filled). 6.2 Edge Trigger When the edge of trigger signal reaches a certain trigger level, the set signal is triggered and generated. Trigger occurs on either edge of the rising edge (indicating icon at the top of the screen), falling edge ( ) or dual edge ( ), and the trigger level can be set to change the vertical position of the trigger point on the trigger edge, namely...
Page 111 Chapter 6 Trigger System Set CH4 as trigger signal source Rising edge Set signal trigger on the rising edge Slope Falling edge Set signal trigger on the falling edge Dual edge Set signal trigger on either rising edge or falling edge AC and DC components getting through trigger signals Filter out the DC component of trigger signals HF rejection...
Page 112 ⚫ Trigger source: CH1; ⚫ Trigger coupling mode: DC; ⚫ Trigger edge: rising. Figure 6-11 Edge Trigger Setting Menu Adjust the trigger level to ensure that the waveform can be triggered stably, for example, the trigger level is set to 1V. Trigger coupling description When the edge trigger setup menu is opened, the trigger coupling option is displayed below the menu.
Page 113 Chapter 6 Trigger System Figure 6-12 Trigger Coupling Menu DC coupling - allows DC and AC signals to enter the trigger path. AC coupling - removes any DC offset voltage from the trigger waveform. When the waveform has a large DC offset, stable edge triggering can be achieved using AC coupling. HFRej.
Page 114: Pulse Width Trigger
When there is low frequency noise in the waveform, stable edge triggering can be obtained using LF rejection coupling. NoiseRej. (Noise Rejection Coupling) - Noise rejection can add extra hysteresis to the trigger circuit. By increasing the trigger hysteresis band, the possibility of noise triggering can be reduced. But it also reduces the trigger sensitivity, so triggering the oscilloscope requires a slightly larger signal.
Page 115 Chapter 6 Trigger System Description Trigger Option Setting Set CH3 as trigger signal source Set CH4 as trigger signal source Trigger on setting the positive pulse width of signals Positive Polarity Trigger on setting the negative pulse width of signals Negative Trigger when the signal pulse width is smaller than pulse width T ＜T...
Page 116 Tap “Trigger” on the main menu to open the trigger menu, select the pulse width trigger in the trigger type, and set the pulse width trigger as follows, as shown in Figure 6-13: ⚫ Trigger source: CH1; ⚫ Trigger pulse polarity: positive; ⚫...
Page 117 Chapter 6 Trigger System Figure 6-13 Pulse Width Trigger Setting Menu Pulse width trigger setting description: 1) Pulse polarity selection The selected pulse polarity icon is displayed in the upper right corner of the display screen. The positive pulse is higher than current trigger level (CH1 positive pulse indication icon ), and the negative pulse is...
Page 118 lower than current trigger level (CH1 negative pulse indication icon ). When triggered on positive polarity pulse, if the restrictions are true, the trigger will happen on the high-to-low transition of the pulse; when triggered on negative polarity pulse, if the restrictions are true, the trigger will happen on the low-to-high transition.
Page 119 Chapter 6 Trigger System Trigger condition and pulse width time setting Time restrictions that can set in the trigger condition: <, >, ＝, ≠. ⚫ Smaller than the time value (<) For example, for positive pulse, if it is set as T<80ns, the trigger will happen stably only when the pulse width is smaller than 80ns (Figure 6-15 Trigger Time T<80ns).
Page 120 Trigger Figure 6-16 Trigger Time T>80ns ⚫ Equal to the time value (=) For example, for positive pulse, if it is set as T=80ns, the trigger will happen stably only when the pulse width is equal to 80ns (Figure 6-17 Trigger Time T=80ns). Trigger Figure 6-17 Trigger Time T=80ns ⚫...
Page 121 Chapter 6 Trigger System For example, for positive pulse, if it is set as T≠80ns, the trigger will happen stably only when the pulse width is not equal to 80ns (Figure 6-18 Trigger Time T≠80ns). Trigger Figure 6-18 Trigger Time T≠80ns The trigger pulse width time can be set as 8ns~10s.
Page 122: Logic Trigger
6.4 Logic Trigger Trigger happens when the level between analog channels satisfies a certain logical operation (AND, OR, NAND, NOR) and the signal voltage reaches the set trigger level and the trigger logic width (8ns~10s). Logic trigger menu descriptions are shown in the table below: Trigger Option Setting Description...
Page 123 Chapter 6 Trigger System None Set CH3 as none High Set CH4 as high Set CH4 as low None Set CH4 as none Select the logic of trigger source as “AND” Select the logic of trigger source as “OR” Trigger Logic NAND Select the logic of trigger source as “NAND”...
Page 124 Logic trigger operation steps between channels: Tap “Trigger” on the main menu to open the trigger menu, select logic trigger in the trigger type, and set the logic trigger as follows, as shown in Figure 6-20: ⚫ Logic levels: CH1, CH3: High; CH2, CH4: Low; (without reference to the channel of logic operation, the level selection is None to avoid interference to the logic operation);...
Page 125 Chapter 6 Trigger System Logic trigger setting description: Logic level setting After trigger source, select High, Low and None for the channel. The corresponding trigger level value is displayed in the upper right corner of the display screen. High: means a value higher than the current trigger level, and the icon indication is “ ”.
Page 126 Figure 6-21 Trigger Level Adjustment Trigger pulse width time can be set as 8ns~10s.
Page 127: Nth Edge Trigger (Optional)
Chapter 6 Trigger System Tap the time setting box ( ) to pop up the time adjustment interface and adjust the logic time. Please refer to the Pulse Width Adjustment section for details. 6.5 Nth Edge Trigger (Optional) When the trigger signal is triggered on the Nth edge after the specified idle time, it is Nth edge trigger. Menu descriptions of the Nth edge trigger are shown in the table below: Trigger Option Setting...
Page 128 Trigger Option Setting Description Falling edge Set signal trigger on the falling edge Nth Edge 1~65535 Set trigger on Nth edge after idle time Set CH1 to trigger on the 5th rising edge after 500us. The steps are as follows: Tap “Trigger”...
Page 129 Chapter 6 Trigger System Figure 6-22 Nth Edge Trigger Menu Adjust the trigger level to ensure that the waveform can be triggered stably, for example the trigger level is set to 1.44V.
Page 130: Runt Trigger (Optional)
6.6 Runt Trigger (Optional) By setting the high and low thresholds, trigger on a pulse that cross one threshold but fail to cross a second threshold. There are two types available: positive short pulse and negative short pulse. Positive Short Pulse High Level Low Level Negative Short Pulse...
Page 131 Chapter 6 Trigger System Trigger Option Setting Description Set CH3 as trigger signal source Set CH4 as trigger signal source Set signal to trigger on positive runt pulse Positive Set signal to trigger on negative runt pulse Polarity Negative Set signal to trigger on either positive or negative runt pulse <T Trigger when the signal pulse width is smaller than pulse width T >T...
Page 132: Slope Trigger
Figure 6-24 Runt Trigger Setting Menu 6.7 Slope Trigger Slope Trigger means trigger when the waveform reaches a set time condition from one level to another. Positive slope time: Time takes for the waveform to go from low to high.
Page 133 Chapter 6 Trigger System Negative slope time: Time takes for the waveform to go from high to low. As shown in Figure 6-25 High Level Positive Slope Time Negative Slope Time Figure 6-25 Positive/Negative Slope Time When the trigger signal slope has the hold time (8ns~10s), the trigger type on the top of the screen is only the icon , and trigger happens when the set condition is reached.
Page 134 Trigger Option Setting Description Set CH3 as trigger signal source Set CH4 as trigger signal source Set trigger on positive signal slope Rising Set trigger on negative signal slope Edge Falling Set trigger on detecting a signal slope change <T Trigger when the signal slope hold time is smaller than T >T Trigger when the signal slope hold time is greater than T...
Page 135 Chapter 6 Trigger System Tap “Trigger” on the main menu to open the trigger menu, select the slope trigger in the trigger type, and set the slope trigger as follows, as shown in Figure 6-26: ⚫ Trigger source: CH1; ⚫ Edge: Rise; ⚫...
Page 136 Figure 6-26 Slope Trigger Setting Menu The slope hold time can be set as 8ns~10s. Note: A stable trigger waveform can only be obtained by selecting the channel to which signals are connected as trigger source.
Page 137: Timeout Trigger (Optional)
Chapter 6 Trigger System 6.8 Timeout Trigger (Optional) Timeout trigger happens when the time from the intersection of signal and trigger level and above (or below) the trigger level reaches the set time, as shown in Figure 6-27: Duration Set Level Figure 6-27 Timeout Trigger Schematics Timeout trigger menu descriptions are shown in the table below: Trigger...
Page 138 Set CH1 as trigger signal source Trigger Set CH2 as trigger signal source Source Set CH3 as trigger signal source Set CH4 as trigger signal source Select to count time when the rising edge of input signal gets through the Positive trigger level Select to count time when the falling edge of input signal gets through the...
Page 139 Chapter 6 Trigger System Tap “Trigger” on the main menu to open the trigger menu, select timeout trigger in the trigger type, and set the timeout trigger as follows, as shown in Figure 6-28: ⚫ Trigger source: CH1; ⚫ Edge: positive; ⚫...
Page 140: Video Trigger
Figure 6-28 Time-out Trigger 6.9 Video Trigger The triggering method for video signals depends on video formats. Generally, there are PAL/625, SECAM, NTSC/525, 720P, 1080I and 1080P formats. The video trigger can be triggered at different voltage scales, and the...
Page 141 Chapter 6 Trigger System appropriate voltage scale can be adjusted as needed to observe the waveform. The video trigger menu descriptions are shown in the table below: Trigger Setting Description Option Set CH1 as trigger signal source Trigger Set CH2 as trigger signal source Source Set CH3 as trigger signal source Set CH4 as trigger signal source...
Page 142 Trigger Setting Description Option 720P Base on 720P(50Hz, 60Hz) signal trigger 1080I Base on 1080I(50Hz, 60Hz) signal trigger Base on 1080P (24Hz, 25Hz, 30Hz, 50Hz, 60Hz) signal 1080P trigger Line Trigger lines Trigger on the rising edge of the first tooth pulse in odd Odd fields fields Trigger...
Page 143 Chapter 6 Trigger System Trigger Setting Description Option 625 line (PAL,SECAM) 263 odd line 262 even Trigger line (NTSC) Line Trigger on a specified line in odd or even fields 750 line (720P) 1125 line (1080I,1080P) Set CH1 as trigger channel, positive polarity, NTSC standard video, all fields trigger, and the steps are as follows: Tap “Trigger”...
Page 144 ⚫ Standard: 525/NTSC; ⚫ Trigger: All fields Adjust the trigger level to ensure that the waveform can be triggered stably. Figure 6-29 Video Trigger...
Page 145: Serial Bus Trigger
Chapter 6 Trigger System Prompts: ⚫ In order to better observe the waveform details in the video signal, first set the memory depth to be larger. ⚫ During the trigger debugging of the video signal, since the digital oscilloscope has multi-level gray scale display function, different brightness can reflect the frequency of different parts of the signal.
Page 146: Chapter 7 Analysis System
Chapter 7 Analysis System This chapter contains the detailed information of the analysis system of the oscilloscope. You are recommended to read this chapter carefully to understand the set functions and operation of the analysis system of the Smart series oscilloscope.
Page 147: Automatic Measurement
Chapter 7 Analysis System 7.1 Automatic Measurement Measurement setting Slide down from top, open the main menu, tap “Measure” to enter the measurement menu. There are 23 measurement items on the measurement menu. Measurement menu, selected measurement item display and measurement item display are shown in Figure 7-1:...
Page 148 Figure 7-1 Automatic Measurement Menu Automatic measurement Select channel: Select the channel to be measured above the measurement menu. Select measurement: Select the desired measurement item on the measurement menu. The selected measurement item is displayed in the “Selected Parameters” display area below.
Page 149 Chapter 7 Analysis System Press button on the key area to quickly close the measurement menu. Cancel measurement item: In the “Selected Parameters” display area below measurement menu, tap the measurement item to be cleared; or tap button to clear all measurement items. Note: Measurements and math functions will be recalculated when moving/zooming and opening/closing channels.
Page 150 Figure 7-2 Pull-up Menu Figure 7-3 All Measurements...
Page 151 Chapter 7 Analysis System Rise Time Fall Time Threshold Upper Limit Negative Pulse Positive Pulse Width Width Threshold Median Threshold Lower Limit Period Figure 7-4 Time Parameter Period Time of the first complete signal cycle in the waveform Frequency Reciprocal to the cycle time Rise time Time required for the first rising edge of the waveform to rise from the amplitude of 10% to 90%...
Page 152 Fall time Time required for the first falling edge of the waveform to rise from the amplitude of 10% to 90% Delay Time delay between rising or falling edges of channels may be measured, and there are nine effective measurement combinations Delay Figure 7-5 Delay Measurement Schematics...
Page 153 Chapter 7 Analysis System The left channel is defaulted as the current channel, and other channels can be selected by the channel area that has been opened (except the reference channel); there are four edge selections: first rising edge, first falling edge, last rising edge, last falling edge .
Page 154 Positive pulse width Measured value of the first positive pulse in the waveform, taking the time between two 50% amplitude points Negative pulse width Measured value of the first negative pulse in the waveform, taking the time between two 50% amplitude points Burst width Duration of a burst measured over the entire waveform Overshoot...
Page 155 Chapter 7 Analysis System Timing measurement. The amount of time that one waveform leads or lags another waveform, expressed in degrees where 360°comprises one waveform cycle. Period Delay Figure 7-6 Phase Measurement Schematics Peak-peak In the entire waveform measurement, peak-peak = max - min Amplitude In the entire waveform measurement, amplitude = high (100%) - low (0%) The figure below shows voltage measurement points.
Page 156 The channel probe type setting is used to set the measurement unit for each input channel to Volts or Amperes. Refer to “5.4.4 Set Probe Type”. Amplitude Peak-peak Figure 7-7 Voltage Measurement High Take 100% in the entire waveform, and calculated using either the min/max or histogram method. Take 0% in the entire waveform, and calculated using either the min/max or histogram method.
Page 157 Chapter 7 Analysis System Highest positive peak measured over the entire waveform Highest negative peak measured over the entire waveform True root mean square value over the entire waveform C RMS True root mean square value of the first cycle in the waveform Mean Arithmetic mean over the entire waveform C mean...
Page 158: Frequency Meter Measurement
Note: If the waveform required for measurement is not fully displayed on the screen, “Forward Clipping” or “Negative Clipping” is displayed at the position of the measured value. When the math function is operated, if source channel waveform is fully displayed, and the math waveform appears to be off the screen, the measured value of math waveform will not be influenced.
Page 159 Chapter 7 Analysis System Figure 7-8 Frequency Meter Measurement Menu Open Figure 7-9 Frequency Meter Measurement...
Page 160: Cursor
7.3 Cursor Open cursor and place it on the measurement point to read the waveform measurement value. There are two types of cursors: horizontal cursor and vertical cursor. The horizontal cursor measures the vertical direction magnitude, and the vertical cursor measures the horizontal direction magnitude, as shown in Figure 7-10.
Page 161 Chapter 7 Analysis System Figure 7-10 Cursor Measurement Description...
Page 162 Note: △ reading: indicates the difference between two cursor positions. Voltage readings after Y1, Y2: indicate the position of activated horizontal cursors relative to the zero potential. Time readings after X1, X2: indicate the position of activated vertical cursors relative to the trigger point. 1/△X: frequency S reading.
Page 163 Chapter 7 Analysis System Tap the vertical cursor indicator line to switch the cursors. Figure 7-11 Open Cursor Selection Box and Close Cursor Vertical cursor movement descriptions:...
Page 164 Use a single finger to press and hold the cursor indicator line on the screen to make coarse adjustment to the cursor; tap the fine adjustment button in the lower left corner of the screen to fine-adjust the cursor that has just been adjusted.
Page 165 Chapter 7 Analysis System When vertical cursors are activated, the two cursors move together to check for pulse width changes in the pulse sequence. Figure 7-12 Cursor Measurement Pulse Width Figure 7-13 In XY Mode, Cursor Measurement In the XY horizontal mode, X cursor displays CH1 value (V or A), and Y cursor displays CH2 value (V or A).
Page 166: Chapter 8 Screen Capture, Memory Depth And Waveform Storage
Chapter 8 Screen Capture, Memory Depth and Waveform Storage This chapter contains the detailed information of the screen capture function and memory depth of the oscilloscope. You are recommended to read this chapter carefully to understand the storage system of the Smart series oscilloscope.
Page 167: Screen Capture Function
Chapter 8 Screen Capture, Memory Depth and Waveform Storage 8.1 Screen Capture Function The screen capture function can locally store the display information on the current display screen in picture format. Screen capture method: Slide upward from bottom to open pull-up menu. Tap the icon to have a screen capture in the oscilloscope application.
Page 168 Figure 8-1 Screen Capture Please refer to “13.6 Picture View” for details on viewing pictures.
Page 169: Video Recording
Chapter 8 Screen Capture, Memory Depth and Waveform Storage 8.2 Video Recording The video recording function is similar to the screen capture function, and the display information of the current display screen can be stored locally in video format. Video recording method is sliding down from top in non-oscilloscope application, open pull-down menu, tap the screen to start recording, and count down to three seconds to complete the video recording, as shown in Figure 8-2.
Page 170: Waveform Storage
Figure 8-2 Video Recording Method Figure 8-3 Video Recording Please refer to “13.7 Gallery” for details of viewing videos. 8.3 Waveform Storage The oscilloscope can save the analog channel or math channel waveform locally or in USB device. The file type can be WAV, CSV or BIN.
Page 171 Chapter 8 Screen Capture, Memory Depth and Waveform Storage The oscilloscope provides four reference channels, which can be called to load WAV format files into the reference channel and open the reference channel to display the reference waveform. Save reference file Slide down from top, open main menu and tap to open the menu.
Page 172 Figure 8-4 Save CH1 Reference Waveform Interface Location: Stored locally and in USB device. File types: WAV, CSV, and BIN.
Page 173 Chapter 8 Screen Capture, Memory Depth and Waveform Storage File name: The initial file name is displayed as year + month + day + storage serial number. Press the file name box to pop up the virtual keyboard, tap “Backspace” to delete the file name, and use the virtual keyboard to rename the file.
Page 174 In the main menu, tap to enter the save menu. In the Save menu, tap to open the Save Reference Waveform menu and make the following settings: ⚫ Storage location: locally. ⚫ Selecting the file type: WAV. ⚫ Entering the file name: CH1. Tap “Save”...
Page 175 Chapter 8 Screen Capture, Memory Depth and Waveform Storage as Ref* in the reference channel (* is the corresponding reference channel name). Reference waveform files saved by this method will be overwritten after loading other reference waveforms and cannot be restored. Method 3: Click “Quick Save”...
Page 176 Figure 8-5 Delete Reference Files CSV files CSV file structure...
Page 177 Chapter 8 Screen Capture, Memory Depth and Waveform Storage CSV format contains the basic information of the saved data: save time, file name, data length, sampling interval, trigger time, source, vertical scale, vertical offset, vertical accuracy, horizontal time base, horizontal accuracy, probe multiples.
Page 178 to display 140K times of sampling using 600-pixel columns. The oscilloscope extracts 140K samples into 600-pixel columns, and this extraction will track Min and Max values of all points represented by any given column. These Min and Max values will be displayed in this screen column. The similar process is applied to reduce sampled data and produce records that can be used to perform various analyses, such as measurements and CSV data.
Page 179: Chapter 9 Math And Reference
This chapter contains the detailed information of the MATH operation and reference channel of the oscilloscope. You are recommended to read this chapter carefully to understand the setting functions and operations of the MATH and reference channels of the Smart series oscilloscope. ⚫ Dual waveform calculation ⚫...
Page 180: Dual Waveform Calculation
9.1 Dual Waveform Calculation Figure 9-1 MATH Channel Waveform Display math waveform on the lower right corner of the screen to enter the second channel selection area. Tap the soft key open the math channel. After the math waveform is opened, the current channel selector is automatically opened.
Page 181 Chapter 9 MATH and Reference Tap the math channel icon, open the math channel, and tap again to open the math channel menu. While opening math for the first time, the math operation is defaulted as the dual channel calculation. Math operation prompt If the analog channel or math function is clipped (not fully displayed on the screen), the resulting math function will also be clipped.
Page 182 For details of movement, vertical sensitivity adjustment, time base adjustment and vertical expansion reference of the math channel, please refer to “Chapter 4 Horizontal System” and “Chapter 5 Vertical System”. The vertical sensitivity, unit and time base corresponding to the math waveform are displayed in the channel area of the math channel.
Page 183 Chapter 9 MATH and Reference Note: If the units of two operation source channels are different and the unit combination cannot be identified, the unit of math function will be displayed as? (undefined). Math operators Math operators perform arithmetic operations on the analog input channels. Addition or subtraction If addition or subtraction is selected, the values of function sources 1 and 2 will be added or subtracted point by point and the results will be displayed.
Page 184 Figure 9-2 Mathematical Operation of CH1 adding CH2 Multiplication or division When multiplication or division is selected, the values of function sources 1 and 2 values will be multiplied or divided point by point and the results will be displayed. Multiplication is useful when viewing the power relationship, if one of the channels is proportional to the current.
Page 185: Fft Measurement
Chapter 9 MATH and Reference 9.2 FFT Measurement FFT is used to calculate the Fast Fourier Transform using the analog input channel. FFT record specifies the digitization time of the source and converts it to the frequency domain. After selecting the FFT function, FFT spectrum is plotted as amplitude in V-Hz or dB-Hz on the oscilloscope display screen.
Page 186 Open FFT on the lower right corner of the screen to enter the second channel selection area. Tap the soft key to cycle through the math channel, open the math channel menu, and close the math channel. spectrum type “Line/Decibel” to open the FFT window (see Figure 9-3 FFT Window). Tap the Operation Source box to select the channel for which FFT transform is required.
Page 187 Chapter 9 MATH and Reference ⚫ Rectangular window This is the best window type for resolution frequencies that are very close to the same value, but this type is the least effective at accurately measuring the amplitude of these frequencies. It is the best type of measuring the spectrum of non-repetitive signals and measuring the frequency component close to DC.
Page 188 ⚫ Hanning window This is the best window type for measuring amplitude accuracy but less effective for resolving frequencies. Use Hanning to measure sinusoidal, periodic, and narrowband random noises. This window is used for measuring transients or bursts of signal levels before or after events with significant differences. ⚫...
Page 189 Chapter 9 MATH and Reference different, resulting in high-frequency transient interruption at the junction. In the frequency domain, this effect is called leakage. Therefore, to avoid leakage, the original waveform is multiplied by a window function, forcing the values at the beginning and at the end to be zero. Note: Signals with DC components or deviations can cause errors or deviations in the FFT waveform components.
Page 190 Figure 9-4 Spectrum Amplitude as V-Hz Adjust FFT waveforms Waveform position...
Page 191 Chapter 9 MATH and Reference ⚫ Select math channel as the current channel. After touching math waveform on the screen with one finger, adjust the waveform display position by dragging upward and downward, leftward and rightward, or tap the fine adjustment button in the lower left corner of the screen for fine adjustment ⚫...
Page 192: Reference Waveform Call
Vertical sensitivity on the right side of the screen to set the vertical sensitivity (V/div or dB/div) for the channel so that waveform is displayed on the screen at an appropriate size. The vertical sensitivity factor is stepped in 1-2-5 (using 1:1 probe).
Page 193 Chapter 9 MATH and Reference Figure 9-5 Reference Channel Menu When there are already waveforms loaded into the reference channel, click “Open/Close” button to open or close the reference channel; the reference waveform is displayed in blue-violet, and the four stored waveforms can be displayed simultaneously, wherein the current reference waveform is brighter than non-current reference waveforms.
Page 194 Take R1 as an example, with operation steps as follows: to open the reference menu. Tap the “Call” file box under R1 to open the reference file column. Click the name of the reference waveform file to be called. The file is loaded into R1 channel. Then, R1 channel is turned on as the current channel waveform, and the reference waveform channel icon highlighted.
Page 195 Chapter 9 MATH and Reference Figure 9-6 Restore Reference Waveform Close the reference waveform: In the reference menu, tap “Open/Close” button in R1 to close the reference waveform. Repeat step 1 to close other reference channels. When all reference waveform channels are closed, the reference waveform channel icon becomes gray.
Page 196 to turn off all reference waveforms. Reference waveform movement and time base adjustment The horizontal or vertical movement and zoom of reference waveforms are independent of analog channels, and the adjustments among different reference waveform channels are also independent of each other. To adjust the reference waveform of a channel, first set the channel as the current channel, and then adjust the reference waveform by move or zoom (in accordance with the analog channel method).
Page 197: Chapter 10 Display Settings
This chapter contains the detailed information of the display settings and function buttons of the oscilloscope. You are recommended to read this chapter carefully to understand the display setting functions and operations of the Smart series oscilloscope. ⚫ Waveform setting ⚫...
Page 198 In the main menu, tap button to enter display settings menu, as shown in Figure 10-1. Figure 10-1 Display Settings and Function Buttons...
Page 199: Waveform Settings
Chapter 10 Display Settings 10.1 Waveform Settings Open the display menu, tap button to open the waveform display menu. This menu is used to set the display mode and brightness of waveform. The waveform display mode is divided into two types: dots and vectors. The waveform brightness percentage is adjustable, and the waveform display setting is shown in Figure 10-2.
Page 200: Persistence Setting
Figure 10-3 Graticule Menu Display 10.3 Persistence Setting Open the display menu and tap key to open the persistence settings menu. 1) Persistence setting In the persistence setting menu, select: ⚫ None: None - no persistence. ⚫ Auto: Auto — automatic persistence.
Page 201 Chapter 10 Display Settings ⚫ Normal: Normal - set the persistence time — After selecting the variable persistence, tap the box on the right of “Adjust” to pop up the persistence time selection box (Figure 10-4) and set the persistence time. It can be set between 10ms and 10s.
Page 202 Figure 10-4 20MHz Sine Wave Variable Persistence 500ms 2) Erase persistence To erase the previously acquired results from the display, tap key or adjust the horizontal time base and vertical sensitivity. The oscilloscope will erase the persistence display and start the cumulative acquisition again.
Page 203: Horizontal Expansion Center
Chapter 10 Display Settings 10.4 Horizontal Expansion Center Horizontal expansion is divided into two types: screen center and trigger position: Screen center Select to adjust the time base waveform to expand or contract toward both sides with the screen center as the base point, and the delay time does not change.
Page 204: Time Base Mode Selection
Figure 10-5 Color Temperature Open Mode 10.6 Time Base Mode Selection “4.4 ROLL, For details, please refer to XY“ in Chapter 4.
Page 205: Chapter 11 Sampling System
Chapter 11 Sampling System This chapter contains the detailed information of the sampling system of the oscilloscope. You are recommended to read this chapter carefully to understand the setting and operation of the sampling system of the Smart series oscilloscope.
Page 206: Sampling Overview
11.1 Sampling Overview To understand the sampling and sampling modes of the oscilloscope, you need to understand the sampling principle, aliasing, oscilloscope bandwidth and sampling rate, oscilloscope rise time, required oscilloscope bandwidth, and the influence of memory depth on the sampling rate. Sampling principle According to the Nyquist sampling principle, for a bandwidth-limited signal with the maximum frequency f , the...
Page 207 Chapter 11 Sampling System Figure 11-1 Aliasing Oscilloscope bandwidth and sampling rate The oscilloscope bandwidth usually refers to the lowest frequency at which the input signal sine wave is attenuated by 3dB (-30% amplitude error). For oscilloscope bandwidth, according to the sampling principle, the required sampling rate is f .
Page 208 Frequency Figure 11-2 Theoretical Brick-Wall Frequency Response However, digital signals have frequency components that exceed the fundamental frequency (the square wave consists of sine waves at fundamental frequency and an infinite number of odd harmonics), and for bandwidths of 500MHz and below, the oscilloscope typically has Gaussian frequency response.
Page 209 Chapter 11 Sampling System Aliasing Frequency Figure 11-3 Sampling Rate and Oscilloscope Bandwidth The oscilloscope bandwidth is limited to 1/4 sampling frequency and reduces the frequency response above the Nyquist frequency. ≥4f Therefore, in fact, the oscilloscope sampling rate should be 4 times or more of its bandwidth: f .
Page 210 Oscilloscope rise time The oscilloscope rise time is closely related to its bandwidth. The rise time of an oscilloscope with Gaussian type frequency response is approximately 0.35/f (based on the standard from 10% to 90%). The oscilloscope rise time is not the fastest edge speed that an oscilloscope can accurately measure. It is the fastest edge speed that the oscilloscope can produce.
Page 211 Chapter 11 Sampling System According to Dr. Howard W. Johnson’s book “High-Speed Digital Design–A Handbook of Black Magic”, all fast edges have wirelessly continuous frequency components. However, there is a turning point (or “inflection point”) in the fast edge spectrum at which frequency components above f are negligible in determining the knee signal shape.
Page 212: Run/Stop Key And Single Seq Key
=1.9xf knee Figure 11-4 Bandwidth Corresponding to Oscilloscope Measurement Accuracy 11.2 Run/Stop Key and Single SEQ Key Use softkeys in the button area to start and stop the oscilloscope acquisition system: Run/Stop button Single Sequence Acquisition button. ⚫ When the Run/Stop button is displayed in green, it indicates that the oscilloscope is running, that is, it meets the trigger condition and data acquisition is being performed.
Page 213: Select Sampling Mode
Chapter 11 Sampling System To resume data acquisition, press the Run/Stop button again. ⚫ To capture and display single acquisition (whether the oscilloscope is running or stopped), tap the single sequence key for a single acquisition. 11.3 Select Sampling Mode Open the main menu, tap the sampling mode option under “Sampling”, and choose among the four sampling modes: normal, average, peak and envelope in the pop-up box.
Page 214 This mode produces the best display effects for most waveforms. Peak sampling mode In peak sampling mode, when the horizontal time base setting is low, the minimum and maximum sample values are retained to capture rare events and narrow events (with any noise expanded). This mode will display all pulses that are at least as wide as the sampling period.
Page 215 Chapter 11 Sampling System Figure 11-5 Sine Wave with Burr Figure 11-6 Sine Wave with Burr Normal Sampling Mode Peak Sampling Mode...
Page 216 Use peak detection mode to find burrs Connect signal to the oscilloscope to be stably displayed. To find burr, select the peak sampling mode in Sampling Mode option in the Channel menu. In the menu, tap “Display” → “Persistence”, then tap “∞” (infinite persistence). The oscilloscope will restart sampling data and display them on the screen.
Page 217 Chapter 11 Sampling System The average number can be set in the selection box after the average sampling mode, and can be set to eight order of magnitudes: 2, 4, 8, 16, 32, 64, 128 and 256. The higher the average number is, the slower the response of the displayed waveform-to-waveform changes. A compromise must be made between the response speed of waveform versus the changes and the degree of noise reduction shown on the signal.
Page 218 Figure 11-7 Waveform after choosing the average sampling mode, with average number 32 Envelope sampling mode In the envelope sampling mode, the superposition effect of several sampled waveforms can be observed. The maximum and minimum values of one signal can be captured in the specified N sample data, and the number of waveform superpositions can be set to 2, 4 , 8, 16, 32, 64, 128, 256 or ∞.
Page 219: Record Length And Sampling Rate
Chapter 11 Sampling System Figure 11-8 AM Signal in Envelope Sampling Mode (32) 11.4 Record Length and Sampling Rate The record length is the data volume for each captured waveform. For example, if the record length is 700K, it means that 700K sample points are captured by one trigger.
Page 220 In the main menu, tap to enter the record length setting menu, which can be set by tapping the corresponding record length. Figure 11-9 Record Length In normal refresh mode, if it is a single channel, the record length can be set to 14k, 140k, 1.4M, 14M, 28M, Auto; if it is dual channel, the record length can be set to 7k, 70k, 0.7M, 7M, 14M, Auto;...
Page 221 Or, if the memory depth is 140K (fixed value), the sampling rate is 1GSa/s, and the horizontal time base is 1us, the acquisition time is 140us, which is 10 times of the current display time on the entire screen. For a single channel in a channel pair, the maximum sampling rate of the Smart Series oscilloscope is 1GSa/s.
Page 222 If any two channels are opened, the sampling rate of the two channels will halved. For example, when CH1 and CH3 are opened, the sampling rates of CH1 and CH3 are both 500 MSa/s. If any three channels or all four channels are opened, the sampling rate per channel will become 1/4 of the maximum sampling rate.
Page 223: Chapter 12 Serial Bus Trigger And Decode (Optional)
Chapter 12 Serial Bus Trigger and Decode (Optional) Chapter 12 Serial Bus Trigger and Decode (Optional) This chapter contains the detailed information of serial bus decoding. You are recommended to read this chapter carefully to understand the setting and operation of Smart bus trigger and decode. This chapter mainly include the below contents: ⚫...
Page 224 Press in the lower right corner to switch to decode channels , tap to enable decoding, open bus configuration menu, select bus type, there are seven bus types: UART (RS232/RS422/RS485), LIN, CAN, SPI, I2C, ARINC429, 1553B, where channels can be used for decoding simultaneously. Open the trigger setting menu, choose an appropriate trigger type, the corresponding bus trigger type and trigger mode can be set when the bus trigger is selected, and the serial bus is displayed in graphic form.
Page 225 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-1 Bus Type Selection Menu Open the pull-up menu and tap key to open or close the text mode, as shown in Figure 12-2.
Page 226 Figure 12-2 Bus Decode Text Mode Description: Two decode channels S1&S2 in the text interface must be configured identically to be opened, and each channel is displayed in chronological order with different colors;...
Page 227 Chapter 12 Serial Bus Trigger and Decode (Optional) S1/S2/S1&S2 are the channel configuration bus information, and X knob is rotated or the label is switched to change the bus channel; Clicking save during the text acquisition process can save all currently acquired data. If the date volume is too large, “wait”...
Page 228: Uart (Rs232/Rs422/Rs485) Bus Trigger And Decode
12.1 UART (RS232/RS422/RS485) Bus Trigger and Decode For correctly decoding UART(RS232/RS422/RS485) bus data and making trigger stable, the bus configuration, trigger mode setting and trigger level need to be adjusted. ⚫ Bus configuration to open the bus configuration menu, as shown in Figure 12-4. The RX channel must be chosen and the following parameters must be set according to measured signals: Idle Level —...
Page 229 Chapter 12 Serial Bus Trigger and Decode (Optional) Baud Rate — Choose the baud rate that matches signal in measured equipment. The baud rate can be set within the range from 1.2Kb/S to 8.000Mb/S. Bus Display — Choose hexadecimal, binary or ASCII code display. Figure 12-4 UART Bus Configuration Menu...
Page 230 When word is displayed in ASCII, 7-bit ASCII format is used. Valid ASCII characters are between 0x00 and 0x7F. To display in ASCII, at least 7 bits in the “Bus Configuration” must be chosen. If ASCII is chosen and the data exceeds 0x7F, the data will be displayed in hexadecimal.
Page 231 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-5 Baud Rate Default Setting Note: When there is parity bit, the data word length indicates the total length of data bit plus parity bit. When there is no parity bit, the data word length is considered to be the length of data bit. For example, if the data word length is 8bit, when there is no parity bit, it means that the total length of data bits is 8bit;...
Page 232 ⚫ Trigger mode Open the trigger configuration menu and select the appropriate trigger type; when choosing UART bus trigger, the trigger type, trigger relationship and trigger data need to be set, as shown in Figure 12-6: Figure 12-6 Trigger Setting Menu After selecting the trigger data, use the pop-up virtual keyboard to modify it, enter the value, and click “Enter”...
Page 233 Chapter 12 Serial Bus Trigger and Decode (Optional) Stop bit — trigger at the stop bit of the measured signal, no matter the measured signal uses 1, 1.5, or 2 stop bits or not, the trigger will occur at the first stop bit. [data] —...
Page 234 ⚫ UART serial decode The measured signal word length is 8bit; parity bit, none; baud rate, 19.2kb/s, hexadecimal; trigger mode as data bit:55; follow the steps as below: (1) Tap S1 to open the decode channel, and click S1 again to open the bus configuration menu; (2) Select the bus type as “UART”, click “Ch1”, “Idle High”, “Parity None”, “8bit”, “19.20kb/s”, display “hexadecimal”, then close menu;...
Page 235 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-7 UART Decode Level Adjustment Method 2: Brighten , turn the “Level” knob to adjust the threshold level, and press switch the trigger source.
Page 236 Figure 12-8 UART Graphic Interface UART graphic interface description: (1) Trigger position (2) Trigger type...
Page 237 Chapter 12 Serial Bus Trigger and Decode (Optional) (3) Threshold level (4) Configuration information (5) Decode the data packet, detailed as follows (6) Decode data and the corresponding waveform area (7) Signal source Ch1 UART decode data packet description: (1) Decode data packet displays real-time data about the bus activities; (2) Decode data displays as hexadecimal system in white;...
Page 238 (5) When “?” appears, the time base needs to be adjusted to view decode results. Figure 12-9 UART Text Interface UART text interface description, see Figure12-9: (1) S1/S2/S1&S2 is channel configuration bus information.
Page 239: Lin Bus Trigger And Decode
Chapter 12 Serial Bus Trigger and Decode (Optional) (2) Area for decode data. (3) ASCII code corresponding to the text data (when the data format is 9 bits and there is no parity bit, ASCII code corresponds to lower 8 bits of data on the left side). (4) Counter: Calculates the total number of frames and the percentage of ERR (parity error and stop bit error) frames.
Page 240 ⚫ Bus configuration Press to open the bus configuration menu, and the following need to be set according to measured signal: Source — Select the signal source of decode. Idle Level - high and low. Select whether to display high active or low active after the signal start bit of measured equipment.
Page 241 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-10 LIN Bus Configuration Menu ⚫ Trigger mode Open the trigger configuration menu and select the appropriate trigger type. When the LIN bus trigger is selected, the trigger mode includes: synchronous rising edge, frame ID, frame ID and data. See Figure 12-11:...
Page 242 Figure 12-11 LIN Trigger Mode Configuration Menu Synchronous rising edge – When the “Sync Interval” of LIN bus ends, the rising edge triggers. Frame ID — Triggered when a frame with an ID equal to the set value is detected. Select “Frame ID”, click data on the touch screen, and use the pop-up virtual keyboard to modify it.
Page 243 Chapter 12 Serial Bus Trigger and Decode (Optional) (1) Tap S1 to open the decode channel, and click again to open the bus configuration menu; (2) Select the bus type as “LIN”, click “Ch1”, “Idle High”, “19.20kb/s”, and then close the menu; (3) Open the trigger mode configuration menu and click “Synchronous Rising Edge”;...
Page 244 Figure 12-12 LIN Graphic Interface LIN decode data packet description: (1) Decode data packet displays real-time data about the bus activities. (2) Decode data displays as hexadecimal system.
Page 245 Chapter 12 Serial Bus Trigger and Decode (Optional) (3) “Frame ID” displays in yellow, “Data” displays in white, and “Parity sum” displays in green. If the parity sum has error, it is displayed in red “E”. (4) When “?” appears, the time base needs to be adjusted to view decode results. Figure 12-13 LIN Text Interface LIN text interface description, as shown in Figure 12-13:...
Page 246 “Ch”: bus channel. “Time”: Time intervals between the last frames to current frames. “ID”: Frame ID value. “Data”: Frame data. “Parity sum”: Frame parity sum, the sum of parity error displays in red. “Trigger”: “Yes” means the frame reaches trigger condition. “Clear”: Clear counter data.
Page 247: Can Bus Trigger And Decode
Chapter 12 Serial Bus Trigger and Decode (Optional) 12.3 CAN Bus Trigger and Decode For correctly decoding CAN bus data and making trigger stable, the bus configuration, trigger mode set and trigger level need to be adjusted. ⚫ Bus configuration to open the bus configuration menu, the signal source needs to be set, and the signal type and baud rate are set according to measured signal;...
Page 248 Figure 12-14 CAN Bus Configuration Menu ⚫ Trigger mode Open the trigger configuration menu and select the appropriate trigger type; when S1 CAN bus trigger is selected, as shown in Figure 12-15:...
Page 249 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-15 CAN Trigger Mode Configuration Menu Trigger mode selection menu description: Frame start — trigger at the start of the frame; Remote frame ID — setting the ID matches the remote frame trigger. After selecting the “Remote Frame ID”, and then set the ID value at the bottom of the trigger data area Operation description: Press the numbers on the touch screen and use the virtual keyboard to set;...
Page 250 Remote frame/data frame ID — trigger on remote frame or data frame that matches set ID. Remote frame/data frame ID configuration is the same as the remote data frame ID configuration; Data frame ID and data ID — trigger on data frame that matches set ID and data. The configuration method is the same as the remote frame ID configuration;...
Page 251 Chapter 12 Serial Bus Trigger and Decode (Optional) (2) Select the bus type as “CAN”, and then click “Ch1”, “Idle High” and “1Mb/s”. After setting, click the blank area to close the menu; (3) Open the trigger mode configuration menu and click “Frame Start”; (4) Adjust the threshold level according to the signal amplitude;...
Page 252 CAN decode data packet description: (1) Decode data packet displays real-time data about the bus activities. (2) Decode data displays as hexadecimal system. (3) “Frame ID” displays in yellow, “Data” displays in white, and “DLC” and “ CRC” codes display in green. If there is frame error, it is displayed in red “E”.
Page 253 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-17 CAN Text Interface CAN text interface description, as shown in Figure 12-17: “Ch”: bus channel. “Time”: Time intervals between the last frames to current frames. “ID”: CAN frame ID value displayed in hexadecimal, maximum 29 bits.
Page 254: Spi Bus Trigger And Decode
“Type”: Frame type, “SFF” standard data frame, “SRF” standard remote frame, “EFF” extended data frame, “ERF” extended remote frame. “DLC”: Number of data bytes sent by this frame. This value can be ignored for remote frames. “Data”: Frame data. “CRC”: Frame CRC check code. “Error”: Response error, bit stuffing error, format error, CRC error.
Page 255 Chapter 12 Serial Bus Trigger and Decode (Optional) to open the bus configuration menu, the following need to be set: Clock source, data source, chip select signal, and data word length, as shown in Figure 12-18: Figure 12-18 SPI Bus Configuration Menu ⚫...
Page 256 Open the trigger configuration menu and select the appropriate trigger type; when selecting the SPI bus trigger, as shown in Figure 12-19: Figure 12-19 SPI Trigger Mode Configuration Menu The operation method is the same as CAN frame ID to be matched in the configuration, and will not be repeated here.
Page 257 Chapter 12 Serial Bus Trigger and Decode (Optional) ⚫ SPI serial bus The measured signal channel Ch1 is connected to CLK, Ch2 channel is connected to DATA, the bus idle state is high, the clock rising edge is sampled; the data word length is 4 bits; the CS chip select is off; the trigger mode matches the “Data”...
Page 258 Figure 12-20 SPI Graphic Interface SPI decode data packet description: (1) Decode data packet displays real-time data about the bus activities. (2) Decode data displays as hexadecimal system.
Page 259 Chapter 12 Serial Bus Trigger and Decode (Optional) (3) Data displays in white. (4) When “?” appears, the time base needs to be adjusted to view decode results. Figure 12-21 SPI Text Interface SPI text interface description, as shown in Figure 12-21:...
Page 260 “Ch”: bus channel. “Time”: Time intervals between the last frames to current frames. “Data”: According to the data word length setting, the decode data is displayed. For example, if the data word length is 8bit, only one byte displays in the data column; if the data word length is 16bit, 2 bytes display in the data column;...
Page 261: I2C Bus Trigger And Decode
Chapter 12 Serial Bus Trigger and Decode (Optional) 12.5 I2C Bus Trigger and Decode For correctly decoding I2C bus data and making trigger stable, the bus configuration, trigger mode set and trigger level need to be adjusted. ⚫ Bus configuration to open the bus configuration menu, Bus configuration includes the serial clock (SCL) and the serial data (SDA) corresponding to the channel settings.
Page 262 Figure 12-22 I2C Bus Configuration Menu Notes: When SCL or SDA channel is set, the system will automatically set other channels. ⚫ Trigger mode Open the trigger configuration menu and select the appropriate trigger type. When the I2C bus trigger is selected, click the trigger type and relationship on the screen, as shown in Figure 12-23:...
Page 263 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-23 I2C Trigger Mode Configuration Menu Trigger mode menu description: Start condition — trigger when SCL is high and SDA has a falling edge (includes restart). Stop condition — trigger when SCL is high and SDA has a rising edge. Ack Loss —...
Page 264 Frame Type 1 - Start + Address 7 + Read/Write + Acknowledge + Data; if all bits in the frame type match, trigger on read/write frames in 7-bit addressing mode on the 17th clock edge. Frame type 1 operation method: Select values after the address/data, click values after the address/data on the touch screen, and modify them on the pop-up virtual soft keyboard.
Page 265 Chapter 12 Serial Bus Trigger and Decode (Optional) Trigger mode is start condition, SCL connect to Ch2, SDA connect to Ch1, follow these steps as below: (1) Tap S1 to open the decode channel, and click S1 again to open the bus configuration menu; (2) Select the bus type as “I2C”, open the bus setting menu, and select the clock SCL as Ch2 channel;...
Page 266 Figure 12-24 I2C Graphic Interface I2C decode data packet description: (1) Decode data packet displays real-time data about the bus activities. (2) Decode data displays as hexadecimal system.
Page 267 Chapter 12 Serial Bus Trigger and Decode (Optional) (3) Address content display: Read address displays in green, write address displays in yellow, and data displays in white. “W” denotes write operation, “R” denotes read operation, “D” denotes decode data, and “~A” denotes no Ack bit.
Page 268 I2C text interface description, as shown in Figure 12-25: “Ch”: bus channel. “Time”: intervals between the last read/write operations to current read/write operations “Address”: in address bar, “R” means the read operation, and “W” means write operation “Data”: data sent by one read and write operation is in the data bar. “Ack”: in Ack bar, “X”...
Page 269: Arinc429 Bus Trigger And Decode
Chapter 12 Serial Bus Trigger and Decode (Optional) 12.6 ARINC429 Bus Trigger and Decode For correctly decoding ARINC429 bus data and making trigger stable, the bus configuration, trigger mode set and trigger level need to be adjusted. ⚫ Bus configuration to open the bus configuration menu, the following needs to be set: Data Source —...
Page 270 Figure 12-26 ARINC429 Bus Configuration Menu ⚫ Trigger mode Open the trigger configuration menu and select the appropriate trigger type; when the ARINC429 bus trigger is selected, click the trigger type and relationship on the screen, as shown in Figure 12-27:...
Page 271 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-27 ARINC429 Trigger Mode Configuration Menu If LABEL, SDI (source identifier), DATA or SSM (symbol/status mark) trigger are used, after selecting trigger mode, use the pop-up virtual keyboard to modify it, enter the value, and click “Enter” on the virtual soft keyboard to complete the setting.
Page 272 SDI: Source identifier, triggered on the specified source terminal. DATA: Trigger on the specified data. SSM: Symbol/status mark, triggered on the specified symbol status matrix. LABEL+SDI: Trigger on the specified label and the specified source terminal. LABEL+DATA: Trigger on the specified label and the specified data. LABEL+SSM: Trigger on the specified label and the specified symbol status matrix.
Page 273 Chapter 12 Serial Bus Trigger and Decode (Optional) ⚫ ARINC 429 serial decode The measured signal source is CH1, the decode format is LABEL+DATA, the display is in hexadecimal, the baud rate is 12.5kb/s, and the trigger mode is LABEL, operate as follows: (1) Tap S1 to open the decode channel, and click S1 again to open the bus configuration menu;...
Page 274 Figure 12-28 ARINC429 Graphic Interface ARINC429 decode data packet description: (1) Data packet, a total of 32bits, the data format is 8~1 (label bit, high bit first) +9~10(SD) +11~29 (data bit, low bit first) +30~31 (symbol status bit) +32 (parity bit)
Page 275 Chapter 12 Serial Bus Trigger and Decode (Optional) (2) Label (8bits) - Displayed in octal: yellow (3) SDI (2bits) - Displayed in binary: blue (4) Data (19bits) - Displayed in selected numeration system: white, or red if there is parity error (5) SSM (2bits) - Displayed in binary: green Figure 12-29 ARINC429 Text Interface...
Page 276 ARINC429 text interface description, as shown in Figure 12-29: “Ch”: bus channel. “Time”: intervals between the last read/write operations to current read/write operations “LABLE”: label, information identifier, displayed in octal. “SDI”: source/target identifier, displayed in binary (displays XX if not identified separately). “Data”: content of the transmitted information, displayed in the selected numeration system.
Page 277: 1553B Bus Trigger And Decode
Chapter 12 Serial Bus Trigger and Decode (Optional) 12.7 1553B Bus Trigger and Decode For correctly decoding 1553B bus data and making trigger stable, the bus configuration, trigger mode set and trigger level need to be adjusted. ⚫ Bus configuration to open the bus configuration menu, the data source and display hexadecimal need to be set, as shown in Figure 12-30:...
Page 278 Figure 12-30 1553B Bus Configuration Menu ⚫ Trigger mode Open the trigger configuration menu and select the appropriate trigger type. When the trigger type is 1553B bus trigger, click the trigger type on the screen, as shown in Figure 12-31:...
Page 279 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-31 1553B Trigger Mode Configuration Menu Trigger configuration menu description: Command/status word sync header: Triggered at the beginning of the command/status word (at the end of valid C/S sync pulse). Data word sync header: Triggered at the beginning of data word (at the end of valid data sync pulse). Command/status word: Triggered when the specified command/status word is detected.
Page 280 If you select this option, RTA softkey will be available, allowing you to select the hexadecimal remote terminal address value to be triggered on it. If you select 0xXX (irrelevant), oscilloscope will trigger on any RTA. Manchester coding error: Triggered when a Manchester coding error is detected. Data word: Triggered when the specified data word is detected.
Page 281 Chapter 12 Serial Bus Trigger and Decode (Optional) (3) Open the trigger setting menu, select the trigger type as bus trigger, 1553B, and trigger mode as “command/status word sync header”. Channel threshold level is adjusted according to signal amplitude. 1553B trigger graphic interface is shown in Figure 12-32: Figure 12-32 1553B Graphic Interface...
Page 282 1553B decode data packet description: (1) Remote terminal address (5-bit data): blue (2) The value of remaining 11 bits of the command/status word: yellow (3) Decoded data: white (4) If the command/status or data word has a parity error, its decoded text is displayed in red instead of green or white.
Page 283 Chapter 12 Serial Bus Trigger and Decode (Optional) Figure 12-33 1553B Text Interface 1553B text interface description, as shown in Figure 12-33: “Ch”: bus channel.
Page 284 “Time”: intervals between the last read/write operations to current read/write operations. “Type”: frame type (data frame DATA, command/status frame C/S, others N/A). “RAdr”: remote terminal address, displayed in the selected numeration system (N/A for no content display). “Data”: content of the transmitted information, displayed in the selected numeration system. “Trigger”: “Yes”...
Page 285: Chapter 13 Homepage Functions
This chapter contains the functions of the oscilloscope homepage and describes the functions of all icons on the homepage and settings. You are recommended to read this chapter carefully to understand the homepage functions of the Smart series oscilloscope. ⚫ Oscilloscope ⚫...
Page 286 The following figure shows the contents of the oscilloscope home page. Slide left or right to display the remaining applications. See Figure 13-1. Figure 13-1 Homepage Interface...
Page 287: Oscilloscope (See Chapters 2~12)
Chapter 13 Homepage Functions 13.1 Oscilloscope (see Chapters 2~12) 13.2 App Store Tap the app store icon on the homepage to go to the app store interface, as shown in Figure 13-2. App store content includes Network, Local, U-disk, and About. Figure 13-2 App Store...
Page 288 Network Tap “Network” to open the application list. Tap app icon to view details such as version number of the current app and app description, and tap the green open option below to open or install the current app. Tap the green option on the right of the app list to open and install the app. Local Apps that have been downloaded and installed are displayed locally.
Page 289 Chapter 13 Homepage Functions After USB disk has been plugged, if there are no apk files in the USB device for installation, the interface displays “There is no available apk file in the U disk directory”. About In “About” interface, the equipment model, bandwidth, serial number, version information, shipment date and information about installed options can be viewed.
Page 290 Figure 13-3 About Interface The options that can be installed include: UART, LIN, SPI, CAN, I2C, 1553B, 429 and other serial decode (refer to Chapter 12 Serial Bus Trigger and Decode), frequency meter, auto range, high pass, low pass and so on.
Page 291: Settings
Chapter 13 Homepage Functions 13.3 Settings Tap settings on Homepage to enter the System Settings interface. Settings on the settings interface include WLAN, network, portable hotspot, display, HDMI, alert tone and notification, storage, application, language and input method, date and time, and About, as shown in Figure 13-4. Figure 13-4 System Setting Interface...
Page 292 WLAN connection Tap WIFI icon to enter the WLAN settings interface, as shown in Figure 13-5. Figure 13-5 WLAN Connection Setting Tap on/off bar to turn the WLAN function on. Oscilloscope can automatically scan the surrounding wireless networks and display their names by list.
Page 293 FTP; access the oscilloscope Web interface and the official website of Micsig. Turn on the network connection and tap the network configuration to configure the network, as shown in Figure 13- Automatic configuration IP acquisition mode chooses “DHCP”.
Page 294 Manual configuration IP acquisition mode chooses “static IP”. Click IP address input box to pop up the virtual keyboard, manually enter IP address, network prefix length, DNS address and gateway address, and click Save. Figure 13-6 Network Connection Settings...
Page 295 Chapter 13 Homepage Functions Auto configuration IP acquisition mode chooses “DHCP”. Oscilloscope automatically obtains IP address, network prefix length, DNS address, and gateway address. Manual configuration The steps for network setting are: Set the IP address. IP should be set on the same network segment as the current network and cannot be duplicate.
Page 296 Tap the “Portable WLAN Hotspot” bar to open the hotspot. Click “Set WLAN Hotspot” to enter the network name and password using the virtual keyboard, as shown in Figure 13-7. Other equipment can share oscilloscope files by linking oscilloscope hotspots (portable hotspot default IP is: 192.168.43.230). Figure 13-7 Portable WLAN Hotspot Setting...
Page 297 Chapter 13 Homepage Functions Display Tap display icons to set the oscilloscope brightness, wallpaper, font size and projection screen. Brightness: The progress bar can be dragged to set the brightness of the screen display. Wallpaper: Set the screen wallpaper. Font size: Change the system display font size. Projection to screen: If the oscilloscope is connected to the same network with projection devices (such as projector with related functions, TV, etc.) (point-to-point direct connection or WIFI environment), this function can be used to enable oscilloscope display on projection devices.
Page 298 Alert tone and notification Tap the “Alert Tone and Notification” icon and drag the progress bar in the sound section to change the media volume, alarm volume and notification volume. After clicking the default notification ring tone, drag up and down to select the ring tone, then click OK.
Page 299 Chapter 13 Homepage Functions If USB device is not plugged, installed and formatted SD cards under USB device are displayed in gray. If USB device is plugged, it will display the total storage capacity and available memory size, and can also uninstall and format SD card.
Page 300 Language: Set the system language and select the language you want to set in the language list. Spell Checker: When this function is turned on, it will automatically check for correctness as you type. Keyboard and input method: Click to change and select the keyboard. Date and time Setting system date and time Automatically determine the date and time: When turned on, the time provided by the network will be used as the...
Page 301: File Manager
Chapter 13 Homepage Functions About In the “About” interface, view legal information, Android version, kernel version, version number and other information. 13.4 File Manager File manager app can enable quick access to and management of various files stored on the equipment. Tap the file manager app icon on the homepage screen to enter the file manager interface.
Page 302: Calculator
the files are ticked, click options at bottom of screen to enable copy, cut, delete, full tick and more operations. If a single file is selected, tap “More” to realize the functions of bookmark, compression, details and rename. You can compress after selecting multiple files.
Page 303: Gallery
Chapter 13 Homepage Functions Figure 13-8 Browser Interface 13.7 Gallery Tap gallery application on the homepage interface to enter the picture viewing interface, as shown in Figure 13-9.
Page 304 Figure 13-9 Picture Viewing Interface Gallery provides locally stored photos/videos with the functions of picture/video viewing and photo editing. In the picture view interface, pictures and videos can be classified into different categories according to the method in the upper left corner, and tap them to view pictures or videos.
Page 305 Chapter 13 Homepage Functions When viewing pictures, click to display them in full screen. When viewing videos, swipe left and right to select the video you want to play. Click the triangle play button, and the video will play automatically. Tap the screen to pause play.
Page 306: Calendar
When viewing pictures and videos, tap the option at the top right of the screen and click to select items. The pictures and videos can be selected. Click the recycle bin icon in the upper right corner of the screen to delete pictures or videos.
Page 307: Clock
Chapter 13 Homepage Functions Figure 13-11 Electronic Calculation Tool Function 13.10 Clock Tap time icon on the homepage or tap clock app icon to enter the clock settings screen, as shown in Figure 13-12.
Page 308 Alarm clock Add an alarm: Click “+” button below to add an alarm clock and create settings. Alarm time: Drag pink dot in the dial to set the hour, and drag again to set the minute. Repeat: Monday to Sunday available and click calendar icon on the right to enter the calendar for custom selection. Statutory working day: Changing the alarm clock after opening can automatically skip the national legal holidays.
Page 309 Chapter 13 Homepage Functions Control time: Drag the dots in the dial to see the control time of the added city. Timer Add timer: Enter the hour, minute and second, click the “hourglass plus” start button to start countdown. Delete timer: Click “recycle bin” to delete the timer. Pause: Click the triangle icon to pause timer.
Page 310: Power Off
Figure 13-12 Time Setting 13.11 Power Off Click power button to enter the power off interface, as shown in Figure 13-13. Power off contains 2 options: power off, restart.
Page 311 Chapter 13 Homepage Functions Figure 13-13 Power Off Interface Power off: Tap icon to turn off the oscilloscope. Restart: Tap icon to restart the oscilloscope.
Page 312: Power Off Lock
13.12 Power Off Lock Click icon on the homepage to enter the power off lock interface, as shown in Figure 13-14. Power off contains 2 options: power off, restart. Click “OK” to turn off the power output. To turn it on again, click the “Zoom”...
Page 313: Chapter 14 Remote Control
Chapter 14 Remote Control Chapter 14 Remote Control This chapter contains the application of host computer, FTP and SCPI commands, in order to understand remote control functions of the Smart series oscilloscope, mainly for the Android system. ⚫ Host computer ⚫ Remote control ⚫...
Page 314: Host Computer
To control the instrument using the host computer software, you need to install the NI driver first (when there is network connection, this may not be installed), then the RemoteDisplay software is downloaded and installed. This software is only suitable for Micsig STO1000 Series oscilloscopes. 14.1.1 Installation of Host Computer Software Note: The host computer software only supports Win7 or higher edition operating system.
Page 315: Connection Of Host Computer
Chapter 14 Remote Control Download the host computer software on official website of Micsig, open RemoteDisplaySetup.exe file, and complete the software installation. Figure 14-1 RemoteDisplay Software 14.1.2 Connection of Host Computer USB connection: Connect USB Device to the computer and oscilloscope through USB data cable. After the...
Page 316: Main Interface Introduction
WIFI connection: Under the oscilloscope settings →WLAN menu, choose and connect the same WIFI with the computer to ensure that the computer and the oscilloscope are in the same network. Open the host computer, set the connection mode to Net , and display the device information in the device information display box in the lower right corner.
Page 317 Chapter 14 Remote Control Figure 14-2 Host Computer Interface Click to exit the host computer software Host computer on/off button...
Page 318 The button has two states: Oscilloscope connection status button Green: Connect to selected oscilloscope when clicked Red: Disconnect from oscilloscope when clicked Click to take photo quickly. Pictures are stored in the local Quick camera button directory C:\Users\Public\Pictures Click to open or close video record function. Videos are stored Video record button in local directory C:\Users\Public\Videos Set photo taking and video recording storage locations...
Page 319: Operation Interface Introduction
Chapter 14 Remote Control 7. Host computer display area Synchronous display with oscilloscope 8. Oscilloscope information display Display oscilloscope model, connection mode, SN, IP and other information, select the oscilloscope to be connected 9. Host computer waveform control area Waveform control area button has the same function with that button on the oscilloscope 14.1.4 Operation Interface Introduction The host computer and the oscilloscope are synchronously displayed, and the waveform operation mode and the...
Page 320: Storage And View Of Pictures And Videos
Scroll wheel operation introduction: Operate the scroll wheel on the waveform display to move the current waveform; After opening the cursor, operate the scroll wheel to move the current cursor; Click the trigger level button, and operate the scroll wheel to adjust the trigger level. Put the mouse in the time base adjustment area and adjust the horizontal time base by operating the scroll wheel;...
Page 321 Chapter 14 Remote Control Figure 14-3 Host Computer Storage Setting Pictures are stored in the local directory C:\Users\Public\Pictures by default. We can also store them under the directory defined by ourselves according to our own needs. For example, we store pictures in a “mini photo” directory under E-drive disk.
Page 322 Figure 14-4 Change Storage Directory View pictures and videos: Open picture (video) storage directory to view pictures (videos) stored on the host computer.
Page 323: Mobile Remote Control
Figure 14-5 View Pictures 14.2 Mobile Remote Control Micsig Smart series oscilloscopes support remote control on mobile phone. You need to download Android app from the official website of Micsig (address: http://www.micsig.com/html/list_64.html) and install it. After App is successfully connected, Android device can be used to control the oscilloscope and display the oscilloscope...
Page 324 Figure 14-6 Android APP Figure 14-7 Successful Connection of Android APP...
Page 325: Ftp
The first connection method is recommended. 14.3 FTP Through FTP, internal files of oscilloscope can be quickly viewed, called and managed from PC or mobile phone. The Smart series oscilloscopes can open FTP via WIFI, oscilloscope portable hotspot, LAN, etc.
Page 326 WLAN Turn on WLAN on oscilloscope (refer to 13.3 Settings - WLAN Connection), check and ensure that PC and oscilloscope are in the same network. Find “Android FTP” in the app store and open it. Then set FTP address, port, anonymous connection, account number, password, home directory used by the FTP server, and share folder permissions.
Page 327 Chapter 14 Remote Control After setting, return to “Android FTP” app homepage and click the gray icon to open FTP connection. FTP server connection address and user name and password are displayed as follows. Figure 14-9 FTP Connection Information Figure 14-10 FTP Address Input Enter the FTP server address on PC to connect, as shown in the following figure.
Page 328 Enter the username and password of FTP server (which may be found in the oscilloscope FTP app). The default username is “admin” and the password is “52developer.com”. Click Login, and view, call or manage files in the oscilloscope after successful login. Figure 14-11 FTP Login Figure 14-12 View Files Portable hotspot...
Page 329 Chapter 14 Remote Control Open the portable hotspot on oscilloscope (refer to 13.3 Settings - Portable Hotspot), connect PC to the hotspot of oscilloscope, find “Android FTP” in the app store and open FTP connection. Enter oscilloscope IP address on PC (ftp://IP address:port number), then connect to FTP server and enter the username and password.
Page 330 address, account number and password through the ES browser. Click OK to log in, and then manage files on the oscilloscope. Figure 14-13 Mobile Phone Login Figure 14-14 View Files...
Page 331: Scpi
SCPI command can be used to programmatically control STO1000 Series digital oscilloscopes via the USB interface. STO1000 Series may communicate with computer through USB device. Note: For more details, the STO1000 series oscilloscope commands can be downloaded from the official website of Micsig.
Page 332: Chapter 15 Update And Upgrade Functions
Chapter 15 Update and Upgrade Functions This chapter describes the methods of software update and increasing the optional function. You are recommended to read this chapter carefully understand the upgrade functions of the Smart series oscilloscope. ⚫ Software update ⚫ Add optional functions...
Page 333: Software Update
Chapter 15 Update and Upgrade Functions 15.1 Software Update Micsig often releases software updates for its products. To update your oscilloscope software, you can connect the oscilloscope to WIFI for networking, and the oscilloscope will automatically download the latest installation program online.
Page 334: Add Optional Functions
Note: Please pay attention to keep the oscilloscope power more than 50% when installing updates or connect the oscilloscope to the adapter, so as to prevent the oscilloscope from becoming abnormal due to insufficient power for update. To view the currently installed software and firmware, tap the “App Store” software in the “Home” page to display the oscilloscope software and firmware information on the “About”...
Page 335 Chapter 15 Update and Upgrade Functions Figure 15-2 Decode Functions Not Installed If you need the optional function service, please contact Micsig for license and enter the install option function at the license bar.
Page 336 Figure 15-3 Decode Functions Installed...
Page 337: Chapter 16 Reference
This chapter contains the measurement category suitable for the oscilloscope and the environmental level of pollution degree supported. You are recommended to read this chapter carefully to understand the conditions of use of the Smart series oscilloscope. ⚫ Measurement Category...
Page 338: Measurement Category
16.1 Measurement Category Oscilloscope measurement category Smart oscilloscopes are primarily used for measurements in Measurement Category I. Measurement category definitions Measurement category I is for measurements performed on circuits not directly connected to MAINS. Examples are measurements on circuits not derived from MAINS, and specially protected (internal) MAINS derived circuits. In the latter case, transient stresses are variable;...
Page 339: Pollution Degree
Examples are electricity meters and measurements on primary overcurrent protection devices and ripple control units. Transient withstand capability Maximum input voltage of the analog input Category I 300Vrms, 400Vpk. 16.2 Pollution Degree Pollution Degree Smart Series oscilloscopes can operate in environments with pollution degree 2 (or pollution degree 1).
Page 340 Pollution Degree Pollution degree 1: No pollution or only dry, non-conductive pollution occurs. The Categories pollution has no influence. For example: a clean room or air-conditioned office environment. Pollution degree 2: Normally only dry, non-conductive pollution occurs. Occasionally temporary conductivity caused by condensation may occur. For example: general indoor environment.
Page 341: Chapter 17 Troubleshooting
Restart the oscilloscope after the checks above; ⚫ Contact Micsig if the problem persists, and we will provide service to you. If acquired waveforms do not display on the screen when the signal source is connected, please follow the steps below: ⚫...
Page 342 ⚫ Check whether the trigger type is correctly selected; ⚫ Check whether trigger conditions are set correctly ⚫ Check whether signal source is working properly; ⚫ Check whether the channel is turned on; ⚫ Check whether the vertical scale factor is set correctly; ⚫...
Page 343 Chapter 17 Troubleshooting ⚫ Check the trigger source on the trigger type menu to ensure that it is consistent with the actually used signal channel; ⚫ Check the trigger type: edge trigger is adopted for general signal, and video trigger mode for video signal. Only the correct trigger mode is used, the waveform can be displayed stably;...
Page 344 If the display becomes slower after setting average times of sampling: ⚫ If the average times are above 32, it is normal for the general speed to become slow. ⚫ You can reduce the average times. Staircase waveform is displayed: ⚫...
Page 345 Chapter 17 Troubleshooting 10. During measurement, the measured value is displayed as -----: ⚫ This phenomenon is normal. When the channel waveform displays beyond the waveform display area, the measured value is displayed as -----. If the channel vertical sensitivity or vertical position is adjusted, the measured value can be displayed correctly;...
Page 346 ⚫ Check whether the shutdown time setting is Disabled; if it is not Disabled, it will automatically shut down when the set time is reached. 13. CSV files cannot be selected when loading reference: ⚫ CSV files are not the supported format that can be loaded into reference channels. 14.
Page 347 Chapter 17 Troubleshooting 18. Function buttons are pressed without response: ⚫ Check whether the picture is displayed in full screen.
Page 348: Chapter 18 Services And Support
Micsig commit as follows: Repair Commitments : Micsig commits to use the original factory parts for products returned by the user for repair (under warranty or not) and the commissioning and testing standards are identical with new products. Micsig the obligation to inform the customer, but without any other obligations for non-product defects or products with decreased performance not for objective reasons.
Page 349 Chapter 18 Services and Support Service Time Commitments : Micsig will give a reply of the time and cost for repair within 2 working days after receiving the product returned by the user for repair. After the reply is confirmed, the repair period for a general fault is 5 working days and shall not exceed 10 working days for any special fault.
Page 350: Annex
Annex Annex A:Maintenance and Care of Oscilloscope General maintenance Do not put or leave the instrument in a place where the LCD display will be exposed to direct sunlight for long period. Caution: To avoid damage to the oscilloscope or probes, do not expose them to sprays, liquids, or solvents. Clean oscilloscope Examine the oscilloscope and probes as often as operating conditions require.
Page 351 Annex ⚫ Use a soft cloth dampened with water to clean the oscilloscope while doing this please keep the power off. Wipe with a mild detergent and water. Do not use any corrosive chemical cleaning agent, in order to avoid damaging the oscilloscope or probe.
Page 352: Annex B: Accessories
Upon delivery, the lithium battery may not be charged. It takes 6 hours to be fully charged (the oscilloscope is recommended to turn off to save the charging time). When running on battery power, the battery level indicator in the lower right corner of the screen will indicate the battery usage. Caution: In order to avoid charging battery from overheating, do not use beyond the permitted environmental temperature value given in the technical specification.
Page 353 Annex Optional accessories Oscilloscope suitcase/handbag Battery Leather carry strap High voltage probe...
Page 354 The company will assume no responsibility for accident or hazard caused by the improper operation of the user. The copyright of this manual shall belong to Micsig. Any organization or individual may not duplicate, copy or excerpt the contents without Micsig’s authorization. Micsig reserves the right to claim against such...

This manual is also suitable for:

Sto1000 series Smart sto seriesSmart sto1000 seriesSmart sto1004

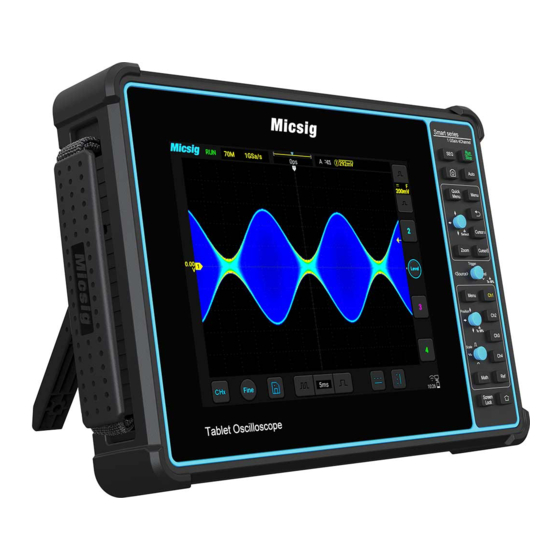

Micsig Smart Series User Manual

Chapter 1. Safety Precautions

Chapter 2. Quick Start Guide of Oscilloscope

Chapter 3 Operate the Oscilloscope with Buttons

Chapter 4 Horizontal System

Chapter 5 Vertical System

Chapter 6 Trigger System

Chapter 7 Analysis System

Chapter 8 Screen Capture, Memory Depth and Waveform Storage

Chapter 9 Math and Reference

Chapter 10 Display Settings

Chapter 11 Sampling System

Chapter 12 Serial Bus Trigger and Decode (Optional)

Chapter 13 Homepage Functions

Chapter 14 Remote Control

Chapter 15 Update and Upgrade Functions

Chapter 16 Reference

Chapter 17 Troubleshooting

Chapter 18 Services and Support

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Micsig Smart Series

Summary of Contents for Micsig Smart Series

This manual is also suitable for:

Table of Contents
