Intended use

Please observe the requirements of EN 1717 when connecting this product to the drinking water network and contact your sanitation specialists if you have any questions.

This device has been developed for private use and is not intended for the load imposed by commercial use. The device is primarily intended for use in the garden and provides constant pressure for garden watering. When connecting sprinklers, a maximum of the following areas can be irrigated:

  • BP 4.500 Garden: 400 m2
  • BP 5.000 Garden: 550 m2
  • BP 6.000 Garden: 900 m2
  • BP 7.000 Garden: 1000 m2


Risk of injury!
Risk of injury from toxic substances.
Do not drink water that has been pumped by the pump!

Permissible feed fluids

  • Processed water
  • Well water
  • Spring water
  • Rain water
  • Swimming pool water with intended dosage of additives

The temperature of the delivered liquid must not exceed 35°C.

Improper use

information Note
The manufacturer accepts no liability for possible damage caused by improper use or incorrect operation.

Hazard levels

  • Indication of an imminent threat of danger that will lead to severe injuries or even death.

  • Indication of a potentially dangerous situation that may lead to severe injuries or even death.

  • Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

  • Indication of a potentially dangerous situation that may lead to damage to property.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

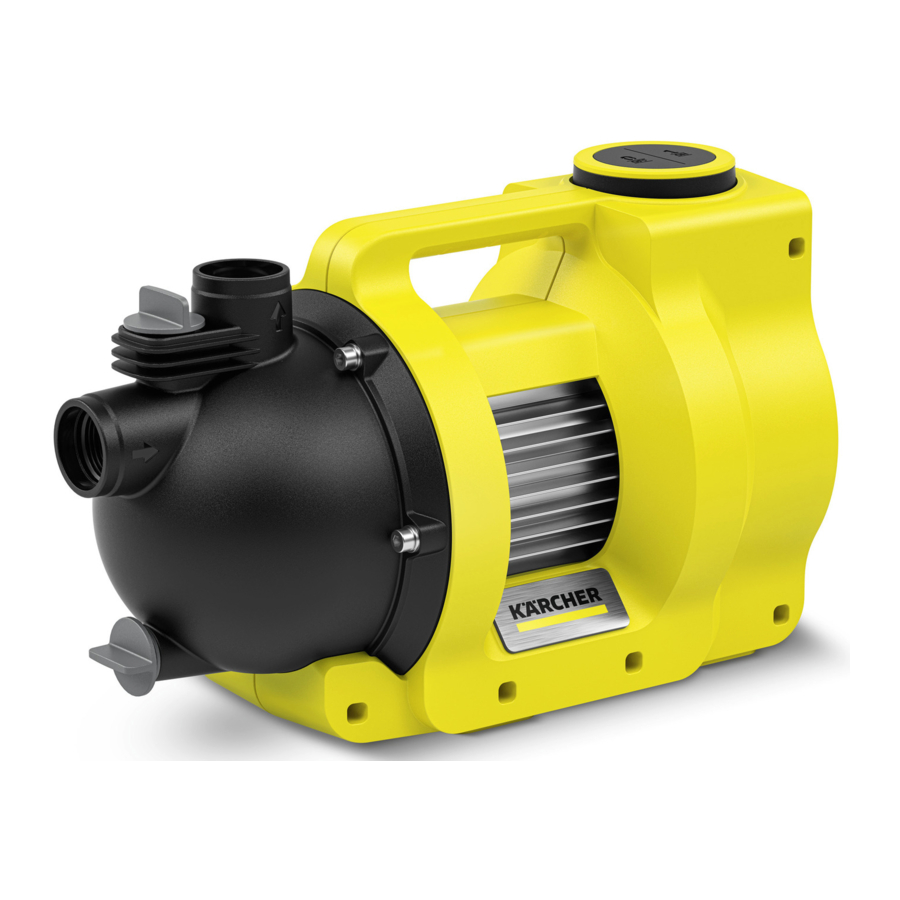

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

Illustration A
Description of the device

  1. Cap, 2-way connection adapter
  2. 2-way connection adapter for pumps G 1 (not included with BP 4.500 Garden)
  3. Connection adapter for pumps G 1 (included twice with BP 4.500 Garden)
  4. Sealing plug
  5. Connection G 1 (33.3 mm) suction line (inlet)
  6. Filling nozzle with cap
  7. Connection G 1 (33.3 mm) pressure line (outlet)
  8. ON/OFF switch
  9. Water drain valve
  10. **Tap connection G 1
  11. **Coupling with Aqua Stop
  12. **Coupling
  13. **Syringe
  14. *Suction hose set incl. 3.5 m ready-to-connect, vacuum-proof spiral hose with suction filter and backflow stop
  15. **Garden hose 1/2' 20 m
  16. Power supply cable with plug

* Only accessories included with Set and Set Plus.

** Only accessories included with Set Plus.

Startup

We recommend using only original Kärcher suction hoses, filter components and hose connections. Using components from other manufacturers can lead to malfunctions when sucking the feed fluid, especially when using bayonet connection systems.

Before initial startup
Preparation

  • Remove the sealing plug.
  • Screw the connection adapter into the suction connection of the pump (inlet). Manually tighten.
  • Connect a vacuum-tight suction hose
    Illustration B
    Preparation

information Note
If the water is dirty, we recommend fitting a pre-filter (see Special accessories) between the check valve and the suction hose.
Illustration C

Fitting a pre-filter

information Note
To shorten the re-suction time, use a suction hose with backflow stop. This prevents the suction hose from emptying after use (see Special accessories).

  • Screw the connection adapter into the pressure connection of the pump (outlet). Manually tighten.
    Illustration D
    Startup - Step 1
  • Open the filling nozzle cap.
    Illustration E
    Startup - Step 2
  • Fill the pump with water until it overflows.
    Illustration F
    Startup - Step 3

Operation

  1. Plug the mains plug into a mains socket.
  2. Switch the device on with the ON/OFF switch.
  3. To shorten the suction time, raise the pressure hose approx. 1 m.
    Illustration I
    Operation
  4. Wait until the pump simultaneously sucks and delivers.


Danger due to dry running
Dry running damages the pump.
Do not let the pump run dry!

  1. Do not leave the pump unattended during operation.

ATTENTION
Risk of injury. The system is pressurised!
Risk of injury.
(for pressure see chapter "Technical data")

Ending operation

  1. Switch off the device at the ON/OFF switch.
  2. Pull the mains plug out of the socket.

Care and maintenance


Danger of electric shock.
Always switch the device off and disconnect the mains plug before working on the device.

The device is maintenance-free.

Rinse

information Note
Rinse the pump with clear water after each use when pumping water with additives.

Transport


Risk of injury
Risk of injury from falling device.
When transporting the device, observe the weight of the device (see chapter Specifications) and secure it accordingly when transporting it in vehicles.

Manual transport

  1. Roll up the cable.
  2. Lift and carry the device by the carrying handle.

Transport in vehicles

  1. Secure the device against slipping and tipping over.


Risk of injury
Risk of injury from falling device.
When transporting the device, observe the weight of the device (see technical data) and secure it accordingly when transporting it in vehicles.

Storage


Failure to observe the weight
Risk of injury and damage
Be aware of the weight of the device during storage.

  1. Store the device in a frost-protected place.

Storing the device

  1. Depressurize the device by opening the water removal connected to the pressure side (e.g. opening the garden sprayer).
  2. Empty the hoses.
  3. Remove suction line and pressure line.
  4. Drain the pump via the water drain valve.
    Drain the pump via the water drain valve - Step 1
    Illustration H
    Drain the pump via the water drain valve - Step 2
  5. Store the device in a frost-protected place.

Special accessories

You will find the possible special accessories on the last page of these operating instructions.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

Fault Cause Rectification

Pump is running, but not delivering

Air is in the pump.
  1. Check for correct startup (see chapter Preparation and Operation).
Dirt particles block the suction area.
  1. Pull the mains plug out of the socket.
  2. Clean the suction area.
The suction hose or the connection adapter is not correctly screwed in.
  1. Check that the seals are fitted correctly.
  2. Manually tighten the suction hose and connection adapter.
The pre-filter is clogged.
  1. Clean the pre-filter.

The pump does not start up

or

The pump stops suddenly during operation

The power supply is disconnected.
  1. Check the fuses and the electrical connections.

The pump capacity drops or is too low

The suction area is clogged.
  1. Pull the mains plug out of the socket.
  2. Clean the suction area.
The delivery rate of the pump depends on the delivery head and the connected periphery.
  1. Observe the max. delivery head (see chapter Specifications), select a different hose diameter or a different hose length if necessary.
The cross-section on the pressure side is narrowed, e.g. due to the valve/ball tap not being fully open.
  1. Open the valve/ball tap completely.
The hose is kinked on the pressure side.
  1. Eliminate the kink points in the hose.
The pre-filter is clogged.
  1. Clean the pre-filter.

Specifications

BP 4.500 Garden
BP 4.500 Garden Set Plus
BP 5.000 Garden
BP 5.000 Garden Set Plus
BP 6.000 Garden
BP 6.000 Garden Set Plus
BP 7.000 Garden
Mains voltage V 230-240 230-240 230-240 230-240
Power frequency Hz 50 50 50 50
Nominal power W 550 650 1000 1100
Maximum flow rate l/h 4500 5000 6000 7000
Suction height (max.) m 8 8 8 8
Solids content in water kg/m3 >2,5 >2,5 >2,5 >2,5
Pressure (max.) MPa (bar) 0,36 (3,6) 0,40 (4,0) 0,45 (4,5) 0,5 (5,0)
Delivery height (max.) m 35 40 45 50
Delivery temperature (max.) °C 35,0 35,0 35,0 35,0
Particle size (max.) of permissible feed fluids mm 1 1 1 1
Pump type Jet Jet Jet Jet
Sound pressure level LpA dB(A) 56 58 69 68
Guaranteed sound power level LWA dB(A) 71 73 84 83
Dimensions and weights
Weight (without accessories) kg 6,4 7,0 9,7 10,0

Characteristic curves

Alfred Kärcher SE & Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2021/06/01
