Settings menu allows access to a number of parameters of the console including controls for the
brightness of the screen and LEDs, plus this is where the screen and console can be locked. It also
provides access to the information regarding the console - serial number, software version along with
System that monitors the power status of the console.
•
About shows an overview of the internal configuration: software, firmware versions etc.
•
Remote provides access to the Remote Client Access, Network Port and Remote Connector
Control. Network Port allows the selection of which port a Router, or network, is attached to the
console. This should always be an external port. Remote allows an iPad to control the console.
Remote Connector Control allows the disconnection of remote clients.
NOTE: The Remote Connector must on start-up be set to run for these services to work.
•
System Maintenance page gives options of Emailing Console Logs, Clear Logs plus access to
both the Surface Data and Stage Rack Data and the Keyboard.
•
Reset shows the options of resetting User, Safe Settings and a Factory Reset.
•
Lock locks the touch screen to prevent any unwanted interaction with console from
unauthorised users.
•
Scroll Lock prevents the scrolling of the 23.5" screen.
Press Menu again closes the Menu screen; the Menu button illuminates green when it is available.
Press the Back button to go back up the menu "tree" one level only. The Back button illuminates red
when it is available.

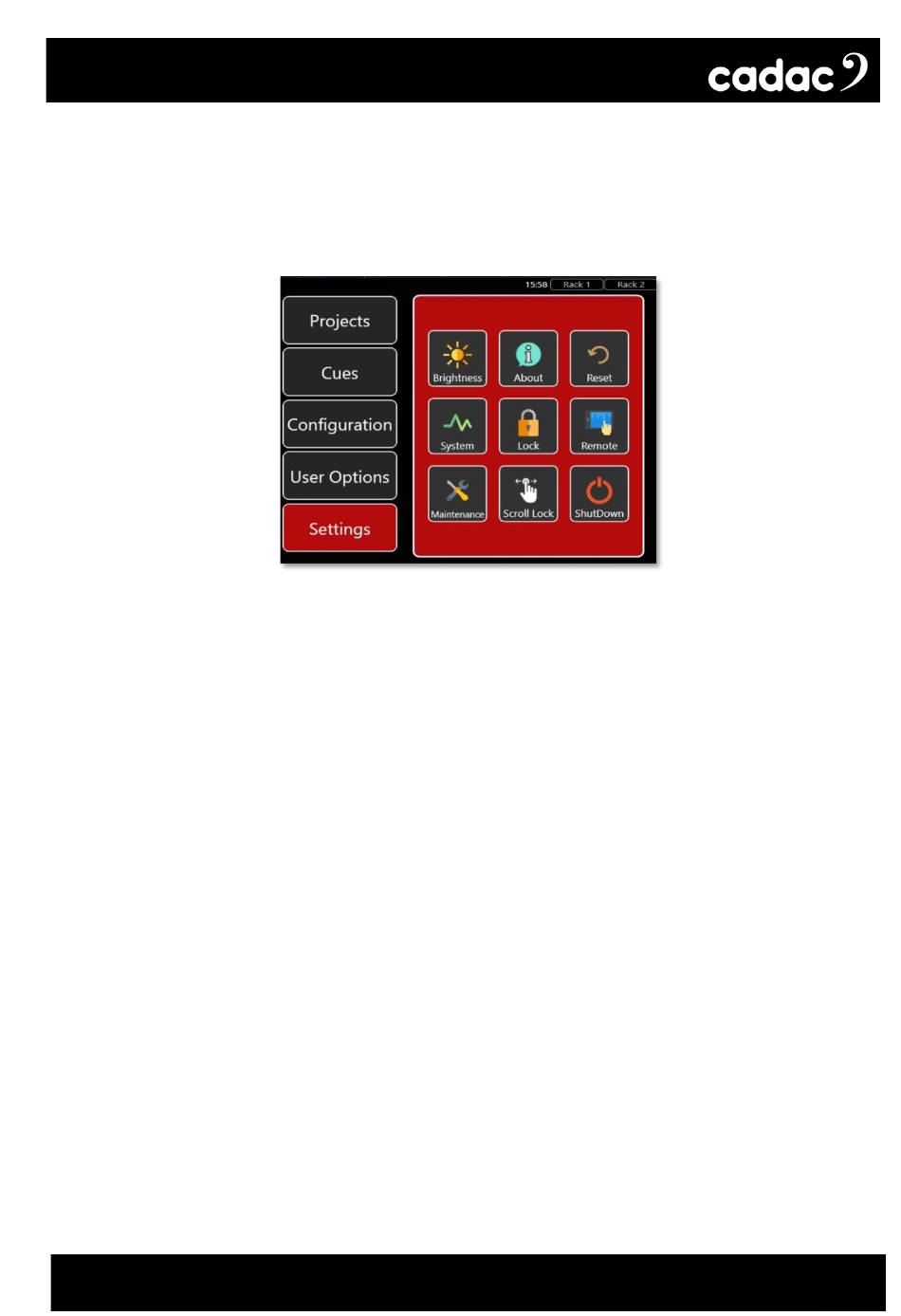

73: MENU SCREEN displaying the SETTINGS menu
