Surface Overview

The CM-J50 can be used as a stand-alone unit and as part of a larger system comprising of multiple
units: console and remote MegaCOMMS I/O device(s). The control surface provides local analogue and
digital inputs and outputs, which can be expanded via a number of remote stage rack(es) options.

Control Surface

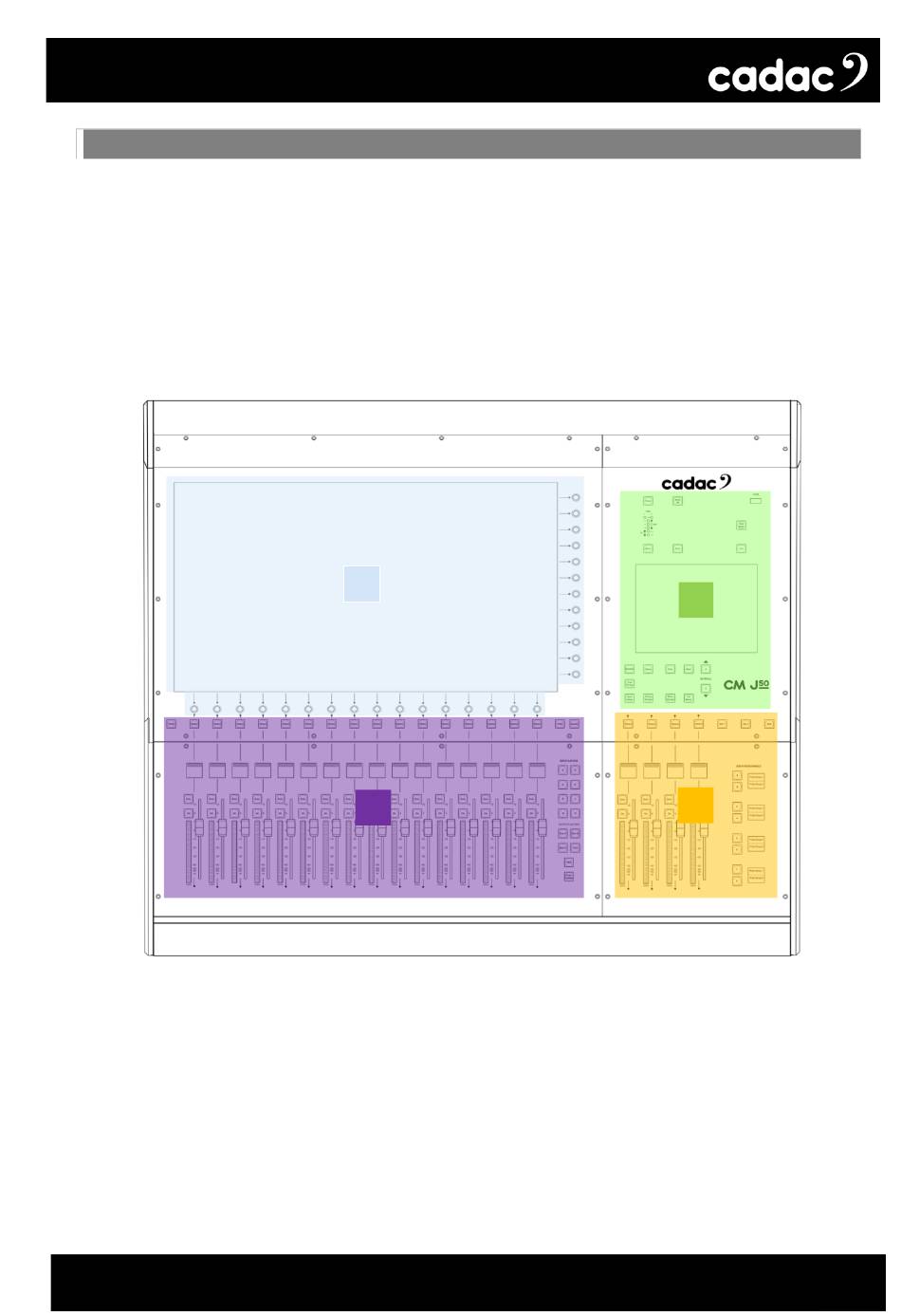

The control surface is divided in four operational areas:
1. Channel Section: Based around a 23.5", 16:9 (1920 x 1080 pixels) touchscreen display with
two sets of rotary encoders mounted below and to the right of the screen.
2. Master Section: To the right of the Channel Section, with the CM-J50's 6.5" Control Screen,
automation and other ancillary controls.
3. Channel Fader Bay: Below the Channel Section, with 16 x 100 mm motorised faders, OLED
channel displays, stereo LED bar graph meters, layer select buttons and other controls.
4. Master Fader Bay: Below the Master Section, with four x 100mm motorised faders, OLED
displays and a set of user-assignable keys.
