- Page 1 Cadac CM-Remote iPad Remote Control Quick Start Connection Guide CM-Remote_QSG_29-11-2022_Rev-2.docx Page. 1 / 12...
-
Page 2: Table Of Contents
Table of Contents CM-Remote - Introduction Connecting a Wi-Fi Router Network Selection Remote Connector Settings – Providing iPad Access Remote Connector Status – Removing iPad Access The CM-Remote CM-Remote_QSG_29-11-2022_Rev-2.docx Page. 2 / 12... -
Page 3: Cm-Remote - Introduction

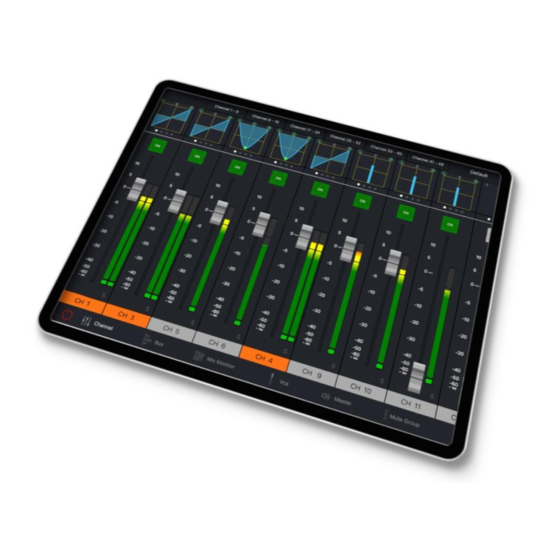

CM-Remote - Introduction Cadac’s iPad App – CM-Remote – provides the perfect solution for controlling wirelessly the key functions of the CM-J series of audio mixing consoles via an iPad or iPads. The App supports iOS 13 or later and can be found on the Apple App Store by searching for CM- Remote. -
Page 4: Connecting A Wi-Fi Router
Connecting a Wi-Fi Router To connect the console to the iPad the console needs to run Remote Connector upon start-up. The Remote Connector must be selected on the “Cadac Console Configurator” screen during console start-up. When the Loader screen appears press “Console Type”: 2: Loader Screen This will bring up the Console Configurator screen. -
Page 5: Network Selection
The console will then continue to boot up. The console can now be connected to a wireless router. CM-J50 connection to a Wi-Fi router: Note: Use the port labelled Network. The three ports on the Waves card will not work with a wireless router. - Page 6 This will bring up the “Remote Settings” page, select “Network Port”: 5: Remote Connector Settings page This will bring up the “Network Setup” screen: 6: Network Setup Menu This screen displays a list of all Ethernet network adapters on the console, this will vary depending on the console’s configuration.
-
Page 7: Remote Connector Settings - Providing Ipad Access
7: Network Setup Menu The console will now have access to the Ethernet Port with the wireless router attached. Remote Connector Settings – Providing iPad Access For security reasons, the console must be able to control access of any iPads that are attempting to connect to it. - Page 8 This will bring up the “Remote Client Access” page: 9: Remote Client Access Screen When the “Remote” is flashing red, select the iPad trying to connect and press “Remember Me”. 10: Remote Client Access Screen The “Remote Client Access” screen also allows the console to remember an individual iPad and allow it to connect in the future without having to repeat the authentication process.
-
Page 9: Remote Connector Status - Removing Ipad Access
Remote Connector Status – Removing iPad Access The Remote Connector Status screen is accessed via the central menu on “Remote Connector Settings” page. 11: Remote Client Access Screen This screen indicates the status of the Remote Connector, the status of the network adapter and the list of connected clients with details. -
Page 10: The Cm-Remote
The CM-Remote Below is a selection of some of the features controllable from the CM-Remote. 13: Inputs 14: Ouputs CM-Remote_QSG_29-11-2022_Rev-2.docx Page. 10 / 12... - Page 11 15: GEQ 16: EQ 17: FX CM-Remote_QSG_29-11-2022_Rev-2.docx Page. 11 / 12...
- Page 12 Cadac. Cadac Due to Cadac’s policy of continual One New Street improvement Cadac reserves the right to alter features, appearance and specifications Luton without notice.
