Offline Editor - Cadac C Series Hardware Overview

Offline Editor

The Cadac CM-Editor allows console Show files to be created and edited remotely on a Windows PC,
and then saved and loaded on to the console via a USB drive. The latest version of the CM-Editor can
be downloaded from the Cadac website www.cadac-sound.com.
Once the software is installed on to a PC and opened, the PC will display the graphical user interface of
the console along with, when required, virtual faders and encoders.

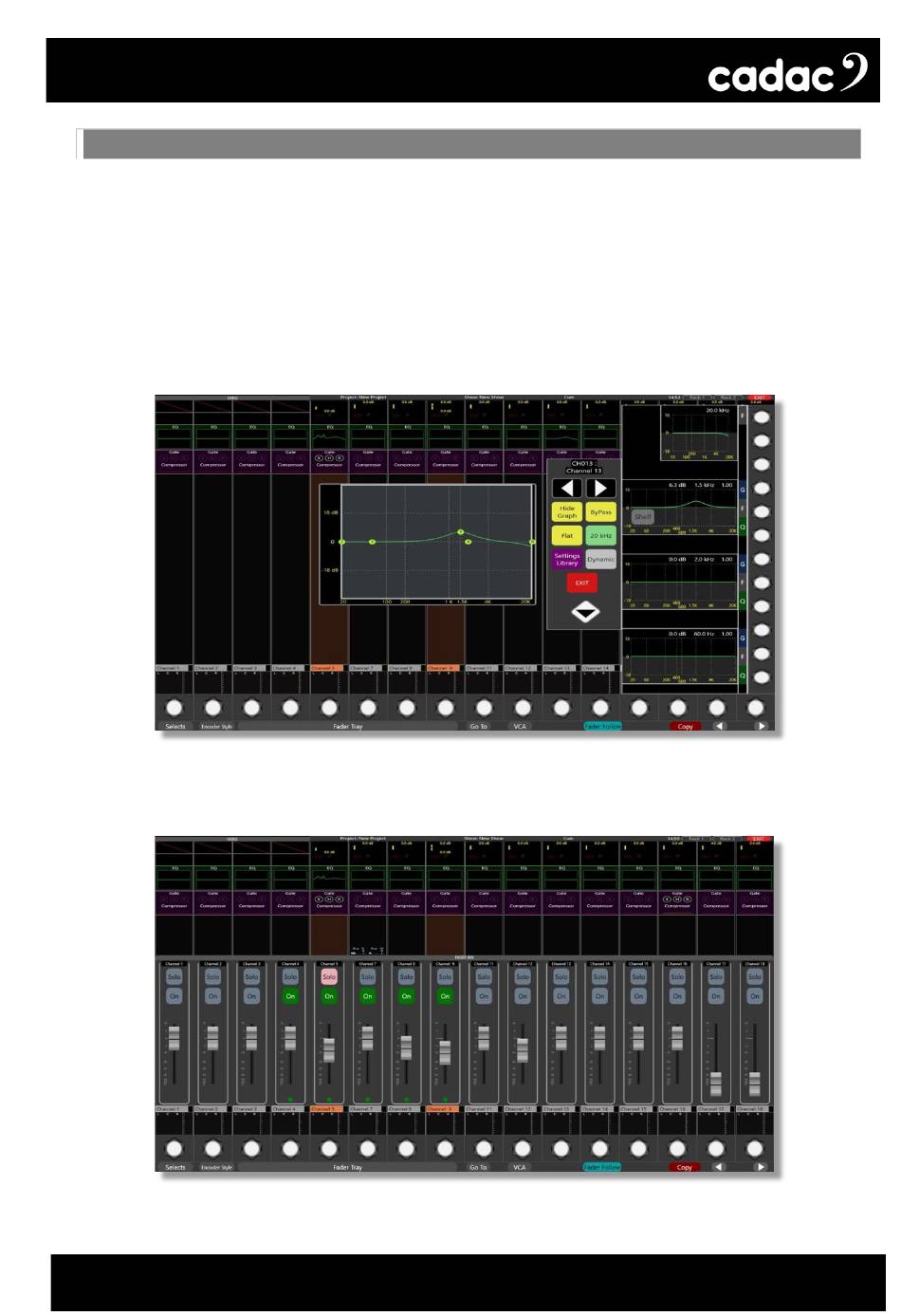

91: CM-Editor: The PC displays the same GUI as the console, but with virtual encoders.
Quick access buttons to the Go To, VCA, Fader Follow, Selects, Copy functions plus virtual Faders
are available at the bottom of the screen.
92: CM-Editor: Display shows the Virtual Faders. Screen Scroll function is found on the bottom right.
