Bus Configuration

The console can run in two bus configurations; Front of House mode with 48 configurable busses plus
LCR (a total of 56 busses), or in Monitor Mode which allows 54 configurable busses – the LCR busses
have been added to the configurable bus capability – (a total of 56 busses).
NOTE: The console by default runs in Front of House mode. However, if the console has been set to
Monitor configuration and powered off, it will remain in this mode until it has been put back into Front of
House mode.

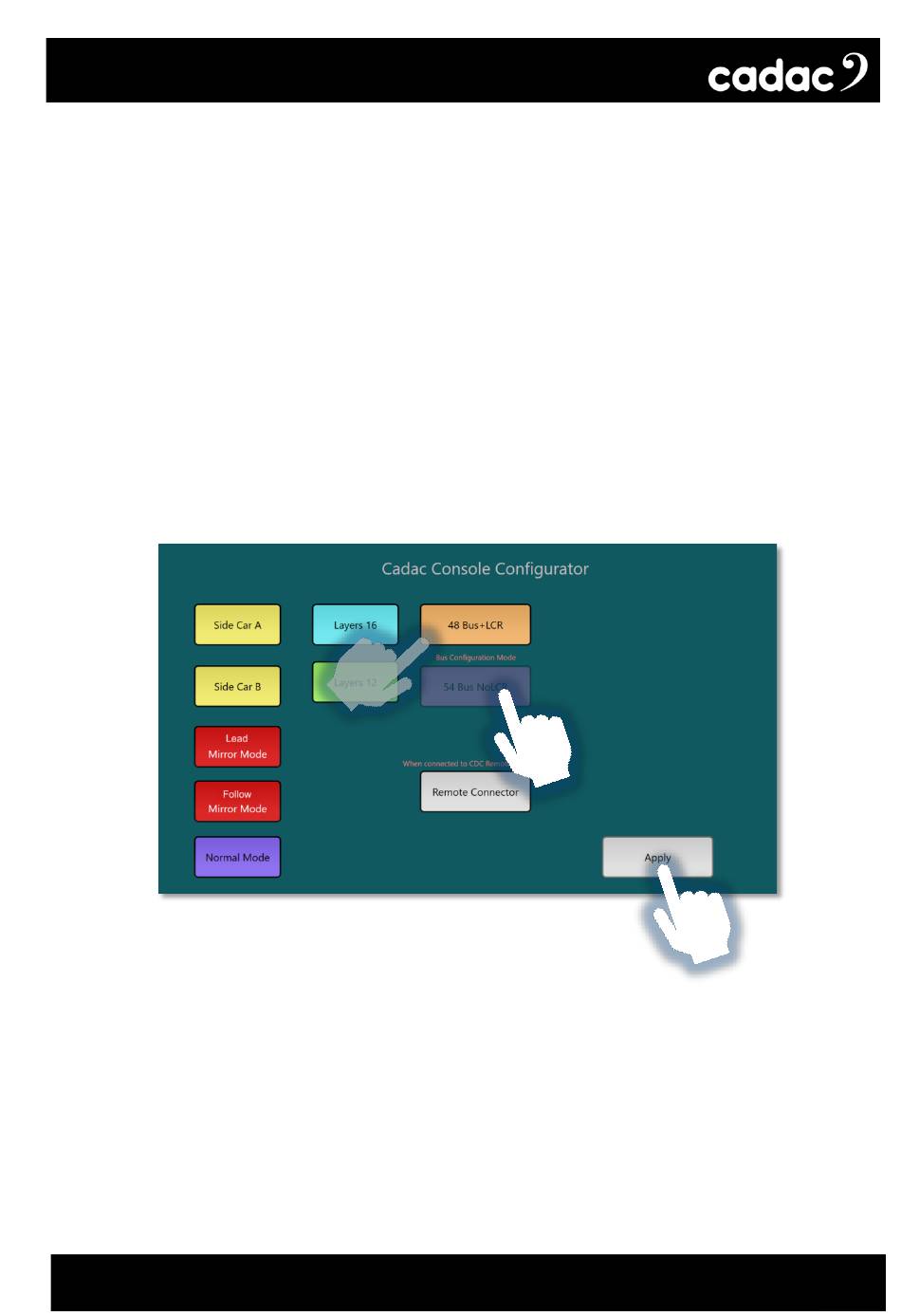

When the Loader screen (purple screen) appears during start up, press "Console Type" to bring up the
Console Configurator window. Then press "48 Bus+LCR" for Front of House mode, or "54 Bus NoLCR"
for Monitor Mode, then press "Apply":
115: Bus Mode
Completely power down the console, and then restart the console.
The console is now in your chosen Bus Mode.
