  • Page 1 User Manual Model ID: COLORADOPXLCURVE12...
  • Page 2 Chauvet, Chauvet Professional, the Chauvet logo, and COLORado are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.

  • Page 3: Table Of Contents

    DMX Values ....................Single Control Mode....................... 16 Dual Control Mode - Movement ..................25 Dual Control Mode - Pixels .................... 27 Tilt Macro ...................... Color Chart....................Strobe Settings....................Control Settings..................... LED Macro ....................COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 4 Zoom ..........................36 MAC Address ......................... 36 Web Server ....................5. Maintenance................Product Maintenance ..................Torque Measurements .................. Vacuum Test Measurements ................ 6. Technical Specifications ............Contact Us ..................Warranty & Returns..................COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate a claim. In addition, keep the box and contents for inspection.

  • Page 6: Safety Notes

    • In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 7: Fcc Statement Of Compliance

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. COLORado PXL Curve 12 User Manual...

  • Page 8: Introduction

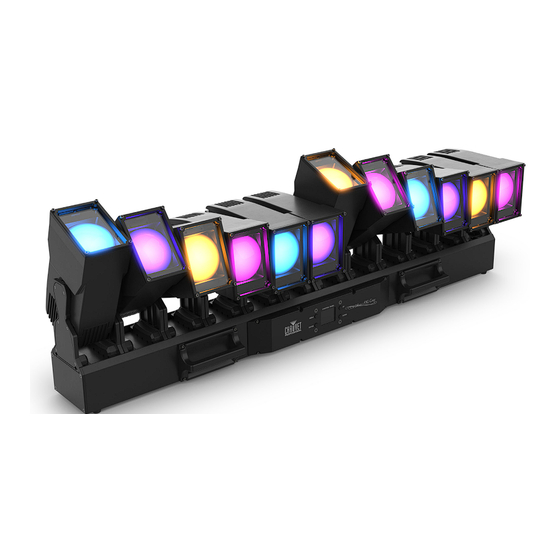

    2. Introduction Description COLORado PXL Curve 12 is a fully pixel-mappable motorized IP65-rated RGBW LED batten with individual control of zoom, tilt and color across twelve independent heads. Basic and advanced operating modes and an extensive library of pre-built effects that includes virtual gobos, movement macros, and foreground/background color control make creating complex and volumetric looks easy.

  • Page 9: Product Overview

    Introduction Product Overview Name Name Menu buttons Fuse holder Display Safety loop Handles Power out Omega brackets USB-C port DMX in Condensation valve Network in Network out Power in DMX out COLORado PXL Curve 12 User Manual Rev.

  • Page 10: Product Dimensions

    39.1 in 993 mm 8.74 in 222 mm 13.82 in 351 mm 12.8 in 325 mm 39.17 in 995 mm 7.09 in 4.57 in 180 mm 116 mm 7.09 in 180 mm COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 11: Setup

    Green/Yellow Green/Yellow Green Power Linking It is possible to power link COLORado PXL Curve 12 products. See the table below for the current draw at each voltage and frequency: 100 V, 60 Hz 120 V, 60 Hz 208 V, 60 Hz...

  • Page 12: Dmx Linking

    Setup DMX Linking The COLORado PXL Curve 12 can be linked to a DMX controller using a 5-pin DMX connection or a WDMX connection. For more information about DMX, read the DMX primer at: https:// www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf. Art-Net™ Connection Art-Net™ is an Ethernet protocol that uses TCP/IP that transfers a large amount of DMX512 data using a Neutrik RJ45 connection over a large network.

  • Page 13: Usb Software Update

    Setup USB Software Update The COLORado PXL Curve 12 allows for software update through USB using the built-in USB port. To enable or disable this function, follow the instructions below: 1. Go to the Setup main level. 2. Select USB Update.

  • Page 14: Mounting

    When power linking multiple products, mount the products close enough for power linking cables to reach. Procedure The COLORado PXL Curve 12 comes with a bracket to which the user can directly attach mounting clamps (sold separately). Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product.

  • Page 15: Operation

    Control Mode The COLORado PXL Curve 12 can work with a single controller or with 2 controllers running 2 different control protocols. In Dual Control mode, one protocol controls the Movement, and the other protocol controls the Pixels.

  • Page 16: Starting Address

    To assign a universe to the control mode when using Art-Net™ or sACN: 1. Select the control mode and protocol as described under Control Mode. 2. Select the Universe option. 3. Select the universe (000–255 for ArtNet, or 001–256 for sACN). COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 17: Menu Map

    Operation Menu Map Refer to the COLORado PXL Curve 12 product page on www.chauvetprofessional.com for the latest menu map. Programming Levels Description Basic Standard Advanced Sets the DMX personality Personal (see Control Personalities) Advanced2 Tour Basic2 Start Addr 001–512 Sets the DMX starting address...
  • Page 18 Display turns off after 5 minutes Display stays on Hold Holds last signal received Loss of Data Close Blacks out fixture Red Shift Enables/disables red shift RGBW RGBW mode (additive) C Mixing Mode CMY mode (subtractive) COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 19 Device UID _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID Base _ _ _ _ Shows speed of base fans 1–2 in rpm Information Fan1–2 COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 20: Dmx Values

    000  009 No function Control 010  255 see Control Settings Cyan 000  255 0–100% Green Magenta 000  255 0–100% Blue Yellow 000  255 0–100% White 000  255 0–100% COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 21 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% White 2 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% Fine white 2 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% Tilt 3 000  255 0–100% COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 22 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% White 6 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% Fine white 6 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 23 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% Fine blue 10 Fine yellow 10 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% White 10 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 24 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% White 12 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% Fine white 12 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 25 000  019 Off 36 36 38 38 Strobe 020  255 see Strobe Settings 37 37 39 39 Zoom 1 000  255 0–100% 38 38 40 40 Zoom 2 000  255 0–100% COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 26 – 65 82 88 White 3 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% – – 89 Fine white 3 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 27 85 122 138 White 8 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% – – 123 139 Fine white 8 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 28 – 101 154 178 White 12 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% – – 155 179 Fine white 12 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 29: Dual Control Mode - Movement

    001  255 From 19000K to 2700K No function – 28 28 Color macro 001  255 see Color Chart No function – 29 29 Pattern (see Patterns) 001  002 Pattern 1–255 COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 30 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% – 53 58 White 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% – – 59 Fine white 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 31: Dual Control Mode - Pixels

    000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% 19 24 47 White 6 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% – – 48 Fine white 6 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% COLORado PXL Curve 12 User Manual Rev. 4...
  • Page 32 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% – 95 White 12 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% – – 96 Fine white 12 000  255 RGBW Mode: 0–100% / CMY Mode: 100–0% COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 33: Tilt Macro

    W = 0 Blue R = 0 G = 0 B = 255 W = 0 240  247 Color fade, fast to slow 248  255 Color snap, fast to slow COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 34: Strobe Settings

    When preset color HTP is on, manual color controls may be used at the same time as preset color controls. When preset color HTP is off, preset color controls will override all manual color controls. COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 35: Led Macro

    LED built-in 79 252  253 LED built-in 119 092  093 LED built-in 39 174  175 LED built-in 80 254  255 LED built-in 120 094  095 LED built-in 40 COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 36: Patterns

    Operation Patterns COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 37: Configuration

    2. Select Network Settings. IP mode The IP address of the COLORado PXL Curve 12 can be set manually, by the network, or to a preset static address specific to each product. To set the IP Mode, do the following: 1.

  • Page 38: Display Orientation

    ON (does not turn off). Loss of Data In case of any loss of input signal, the COLORado PXL Curve 12 will respond in one of two ways: The product will either hold the last signal received, or black out all LED output.

  • Page 39: Led Frequency

    4. Set the color value, 000–255. Preset Functions The COLORado PXL Curve 12 has three presets. Every time a settings is changed in the fixture, the current preset is updated to include that change. To load a preset, do the following: 1.

  • Page 40: System Information

    Operation System Information All the information about the current status of the COLORado PXL Curve 12 is available through the product’s Information menu. To view this information, follow the instructions below: 1. Go to the Information main level. 2. Choose the desired information from the following: •...

  • Page 41: Web Server

    Operation Web Server The COLORado PXL Curve 12 Web Server can be accessed by any computer on the same network as the product. It allows network access to system information and settings (e.g., control setup, manual testing of all functions, firmware updates, and the ability to change the Web Server password).

  • Page 42: Maintenance

    Allen screws for alignment pin holder 12.2 10.6 Allen screws around lens covers 12.2 10.6 Vacuum Test Measurements Use the IP Tester from Chauvet Professional to ensure the product has been reassembled correctly by following the information below: Parameters Values Method Positive Test pressure 2.18 kPa...

  • Page 43: Technical Specifications

    Seetronic etherCON IP65 Dual Mode Pixels: 36, 48, or 96 channels Ordering Product Name Item Name Item Code UPC Number COLORado PXL Curve 12 COLORADOPXLCURVE12 08012099 781462224479 UL 1573 CSA C22.2 No. 166 E113093 COLORado PXL Curve 12 User Manual Rev. 4...

  • Page 44: Contact Us

    For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. COLORado PXL Curve 12 User Manual Rev. 4...
