Read these instructions carefully before installing, commissioning and using this product.
MPNT0467 v1.1EN (16/05/2023)
Technical instructions
ZELIA VP
Salt electrolysis with transpar-
ent cell, Vigipool compatible
Réf : PF10I270
Advertisement
Table of Contents
Related Manuals for ccei vigipool ZELIA VP
Summary of Contents for ccei vigipool ZELIA VP
-
Page 1: Table Of Contents
Technical instructions ZELIA VP Salt electrolysis with transpar- ent cell, Vigipool compatible Réf : PF10I270 Table of Contents 1. Packaged content ........................... 2 2. Technical features .......................... 2 3. Description ..........................3 3.1. Principle of electrolysis ......................3 3.2. Presentation of the Zelia VP ....................3 4. -
Page 2: Packaged Content
ZELIA VP v1.1EN Technical instructions The cell of the Zelia VP must not be splashed with large amounts of water on a regular basis. When technical blocks are integrated and/or buried, we recommend you do not install it under a skimmer, these regularly overflow when people are in the pool. The Zélia VP cell is designed to be installed on a horizontal pipe only, with the control interface on top. -
Page 3: Description

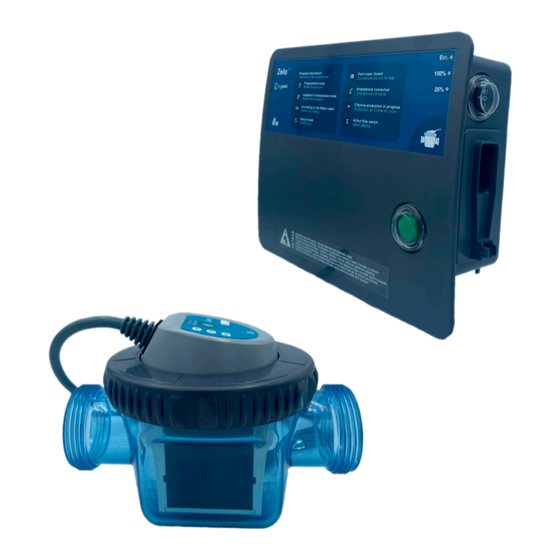

3.2. Presentation of the Zelia VP CCEI has developed light electrolysis. ZELIA's compact and light salt electrolyser is fitted with a transparent cell whose color varies according to the salinity and water temperature of the pool (patented method). -
Page 4: Installation
ZELIA VP v1.1EN Technical instructions When users open their technical room, they know the status of their treatment device straight away and are assured about the water quality: • Production in shut down mode, color according to the water temperature •... - Page 5 ZELIA VP v1.1EN Technical instructions Pay particular attention to the direction of water flow, to ensure that the device detects the flow correctly!
- Page 6 ZELIA VP v1.1EN Technical instructions...
- Page 7 ZELIA VP v1.1EN Technical instructions 4.1.1. Linear installation...
-
Page 8: Electrical Connection
ZELIA VP v1.1EN Technical instructions 4.1.2. Bypass installation 4.2. Electrical connection Installation of this project involves a hazard of electric shocks. We strongly recommend you contract a professional installer. Incorrect installation puts you in danger and may irreversibly damage the product and the equipment connected to it. For reasons of safety and in accordance with the standard NF C15-100, the supply box of the ZELIA VP must be installed •... - Page 9 ZELIA VP v1.1EN Technical instructions 4.2.2. Cover (or Redox analyzer) dry contact input The cover dry contact should be a potential-free contact switch. A connection error may seri- ously damage the device.
-
Page 10: Commissioning
ZELIA VP v1.1EN Technical instructions 4.2.3. Cell connection Connect the cell to the side connector and secure it using the metal clip. 5. Commissioning Only regular analysis enables the device configuration to be adapted. Carefully follow the stages below for the start-up process to run smoothly. The chemical products used in pools are highly corrosive and can adversely affect your health and the environment. -
Page 11: Controlling The Tas/Th
ZELIA VP v1.1EN Technical instructions 5.3. Controlling the TAS/TH At the time of installation, you are advised to test the TAS (Total Alkali Strength) and/or the TH (Total Hardness) of the pool water, or arrange for them to be tested by a specialist. The two measurements are generally close and are more often than not expressed in French degrees (°F). -
Page 12: Control Interface
ZELIA VP v1.1EN Technical instructions If an automatic cover dry contact is connected to the box, the switch present on the side of the box should be in EXT position to enable detection. It is still possible to flip the switch to 100% to disregard the tank cover information and force nominal production, or even to 25% to divide the production by 4 regardless of the status of the shutter. - Page 13 ZELIA VP v1.1EN Technical instructions Repère Elément Description "COVER"/"REDOX STATUS" : This indicator lights up when the cover (or the Re- dOx servo contact) is closed (or when the 3-position changeover switch on the power supply unit is in the "25%" position) Off if the cover is open (or if the Redox analyzer dry contact is open) Flashing if detection is in progress (delay) Permanently on if the cover is closed (or if the Redox analyzer dry contact is closed)
-
Page 14: Compatible With The Vigipool Product Range
ZELIA VP v1.1EN Technical instructions 6.3. Compatible with the Vigipool product range The ZELIA VP is compatible with all devices part of the Vigipool product range. The Vigipool product range brings together numerous interconnected water treatment and main- tenance devices that can be controlled by a single application: Vigipool. The devices wirelessly exchange various information measured and actions taken with each other via a proprietary connection between the devices. -
Page 15: Ios / Android Applications
ZELIA VP v1.1EN Technical instructions 6.5. iOs / Android applications To download the Vigipool application,click here [https://qrstud.io/2ugieka] or scan the QR CODE below. You can also search for Vigipool in the App Store or Play Store search engine: 6.6. Operating modes 3 operating modes can be selected, plus a shock mode: The indicator corresponding to the current mode is permanently lit. -
Page 16: Low Temperature
ZELIA VP v1.1EN Technical instructions 6.6.3. Regulated Mode In order to use this operating mode, you must be equipped with a Vigipool device that measures the Oxidation Reduction Potential of the water (ORP / Redox). For example, the following products are compatible with the use of this mode: Ofix, Meteor2 + Antea-M2+ ORP kit, etc. The "Regulated"... -
Page 17: Production Level
ZELIA VP v1.1EN Technical instructions cleaning / life span. The hydrotimetric titre (H.T.) is an indicator of the mineralization of the water and is expressed in degrees French (°f). This value is communicated by the water supplier, the network manager or the town or city hall of the place of installation. -
Page 18: Maintenance
ZELIA VP v1.1EN Technical instructions 4. Turn the electrolyser back on via the ON/OFF button on the power box. 5. Wait until all lights flash together twice, 6. Release the button. All parameters are reset to factory settings. Performing a reset will erase all the parameters in memory (Wi-Fi configuration, pairing of phones and other devices in the Vigipool Product Range, etc.). -
Page 19: Declaration Of Conformity
A video showing the cell being cleaned is available: click here [https://www.y- outube.com/watch?v=au0isvpQzFE] A. Declaration of conformity CCEI S.A.S (FR 47 40 35 21 693) declares that the ZELIA VP product meets the safety and electromagnetic compatibility requirements of European directives 2014/35/EU and 2014/30/EU. Emmanuel Baret Marseilles, on Distributor's stamp Date of sale: .
