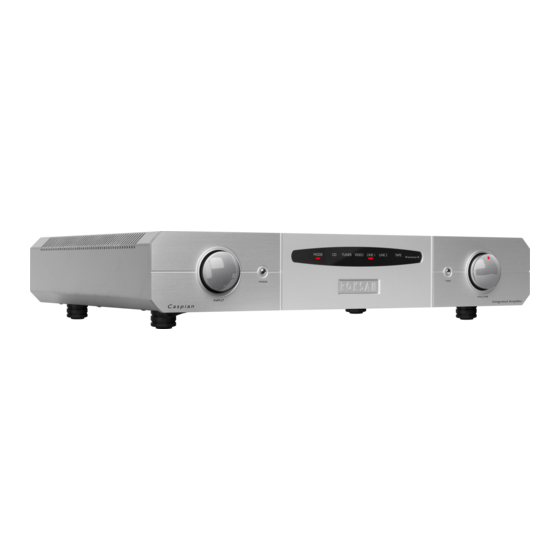

Roksan Audio Caspian Set Up Manual And Product Manual
Stereo integrated amplifier
Hide thumbs
Also See for Caspian:
- User manual (23 pages) ,
- Manual (17 pages) ,
- Set up manual and product manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Roksan Audio Caspian
Summary of Contents for Roksan Audio Caspian
- Page 1 Caspian Stereo Integrated Amplifier Set Up Guide and Product Manual roksan.com...
- Page 2 Roksan is a member of...
-
Page 3: Table Of Contents
This amplifier is designed and manufactured to the highest specification and rigorously tested to offer you many years of trouble-free pleasure. Your Caspian Stereo Integrated Amplifier is at the heart of your hi-fi system. Its correct installation, set-up and operation will have a profound influence on the sonic performance of the entire hi-fi installation. -
Page 4: Eu Directives
A C M A I N S S U P P L Y Your Caspian Stereo Integrated Amplifier is set to operate from a fixed supply voltage which is marked on a label next to the mains input socket. Before connecting the mains... -
Page 5: Front Panel View
RCA Inputs Loudspeaker Output Terminals RCA Outputs - 1 x Tape Voltage & Fuse Rating Label 2 x Pre-Amplifier 10. AC Mains Fuse Holder Power Amplifier Input (requires 11. AC Mains Input Socket internal work for activation) Caspian Stereo Integrated Amplifier... -
Page 6: Cr7 Remote Control
C R 7 R E M O T E C O N T R O L The CR7 Remote Control is used for both the Caspian Stereo Integrated Amplifier and CD Player. The top section is dedicated to the Integrated Amplifier and the lower section to the CD Player. -
Page 7: Location
Never allow liquids or other objects to fall into the unit. NOTE: The feet on the Caspian products are made from natural rubber for improved sound quality. Unfortunately, they can sometimes react with oiled, natural wood surfaces. -
Page 8: Loudspeaker Cable Connections
L O U D S P E A K E R C A B L E C O N N E C T I O N S Loudspeakers and their cables can be connected to the amplifier in a number of ways. -
Page 9: Connecting To Loudspeakers
Bi-amping adds an additional amplifier (eg. Caspian Power Amplifier) to the system so that the one amplifier drives the low frequencies - normally the power amplifier - and the other amplifier drives the high frequencies. -
Page 10: Single Wiring The Loudspeakers
Single Wiring The Loudspeakers When single wiring, connect the loudspeaker cables as illustrated below. Positive Loudspeaker Cable Negative Loudspeaker Cable NOTE: Keep bi-wire links between the loudspeaker terminals Bi-Wiring The Loudspeakers Bi-wiring is achieved by using a single amplifier, but splitting the high and low frequency loudspeaker cables at the amplifier. - Page 11 Bi-Amping The Loudspeakers Bi-amping is similar to bi-wiring, but uses an additional amplifier (Caspian Power Amplifier) to drive the low frequency terminals. One set of cables goes from the Caspian Integrated Amplifier to the high frequency terminals on the loudspeaker and the power amplifier drives the low frequency terminals.
-
Page 12: Switching On
S W I T C H I N G O N The power switch is on the left front underside of the amplifier. This switch is the only method of controlling the power to the amplifier. When switched to ‘on’ the amplifier runs a self-diagnosis. This is a quick process where the Mode LED indicator will momentarily be green. -
Page 13: Tape Button
Start playing from your chosen source (CD, DAC, Turntable, etc) and increase the volume slowly If connected to the Caspian Stereo Power Amplifier, the LED indicators on the power amplifier will automatically switch to red and will be activated within a few seconds. -
Page 14: Know Your Caspian
Roksan dealer. W A R R A N T Y There are no user-serviceable parts inside your Caspian Stereo Integrated Amplifier. If a fault should develop, refer any servicing to your appointed Roksan dealer, distributor or Roksan approved service agent. -
Page 15: Troubleshooting
(especially important if bi- • Poor wiring, bi-amping). loudspeaker imaging, lack of bass output. • Hum from • Incorrect grounding. • Check mains polarity loudspeakers. and grounding on all connected equipment. Caspian Stereo Integrated Amplifier... -
Page 16: Specifications
S P E C I F I C A T I O N S INPUTS 5 Line & Tape gold plated RCA - CD Input also switchable to balanced gold plated XLR Input Impedance: 47 kΩ Input Sensitivity (85 W): Line 240 mV OUTPUTS Gold plated RCA, Tape &... - Page 20 Designed and built in Great Britain. Roksan roksan.com 24 Brook Road, info@roksan.com Rayleigh, Essex Version 3.2. 2019 SS6 7XJ, UK ROK-1264 +44 (0)1268 798900...
