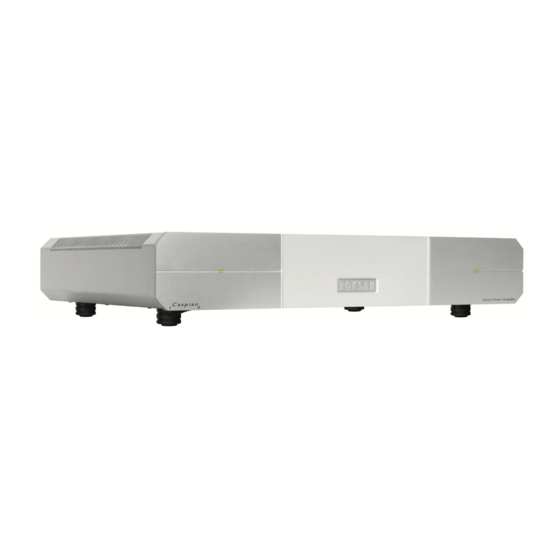

- Page 1 Caspian Stereo Power Amplifier Set Up Guide and Product Manual roksan.com...
- Page 2 Roksan is a member of...
-
Page 3: Table Of Contents
This amplifier is designed and manufactured to the highest specification and rigorously tested to offer you many years of trouble-free pleasure. Your Caspian Stereo Power Amplifier is at the heart of your hi-fi system. Its correct installation, set-up and operation will have a profound influence on the sonic performance of the entire hi-fi installation. -
Page 4: Eu Directives
A C M A I N S S U P P L Y Your Caspian Stereo Power Amplifier is set to operate from a fixed supply voltage which is marked on a label next to the mains input socket. Before connecting the mains lead... -
Page 5: Location
Never allow liquids or other objects to fall into the unit. NOTE: The feet on the Caspian products are made from natural rubber for improved sound quality. Unfortunately, they can sometimes react with oiled, natural wood surfaces. -
Page 6: Signal Connections
S I G N A L C O N N E C T I O N S All the inputs and outputs use gold plated RCA Phono and XLR connectors and should be connected accordingly: Left Channel – Black; Right Channel – Red Input Connections: Two pairs of inputs are available on your amplifier. -
Page 7: Speaker Connection Polarity
For instance, if using two stereo amplifiers you should use one stereo amplifier for the bass and the other for the treble, minimising the impact of the bass on the treble. Caspian Stereo Power Amplifier... -
Page 8: Single Wiring The Loudspeakers
Laite on liitettävä suojakoskettimilla varustettuun MAX POWER AC~ INPUT XLR INPUT RCA INPUT Roksan Audio, 24 Brook Road, Rayleigh, Essex, SS6 7XJ, UK pistorasiaan. Apparatet må tilkoples jordet FUSE RATING stikkontakt. Apparaten skall anslutas till jordat uttag. Positive RCA Cable... -
Page 9: Bi-Amping The Loudspeakers
Bi-amping is similar to bi-wiring, but uses the Casppian Power Amplifier to drive the low frequency terminals. One set of cables goes from the Caspian Integrated Amplifier to the high frequency terminals on the loudspeaker and the power amplifier drives the low frequency terminals. -
Page 10: Switching On
S W I T C H I N G O N The power switch is on the left front underside of the amplifier. This switch is the only method of controlling the power to the amplifier. When switched to ‘on’ the amplifier runs a self-diagnosis. This is a quick process where the Mode LED indicator will momentarily be green. -
Page 11: Troubleshooting
(especially important if bi-wiring, bi- • Poor amping). loudspeaker imaging, lack of Bass output. • Hum from • Incorrect grounding. • Check Mains polarity loudspeakers. and grounding on all connected equipment. Caspian Stereo Power Amplifier... -
Page 12: Warranty
W A R R A N T Y There are no user-serviceable parts inside your Caspian Stereo Power Amplifier. If a fault should develop, refer any servicing to your appointed Roksan dealer, distributor or Roksan approved service agent. Both the craftsmanship and the performance of this product is covered by the manufacturer’s warranty against manufacturing defects provided that the product was... -
Page 13: Specifications
Power Consumption: Full power 2 channels 8 Ohm <330 W, 4 Ohm <550 W Dimensions (W x D x H): 432 x 330 x 70 mm 432 x 330 x 80 mm (Including feet) Weight: 13 Kg All specifications are liable to change without notice. E&OE Caspian Stereo Power Amplifier... - Page 16 Designed and built in Great Britain. Roksan 24 Brook Road, roksan.com Rayleigh, Essex info@roksan.com SS6 7XJ, UK Version 2.2. 2019 +44 (0)1268 798900...
