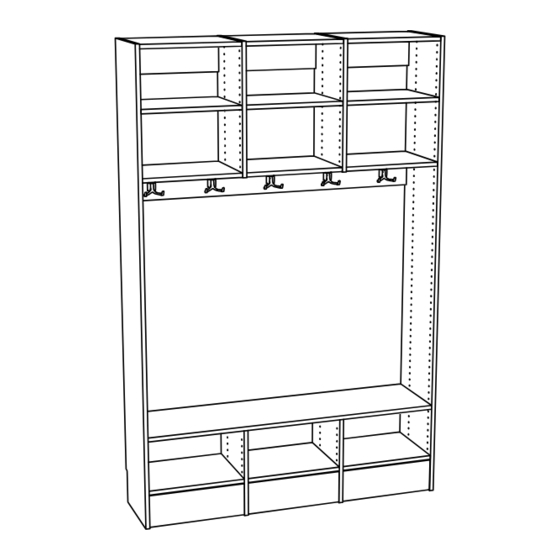

Master Trac
Dropzone Parts and Installation
NOTE: THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Call us at 1-855-854-7465
or vist us at
www.sauder-closets.com
Lot #: 594878
04 / 25 / 23
Purchased: ____________________

Advertisement

loading
Need help?

Need help?

Do you have a question about the Master Trac Dropzone and is the answer not in the manual?

Questions and answers

Related Manuals for Sauder Master Trac Dropzone

Summary of Contents for Sauder Master Trac Dropzone

  • Page 1 Master Trac Dropzone Parts and Installation NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. Call us at 1-855-854-7465 or vist us at www.sauder-closets.com Lot #: 594878 04 / 25 / 23 Purchased: ____________________...

  • Page 2: Table Of Contents

    Table of Contents Part Identification Hardware Identification Hardware Usage Guide Cabinet Hardware Preparation Dropzone Cabinet Installation 8-32 Weight Limts Optional Accessories 33-37 Safety Warranty Page 2 www.sauder-closets.com...

  • Page 3: Part Identification

    590990 Slate Rift 590948 Slate Rift 590935 Slate Rift 432793/579955 Spice Mahogany 590985 Spice Mahogany 590946 Spice Mahogany 590920 Spice Mahogany (Actual 24" x 61/4") (Actual 51/2" x 365/8") (Actual 51/2" x 483/4") (Actual 51/2" x 553/8") www.sauder-closets.com Page 3...
  • Page 4 (Actual 553/8" x 14 3/8") 48" Bench Seat 36" Bench Seat 594943 White 590911 White 590947 Slate Rift 590931 Slate Rift 590945 Spice Mahogany 590917 Spice Mahogany (Actual 483/4" x 14 3/8") (Actual 365/8" x 14 3/8") Page 4 www.sauder-closets.com...

  • Page 5: Hardware Identification

    433161 Zinc (250) 433167 Zinc (250) 432937 Nickel (50) 433162 Zinc (25) 433168 Zinc (25) 2-3/4" Flat Head Screw 9/16" Wafer Head Screw Hinge Kit 433179 (250) 283573 432396 (6 hinge pack) 433180 (25) 432397 (8 hinge pack) www.sauder-closets.com Page 5...

  • Page 6: Hardware Usage Guide

    A Double Dowel is required in the exact orientation between two Fixed shelves that are horizontally inline. Fixed Shelf Fixed shoulder Shelf Upright #1 The shoulder will always be farthest away from Upright #1. Page 6 www.sauder-closets.com...

  • Page 7: Cabinet Hardware Preparation

    Small Drawer 16 7/8" Drawer Large Extension Rail Drawer Small Drawer 14 1/4" 9 1/4" Bottom Shelf NOTE: Coat Hooks, Doors, and Drawers sold separately. See pages 33-37 for Optional Accessories available for use with your unit. www.sauder-closets.com Page 7...

  • Page 8: Dropzone Cabinet Installation

    With a level or laser, create a line 86 3/4" off the floor onto your wall to indicate the top edge of the Left Upright. NOTE: As you build your Floor Cabinets, you may need to shim underneath the Uprights to stay level with the line keeping the Uprights plumb. Page 8 www.sauder-closets.com...
  • Page 9 Dropzone Cabinet Installation Screw-In Dowel Screw-In Dowel Left Upright Notch Screw-In Dowel Turn ten Screw-in Dowels into the exact holes shown in the Left Upright. www.sauder-closets.com Page 9...
  • Page 10 Wall Cleats come with pre-glue dowels in them. Fasten a Wall Cleat to the Left Upright by pushing the wood dowels in the Wall Cleat into the Upright. IMPORTANT: A Wall Cleat is required between all Uprights. Page 10 www.sauder-closets.com...
  • Page 11 IMPORTANT: Fasten Wall Cleat #1 to a wall stud with a 2-3/4" Flat Head Screw or with a Toggle Anchor if a wall stud is not available. Diagram #1 The Toggle Anchor requires 1/2" hole in the drywall. Push the Toggle Anchor into the hole, slide the Sleeve to the drywall and break off the Tabs of the Toggle Anchor. www.sauder-closets.com Page 11...
  • Page 12 Dropzone Cabinet Installation Double Dowel shoulder shoulder Upper Upright #1 Insert four Double Dowels completely into the holes in the Upper Upright #1. Page 12 www.sauder-closets.com...
  • Page 13 Dropzone Cabinet Installation Wall Cleat #1 Laser Level Line Upper Upright #1 Left Upright Push the Upper Upright #1 onto the wood dowels in Wall Cleat #1. www.sauder-closets.com Page 13...
  • Page 14 Dropzone Cabinet Installation Laser Level Line Fixed Shelf Upper Upright #1 Fixed Shelf Left Upright Fasten two Fixed Shelves to the Left Upright and Upper Upright #1. Tighten eight Connectors. Page 14 www.sauder-closets.com...
  • Page 15 Wall Cleats come with pre-glue dowels in them. Fasten a Wall Cleat to Upper Upright #1 by pushing the wood dowels in the Wall Cleat into the Upright. IMPORTANT: A Wall Cleat is required between all Uprights. www.sauder-closets.com Page 15...
  • Page 16 IMPORTANT: Fasten Wall Cleat #2 to a wall stud with a 2-3/4" Flat Head Screw or with a Toggle Anchor if a wall stud is not available. Diagram #1 The Toggle Anchor requires 1/2" hole in the drywall. Push the Toggle Anchor into the hole, slide the Sleeve to the drywall and break off the Tabs of the Toggle Anchor. Page 16 www.sauder-closets.com...
  • Page 17 Dropzone Cabinet Installation Double Dowel shoulder shoulder Upper Upright #2 Insert four Double Dowels completely into the holes in the Upper Upright #2. www.sauder-closets.com Page 17...
  • Page 18 Dropzone Cabinet Installation Wall Cleat #2 Laser Level Line Upper Upright #2 Push the Upper Upright #2 onto the wood dowels in Wall Cleat #2. Page 18 www.sauder-closets.com...
  • Page 19 Dropzone Cabinet Installation Laser Level Line Fixed Shelf Upper Upright #1 Upper Upright #2 Fixed Shelf Fasten two Fixed Shelves to the Upper Uprights #1 and #2. Tighten eight Connectors. www.sauder-closets.com Page 19...
  • Page 20 Wall Cleats come with pre-glue dowels in them. Fasten a Wall Cleat to Upper Upright #2 by pushing the wood dowels in the Wall Cleat into the Upright. Important: A Wall Cleat is required between all Uprights. Page 20 www.sauder-closets.com...
  • Page 21 IMPORTANT: Fasten Wall Cleat #3 to a wall stud with a 2-3/4" Flat Head Screw or with a Toggle Anchor if a wall stud is not available. Diagram #1 The Toggle Anchor requires 1/2" hole in the drywall. Push the Toggle Anchor into the hole, slide the Sleeve to the drywall and break off the Tabs of the Toggle Anchor. www.sauder-closets.com Page 21...
  • Page 22 Dropzone Cabinet Installation Screw-In Dowel Notch Screw-In Dowel Right Upright Screw-In Dowel Turn ten Screw-in Dowels into extact holes shown in the Right Upright. Page 22 www.sauder-closets.com...
  • Page 23 Dropzone Cabinet Installation Laser Level Line Wall Cleat #3 Right Upright Push the Right Upright onto the wood dowels in Wall Cleat #3. www.sauder-closets.com Page 23...
  • Page 24 Dropzone Cabinet Installation Laser Level Line Fixed Shelf Upper Upright #2 Fixed Shelf Right Upright Fasten two Fixed Shelves to the Upper Upright #2 and Right Upright. Tighten eight Connectors. Page 24 www.sauder-closets.com...
  • Page 25 Dropzone Cabinet Installation Side Cleat Bracket Screw-In Dowel Side Cleat Bench Seat Bracket Fasten the Side Cleat Brackets to the Bench Seat with eight 9/16" Wafer Head Screws. Turn four Screw-in Dowels into the holes of the Bench Seat. www.sauder-closets.com Page 25...
  • Page 26 Right Upright Bench Seat Fasten the Bench Seat to the Left and Right Uprights. Tighten four Connectors. Fasten the Side Cleat Brackets on the Bench Seat to the Left and Right Uprights with eight 9/16" Wafer Head Screws. Page 26 www.sauder-closets.com...
  • Page 27 Dropzone Cabinet Installation Lower Upright Lower Upright shoulder Double Dowel Push eight Double Dowels into the exact holes how in the Lower Uprights. www.sauder-closets.com Page 27...
  • Page 28 Dropzone Cabinet Installation Bench Seat Lower Upright Fasten the Lower Uprights to the Bench Seat. Tighten four Connectors. Page 28 www.sauder-closets.com...
  • Page 29 Lower Upright Fasten three Fixed Shelves to the Left, Right, and Lower Uprights. Tighten twelve Connectors. NOTE: If you will be inserting a drawer into the center opening, do not tighten the Connectors on the center Fixed Shelf. www.sauder-closets.com Page 29...
  • Page 30 Push the upper connectors in the Toe Kicks onto the upper Push-In Dowels and Double Dowels. Next, rotate the Toe Kick on the upper Dowels until the connectors are exposed. Tighten two upper connectors in each Toe Kick. Rotate the Toe Kicks down completely onto the lower Double Dowel. Page 30 www.sauder-closets.com...
  • Page 31 IMPORTANT: You must use a minimum of three anchor points. Diagram #3 The Toggle Anchor requires 1/2" hole in the drywall. Push the Toggle Anchor into the hole, slide the Sleeve to the drywall and break off the Tabs of the Toggle Anchor. www.sauder-closets.com Page 31...
  • Page 32 Dropzone Cabinet Installation and Weight Limits 20 lbs ea. Coat Hook 5lbs ea. Push the Coat Hooks into the holes in the Coat Hook Board. NOTE: Coat Hooks sold separately. Page 32 www.sauder-closets.com...
  • Page 33 432734 White Doors only (2) 435041 Spiced Mahogany 435044 Spiced Mahogany 432621 Slate Rift Kit 432620 Slate Rift Doors only (2) 432851 SP Mahog Kit 432850 SP Mahog Doors only (2) 432396 Hardware (Actual 151/4" x 301/8 "each) www.sauder-closets.com Page 33...
  • Page 34 432852 SP Mahog Doors only (2) 432817 SP Mahog Doors only (2) 432821 SP Mahog Doors only (2) 432396 Hardware 432396 Hardware 432396 Hardware (Actual 151/4" x 301/8" each) (Actual 151/4" x 437/8" each) (Actual 151/4" x 523/4" each) Page 34 www.sauder-closets.com...
  • Page 35 Crown Molding (classic) Crown Molding (shaker) Ship Lap Molding Molding/Filler Strip 432601 White 432600 White 435680 White (16) 434831 White 430874 Slate Rift 430873 Slate Rift 434833 Slate Rift 432831 Spice Mahogany 432830 Spice Mahogany 434832 Spice Mahogany www.sauder-closets.com Page 35...
  • Page 36 Drawer Assembly Drawer Assembly Drawer Assembly 430844 Drawer box only 430845 Drawer box only 430846 Drawer box only 432384 Hardware only 432384 Hardware only 432384 Hardware only 6" x 18" Basket 6" x 24" Basket 432897 432900 Page 36 www.sauder-closets.com...

  • Page 37: Optional Accessories

    433188 Matt Aluminum Coat Hook Double Hook Waterfall Hook Broom Holder 432906 Matt Aluminum 432909 Matt Aluminum 432912 Polished Chrome 432910 White 432907 Polished Chrome 432908 Polished Chrome 432913 Matt Aluminum 432911 Grey NOTE: Coat Hooks sold separately. www.sauder-closets.com Page 37...
  • Page 38 • Children climbing or hanging on the • Risk of injury or death. • Do not allow children to climb or hang shelves or clothing bars. on the shelves or clothing bars. Avoid placing items like toys or candy on shelves. Page 38 www.sauder-closets.com...

  • Page 39: Warranty

    Return of any defective Product may be required by Products; (2) abuse or neglect; (3) any commercial, rental or non- Sauder™ Closets, or we may elect to examine the product at its residential use of the Products (including the installation and use location.
  • Page 40 Trust Sauder Sauder has been making wood products since 1934. Today we offer a wide range of products, mostly made right here in Archbold, Ohio, and supported by our award-winning customer service. Sauder™ Closets are supported by our Limited Lifetime Warranty and offers the same made-in-the-USA advantages as the rest of our product line.
