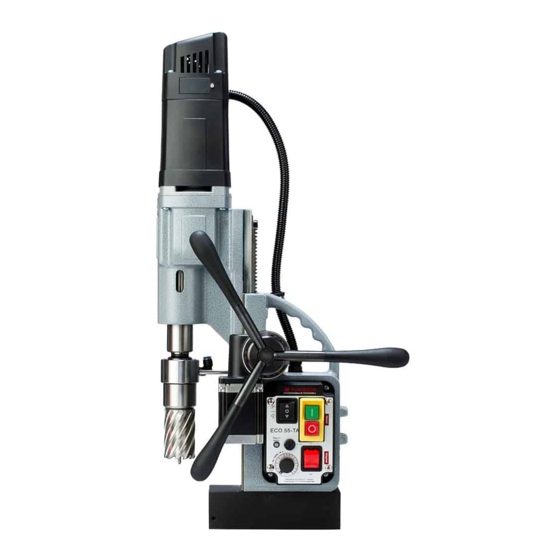

- Page 1 Operators manual version 1.5 EN Magnetic drilling machine ECO.55-A / ECO.55-TA Serial no.: _______________________ Date of purchase: _______________________...
- Page 2 Congratulations on your purchase of the Euroboor ECO.55-A / ECO.55-TA portable magnetic drilling machine. Your model is designed to produce superior holes quickly and efficiently. Through years of experience, constant innovation and development, Euroboor is committed to provide you with metal cutting tools and products to help you be more productive.
-
Page 3: Table Of Contents
Table of contents 1. Safety 1. 1 General safety instructions 1.2 Specific safety information 2. Description 2.1 Intended use 2.2 Description and features 2.3 Box contents 2.4 Serial number 2.5 Technical data 2.6 Symbols 2.7 Environmental 3. Preparation & adjustment 3.1 Assembly 3.2 Prior to use 4. -
Page 4: Safety
1. Safety 1. 1 General safety instructions Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the “General Safety Instructions”, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using electrical tools basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury including following. - Page 5 If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools. 9. Use only accessories that are recommended by Euroboor for your model. Accessories that may be suitable for one machine, may become hazardous when used on another machine.
-
Page 6: Specific Safety Information
1.2 Specific safety information • Keep your fingers well out of the drill area; • Avoid touching the drilled core that is automatically ejected by the centering pin when the working procedure is finished. Contact with the core when it is hot, or if it falls, can cause personal injuries;... -
Page 7: Description
(ECO.55-TA only) in a weather-protected environment using the application tools and accessories recommended by EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. -
Page 8: Box Contents
2.3 Box contents 1 Carrying case 1 Magnetic drilling machine 1 Instruction manual 3 Handles 1 Drill guard + 2 bolts 1 Oil tank + attachment pin 1 Bottle cutting oil 3 Allen keys (2.5, 4, 5) 1 Safety chain 1 Morse Taper 3 spindle 1 Spindle drift 4 Tap collets (DIN 376 M10/M12/M14/M16) *... -
Page 9: Technical Data
2.5 Technical data ECO.55-A ECO.55-TA ANNULAR CUTTERS Ø 12 – 55 mm Ø 1/2" – 2-3/16” Ø 12 – 55 mm Ø 1/2" – 2-3/16” TWIST DRILLS Ø 1 – 23 mm Ø 1/16” – 15/16” Ø 1 – 23 Ø... -
Page 10: Symbols
2.6 Symbols Symbol Term, meaning Explanation Be absolutely sure to read the enclosed Read documentation documentation such as the Instruction Manual and the General Safety Instructions. Wear ear protection Use ear protection during operation. Wear eye protection Use eye-protection during operation. Danger/warning/caution Observe the information in the adjacent text! European conformity symbol... -
Page 11: Environmental
2.7 Environmental Separate collection. This product must not be disposed of with normal household waste. Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. -
Page 12: Preparation & Adjustment
3. Preparation & adjustment 3.1 Assembly WARNING: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. Be sure all switches are in the OFF position. An accidental start-up can cause injury. -
Page 13: Prior To Use
Please make sure that the contacting surface for the magnet is level, clean and rust-free. Remove any varnish or primer. When working on materials that are not magnetizable, suitable fixation devices, obtainable as accessories from EUROBOOR, e. g. suction plate, vacuum plate or pipe-drilling device must be used. -
Page 14: Using The Machine
4. Using the machine WARNING: Always observe the safety instructions and applicable regulations. WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect tool from power source before making any adjustments or removing/installing attachments or accessories. 4.1 Control panel The control panel on your magnetic drilling machine is designed for maximum operating facility and safety. -
Page 15: Morse Taper Spindle
4.2 Morse taper spindle [image 2-3] [image 2-4] 1. Make sure the inside of the output shaft and the Morse Taper spindle are clean and free of grease 2. Align the coolant ring rotation limiter with the recess in the gearbox (A) 3. -
Page 16: Gearbox
NOTE: never touch moving machine parts! 3. Speed selection for annular cutters (also see plate on gearbox): min-1 min-1 Ø 27-55 mm Rotating speed 275 (ECO.55-A) or 60-275 (ECO.55-TA) min-1 min-1 Ø 12-26 mm Rotating speed 500 (ECO.55-A) or 100-500 (ECO.55-TA) -
Page 17: Electromagnet
4.4 Electromagnet Make sure the magnetic drilling machine is placed on a smooth, clean, level and solid surface without any objects or dubree in between to guarantee maximum adhesion The workpiece must be at least 5 mm thick for the magnet to stick, but minimal 3 mm thick to hold the weight of the machine and to drill safely. -
Page 18: Switching Motor On And Off
Make sure that the magnet attaches tightly to the work piece before turning on the motor unit of the magnetic drilling machine. Euroboor magnets have 2 coils; make sure that both coils are in contact with the material. Do not connect any other machines to the electrical outlet the magnetic drilling machine is plugged into, as it may result in the loss of magnetic force. -
Page 19: Automatic Functionality
Ø 55 mm. For Ø 30 – 55 mm the use of TCT annular cutters is advised to ensure the fastest and most efficient (automatic) drilling performance. 2. Automatic drilling machines ECO.55-A and ECO.55-TA are equipped with a penetration recognition. When drilling with annular cutters in automatic mode, the magnetic drilling machine recognizes when the hole is finished. - Page 20 4. During the process of drilling with annular cutters, It is possible to switch from manual to automatic mode and vice versa. WARNING: Always check if the situation before drilling in automatic mode is safe. Stay close by to the machine and keep a close eye to the automatic drilling process to be ready to switch of the machine whenever there is need to.
-
Page 21: Led Display & Torque Control
4.9 LED display & torque control This machine is equipped with an electronic display, showing: Used motor power LED indicators 1. Switch on the electromagnet. All LED indicators shortly light up and a beep sounds 2. Switch on the motor and start drilling. When the tool first touches the workpiece the used motor power shown in the display increases, and can be increased or decreased by raising of reducing the pressure on the feed handles. -
Page 22: Temperature Control
WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use Euroboor cutting paste Make sure to use only suitable cutting oil or fluid. Euroboor offers a wide range of cutting lubricants for all tool and material combinations. Proper cooling will help you create better and faster results,... -
Page 23: Working With Operating Tools
5 Working with operating tools 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill. When drilling with an annular cutter, it is not necessary to drill a pilot hole. - Page 24 3. Use the pilot pin to position the machine and in the correct position, with the tip of the pilot pin to meet the marked center of the hole. 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece.
-
Page 25: Twist Drills
5.2 Twist drills 1. Remove the Morse Taper arbor (see chapter Gearbox) 2. Fit the twist drill a. Straight shank twist drills [image 3-2] b. Morse Taper shank twist drills [image 3-3] Morse Taper 2 [image 3-4] Morse Taper 3... -
Page 26: Machine Taps
3. Precisely mark the center of the hole, and use the tip of the twist drill to position the machine and in the correct position, with the tip of the twist drill to meet the marked center of the hole. Steps 4-12: see chapter Annular cutters. -
Page 27: Countersinks
4. Select the lowest gear and lowest speed and set the direction of rotation to clockwise (right = R) 5. Switch on the machine and set the machine tap onto the drilled hole 6. Guide the machine slide down at the handle without exerting 7. -
Page 28: Maintenance
6. Maintenance Your EUROBOOR power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 29 Repair, modification and inspection of Euroboor Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorized dealer. The spare parts list will be helpful if presented with the machine to the Euroboor dealer for service when requesting repair or other maintenance.
-
Page 30: Trouble Shooting
7. Trouble shooting Magnet and motor do not - The magnet switch is not connected to the power supply function - Damaged or defective wiring - Defective fuse - Defective magnet switch - Defective Control Unit - Defective power supply Magnet does function, the motor - Damaged or defective wiring does not work... - Page 31 Insufficient magnetic force - Damaged or defective wiring - Bottom of magnet not clean and dry - Bottom of magnet not flat - Work piece is not bare metal - Work piece is not clean or flat - Work piece is less than 10 mm (too thin) - Defective Control Unit - Defective magnet Frame under voltage...
-
Page 32: Exploded View & Spare Part List
8. Exploded view & spare part list 8.1 Exploded views ECO.55-A... - Page 33 ECO.55-A CONTINUED...
- Page 34 ECO.55-TA...
- Page 35 ECO.55-TA CONTINUED...
-
Page 36: Spare Part Lists
055.0002A Rear panel plate 110V 050T.0332 Screw for sp.cntr. unit 055.1012 Speed control unit 220V 68-73 055.0552 ECO.55-A Control unit 2 - 230V 055.1012A Speed control unit 110V 055.0552A ECO.55-A Control unit 2 - 110V 020.0298 Motor cable clamp 050.0069 Carbon brush set 230V 020.0081... - Page 37 ECO.55-TA Part number Description Part number Description 055T.1001 Motor unit 220-240 V 050.0077 Key 6 x 6 x 12 055T.1001A Motor unit 110-120 V 050.0461 Spindle drive shaft 34x146 050.0106 Screw 4,8xx45 020.0086/Z Rail set Aluminium (L+R) 050.0059 Protective cover 53 x 35 050.1013 Led screen 020.0063...
-
Page 38: Wiring Diagrams
8.3 Wiring diagrams ECO.55-A... - Page 39 ECO.55-TA...
