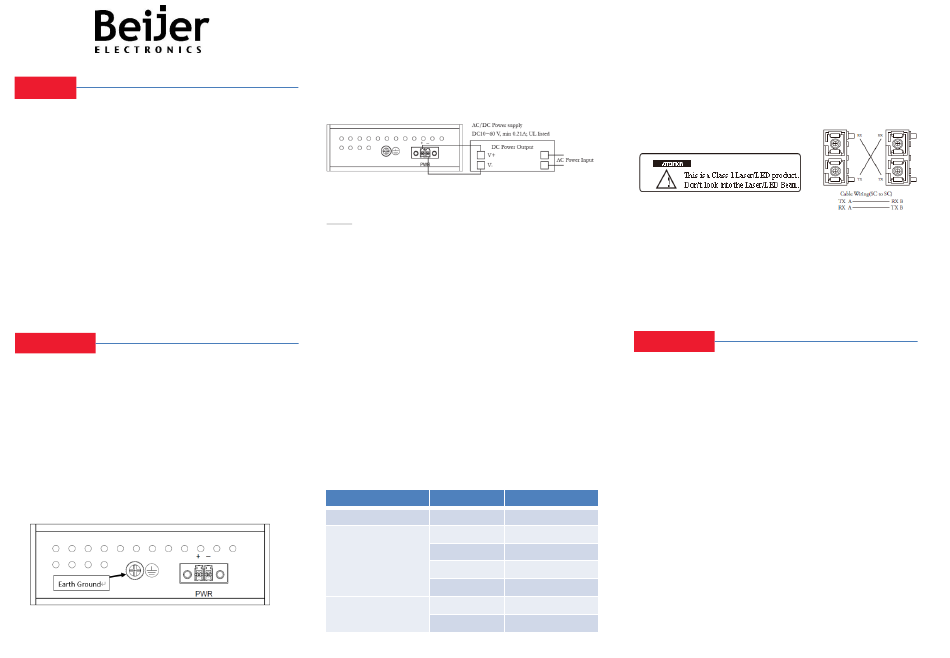

Beijer Electronics JetNet 2205(f) Quick Installation Manual

JetNet 2205(f)
Quick Installation Guide v1.0
Overview
JetNet 2205(f) is a compact size 5(4)-port 10/100T(X) and
0(1) port 100Base F(X) Industrial Ethernet Unmanaged
Switch, which ensures high switching performance and
easy installation. Along with its high switching performance,
it supports multiple internal performance features, such as
QoS, Flow Control, it ensures quality traffic transmission.
The JetNet 2205(f) adopts rugged metal case design to
operate in harsh environment (-40~75°C ).
It is recommended to be powered by DC 24V (with DC10~
60 V range) .
Package Check List
 JetNet 2205(f) Ethernet switch
 Quick Installation Guide
Installation
Mount the unit
Din-Rail mount: Mount the Din-rail clip on the rear of
JetNet 2205(f) on the DIN rail.
Grounding JetNet 2205(f)
There is one grounding screw on the bottom side of
JetNet 2205(f). Connect the earth ground screw of
JetNet 2205(f) to the grounding surface to ensure
safety and prevent noise.
Wiring the Power Inputs
1. Insert the positive and negative wires into the V+ and V-
contact on the terminal block connector.
2. Tighten the wire-clamp screws to prevent the power wires
loosened.
Note:
The recommended working voltage is DC 24V. (Input range:
DC10~ 60 V)
Connecting to Network
Connecting the Ethernet Port: Connect one end of an
Ethernet cable into the UTP port of JetNet 2205(f),
while the other end is connected to the attached
networking device. UTP port support auto MDI/MDIX
function.
The LNK / ACT LED will turn Yellow for 10M Ethernet or
Green for 100M Ethernet.
LED Color
PWR Green
Green
1-5(4)
Flashes Green
Amber
Flashes Amber
Green
FX
(JetNet2205f)
Flashes Green
Connection the Fiber Port (JetNet2205f): Connect the fiber
port on your JetNet2205f to another Fiber Ethernet device,
by following the figure below. Wrong connection
will cause the fiber port not working properly.
Support
5 Years Warranty
Beijer Electronics warrants that the Product(s) shall be free from defects
in materials and workmanship for a period of 5 years from the date of
delivery provided that the Product was properly installed and used.
This is warranty is voided if defects, malfunctions or failures of the
warranted Product are caused by damage resulting from force measure
(such as floods, fire, etc.), other external forces such as power
disturbances, over spec power input, or incorrect cabling; or the
warranted product is misused, abused, or operated, altered and repaired
in an unauthorized or improper way.
Attention! To avoid system damage caused by sparks, please DO NOT
Function
plug in power connector when power is on.
Power on
Link for 100M
Activity for 100M
Link for 10M
Activity for 10M
Link
Activity
