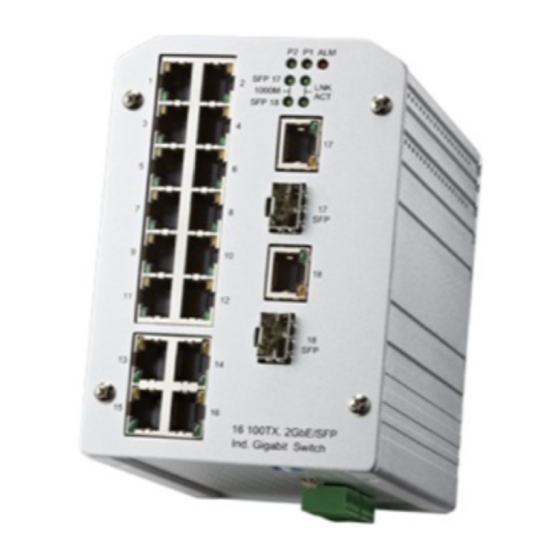

JetNet 3018G Industrial 16+2G Gigabit Ethernet Switch
Quick Installation Guide V1.1
Overview
is quick installation guideline applies to the 16+2G Gigabit Ethernet Switch.
introduction and product data sheet can be found in Korenix website and the catalogue.
Ethernet switch is designed as rugged surface in aluminum housing with wide operating
o
temperature range (-40~75 C).
Package Check List
 JetNet Industrial Switch
 Quick Installation Guide
 DIN Rail Mounting kit
Installation
Mount the unit
You can mount the DIN-rail chip on the rear of
JetNet Switch on the DIN rail.
Power the unit and connect to network
1. Connect the PWR1/PWR2 and turn on the power supply.
LED PWR1/PWR2 will turn on (Green on).
Power1 Power2
V+ V- V+ V-
Accept 12-24 AWG wire.
The switch provides polarity reverse protection.
2. Connect the 10/100M Ethernet Port: Connect the network node to the switch with 4-pair
CAT5e UTP cable. e Fast Ethernet interface support auto MDI/MDIX.
3. Connect the Gigabit TX of combo ports: Connect the network node to Switch with 4-pair
CAT5e UTP cable. e Gigabit TX interface support auto MDI/MDIX as well.
4. Connects the SFP transceiver: Plug in SFP ber transceiver. It is recommended to use
Korenix certi cated SFP mini GBIC transceiver. Cross-connect the transmit channel at each
end to receive channel at the opposite side end as illustrate in the gure below.
ATTENTION
is is a Class 1 Laser/LED product.
！ Don't look into the Laser/LED Beam.
5. If you need to connect the Relay Output, please refer to the wiring method introduction in
the manual.
Relay Output
JetNet Switch can go through the dry relay output with DC 24V/1A current
forwarding ability for Gigabit port and power event alarm. It can be enabled
by 4-pin DIP- Switch, and the default is o .
DIP-Switch #1: Flow Control for system (On: Enable / O : Disable)
DIP-Switch #2: Broadcast Storm Control (On: Enable / O : Disable)
DIP-Switch #3: Enable DO1 for power event monitoring
(On: Enable / O : Disable)
DIP-Switch #4: Enable DO2 for Gigabit uplink event monitoring
(On: Enable / O : Disable)
Note: DO 1 monitors power 1 and power 2.
e latest
DO 2 monitors Gigabit port 17 and port 18 (RJ-45/SFP).
is
Note: please do NOT use DIP-Switch#3 to enable DO 1 when applying negative power.
It may cause DO 1 malfunction.
LED Indication
A Beijer Electronics Group Company
JetNet 3018G Industrial 16+2G Gigabit Ethernet Switch
Quick Installation Guide V1.1
Overview
Pin No. # Description
is quick installation guideline applies to the 16+2G Gigabit Ethernet Switch. e latest
introduction and product data sheet can be found in Korenix website and the catalogue. is
Ethernet switch is designed as rugged surface in aluminum housing with wide operating
temperature range (-40~75 o C).
Package Check List
A Beijer Electronics Group Company
Overview JetNet 3008/3008f Series Industrial Ethernet Switch Quick Installation Guide V1.5
 JetNet Industrial Switch 6 10/100TX plus two 100FX Fast Ethernet ber ports in either multi-mode type (JetNet 3008f-m) or single-mode type (JetNet 3008f-s). JetNet 3008/3008f Industrial Ethernet Switch, supports 8 10/100Base TX (JetNet 3008) or e JetNet3008/3008f adopts rugged metal Power 1,2 Green On: Power is applying
provides IP-30 standard protection. It features one relay output to alarm users if a port link case design to operate in harsh environments (-40~75oC JetNet 3008-w/3008f-w); It also
 Quick Installation Guide the 6-pin removable terminal block. 3008/3008f is recommended to be powered by DC 12V or 24V with 10~60V range from fails or with the power fails. Alarms can be enabled/disabled by a 9-pin dip switch. JetNet
 Package Check List JetNet 3008/3008f Switch JetNet 3008/3008f Series Industrial Ethernet Switch Ethernet Industrial 3008/3008f JetNet Quick Installation Guide V1.5 A Beijer Electronics Group Company supports 3008) or 6 10/100TX plus Overview Switch, 10/100Base TX (JetNet 8
 DIN Rail Mounting kit  Quick Installation Guide ber ports in multi-mode type (JetNet two 100FX Fast Ethernet  Quick Installation Guide  JetNet 3008/3008f Switch Package Check List either
Installation
Mount the unit
You can mount the DIN-rail chip on the rear of Alarm Red On: Event occurred, relay alarm output conductors short.
JetNet Switch on the DIN rail.
Power the unit and connect to network
1. Connect the PWR1/PWR2 and turn on the power supply. en, the power indicator –
LED PWR1/PWR2 will turn on (Green on).
Green On (Link): Ethernet port link up
Green Blinking (Activity): Port is transmitting and receiving the data
Fast Ethernet
(# 1~#16) Amber On (Full Duplex): Port link in full duplex mode
Amber Off (Half Duplex): Port link in half duplex mode
Green On (Link): Ethernet port link up
Green Blinking (Activity): Port is transmitting and receiving the data
Gigabit Ethernet
(RJ-45/SFP)
Amber On: Port link in 1000Mbps speed mode
(#17,#18)
Amber Off and Green Blinking: Port link in 100Mbps or 10Mbps
en, the power indicator –
speed mode.
Support
5 Years Warranty
Each of Korenix's product line is designed, produced, and tested with high industrial
standard. Korenix warrants that the Product(s) shall be free from defects in materials and
workmanship for a period of ve (5) years from the date of delivery provided that the Product
was properly installed and used.
is warranty is voided if defects, malfunctions or failures of the warranted Product are
caused by damage resulting from force measure (such as oods, re, etc.), other external forces
such as power disturbances, over spec power input, or incorrect cabling; or the warranted
Product is misused, abused, or operated, altered and repaired in an unauthorized or improper
way.
RX RX
Attention! To avoid system damage caused by sparks, please DO NOT plug in power
connector when power is on.
e product is in compliance with Directive 2002/95/EC and 2011/65/EU of the European
TX TX
Cable Wiring(SC to SC)
Parliament and of the Council of 27 January 2003 on the restriction of the use of certain
TX A RX B
RX A TX B
hazardous substances in electrical and electronics equipment(RoHS Directives & RoHS 2.0)
Korenix Customer Service
KoreCARE is Korenix Technology's global service center, where our professional sta s are
ready to solve your problems at any time Korenix global service center's e-mail is
KoreCARE@korenix.com.
For more information and documents download please visit our website:
1 2 3 4
http://www.korenix.com/downloads.htm
