Beijer Electronics korenix JetNet 3008 Series Quick Installation Manual

A Beijer Electronics Group Company

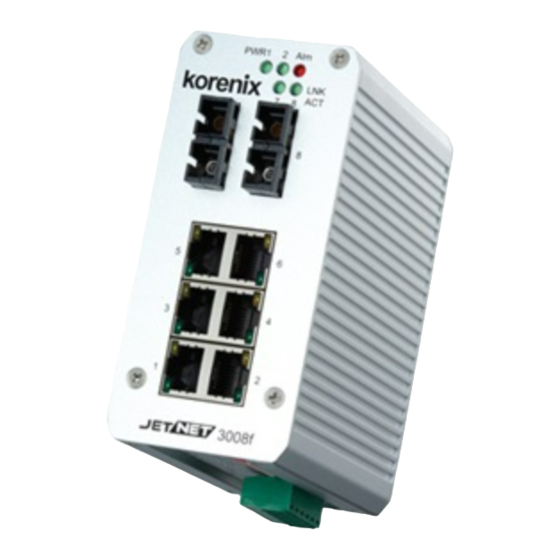

JetNet 3008/3008f Series Industrial Ethernet Switch
Quick Installation Guide V1.5
Overview
JetNet 3008/3008f Industrial Ethernet Switch, supports 8 10/100Base TX (JetNet 3008) or 6
10/100TX plus two 100FX Fast Ethernet ber ports in either multi-mode type (JetNet
3008f-m) or single-mode type (JetNet 3008f-s). e JetNet3008/3008f adopts rugged metal
o
case design to operate in harsh environments (-40~75 C JetNet 3008-w/3008f-w); It also
provides IP-30 standard protection. It features one relay output to alarm users if a port link
fails or with the power fails. Alarms can be enabled/disabled by a 9-pin dip switch. JetNet
3008/3008f is recommended to be powered by DC 12V or 24V with 10~60V range from the
6-pin removable terminal block.
Package Check List
 JetNet 3008/3008f Switch
 Quick Installation Guide
Installation
Mount the unit
Din-Rail mount: Mount the din-rail clip
screwed on the rear of JetNet 3008/3008f on the DIN rail.
Grounding JetNet Switch
ere is one grounding screw on the bottom
Earth Ground
Screw
side of JetNet 3008/3008f. Connect the earth
ground screw of switch to the grounding surface
to ensure safety and prevent noise. See, Figure-1
Earth Ground
Wiring the Power Inputs
Warning: Do not connect to AC line-Natural
1. Insert the positive and negative wires into
the V+ and V- contact on the terminal block
connector.
2. Tighten the wire-clamp screws to prevent the
DC wires from being loosened. See Figure-2
Notes: e recommended working voltage is
DC 12V or 24V (DC10~60V, 0.8A).
Wiring the Relay Output
e relay output alarm contacts are in the middle
of the terminal block connector as shown in the
gure below.
By inserting the wires and set the DIP switch of
the respective Port Alarm to "ON", relay output
alarm will detect any port failures, and form a
short circuit.
e alarm relay output is "Normal Open". See, Figure -3.
Connecting to Network
1. Connecting the Ethernet Ports: Connect one end of an Ethernet cable into the UTP port
of JetNet 3008/3008f, while the other end is connected to the attached networking device. All
UTP ports support auto MDI/MDIX function.
and turn o for 10Mbps link, the LNK/ACT LED will turn on for link up and blinking for
packet transmit and receive.
A Beijer Electronics Group Company
JetNet 3008/3008f Series Industrial Ethernet Switch
Quick Installation Guide V1.5 2. Connecting the Fiber Port (JetNet 3008f ) : Connect the ber port on your JetNet 3008f
Overview
JetNet 3008/3008f Industrial Ethernet Switch, supports 8 10/100Base TX (JetNet 3008) or
6 10/100TX plus two 100FX Fast Ethernet ber ports in either multi-mode type (JetNet
3008f-m) or single-mode type (JetNet 3008f-s). e JetNet3008/3008f adopts rugged metal
case design to operate in harsh environments (-40~75oC JetNet 3008-w/3008f-w); It also
to another Fiber Ethernet device, by following the gure below. Wrong connection will cause
provides IP-30 standard protection. It features one relay output to alarm users if a port link
fails or with the power fails. Alarms can be enabled/disabled by a 9-pin dip switch. JetNet
3008/3008f is recommended to be powered by DC 12V or 24V with 10~60V range from
the 6-pin removable terminal block.
Package Check List
A Beijer Electronics Group Company
 JetNet 3008/3008f Switch JetNet 3008/3008f Industrial Ethernet Switch, supports 8 10/100Base TX (JetNet 3008) or Overview JetNet 3008/3008f Series Industrial Ethernet Switch Quick Installation Guide V1.5 the ber port not working properly.
6 10/100TX plus two 100FX Fast Ethernet ber ports in either multi-mode type (JetNet 3008f-m) or single-mode type (JetNet 3008f-s). case design to operate in harsh environments e JetNet3008/3008f adopts rugged metal
 Quick Installation Guide one relay output to alarm users if a port link fails or with the power fails. Alarms can be (-40~75oC JetNet 3008-w/3008f-w); It also provides IP-30 standard protection. It features enabled/disabled by a 9-pin dip switch. JetNet 3008/3008f is recommended to be powered
Package Check List  JetNet 3008/3008f Switch by DC 12V or 24V with 10~60V range from the 6-pin removable terminal block.
 Quick Installation Guide
ATTENTION
is is a Class 1 Laser/LED product.
！ Don't look into the Laser/LED Beam.
Figure-1
DIP Switch Settings for Alarm Relay Output
Alm
PW1 PW2
Pin No. # Status Description
Alarm Control
port 1~8 power
ON To enable port link down alarm at this port
P1 to P8
(Pin1~8)
Off To disable port link down alarm at this port
ON To enable power failure alarm
P9
Off To disable power failure alarm
Figure-2
Support
5 Years Warranty
Each of Korenix's product line is designed, produced, and tested with high industrial
standard. Korenix warrants that the Product(s) shall be free from defects in materials and
workmanship for a period of ve (5) years from the date of delivery provided that the Product
was properly installed and used.
Figure-3
Alarm
System
Maximum 1A current / DC 24V
Extra Power
System
Alm
PW1 PW2
Alarm Control
port 1~8 power
e Speed LED will turn on for 100M link
e ber port only support 1 LED for Link and Activity.
RX RX
TX TX
Cable Wiring(SC to SC)
TX A RX B
RX A TX B
is warranty is voided if defects, malfunctions or failures of the warranted Product are
caused by damage resulting from force measure (such as oods, re, etc.), other external
forces such as power disturbances, over spec power input, or incorrect cabling; or the
warranted Product is misused, abused, or operated, altered and repaired in an unauthorized
or improper way.
Attention! To avoid system damage caused by sparks, please DO NOT plug in power
connector when power is on.
e product is in compliance with Directive 2002/95/EC and 2011/65/EU of the European
Parliament and of the Council of 27 January 2003 on the restriction of the use of certain
hazardous substances in electrical and electronics equipment(RoHS Directives & RoHS 2.0)
Korenix Customer Service
KoreCARE is Korenix Technology's global service center, where our professional sta s are
ready to solve your problems at any time Korenix global service center's e-mail is
KoreCARE@korenix.com.
For more information and documents download please visit our website:
http://www.korenix.com/downloads.htm
