Summary of Contents for Jimmy JV12

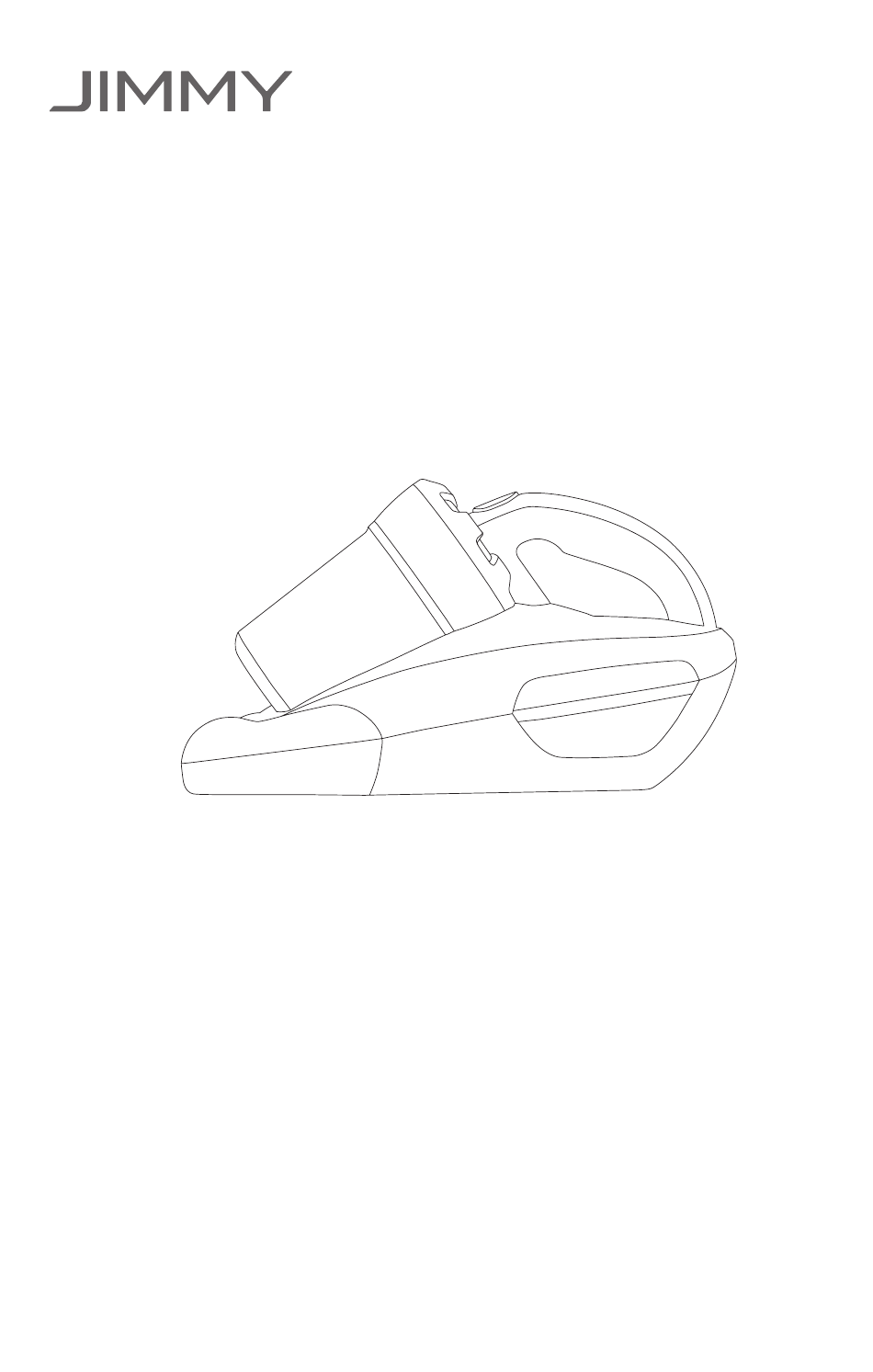

- Page 1 USER MANUAL JV12...
-
Page 2: Product Installation

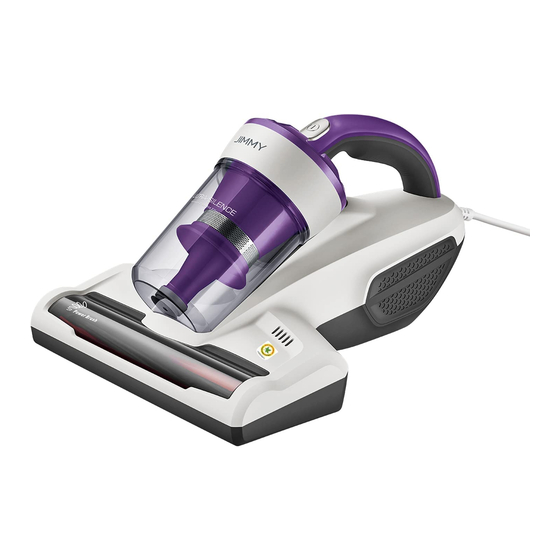

Product Installation Parts Name On/Off button Dust cup release button Dust Cup Indicator Brushroll Brushroll cover Ultrasonic generator UV Light UV light cover Brush Power Cord Packing List Vacuum Cleaner Filter Mini Brush User Manual... -
Page 3: Use Of The Product
Use of the product Function description Insert the plug into the socket, press on/off button, the machine is in vacuuming + tapping + UV mode, all indicators light up. Press on/off button again, the machine stops working(Fig 1). Indicator On/Off button Notice: for safety reasons, the UV light only works within 3cm above object as well as less than 30 inclination degrees. -
Page 4: Maintenance And Storage
Brushroll Cleaning Brushroll Brushroll cover Turn off the machine and unplug the power cord, rotate the lock knob with a coin or flat- blade screwdriver from locked position to unlock position (Fig 8) to remove the cover and roller brush to clean up(Fig 9). 10-1 After brushroll cleaning, snap the hex-gear side into the base first and press the other side.Install... - Page 5 Cautions Please read this instruction manual carefully before use and keep it properly for future use. Never leave the machine working without supervision. Keep this product beyond the reach of special individual such as children without adult supervision. Keep the power cord away from sharp objects and do not drag the cord to move the machine in case of cord damage.
-
Page 6: Troubleshooting
Trouble Shooting Please check the following trouble points before go to the maintenance department. Problems Possible Reasons Solution Power cord is not firmly inserted. Insert the power cord firmly. Power Failure No power on socket. Check the socket. On/Off button not pressed. Press the On/Off button. -
Page 7: Technical Parameter
Technical Parameter Model JV12 Rated voltage 230V~ Rated frequency 50Hz Rated power 400W Circuit Diagram On/off PCB Main motor Power supply PCB UV Light Brushroll Motor Left Infrared PCB Right Infrared PCB Main PCB Ultrasonic generator... -
Page 8: Manufacturer Information
Manufacturer Information Manufacturer Kingclean Electric Co., Ltd No.1 Xiangyang Road, Suzhou New District, Address Jiangsu Province 215009,China Disposal The machine, accessories and packaging should be sorted for environmental-friendly recycling. Do not dispose of the machine into household waste! Only for EC countries: According to the European Guideline 2012/19/EU, machine that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner. - Page 9 1K-01 jimmy technology Web:www.jimmyglobal.com Contact us -we'll get back within 1 business day. Email:support@jimmyglobal.com...
