ProScan ® 3 Series
Continuous Radar Level Sensor (80GHz)

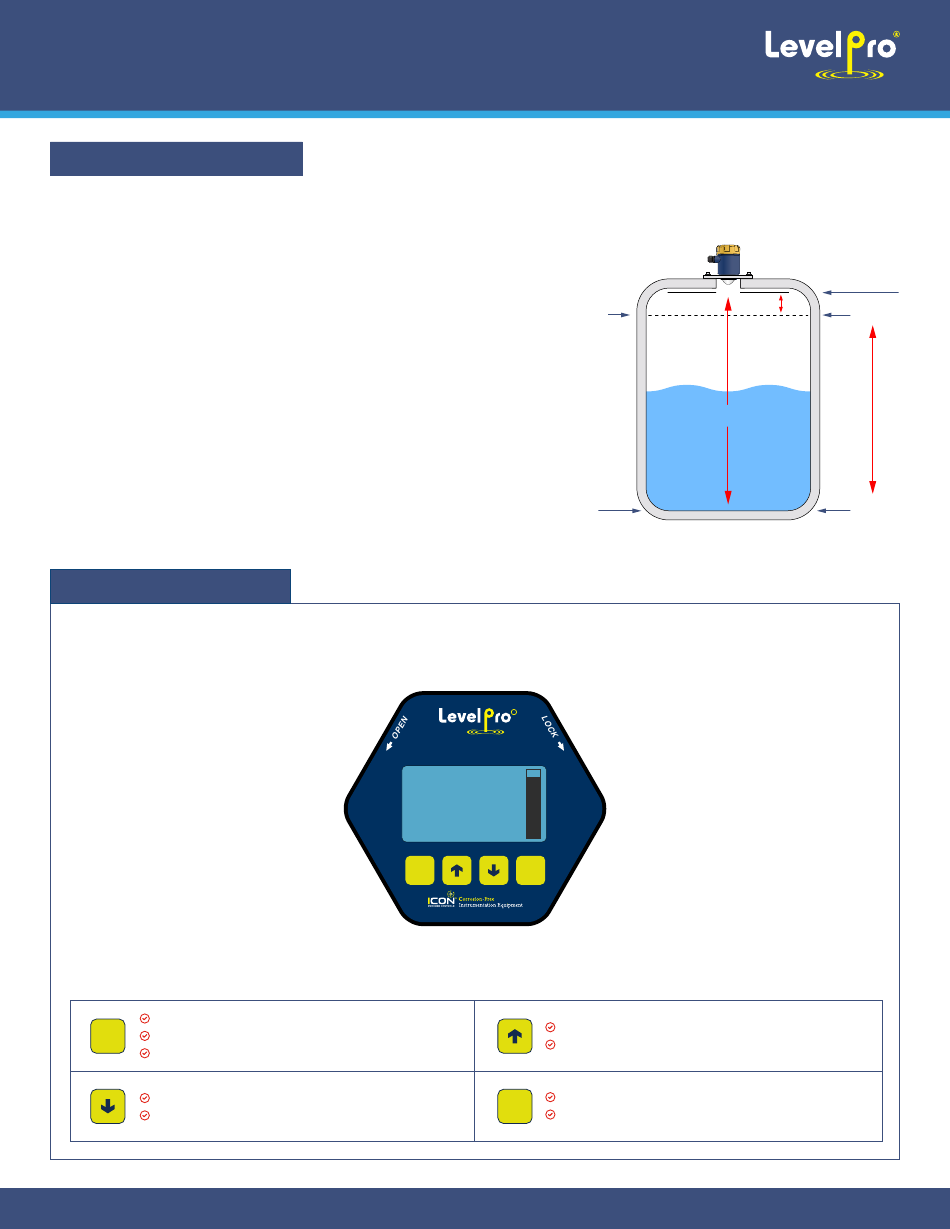

Programming Display

Measuring the tank is one of the most important aspects in configuring the sensor. When measuring the tank, take into account the
location of the sensor with respect to fittings, risers, dome tops and bottoms, and identify where the measurements are taken from
the sensor.
The Range is the overall distance from the tip
1.
of the Sensor to the Lowest Liquid level
a) Min Configuration = 4mA setting.
b) With flat bottom tanks, the Range
and Empty Configuration values can be
the same.
2. Max Configuration = 20mA setting.
The distance from the tip of the sensor to the
highest liquid or full level

Display Introduction

The removable display comprises a visual LCD dot matrix display with 4 separate push buttons. The bar graph at the right
side of the display indicates the current level reading relative to the span - the distance between the 4mA | Empty and the
20mA | Full
Button Description & Function
Exit Programming Mode
Return to a previous
ESC
Display Echo Curve
Digits Edit
Select Display Mode
24-0167 © Icon Process Controls Ltd.
20 mA
4 mA
R
ProScan ® 3 Series
6.583m
ESC OK
Digits Edit
Select Display Mode
Enter Main Menu
OK
Confirm Edit
Measurement
Location
100%
Max Config
Range
0%
8
