Sensor Positioning - ICON LevelPro ProScan 3 Series Operating Manual

ProScan ® 3 Series
Continuous Radar Level Sensor (80GHz)

Sensor Positioning

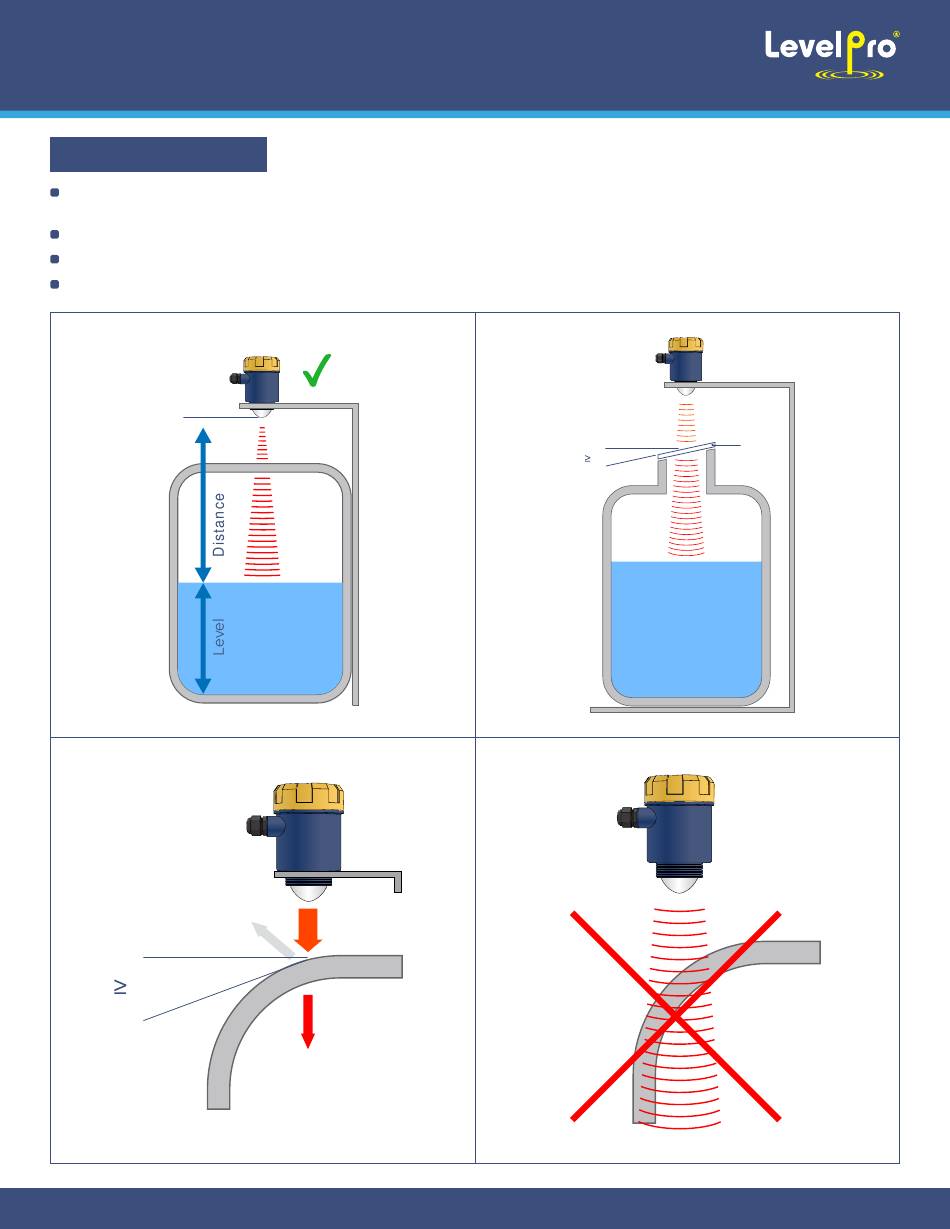

On a plastic or FRP tanks, make sure the sensor is not too close to the sidewall. Avoid metallic objects outside of the vessel
that can be detected by the sensor.
Ensure that the radar signal strikes the surface of the liquid at a 90° angle.
Use the bubble level to ensure 90-degree position of the sensor.
Consider Dead band while installing the sensor.
10°
24-0167 © Icon Process Controls Ltd.
Glass or
Plastic
Window
10°
