Basic Parameters Settings - ICON LevelPro ProScan 3 Series Operating Manual

ProScan ® 3 Series
Continuous Radar Level Sensor (80GHz)

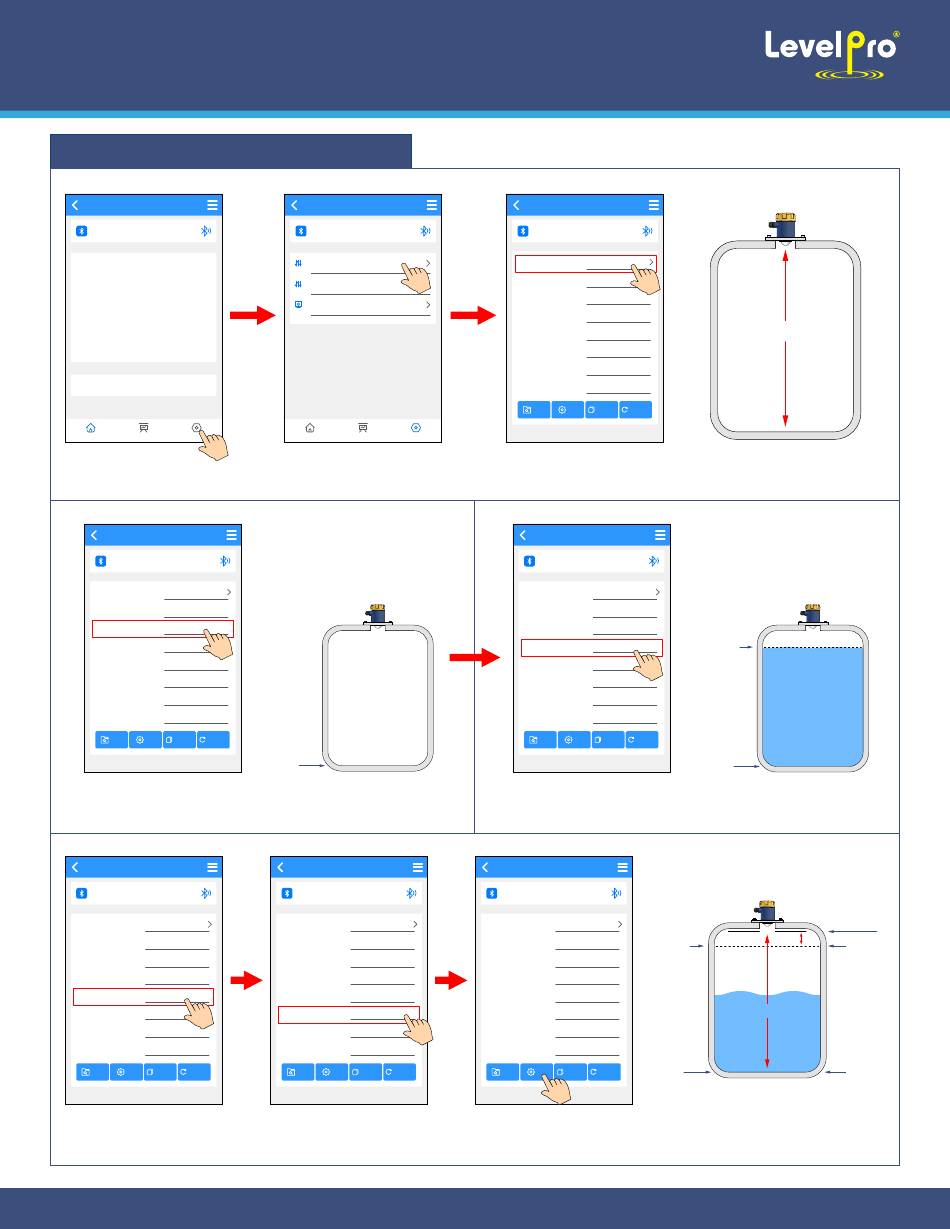

Basic Parameters Settings

Home
23LD12184
Level(inch) 35.7873
Distance(inch) 84.2124
Current(mA) 8.771
Percentage(%) 29.82
Running State 0
Update Time 2023/11/21 16:29:36
Home Curve Set
Click Set Button
Basic Parameters
23LD12184
Range(inch) 120.00
0.0
Migration Amount(inch)
4mA Location(inch) 0.0
20mA Location(inch) 119.9998
4.0157
Blind Area(inch)
Damping Time 50
Device Address 1
9600
Baud Rate
READ SET BACKUP RESTORE
Set 4mA Location
4mA (Low Level) = 0
Basic Parameters
23LD12184
Range(inch) 120.00
0.0
Migration Amount(inch)
0.0
4mA Location(inch)
20mA Location(inch) 110.00
4.00
Blind Area(inch)
50
Damping Time
Device Address 1
9600
Baud Rate
READ SET BACKUP RESTORE
Set Blind Area
E.g. Blind Area = 4.00(Inch)
24-0167 © Icon Process Controls Ltd.
Set
23LD12184
Basic Parameters
Advanced Parameters
System Settings
Home Curve Set
Select Basic Parameters
4 mA
Basic Parameters
23LD12184
Range(inch) 120.00
0.0
Migration Amount(inch)
0.0
4mA Location(inch)
20mA Location(inch) 110.00
4.00
Blind Area(inch)
10
Damping Time
Device Address 1
9600
Baud Rate
READ SET BACKUP RESTORE
Set Damping Time
E.g. Damping Time = 10 (sec)
Basic Parameters
23LD12184
Range(inch) 120.00
0.0
Migration Amount(inch)
4mA Location(inch) 0.0
20mA Location(inch) 119.9998
4.0157
Blind Area(inch)
Damping Time 50
Device Address 1
9600
Baud Rate
READ SET BACKUP RESTORE
Set Range Value
E.g. Range Value = 120 (inch)
Basic Parameters
23LD12184
Range(inch) 120.00
0.0
Migration Amount(inch)
4mA Location(inch) 0.0
20mA Location(inch) 110.00
4.0157
Blind Area(inch)
Damping Time 50
Device Address 1
9600
Baud Rate
READ SET BACKUP RESTORE
Set 20mA Location
20mA (High Level) = 110(inch)
Basic Parameters
23LD12184
Range(inch) 120.00
0.0 20 mA
Migration Amount(inch)
0.0
4mA Location(inch)
20mA Location(inch) 110.00
4.00
Blind Area(inch)
10
Damping Time
Device Address 1
9600
Baud Rate
4 mA
READ SET BACKUP RESTORE
Click Set Button for
Save Parameters
Range 120 (inch)
20 mA
4 mA
Measurement
Location
100%
Max Config
Range
0%
