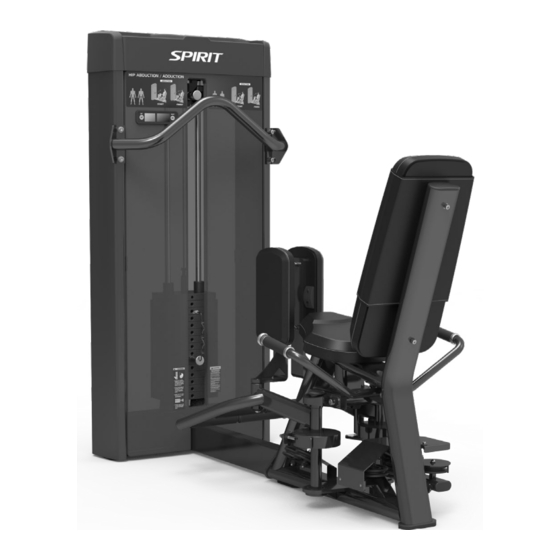

Spirit CSD-ITOT Manual

Inner thigh / outer thigh

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

CSD-ITOT

CSD-ITOT_648683_OM_20231026

INNER THIGH /

OUTER THIGH

Online Support

If you require assistance or

are experiencing issues with

your Spirit Unit, please contact

customer care for additional help.

1-800-258-8511

questions@spiritfitness.com

Warranty Registration

Scan to quickly and easily

Fitness unit.

Table of Contents

Need help?

Do you have a question about the CSD-ITOT and is the answer not in the manual?

Questions and answers

Summary of Contents for Spirit CSD-ITOT

Page 1 Online Support If you require assistance or are experiencing issues with your Spirit Unit, please contact customer care for additional help. 1-800-258-8511 questions@spiritfitness.com Warranty Registration Scan to quickly and easily register your new Spirit Fitness unit. INNER THIGH / CSD-ITOT...
Page 3: Table Of Contents
Table of Contents Product Registration ............3 Warning / Safety Instructions Product Labels ..............4 Safety Instructions .............5 Facility Safety ..............6 Precautions ................7 Safety Guidelines ............... 8 Safeguards ................9 Assembly Parts of Your Unit ............. 11 Assembly ................12 Cable Routing Diagram ...........
Page 4: Product Registration
Congratulations on your new unit, and welcome to the Spirit Fitness WARRANTY REGISTRATION family! Thank you for your purchase of this quality unit from Spirit Fitness. Your new unit was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
Page 5: Product Labels
PRODUCT LABELS The following pages show examples of Spirit® Fitness warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers miss- ing or damaged contact your local dealer or distributor for a replacement.
Page 6: Safety Instructions
SAFETY INSTRUCTIONS Read the Owner’s Manual carefully before assembling, servicing or 16. DO NOT use dumbbells or other incremental weights, except those using the equipment. It is the responsibility of the facility owner and/ provided by the manufacturer . or owner of the equipment to instruct users on proper operation of the 17.
Page 7: Facility Safety
If unable to immediately replace worn or damaged components then remove from service until the repair is made. ƒ Use only Spirit Fitness supplied components to maintain/ repair the equipment. ƒ Keep a repair log of all maintenance activities. ƒ Inspect all cables and belts and connections prior to use.
Page 8: Precautions
PRECAUTIONS WARNING These safety notes are directed to you as the owner of the Strength Equipment manufactured by Spirit Fitness. Please train all your users and fitness staff to follow these safety • Your Strength Equipment manufactured by Spirit Fitness instructions.
Page 9: Safety Guidelines
SAFETY GUIDELINES AND PRACTICE Spirit Fitness recommends that all fitness equipment be used in a supervised area. It is recommended that the equipment be located in an access controlled area. Control is the responsibility of the owner. The extent of control is at the discretion of the owner.
Page 10: Safeguards
APPROVED FOR USE WITH THE SPIRIT FITNESS • DO NOT use any equipment in any way other than designed EQUIPMENT WHICH APPEARS TO BE DAMAGED OR or intended by the manufacturer. It is imperative that SPIRIT WORN. FITNESS equipment is used properly to avoid injury. •...
Page 11: Assembly
CAUTION: Damage to the Strength Equipment during assembly is not covered as part of the limited Spirit Fitness warranty. Take care not to drop or lean the Strength Equipment on its side. Carefully stand the Strength Equipment up in the normal upright position on a stable surface so it will not tip over during assembly.
Page 12: Parts Of Your Unit
PARTS OF YOUR UNIT Accessory Tray 5lb Increment Weight Workout Diagrams Rep & Time Counter Handle Shroud Back Pad Guide Rods Thigh Pads Weight Stack Weight Selector Pin Seat Handles...
Page 13: Assembly
ASSEMBLY Assembly Instructions Description Specifications Doorframe Inner Hexagon Socket Head Bolt M10*35 Spring washer Flat washer Φ20*Φ10.5*2 Cable...
Page 14 Back pad ASSEMBLY - CONTINUED STEP 2 Assembly Instructions Description Specifications Left Handle Right Handle Hexagon socket countersunk head screws M8*30 Hexagon socket countersunk head screws M8*75 Hexagon socket countersunk head screws M10*35 Flat Washer Φ16*Φ8.4*1.6 Flat Washer Φ20*Φ10.5*2 Spring Washer Leg pad Seat pad Back pad...
Page 15 ASSEMBLY - CONTINUED Assembly Instructions Description Specifications Guide rod Guide rod fixed plate Rubber bumper φ64*φ32*φ20*35 Rubber bumper φ38*φ21*10 Rod end cover Pulley sets φ89*32 Inner Hexagon Socket Head Bolt M8*20 Inner Hexagon Socket Head Bolt M10*55 30 Spring washer Flat washer Φ16*Φ8.4*1.6 Flat washer...
Page 16 Inner Hexagon Socket Head Bolt M6*16 Spring washer ASSEMBLY - CONTINUED Flat washer Φ12*Φ6.4*1.6 STEP 4 Assembly Instructions Description Specifications Upper shield Shield fixed plate Front shield Back shield Cross recessed countersunk head screw M5*10 Inner Hexagon Socket Head Bolt M6*16 Spring washer Flat washer...
Page 17 Handle Frame ASSEMBLY - CONTINUED Assembly Instructions Description Specifications Hexagon socket countersunk head screws M10*35 Flat Washer Φ20*Φ10.5*2 Spring Washer Handle Frame...
Page 18: Cable Routing Diagram
CABLE ROUTING DIAGRAM t p i Dry Reed Pipe Connection Wire...
Page 19 START WORKOUT...
Page 20 REPETITION AND TIME COUNTER A battery-operated (batteries not included) console is available for use on your equipment. The console tracks workout time and number of repetitions per set. REPS TIME RESET RESET Repetition Counter Time Counter This counter is powered by 2 pcs of AA batteries. (Alkaline Battery Recommended)
Page 21: Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all SPIRIT equipment. SPIRIT is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording.
Page 22: Exploded View Diagram
EXPLODED VIEW DIAGRAM EXPLODED VIEW DIAGRAM...
Page 23 EXPLODED VIEW DIAGRAM EXPLODED VIEW DIAGRAM...
Page 24: Warranty
Effective September 13, 2023- CSD-INNER THIGH OUTER THIGH LIMITED WARRANTY Spirit Fitness warrants the unit for a period of time listed below from the date of installation, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’...
Page 25 5. Products that have been: sold, transferred, bartered, or given to a third party. 6. Products that do not have a warranty registration on file at Spirit Fitness. Spirit Fitness reserves the right to request proof of purchase if no warranty record exists for the product.
Page 26 3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107. 4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product through one of our authorized service centers.
Page 27: Troubleshooting
TROUBLESHOOTING Service Checklist Diagnosis Guide Problem Solution/ Cause Rep Counter & Timer does not turn on when Replace batteries. ƒ Check the magnet is still in position and the reed switch is still positioned next to the weight is lifted ƒ...
