Available At IRON COMPANY Online Support If you require assistance or are experiencing issues with your Spirit Unit, please contact customer care for additional help. 1-800-258-8511 questions@spiritfitness.com Warranty Registration Scan to quickly and easily register your new Spirit Fitness unit.
Congratulations on your new unit, and welcome to the Spirit Fitness WARRANTY REGISTRATION family! Thank you for your purchase of this quality unit from Spirit Fitness. Your new unit was manufactured by one of the leading fitness manufacturers in the world and is backed by one of the most comprehensive warranties available.
NOTE: STICKERS AND LABELS ARE NOT SHOWN TO SCALE The following pages show examples of Spirit® Fitness warning labels and communication stickers placed on the equipment as part of the manufacturing process. It is critical that owners maintain the integrity and placement of these stickers. If you find any stickers miss- ing or damaged contact your local dealer or distributor for a replacement.
SAFETY INSTRUCTIONS Read the Owner’s Manual carefully before assembling, servicing or 16. DO NOT use dumbbells or other incremental weights, except those using the equipment. It is the responsibility of the facility owner and/ provided by the manufacturer . or owner of the equipment to instruct users on proper operation of the 17.
If unable to immediately replace worn or damaged components then remove from service until the repair is made. Use only Spirit Fitness supplied components to maintain/ repair the equipment. Keep a repair log of all maintenance activities. Inspect all cables and belts and connections prior to use.
PRECAUTIONS WARNING These safety notes are directed to you as the owner of the Strength Equipment manufactured by Spirit Fitness. Please train all your users and fitness staff to follow these safety • Your Strength Equipment manufactured by Spirit Fitness instructions.
SAFETY GUIDELINES AND PRACTICE Spirit Fitness recommends that all fitness equipment be used in a supervised area. It is recommended that the equipment be located in an access controlled area. Control is the responsibility of the owner. The extent of control is at the discretion of the owner.
APPROVED FOR USE WITH THE SPIRIT FITNESS • DO NOT use any equipment in any way other than designed EQUIPMENT WHICH APPEARS TO BE DAMAGED OR or intended by the manufacturer. It is imperative that SPIRIT WORN. FITNESS equipment is used properly to avoid injury. •...
CAUTION: Damage to the Strength Equipment during assembly is not covered as part of the limited Spirit Fitness warranty. Take care not to drop or lean the Strength Equipment on its side. Carefully stand the Strength Equipment up in the normal upright position on a stable surface so it will not tip over during assembly.

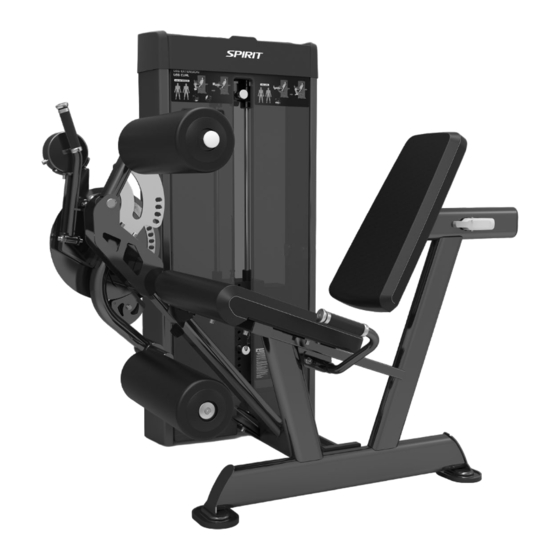

PARTS OF YOUR UNIT Accessory Tray 5lb Increment Weight Workout Diagrams Rep & Time Counter Shroud Counterweight Back Pad Guide Rods Seat Back Adjustment Weight Selector Pin Seat Handles Seat Pad Weight Stack...
Socket cap screw M10*90 Spring washer Support frame ASSEMBLY STEP 1 Assembly Instructions Step Description Specifications Door Frame Inner Hexagon Socket Head Bolt M10*35 Spring washer Flat washer Φ20*Φ10.5*2 Inner Hexagon Socket Head Bolt M8*20 Spring washer Nylon nut Rivet nut with small countersunk head M8*18 Main frame Socket cap screw...
Page 14
Swing rack Shaft II ASSEMBLY - CONTINUED Aluminum plate STEP 2 Assembly Instructions Socket Flat head screw M8*25 Shaft with elastic retainer Ф25 Step Description Specifications Main frame Rotating frame Cam frame Swing rack Shaft II Aluminum plate Socket Flat head screw M8*25 Shaft with elastic retainer Ф25...
Page 15
ASSEMBLY - CONTINUED Assembly Instructions STEP 3 Step Description Specifications Leg press frame Kick stand Adjusting rod Shaft I φ25*112 Metallurgy set Φ38*Φ25*18 Aluminum plate Φ60.5*15 Socket Flat head screw M8*25 Shaft with elastic retainer Φ25...
Page 16
Shaft with elastic retainer Shaft with elastic retainer Ф25 Ф25 ASSEMBLY - CONTINUED STEP 4 STEP 2 STEP 2 Assembly Instructions Assembly Instructions Assembly Instructions Step Step Description Description Specifications Specifications Step Description Specifications Main frame Main frame 28-1 Flat washer Ф20*Ф10.5*2 Rotating frame Rotating frame...
Page 17
ASSEMBLY - CONTINUED STEP 5 Assembly Instructions Step Description Specifications Block ring Spring Pull up a knob M20 nut Aluminum plate Socket Flat head screw M8*25 Leg pad...
Page 18
ASSEMBLY - CONTINUED STEP 6 Assembly Instructions Step Description Specifications 22-1 Spring washer 27-1 Flat washer Ф16*Ф8.4*1.6 Socket cap screw M8*30 Socket cap screw M8*55 Seat pad Seat pad set Socket cap screw M8*40...
Page 19
Block and tackle Pipe plug Wire group STEP 7 ASSEMBLY - CONTINUED Assembly Instructions STEP 7 Assembly Instructions Wrong Correct Step Description Specifications Step Description Specifications Selector pin φ89*32 Cable Cable Selector pin φ89*32 limiting post limiting post Block and tackle Block and tackle Pipe plug Pipe plug...
Page 20
ASSEMBLY - CONTINUED 10LB top weight plate 15LB weight plate...
Page 21
Front shield Back shield cross recessed countersunk head screw M5*10 ASSEMBLY - CONTINUED M6*16 Countersunk head hexagon socket screw STEP 9 M6*16 Assembly Instructions Inner Hexagon Socket Head Bolt Spring washer Step Description Specifications Φ12*Φ6.4*1.6 Flat washer Upper shield Shield fixed plate Fixed bushing Front shield Back shield...
Page 24
REPETITION AND TIME COUNTER A battery-operated (batteries not included) console is available for use on your equipment. The console tracks workout time and number of repetitions per set. REPS TIME RESET RESET Repetition Counter Time Counter This counter is powered by 2 pcs of AA batteries. (Alkaline Battery Recommended)
All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all SPIRIT equipment. SPIRIT is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting and recording.
Effective September 13 2023- CSD-LEG EXTENSION / LEG CURL LIMITED WARRANTY Spirit Fitness warrants the unit for a period of time listed below from the date of installation, as determined by sale receipt, or in the absence of a sales receipt eighteen (18) months from the original factory shipping date. Spirit Fitness’ responsibilities include providing new or remanufactured parts, at Spirit Fitness’...
Page 29
5. Products that have been: sold, transferred, bartered, or given to a third party. 6. Products that do not have a warranty registration on file at Spirit Fitness. Spirit Fitness reserves the right to request proof of purchase if no warranty record exists for the product.
Page 30
3. If there is a question as to where to obtain service, contact our service department at (870) 935-1107. 4. Spirit Fitness’ obligation under this warranty is limited to repairing or replacing, at Spirit Fitness’ option, the product through one of our authorized service centers.
TROUBLESHOOTING Service Checklist Diagnosis Guide Problem Solution/ Cause Rep Counter & Timer does not turn on when Replace batteries. Check the magnet is still in position and the reed switch is still positioned next to the weight is lifted ...
