FMC13A General description
Main Page
>
Advanced Trackers

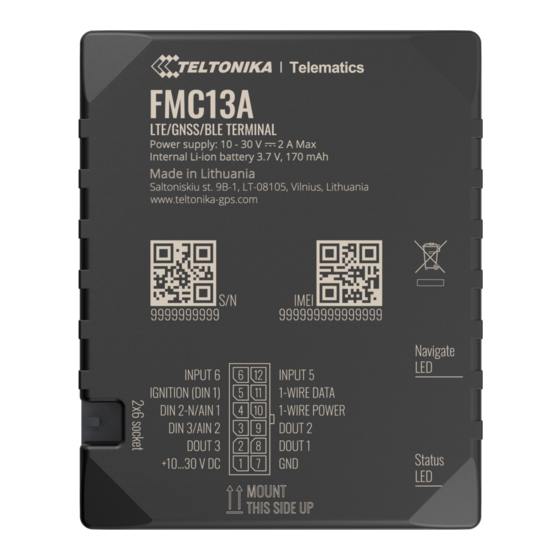

FMC13A is a tracking terminal with GNSS and GSM connectivity, which is able to collect device
coordinates and transfer them via GSM network to a server. This device is perfectly suitable for
applications, which require the location acquirement of remote objects.
Contents
1 Package contents
2 Basic characteristics
3 Technical features
4 Technical information about internal battery
5 Electrical characteristics
Package contents
The FMC13A device is supplied to the customer in a cardboard box containing all the equipment
that is necessary for operation. The package contains:
FMC13A device;
Input and output power supply cable with 2x6 connection pins;
Micro USB cable;
3.7 V 170 mAh rechargeable Li-ion battery.
Basic characteristics
GSM / GPRS / GNSS features:
FMC13A-QBIB0: Quectel EG91-NA with Teltonika TM2500;
Technology LTE(CAT1)/UMTS/GNSS/BLUETOOTH
SMS (text, data);
Integrated GNSS receiver;
Up to -165 dBm GNSS receiver sensitivity.
CELLULAR:
Technology Supported bands
3G bands
WCDMA: B2/B4/B5
4G bands
LTE FDD: B2/B4/B5/B12/B13
WCDMA: Max 384Kbps (DL)/Max 384 Kbps (UL)
Data transfer
LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL)
Transmit power:
>
FMC13A
>
FMC13A Manual
> FMC13A General description

Advertisement

loading
Need help?

Need help?

Do you have a question about the FMC13A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika FMC13A

Summary of Contents for Teltonika FMC13A

  • Page 1 FMC13A Manual > FMC13A General description FMC13A is a tracking terminal with GNSS and GSM connectivity, which is able to collect device coordinates and transfer them via GSM network to a server. This device is perfectly suitable for applications, which require the location acquirement of remote objects.
  • Page 2 Class 4 for GSM850/900: 23±2dBm Class 1 for GSM1800/1900: 20±2dBm Class 3 for LTE-TDD: 23±2.7dBm Class 3 for LTE-FDD: 23±2.7dBm Hardware features: Built-in movement sensor; Built-in Bluetooth 4.0 LE; Internal High Gain GNSS antenna; Internal High Gain GSM antenna; Internal flash memory 128MB (422 400 Records); 170 mAh Li-ion rechargeable 3.7 V battery (0.63 Wh).

  • Page 3: Technical Features

    1x micro SIM card; 1x eSIM; Overvoltage protection; Description Voltage Duration Normal operation +10 ... +30 V Unlimited Protection turns on, device turns 34 V Unlimited Maximum voltage < 70 V Unlimited Maximum voltage impulse 90 V 5 ms Technical features Physical Part name specification...

  • Page 4: Technical Information About Internal Battery

    Device + case + battery weight 55 g Internal fuse 3A, 125V Technical information about internal battery Battery Nominal Charge Discharge Storage Internal back- Power voltage Capacity temperature temperature temperature up battery (Wh) (mAh) (°C) (°C) (°C) -20 to +45 for Li-ion 0.64 –...
  • Page 5 Input Voltage threshold (DIN2) Input Voltage threshold (DIN3) Analog Input: Input voltage (Recommended Operating Conditions), Range 1 Input resistance, Range 1 38.45 kΩ Measurement error on 12V, Range 1 Additional error on 12 V, Range 1 Measurement error on 30 V, Range 1 0.33 Additional error on 30 V, Range 1 Input Voltage...
