1 How to insert Micro-SIM card and connect the battery

2 Battery placement after complete device disassembling

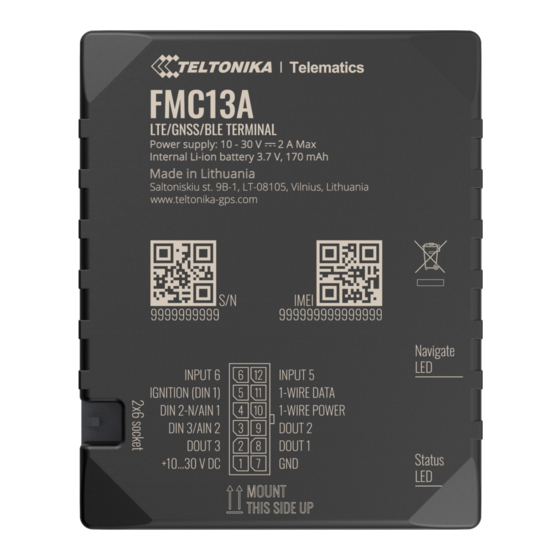

How to insert Micro-SIM card and connect the battery
1.
Gently remove FMC13A cover using plastic pry tool from both sides.
Note: To properly open a new case please watch this video.
2.
Insert Micro-SIM card as shown with PIN request disabled or read
enter it later in
pointing forward to slot.
3.
Connect battery as shown to device. Position the battery in place where it does not obstruct
other components.
After configuration, see
4.
Micro-SIM card insertion/removal must be performed when device is powered off -
external voltage and internal battery disconnected. Otherwise Micro-SIM card might be
damaged or device will not detect it.
Battery placement after complete device disassembling
1.
Using double sided tape, stick internal battery to the bottom part of the device case. Battery
should be glued approximately 16 millimeters from the bottom wall of the case. Picture on the
>
FMC13A
> FMC13A First Start
Teltonika
Configurator. Make sure that Micro-SIM card cut-off corner is
"PC Connection
(Windows)", attach device cover back.
