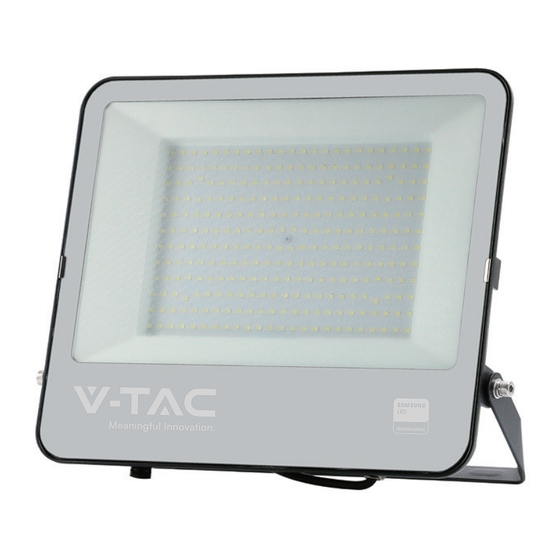

V-TAC VT-44033 Instruction Manual

INSTRUCTION MANUAL
LED FLOOD LIGHT

TECHNICAL DATA

BEAM LIFE SPAN
WATTS LUMENS
MODEL SKU DF CRI
ANGLE [HOURS]
@WIDE CONE
23196
VT-44033 23197 30W 3450 115° 25,000 >0.9 >70
23198
23199
VT-4455 23216 50W 5740 115° 25,000 >0.9 >70
23217
23200
23218 100W 11480 115° 25,000 >0.9 >70
VT-44101
23219
23201
23202 150W 17220 115° 25,000 >0.9 >70
VT-44153
23220
VT-44201 200W 22960 115° 25,000 >0.9 >70
23221
10367
23203 300W 34440 115° 25,000 >0.9 >70
VT-44003
*This product contains a light source of energy e ciency class<D>,where <D> shall be replaced by
the energy class of the contained light source.
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these
instructions carefully before starting the installing and keep this manual handy for future reference. If
you have any another query, please contact our dealer or local vendor from whom you have
purchased the product. They are trained and ready to serve you at the best. The warranty is valid for
5 years from the date of purchase. The warranty does not apply to damage caused by incorrect
installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. The products are suitable for 10-12
Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is
warranted for manufacturing defects only.
1 METER WIRE
OPERATION BODY N.W
INPUT VOLTAGE DIMENSION
[KGS]
TEMPERATURE TYPE
AC: 220-240V
Aluminium
-20 to +45°C 164.5x153x34mm 0.41
50Hz
AC: 220-240V
-20 to +45°C 183.5x169x34mm Aluminium 0.56
50Hz
AC: 220-240V
-20 to +45°C 253.5x242.5x40mm Aluminium
50Hz
AC: 220-240V
-20 to +45°C 328.5x295x43mm Aluminium 1.78
50Hz
AC: 220-240V
Aluminium
-20 to +45°C 402.5x349.5x44mm
50Hz
AC: 220-240V
-20 to +45°C 496x445x49mm Aluminium 4.39
50Hz
WARNING
NOTE: To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be e ectively fixed to
the wall if the wiring is within arm's reach.
SUPER BRIGHT
135
+
LM/WATT EFFICIENCY

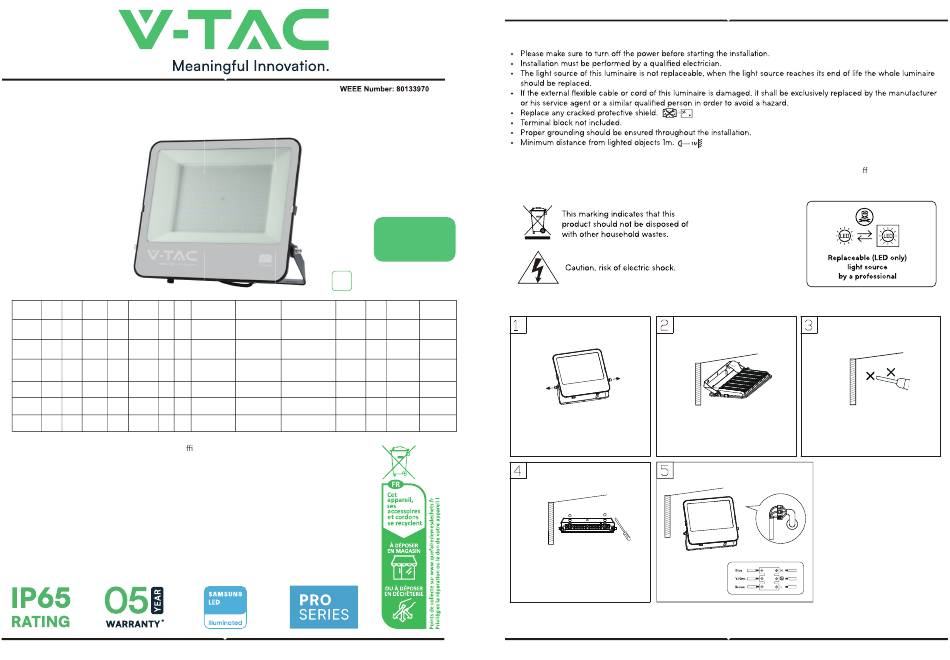

INSTALLATION DIAGRAM
MAX
PROJECTED
MOUNTING
AREA [MMP]
HEIGHT
<5M 25168.5
<5M 31011.5
1.1 <5M 61473.75
<5M 96907.5
2.8 <5M 140673.75
<5M 220720
