Summary of Contents for ETS NORD NORDcanopy HR

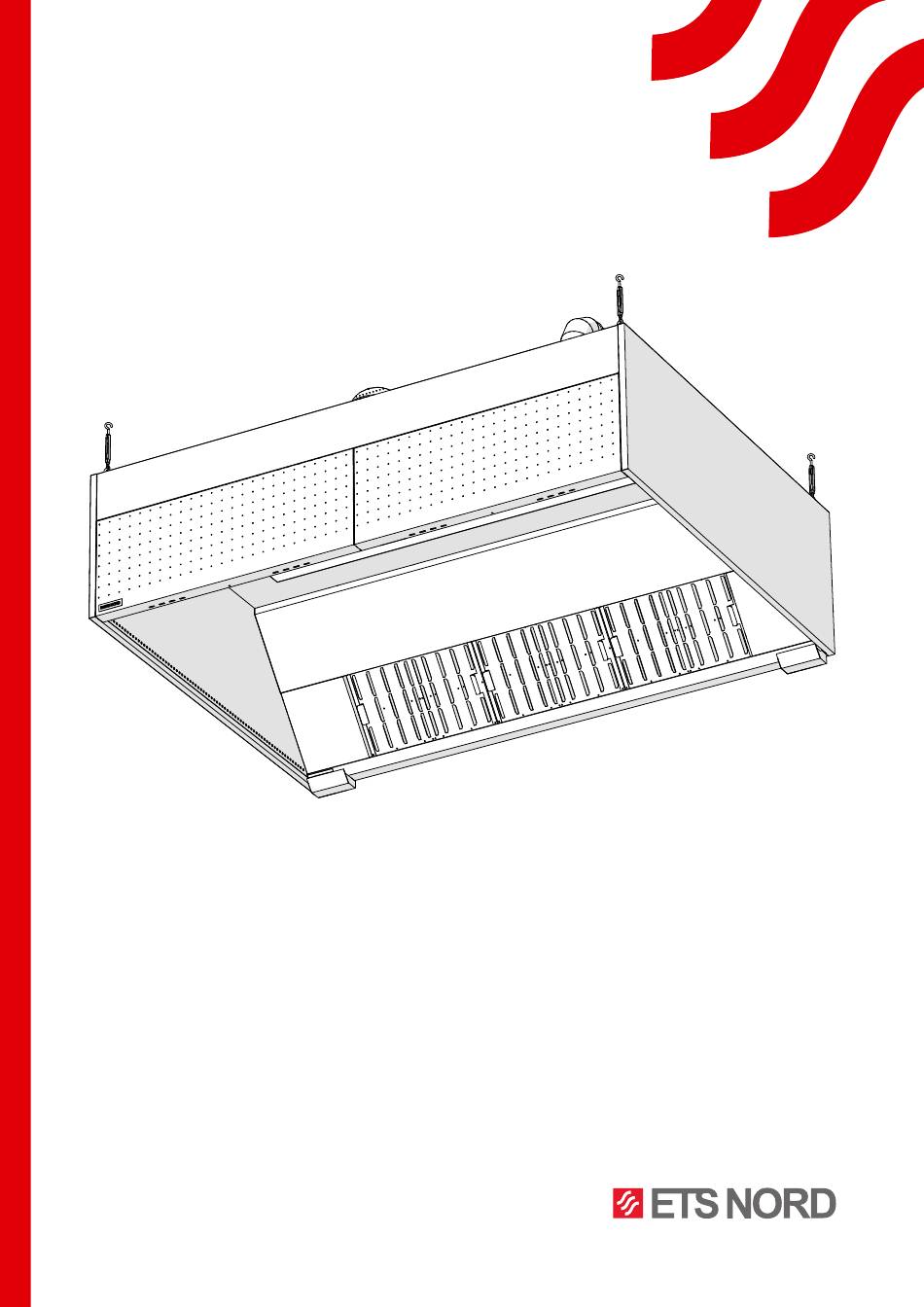

- Page 1 NORDcanopy HR/HZ Installation, user and maintenance manual...
-
Page 2: Table Of Contents
® NORDcanopy | HR/HZ Contents 1. In the kit 2. Removing the ceiling panel 3. Hanging the kitchen canopy and ozone duct installation 4. Leveling the canopy 5. Opening the front panel 6. Fastening kitchen canopy sections together 7. Installing grease collection containers and blind panels for the grease filter rail 8. -
Page 3: In The Kit
® NORDcanopy | HR/HZ 1. In the kit 1 – Front panel 2 – Supply air adjustment plate 3 – Supply air connection 4* – Ozonator (only with HZ) 5* – Ozone duct (only with HZ) 6 – Lighting 7 – Suspension points 8 –... - Page 4 ® NORDcanopy | HR/HZ 1.1 Measurements L+50 L-30 L+50 L1+25 L2+25 L2-30 HZ side view Safety It is prohibited to hold or add additional weight on the top of the canopy. www.etsnord.com RDM-032-0524...
-
Page 5: Removing The Ceiling Panel
® NORDcanopy | HR/HZ 2. Removing the ceiling panel NB! Remove the fixing screws of the lighting panel during installation. Removing the lighting panel provides access for exhaust duct, insulation installation and electrical connections or changing the lighting. 3. Hanging the kitchen canopy and ozone duct installation Images are for illustrative purposes. -
Page 6: Leveling The Canopy
® NORDcanopy | HR/HZ 4. Leveling the canopy Is performed for each section. 5. Opening the front panel The panel locks automatically. NOTE! At the end of the installation, make sure that the panels are correctly fixed. www.etsnord.com RDM-032-0524... -
Page 7: Fastening Kitchen Canopy Sections Together
® NORDcanopy | HR/HZ 6. Fastening kitchen canopy sections together 6.1 Hanging the canopy sections Each section has to be suspended at least from four anchor points. 6.2 Sequential connection M5/10 5x G 6x G 6.3 Installation of the ceiling panel between the sections M5/10 M4/16 M5/10... -
Page 8: Installing Grease Collection Containers And Blind Panels For The Grease Filter Rail
® NORDcanopy | HR/HZ 6.4 Fastening sides back-to-back Requires additional bolt holes. M5/10 M5/10 M4/1 4x G 4x Ø6mm 7. Installing grease collection containers and blind panels for the grease filter rail 8. Installing HFK grease filters www.etsnord.com RDM-032-0524... -
Page 9: Installing The Ozonator
® NORDcanopy | HR/HZ 9. Installing the ozonator Connecting and starting the ozonator is described in the “Ozonator Installation and Maintenance Manual”. 9.1 Installation of the electrical system of the ozonator (230V, 50Hz) A circuit breaker with a contact gap of at least 3 mm must be installed between the devices. Each device must be connected to a 10A slow-blow fuse, behind which a maximum of 4 ozonators can be connected. -
Page 10: Lighting Connection
® NORDcanopy | HR/HZ 10. Lighting connection NOTE! PERFORMED BY ELECTRICIAN. EXTERNAL INTERNAL DRIVER DRIVER (INSIDE LAMP) The location of the driver depends on the available lights. 11. Measuring and adjusting airflow NORDcanopy canopies are fitted with measuring nozzles located inside the canopy. www.etsnord.com RDM-032-0524... - Page 11 ® NORDcanopy | HR/HZ NOTE! During measurement, HFK all grease filters and blind plates must be in place and the front panel must be closed. In order to adjust supply airflow, the position of the adjusting plate located in the supply chamber is adjusted. The exhaust airflow adjustment plate is located behind the HFK grease filters.
-
Page 12: Accessories
® NORDcanopy | HR/HZ 12. Accessories 12.1 Cover plates 1 – Side panel support 2 – Island canopy side panel 3 – Wall installation canopy side panel L/R 4 – Front panel 5 – Section beam (sequential connection) 12.2 Installation of cover plates A –... -
Page 13: Replacing The Luminaires
® NORDcanopy | HR/HZ C – Sectional canopy cover plates 12.3 Grease filter removal tool Use the Helping Hand filter tool for easy filter handling. 13. Replacing the luminaires NOTE! PERFORMED BY ELECTRICIAN. 13.1 LED luminaries NORDcanopy kitchen canopys use integrated light fixtures with protection class IP 66. -
Page 14: Kitchen Canopy Maintenance
® NORDcanopy | HR/HZ 13.2 Spot LED lighting Spot LED lighting is fastened with spring clips on the top surface of the canopy ceiling. For replacing the luminaire, it should be pulled downward from the canopy ceiling. 14. Kitchen canopy maintenance All internal and external surfaces of the kitchen canopy, including lighting, are cleaned using neutral cleaning agents. - Page 15 21363 Malmö Sweden Phone: +46 40-94 68 70 Address: Förrådsvägen 5 151 58 Södertälje Sweden Phone: +46 8 550 301 40 info@etsnord.se www.etsnord.se ETS NORD International info@etsnord.com www.etsnord.com ETS NORD Ventilation Manufacturing LLC UAE Sepin Rayo sepin.rayo@etsnord.com +971 5257 02916...
