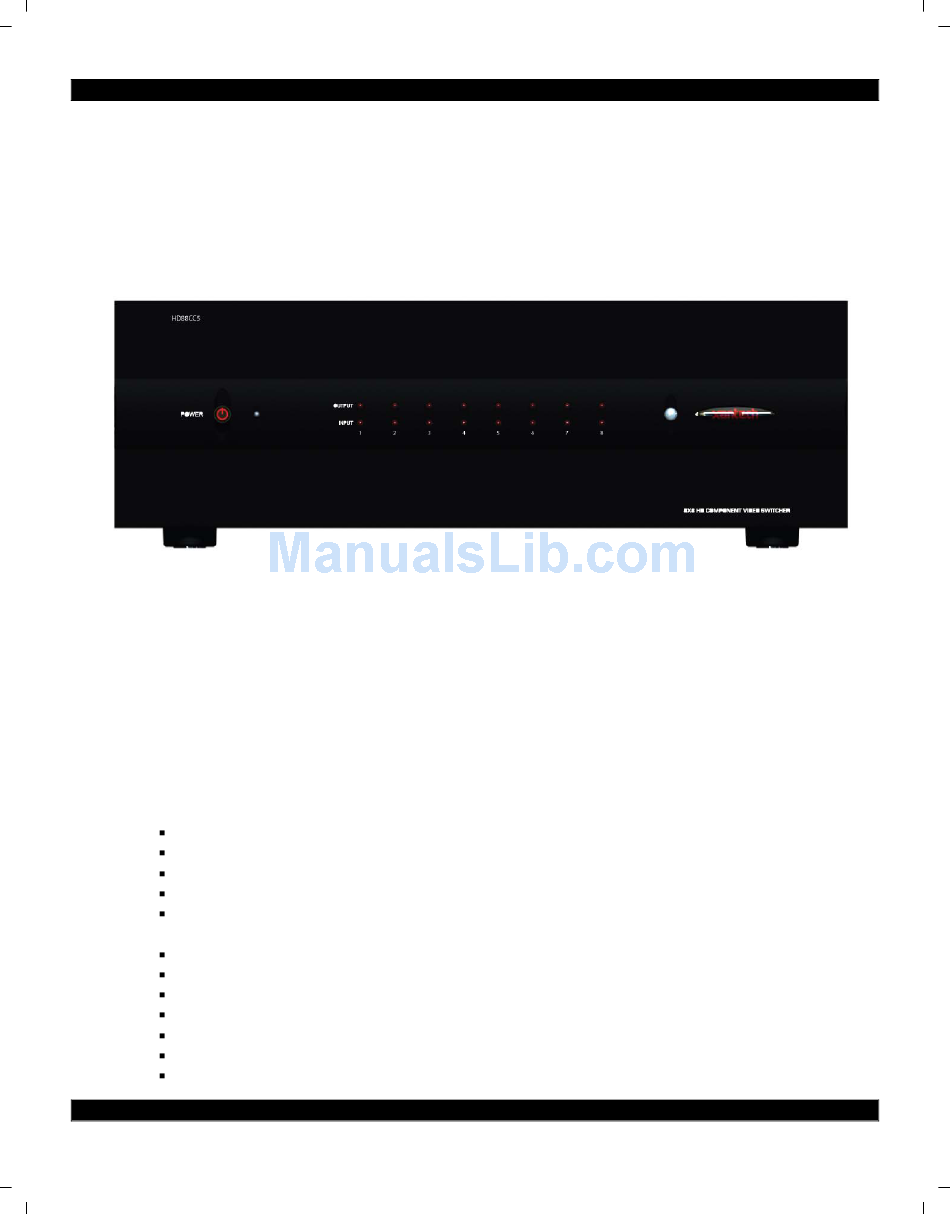

INSTALLATION INSTRUCTIONS

HD88CC5
High Definition Video Matrix Switcher,
Coaxial and CAT5
DESCRIPTION
The HD88CC5 eight-source, eight-zone, high-definition matrix switcher allows Hi-Definition Video and
digital Audio signals to be sent over standard Coax cable or CAT5 cable with virtually no loss. Both
coaxial component and CAT5 video outputs are active simultaneously, making it possible to distribute
eight sources to sixteen outputs at the same time.
The HD88C has the same great features as the HD88CC5 without the CAT5 output. The HD88C is
ideal for installations requiring local switching and distribution up to 250'.
The HD88CC5 and HD88C units are expandable up to 32 discreet Outputs (ZONES) by paralleling
the inputs of up to 4 8x8 units.
SPECIFICATIONS
Size: 17" W x 7-3/4" D x 5-3/4" H
Weight: 12.6 lbs (12.6 kilos)
Controllable through IR and RS232 commands
Optional Rack Mount kit available (RM3UKIT)
Power Requirements (120VAC, 0.25A, 50-60Hz) Supports 240VAC with appropriate
Switch setting (See Rear Panel, Item #3)
Operates in temperatures up to 55 degrees Celsius
Video Input: Component Video YPbPr (YCbCr) – Gold Plated RCA
Audio Input: SPDIF PCM Coaxial – Gold Plated RCA
Active A/V Loop Thru (for Expansion): Gold Plated RCA
Bandwidth supports resolutions of 1080p, 1080i, 720p, 480p and 480i
Coax Output Distance: 250ft (76m) – Gold Plated RCA
CAT5/E Output Distance: 1,000ft (304m) – RJ45
08905150A
HD88C
High Definition Video Matrix Switcher,
Coaxial Only
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD88C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xantech HD88C

Summary of Contents for Xantech HD88C

  • Page 1: Installation Instructions

    CAT5 video outputs are active simultaneously, making it possible to distribute eight sources to sixteen outputs at the same time. The HD88C has the same great features as the HD88CC5 without the CAT5 output. The HD88C is ideal for installations requiring local switching and distribution up to 250’.

  • Page 2: Included In Box

    INCLUDED IN BOX: 1ea HD88CC5 1ea Power Cord 1ea HD88CC5 Credit Card Remote Control 1ea 3V Lithium Battery (for Credit Card Remote Control) 1ea HD88CC5 series Expansion Cable 1ea 6 foot RS232 DB9 Cable DETAIL OVERVIEW FRONT PANEL The front panel is designed to provide the unit’s current Output/Input setting status. Note that only one Output/Input status setting is displayed at any given moment.

  • Page 3: Rear Panel

    REAR PANEL [1] SOURCE LOOP-THROUGH CONNECTION The source inputs are buffered to provide an output at the same level as the input – i.e. Unity Gain (assuming a 75-ohm termination is on the output). Use these connections for HD88 expansion systems. The buffers are an active circuit.
  • Page 4 [4] RS232 (SERIAL) COMMANDS The RS232 Port is bi-directional. The communication parameters are set to 9600 Baud 8-N-1. Where: {z#} - Zone Number. Range is 1..4 (1..16 if expanded) {s#} - Source Input Number. Range is 1..4 {0/1} – Either 0 (zero) or 1 (one). 0 – Off, 1 – On. NAME Zone Power !{z#}PR{0/1}+...
  • Page 5 This is done by connecting the SERIAL LINK port of the master to the XANTECH COM PORT of the other unit. The XANTECH COM PORT of the master is utilized to provide control of the entire system. Note that the Master is the main controlling unit. This unit is in charge of coordinating the communications between all expanded units.

  • Page 6: Important Notice

    [7] IR BUS The IR_IN port utilizes a 3.5mm mono jack. Use this port to connect to an IR emitter output port of a Xantech connecting block. PLUG CIRCUIT IR SIGNAL SLEEVE GROUND [8] CAT5 ZONE OUTPUT This is an Output connection to the HDRXSG01 receiver module. It utilizes standard CAT5 cable. Be sure to verify CAT5 wiring connection is correct before installation.
  • Page 7 QUICK INSTALLATION: HD88CC5 and HDRXSG01 [1] Connect the High-Definition Source to the HD88CC5 or HDTXSG01. Figure 1 below shows an HD88CC5 (video matrix transmitter) connected to the HDRXSG01 (receiver). [2] Using CAT5 cable, connect the HD88CC5 zone output or the output from the HDTXSG01 to the HDRXSG01.
  • Page 8 RC68+ (IR) COMMANDS The RC68+ should be set to Group Code “F1”. Zone Selection Source Selection Zone Power On Zone Power Off Zone Power Toggle Zone All On Zone All Off Save Preset Clear Preset Preset One Preset Two Preset Three Preset Four Restore All Zones 08905150A...
  • Page 9 ADVANCE INSTALLATION Sports Bar The figure below shows a diagram for a sports bar application. With the equipment rack located near or behind the bar area, the coaxial outputs can be used for local HD monitors. The CAT5 outputs can be used to deliver HD content to areas such as outdoor patios and pool table recreational areas.
  • Page 10 Expanded System The figure below shows an expanded HD88CC5 (16 Zones and up to 32 HD monitors) system. With two HD88CC5 devices, HD content can be distributed to 32 displays (16 with CAT5 outputs, 16 with coaxial outputs). The included RS232 expansion cable allows a single RS232 control port to be used to command the entire system.
  • Page 11 Notes: 08905150A - 11 -...
  • Page 12 This document is copyright protected. No part of this manual may be copied or reproduced in any form without prior written consent from Xantech Corporation. Xantech Corporation shall not be liable for operational, technical, or editorial errors/omissions made in this document. Document Number 08905150A...
