XT-HDMI-MX44-4K18G

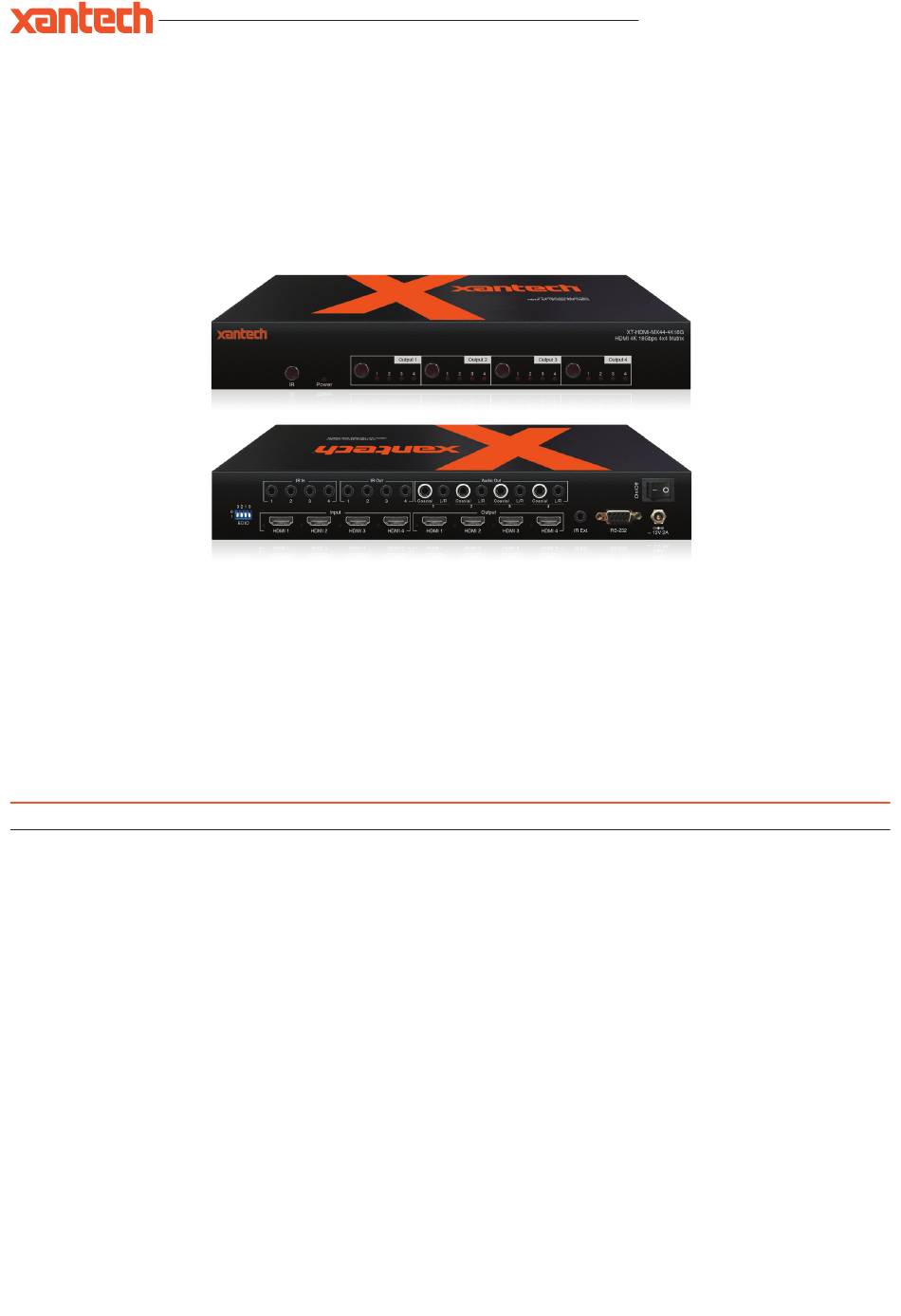

Introduction
Our XT-HDMI-MX44-4K18G 4K HDMI matrix features HDMI 2.0 chipsets with HDCP 2.2 support, allowing distribution of four HDMI sources to four
displays. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 4-Way matrix also includes advanced features such as
RS-232 for control and configuration of the matrix, bi-directional IR routing, audio breakout and EDID management.
Key Features
• Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
• Supports 4K UHD video (up to 4K @60Hz 4:4:4)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio Transmission
• Bi-directional IR from all input and output locations
• HDMI audio breakout via analog L/R audio and coaxial digital outputs concurrently
• Advanced EDID management
• HDCP 2.2
© 2018 XANTECH
is a registered trademark of Nortek Security & Control.
®
User Manual
XT-HDMI-MX44-4K18G
USER MANUAL
10019351 REV-A0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT-HDMI-MX44-4K18G and is the answer not in the manual?

Questions and answers

Summary of Contents for Xantech XT-HDMI-MX44-4K18G

  • Page 1 Introduction Our XT-HDMI-MX44-4K18G 4K HDMI matrix features HDMI 2.0 chipsets with HDCP 2.2 support, allowing distribution of four HDMI sources to four displays. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 4-Way matrix also includes advanced features such as RS-232 for control and configuration of the matrix, bi-directional IR routing, audio breakout and EDID management.
  • Page 2: Panel Description

    ® XT-HDMI-MX44-4K18G USER MANUAL Panel Description Front Panel XT-HDMI-MX44-4K18G HDMI 4K 18Gbps 4x4 Matrix Output 1 Output 2 Output 3 Output 4 Power IR receiver window for matrix control XT-HDMI-MX44-4K18G IR In IR Out Audio Out HDMI 4K 18Gbps 4x4 Matrix...
  • Page 3: Audio Breakout

    HDMI 3 HDMI 4 HDMI 1 HDMI 2 HDMI 3 HDMI 4 Analogue fixed line level output 3.5mm stereo jack. Note: supports 2 channel PCM only © 2018 XANTECH is a registered trademark of Nortek Security & Control. 10019351 REV-A0 ®...
  • Page 4 ® XT-HDMI-MX44-4K18G USER MANUAL XT-HDMI-MX44-4K18G HDMI 4K 18Gbps 4x4 Matrix Infrared and RS-232 Control Output 1 Output 2 Output 3 Output 4 The matrix’s main communication ports are located on the rear panel and includes the following connections:- Power IR In...
  • Page 5: Rs-232 And Telnet Commands

    HDMI 4K@60Hz 4:2:0, Audio 7.1CH DTS/DOLBY/HD zz=21: HDMI 4K@60Hz 4:4:4, Audio 2CH PCM zz=22: HDMI 4K@60Hz 4:4:4, Audio 5.1CH DTS/DOLBY zz=23: HDMI 4K@60Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HD © 2018 XANTECH is a registered trademark of Nortek Security & Control. 10019351 REV-A0 ®...
  • Page 6 ® XT-HDMI-MX44-4K18G USER MANUAL 4x4 Matrix IR Database 4X4 MATRIX PRODUCTS NEC IR: CUSTOMER CODE 1898 HEX IR 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016...
  • Page 7 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689 © 2018 XANTECH is a registered trademark of Nortek Security & Control.
  • Page 8 ® XT-HDMI-MX44-4K18G USER MANUAL On/Off www.xantech.com...
  • Page 9: Specifications

    Storage Temperature : -4°F to 140°F (-20°C to 60°C) Power Supply : 12V/2A DC Package Contents: • 1x XT-HDMI-MX44-4K18G • 1x 12V/2A DC power supply • 1x Remote control • 1x Mounting kit • 1x Quick reference guide © 2018 XANTECH is a registered trademark of Nortek Security &...
  • Page 10 They can take this product for environmentally safe recycling. main: tech support: web: 1 (800) 472-5555 - US tech@xantech.com www.xantech.com 1 (707) 283-5900 - International 1 (707) 283-5901 - Fax © 2018 XANTECH is a registered trademark of Nortek Security & Control. 10019351 REV-A0 ®...
