XT-HDBT-MX44-4K-KIT
Introduction

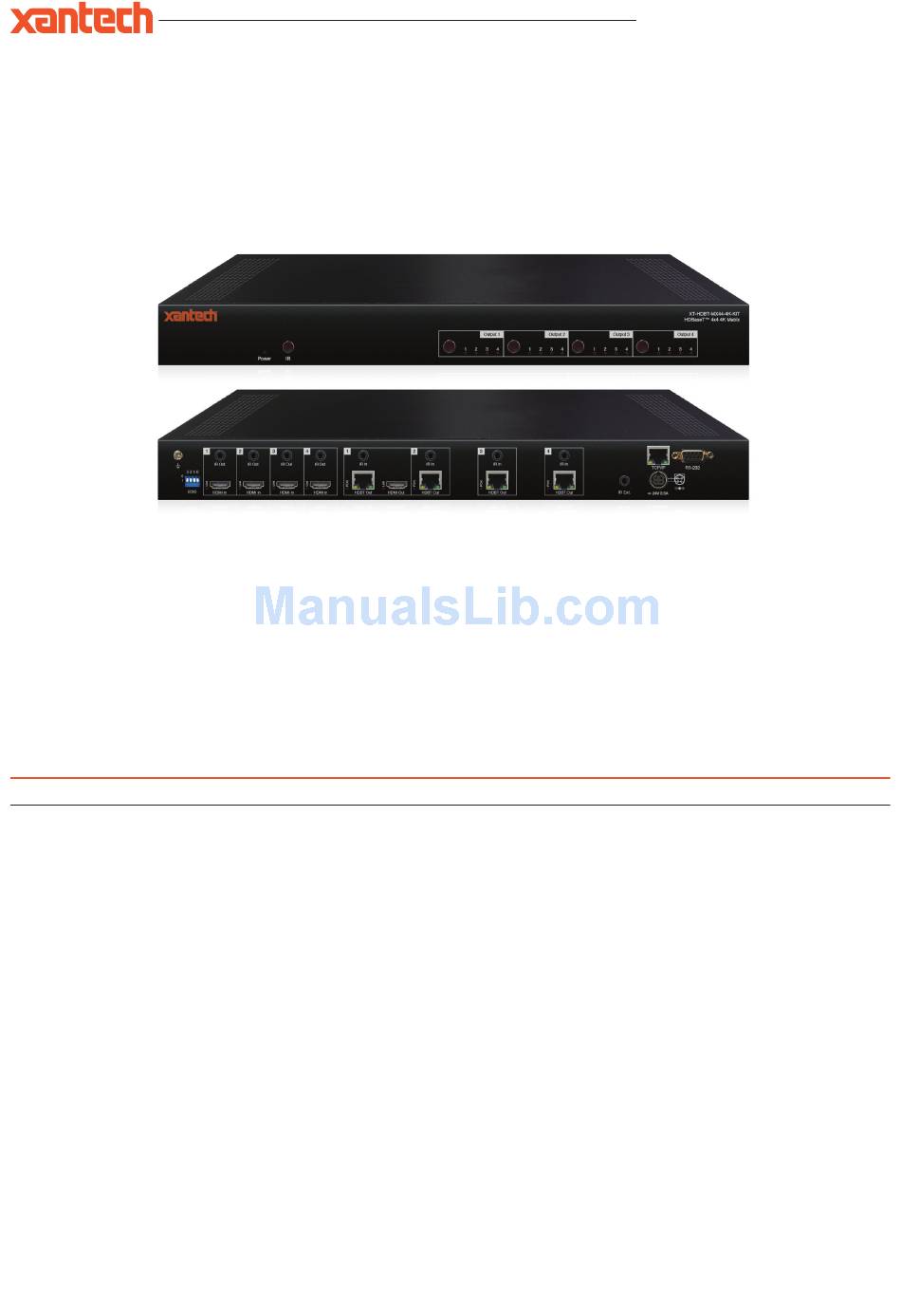

Our XT-HDBT-MX44-4K-KIT 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The XT-
HDBT-MX44-4K-KIT is a 4K HDCP 2.2 Matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT
cable. The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1 and a web browser interface module for
control and configuration of the matrix. The XT-HDBT-MX44-4K-KIT is supplied with 4 x XT-HDBT-EX70-4K-RX Receivers.
Key Features
• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Features 4x HDMI inputs which can be independently routed to 4x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Extends HDMI up to a distance of 70m over single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio Transmission
• Web interface module for control and configuration of Matrix
• Supports bi-directional IR on all HDBaseT outputs
• Control via front panel , IR, RS-232 and TCP/IP
• 1U Design for 19" rack mount integration - Mounting kit included
• Advanced EDID management
• HDCP 2.2
© 2018 XANTECH
is a registered trademark of Nortek Security & Control.
®
User Manual
XT-HDBT-MX44-4K-KIT
USER MANUAL
10019309 REV-A0
Advertisement
Table of Contents
Related Manuals for Xantech XT-HDBT-MX44-4K-KIT
Summary of Contents for Xantech XT-HDBT-MX44-4K-KIT
- Page 1 Introduction Our XT-HDBT-MX44-4K-KIT 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The XT- HDBT-MX44-4K-KIT is a 4K HDCP 2.2 Matrix package, delivering HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable.
-
Page 2: Panel Description
HDBT Out HDBT Out HDBT Out IR output - connect to Xantech IR emitter for source control from RS-232 Serial port for control by third party control devices HDBT receivers EDID DIP switch used to adjust HDMI input EDID settings... -
Page 3: Remote Control Description
EDID to by selecting FINISHED IN 5 SECONDS, OTHERWISE THE INPUT 1-4 or the ALL button OPERATION IS DISCARDED © 2018 XANTECH is a registered trademark of Nortek Security & Control. 10019309 REV-A0 ®... -
Page 4: Rj45 Pin-Out
USER MANUAL Understanding the HDBaseT status lights Xantech HDBaseT solutions include LED indicators to show connectivity and help diagnose possible problems. Xantech XT-HDBT-MX44-4K • The Yellow HDBaseT status link light will be off when the zone output has been turned off or there is a problem with the specific Matrix output. -
Page 5: Control Ports
‘Straight’ RS-232 cable or ‘Null-modem’ type. Baud Rate: 57600 bps XANTECH RS-232 REMOTE CONTROL CONSOLE Data Bit: 8-bit Assignment Assignment Parity: None Stop Bit: 1-bit Flow Control: None © 2018 XANTECH is a registered trademark of Nortek Security & Control. 10019309 REV-A0 ®... -
Page 6: Rs-232 And Telnet Commands
® XT-HDBT-MX44-4K-KIT USER MANUAL RS-232 and Telnet Commands The Matrix can be controlled via serial and TCP/IP. The following pages list all available serial commands for the Matrix. Details of RS-232 pin assignment can be found on the previous page. - Page 7 Set Gateway Address NET SM xxx.xxx.xxx.xxx Set Subnet Mask Address NET RB Set Network Reboot and Apply New Config NET TN xxxx Set Telnet Port © 2018 XANTECH is a registered trademark of Nortek Security & Control. 10019309 REV-A0 ®...
- Page 8 ® XT-HDBT-MX44-4K-KIT USER MANUAL 4x4 Matrix IR Database 4X4 MATRIX PRODUCTS NEC IR: CUSTOMER CODE 1898 HEX IR 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016...
- Page 9 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689 © 2018 XANTECH is a registered trademark of Nortek Security & Control.
- Page 10 ® XT-HDBT-MX44-4K-KIT USER MANUAL Link SOURCE 01 Link SOURCE 02 Link SOURCE 03 Link SOURCE 04 Link 70m max Link Power Link 70m max Power www.xantech.com...
-
Page 11: Specifications
• 4x Mounting kit for XT-HDBT-EX70-RX • 1x 24V/3.5A DC power supply • 1x Remote control • 1x Mounting kit • 1x Quick reference guide © 2018 XANTECH is a registered trademark of Nortek Security & Control. 10019309 REV-A0 ®... - Page 12 ® XT-HDBT-MX44-4K-KIT USER MANUAL Certifications FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
