- Page 1 GENERAL INFORMATION SAFETY RULES GENERAL VIEW ELECTRICAL CONNECTIONS CONTROL UNIT OPERATION APPENDIX CONTROL UNIT LTCU-1 LIFTING TABLE Original installation and operation instruction © DooHan, 2015...
- Page 2 7.2. Spare parts ................. 7 MANUFACTURER’S DECLARATION OF CONFORMITY Manufacturer: LLC StoreHan, 143002, Russia, Moskovskaya obl., Odintsovskij r-n, s. Akulovo, ul. Novaya, d. 120 Trademark: DoorHan Cotrol units for lifting tables serie LTCU-1 fulfil the stipulations of the Directive 2006/95/EC Low-voltage, 2004/108/EC Electromagnetic compatibility to the following standarts EN 60204-1:2006/А1:2009/Cor.Feb.:2010, EN 61000-6-2:2005/Corr.Sep.:2005, EN 61000-64:2007/A1:2011 Low-voltage, 2004/108/EC Electromagnetic compatibility This declaration of conformance is not applied if: t he Product is operated in the extreme climatic conditions, in the magnetic action environment etc, and in case of special...

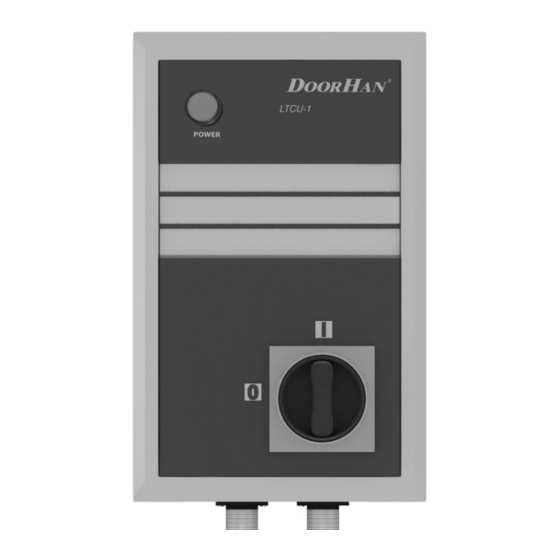

- Page 3 GENERAL VIEW 2. SAFETY RULES WARNING! Follow all the instructions manual, since improper installation of equipment can lead to serious damage and injury. The improper use is not allowed. Installation, settings and maintenance of this equipment can only be performed by qualified personnel with corresponding permit in accordance with relevant manufacturer’s instructions. Before operating the control unit, make sure that all electrical connections are secure and isolated, all control voltage inputs are galvanically isolated from the supply. The mains voltage must correspond to power supply of control unit 3. GENERAL VIEW 3.1. FRONT PANEL 1. Power indicator 2. Main switch 3. Pendant 4. Button STOP 5. Button up 6. Button down LTCU-1...
- Page 4 ELECTRICAL CONNECTIONS 4. ELECTRICAL CONNECTIONS WARNING! Prior to electrical mounting works on connecting the control unit it is necessary to cut off electric power supply and provide its absence during these works. 4.1. CONTROL UNIT DIAGRAM ТЕЛЬФЕРНЫЙ PENDANT ПУЛЬТ КАТУШКА ЭЛЕКТРОМАГНИТНОГО VALVE КЛАПАНА КОНТАКТОР CONTACTOR РЕЛЕ PROTECTION ЗАЩИТЫ RELAY TRANSFORMER ТРАНСФОРМАТОР * KB5 - LIMITATION OF LIFTING UP KB1-KB4 - SAFETY LIMIT SWITCHES FRAMES * КВ5 - ОГРАНИЧИВАЕТ ПОДЪЕМ СТОЛА ВВЕРХ КВ1-КВ4 - КОНЦЕВЫЕ...
- Page 5 400 V * КВ5 - ОГРАНИЧИВАЕТ ПОДЪЕМ СТОЛА ВВЕРХ КВ1-КВ4 - КОНЦЕВЫЕ ВЫКЛЮЧАТЕЛИ РАМКИ БЕЗОПАСНОСТИ КВ2 ТРАНСФОРМАТОР КВ3 ELECTRICAL CONNECTIONS КВ4 КВ5* CONTROL UNIT CONNECTION 4.2. Power pack connection provided with fast connection cable. * КВ5 - ОГРАНИЧИВАЕТ ПОДЪЕМ СТОЛА ВВЕРХ КВ1-КВ4 - КОНЦЕВЫЕ ВЫКЛЮЧАТЕЛИ РАМКИ БЕЗОПАСНОСТИ Power supply 5x1.5 mm cable.
- Page 6 CONTROL UNIT OPERATION 5. MOUNTING Recomended height of control unit mounting 1…1,5 m Fix points Fasteners choosen depending on the type of wall. 6. CONTROL UNIT OPERATION 6.1. OPERATING Turn the main switch to «I» position. Check that the control unit power indicator lights, then press up button for lifting of dockleveler. Keep the button pressed until complete lifting of DL and lip open. Then release button up and wait while the lip will come down to the truck body. WARNING! Don’t switch off power while dockleveler is being used. Only in case of emergency. Emergency stop function integrated into the main switch. Use this function ONLY in case of emergency. It may not be used during loading/unloading, as the dock leveller is unable to follow the vertical movements of truck which could lead to damage of hydraulic system. 6.2.
- Page 7 APPENDIX 7. APPENDIX 7.1. CONNECTION DOCK LEVELLER AND CONTROL UNIT Connection of dock leveller and control unit provided by fast connection cable. The length of cable choosing depending on the place of control unit installation and the lengs of dock leveller. Ïîäêëþ÷åíèå ýëåêòðîäâèãàòåëÿ Ïîäêëþ÷åíèå ýëåêòðîäâèãàòåëÿ ãèäðàâëè÷åñêîãî íàñîñà ãèäðàâëè÷åñêîãî íàñîñà N* N N* N Grey/Ñåðûé Grey/Ñåðûé Black/×åðíûé Black/×åðíûé Brown/Êîðè÷í. Brown/Êîðè÷í. Yellow-Green/ Yellow-Green/ Æåëòî-çåëåíûé Æåëòî-çåëåíûé Valve connection. Fast connection cables № Item Article ) DCTL02-1...
- Page 8 The company DoorHan thanks you for buying our products. We hope you will be satisfied with the quality of our product. If you need any further information about purchasing, distribution and maintenance, contact our regional agents or refer to our central office to the following address: Russia, 143002, Moscovskaya oblast, Odintsovskiy r-n, s. Akulovo, ul. Novaya, 120. Tel: +7 (495) 933-2400, 981-1133 E-mail: Info@doorhan.com www.doorhan.com...
