- Page 1 GENERAL INFORMATION SAFETY RULES GENERAL VIEW ELECTRICAL CONNECTIONS PROGRAMMING CONTROL UNIT OPERATION APPENDIX CONTROL UNIT DCUH-2, DCUH-3 HINGED LIP DOCK LEVELLER Original installation and operation instruction © DoorHan, 2015...
-
Page 2: Table Of Contents
8.2. Spare parts ................10 MANUFACTURER’S DECLARATION OF CONFORMITY Manufacturer: LLC StoreHan, 143002, Russia, Moskovskaya obl., Odintsovskij r-n, s. Akulovo, ul. Novaya, d. 120 Trademark: DoorHan Cotrol units for dock levellers with hinged lip and dock levellers with telescopic lip series DCUH-1/2/3 and DCUT-1/2/3 fulfil the stipulations of the Directive 2006/95/EC Low-voltage, 2004/108/EC Electromagnetic compatibility to the following standarts EN ISO 12100:2010, EN 1398:2009, EN ISO 1570-1:2011+А1:2014, EN 60204-1:2006/А1:2009/Cor.Feb.:2010, EN 61000-6- 2:2005/Corr.Sep.:2005, EN 61000-6-4:2007/A1:2011 This declaration of conformance is not applied if: t he Product is operated in the extreme climatic conditions, in the magnetic action environment etc, and in case of special... -
Page 3: Technical Data

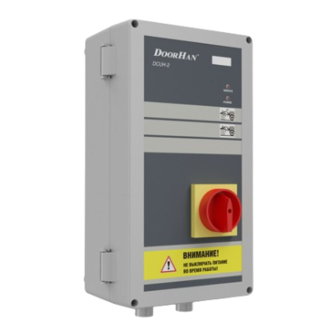

GENERAL VIEW 1.1. TECHNICAL DATA Parameter Value Power supply 400 V/50 Hz Connection valves 3 х 24 V DC, 20 Va Hydraulic unit 1.1 kW Working temperature range –10… +55°C Overall dimensions (whd) 280180130 mm Protection IP 54 2. SAFETY RULES WARNING! Follow all the instructions manual, since improper installation of equipment can lead to serious damage and injury. The improper use is not allowed. Installation, settings and maintenance of this equipment can only be performed by qualified personnel with corresponding permit in accordance with relevant manufacturer’s instructions. Before operating the control unit, make sure that all electrical connections are secure and isolated, all control voltage inputs are galvanically isolated from the supply. The mains voltage must correspond to power supply of control unit 3. GENERAL VIEW 3.1. FRONT PANEL 1. Digital display 6. Main switch 2. Power indicator 7. Button door open... -
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS 4. ELECTRICAL CONNECTIONS WARNING! Prior to electrical mounting works on connecting the control unit it is necessary to cut off electric power supply and provide its absence during these works. 4.1. CONTROL UNIT DIAGRAM Valve КАТУШКИ ЭЛЕКТРОМАГНИТНЫХ КЛАПАНОВ IN 1 J 12 J 13 J 14 +24 V Outside traffic СВЕТОФОР НАРУЖНЫЙ IN 1 light Inside traffic +24 V СВЕТОФОР ВНУТРЕННИЙ light IN 1 ЛАМПА +24 V Dock light ОСВЕЩЕНИЯ... -
Page 5: Control Unit Connection
J 12 J 13 J 14 ELECTRICAL CONNECTIONS 4.2. CONTROL UNIT CONNECTION 2. Power pack connection provided with fast connection 1. Power supply 5x1.5 mm cable. cable. 3 phase 400 V 1.2 kWtt max. L3 N N М CLOSE CLOSE STOP STOP OPEN OPEN IN 1 3. Solenoid coils connection provided with fast connection +24 V cable. 3x24 V DC. -
Page 6: Connection Of Safety Devices
ELECTRICAL CONNECTIONS 3. Dock light. V = 220 V. Max = 300 Wtt ПРИВОД СЕКЦИОННЫХ ВОРОТ ПРИВОД СЕКЦИОННЫХ J 30 ВОРОТ OUT3 OUT3 OUT2 OUT2 OUT1 OUT1 4.4. CONNECTION OF SAFETY DEVICES 1. Inter lock door - dock leveller КОНЦЕВОЙ ВЫКЛЮЧАТЕЛЬ ФОТОЭЛЕКТРИЧЕСКИЙ КОНЦЕВОЙ ВЫКЛЮЧАТЕЛЬ Limit switch КОНЦЕВОЙ ВЫКЛЮЧАТЕЛЬ Photo-electric sensor МЕХАНИЧЕСКИЙ ФОТОЭЛЕКТРИЧЕСКИЙ КОНЦЕВОЙ ВЫКЛЮЧАТЕЛЬ МЕХАНИЧЕСКИЙ МЕТИЗАТОРА 400 V 4.5. -
Page 7: Mounting
PROGRAMMING 5. MOUNTING Recomended height of control unit mounting 1…1,5 m Fix points Fasteners choosen depending on the type of wall. 6. PROGRAMMING 6.1. DIP SWITCHES Dip switches are used for choosing of control unit mode. Switching must be done on de-energized system. ATTENTION! Before first time use, make sure that the DIP switches 1 and 2 are in the correct positions. DCUH-2 MODE DCUH-3 MODE Dip 1 = Off Dip 1 = Off Dip 2 = Off Dip 2 = On Dip 3 is used for call of extended menu Dip 3 is used for call of extended menu Dip 3 = Off (Main menu) Dip 3 = Off (Main menu) Dip 3 = On (Extended menu) Dip 3 = On (Extended menu) Dip 4 not in use Dip 4 not in use "DCUH-2 mode corresponds to the display «dH2»." "DCUH-3 mode corresponds to the display «dH3»." «In DCUH-2 mode each operation with dockleveler or the door corresponds to the display (Table. 1.1).» COMMAND GROUP INDICATION DESCRIPTION «PUP» DL rising «Pdn»... -
Page 8: Programming Mode
PROGRAMMING «If the time to make service is coming, the operation display is blocked. In this case, «Ser» permanently displayed and service LED lights. Reset flag service main- tenance performed in the extended menu. The same applies to the error indication; if during operation occurred exceptional situation, the de-energizing the system to the display will show a message «ErX», where X - number error. Number of the last emergency case can be viewed in the extended menu.» 6.2. ENTERING TO THE PROGRAMMING MODE To enter the programming mode, switch on the control unit, turning the main switch to position «I». Make sure that the control unit power indicator lights, press briefly ‘Down’ button, then simultaneously press the “UP” button and “Auto” button within five seconds. «UH *» symbol in digital display means that you are in the programming mode (* - Flashing). Programming menu DCUH- 2 shown in Table 2.1.» Table 2.1. PARAMETER RANGE DESCRIPTION Parameter value 1-9 (3-11sec.) Default value 7 sec. 1. «UH» Lifting time in parking mode Changing by 1 = 1 sec. Parameter value 1-9 (5-21sec.) Default value 13 sec. 2. «UC» Lowering time in parking mode Changing by 1 = 2 sec. Parameter value 1-9 (2,5-6,5sec.) Default value 4,5 sec. 3. «Hd» Lifting time of last part of parking Changing by 1 = 0,5 sec. 4. «AF» Parameter value 1-9 "Threshold stop, apply to the action: ""Lifting platform""" 5. «Ar» (Y/n), default value - «Y» Y = Parking mode On. N = parking mode OFF 6. «CXX» (0-99) Cycle counter /1000 7. «SXX»... -
Page 9: Exit Programming
PROGRAMMING «1 - available until the reset of service mode has not performed Items 1 - 5 refer to the main, 6 - 9 to the extended menu. Navigation through the menu keys «»Up»» and «»Auto»» The first is switching between the parameters, the second changes parameter value cyclically. 6.3. EXIT PROGRAMMING Exit of programming mode and saving the changed values is done automatically after setting the last parameter of menu item and pressing briefly «»Up»» button.» 7. CONTROL UNIT OPERATION 7.1. OPERATING Turn the main switch to «I» position. Check that the control unit power indicator lights, then press up button for lifting of dockleveler. Keep the button pressed until complete lifting of DL and lip open. Then release button up and wait while the lip will come down to the truck body. WARNING! Don’t switch off power while dockleveler is being used. Only in case of emergency. Emergency stop function integrated into the main switch. Use this function ONLY in case of emergency. It may not be used during loading/unloading, as the dock leveller is unable to follow the vertical movements of truck which could lead to damage of hydraulic system. 7.2. RETURN TO THE INITIAL POSITION After finish of loading/unloading dock leveler has to initial position. Press auto button once, dockleveler will back to parking position automatically. (If the function active) see p. 8 - 9 ‘Programming”... -
Page 10: Appendix
Yellow-Green/ Æåëòî-çåëåíûé Æåëòî-çåëåíûé Valve connection. Fast connection cables № Item Leight, m Article Ïîäêëþ÷åíèå êîííåêòîðîâ ñîåäèíåíèé áëîêà Ïîäêëþ÷åíèå êîííåêòîðîâ ñîåäèíåíèé áëîêà Fast connection cable for DCUH-1,2,3 DKHL02 Ð Ð óïðàâëåíèÿ ê êàòóøêàì ñîëåíîèäîâ óïðàâëåíèÿ ê êàòóøêàì ñîëåíîèäîâ Fast connection cable for DCUH-1,2,3 10,5 DKHL02-1 Ðàçúåì "L" Ðàçúåì "L" íîìåð êîííåêòîðà óêàçàí íà ñòèêåðå. - Page 11 FOR NOTES...
- Page 12 We, DoorHan, thank you for purchasing our products. We hope that you will remain satisfied by quality of this product. If you have any questions on purchasing, distribution and servicing, please contact our regional representatives’ offices or company headquarters at the address: 120, Novaya Street, s. Akulovo, Odintsovo District, Moscow Region, Russia, 143002 Tel.: (495) 933-24-00, 981-11-33 E-mail: Info@doorhan.ru www.doorhan.ru...
