- Page 1 GENERAL INFORMATION SAFETY RULES GENERAL VIEW ELECTRICAL CONNECTIONS OPERATING APPENDIX CONTROL UNIT DCUT-1 TELESCOPIC LIP DOCK LEVELLER Original installation and operation instruction © DooHan, 2015...
- Page 2 7.2. Spare parts ................. 7 MANUFACTURER’S DECLARATION OF CONFORMITY Manufacturer: LLC StoreHan, 143002, Russia, Moskovskaya obl., Odintsovskij r-n, s. Akulovo, ul. Novaya, d. 120 Trademark: DoorHan Cotrol units for dock levellers with hinged lip and dock levellers with telescopic lip series DCUH-1/2/3 and DCUT-1/2/3 fulfil the stipulations of the Directive 2006/95/EC Low-voltage, 2004/108/EC Electromagnetic compatibility to the following standarts EN ISO 12100:2010, EN 1398:2009, EN ISO 1570-1:2011+А1:2014, EN 60204-1:2006/ А1:2009/Cor.Feb.:2010, EN 61000-6-2:2005/Corr.Sep.:2005, EN 61000-6-4:2007/A1:2011 This declaration of conformance is not applied if: t he Product is operated in the extreme climatic conditions, in the magnetic action environment etc, and in case of special requirements, e.g. explosion hazard;...

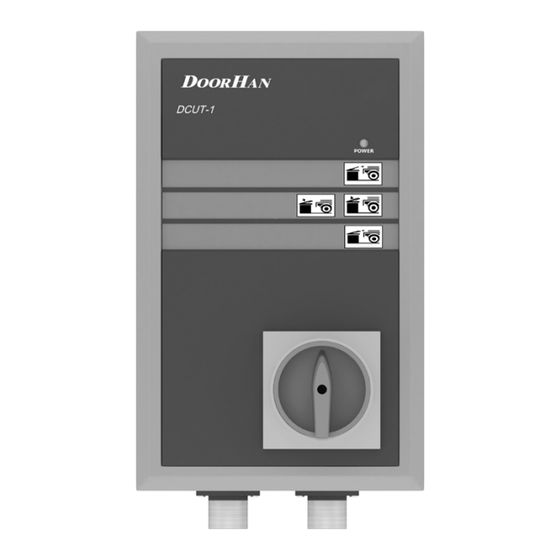

- Page 3 Overall dimensions (whd) 280180130 mm Protection IP 54 2. SAFETY RULES WARNING! Follow all the instructions manual, since improper installation of equipment can lead to serious damage and injury. The improper use is not allowed. Installation, settings and maintenance of this equipment can only be performed by qualified personnel with corresponding permit in accordance with relevant manufacturer’s instructions. Before operating the control unit, make sure that all electrical connections are secure and isolated, all control voltage inputs are galvanically isolated from the supply. • The mains voltage must correspond to power supply of control unit 3. GENERAL VIEW 3.1. FRONT PANEL 1. Power indicator 2. Button lip pull out 3. Button down 4. Button up 5. Button lip pull in 6. Main switch DCUT-1...
- Page 4 ELECTRICAL CONNECTIONS 4. ELECTRICAL CONNECTIONS WARNING! Prior to electrical mounting works on connecting the control unit it is necessary to cut off electric power supply and provide its absence during these works. 4.1. CONTROL UNIT DIAGRAM Contactor Контактор Трансформатор Transformer Реле Protection relay защиты L3 L3* N* N 400 V КАТУШКИ ЭЛЕКТРОМАГНИТНЫХ 400 V Valves КЛАПАНОВ МОТОР ГИДРОСТАНЦИИ Hydrauliс unit motor...
- Page 5 ELECTRICAL CONNECTIONS 4.2. CONTROL UNIT CONNECTION Power pack connection provided with fast connection cable. Power supply 5x1.5 mm cable. 400 V КАТУШКИ ЭЛЕКТРОМАГНИТНЫХ КАТУШКИ ЭЛЕКТРОМАГНИТНЫХ 3 phase 400 V 1.2 kWtt max. КЛАПАНОВ КЛАПАНОВ L3 L3* N* N L3 L3* N* N L3 L3* N* N L3 L3* N* N КАТУШКИ ЭЛЕКТРОМАГНИТНЫХ РОСТАНЦИИ МОТОР ГИДРОСТАНЦИИ КЛАПАНОВ 400 V 400 V 400 V...
- Page 6 CONTROL UNIT OPERATION 5. MOUNTING Recomended height of control unit mounting 1…1,5 m Fix points Fasteners choosen depending on the type of wall. 6. CONTROL UNIT OPERATION 6.1. OPERATING. Turn the main switch to «I» position. Check that the control unit power indicator lights, then press up button for lifting of dockleveler. Keep the button pressed until complete lifting of DL. Then press button lip pull out and keep it pressed untill the extension of lip becomes required length. Press down button briefly and wait while the lip will come down to the truck body. WARNING! Don’t switch off power while dockleveler is being used. Only in case of emergency. Emergency stop function integrated into the main switch. Use this function ONLY in case of emergency. It may not be used during loading/unloading, as the dock leveller is unable to follow the vertical movements of truck which could lead to damage of hydraulic system.
- Page 7 230/400 Kw 50Hz 230/400 Kw 50Hz 90µm 90µm Ïîäêëþ÷åíèå êàòóøåê Ïîäêëþ÷åíèå êàòóøåê ñîëåíîèäîâ ñîëåíîèäîâ Valves connection. Fast connection cables № Item Leight, m Article Fast connection cable for DCUT-1,2,3 DKTL02 Fast connection cable for DCUT-1,2,3 10,5 DKTL02-1 7.2. SPARE PARTS Spare parts № Item Article Top cover DCUH/T DCU001 Control board DCUT-1 DCU004...
- Page 8 The company DoorHan thanks you for buying our products. We hope you will be satisfied with the quality of our product. If you need any further information about purchasing, distribution and maintenance, contact our regional agents or refer to our central office to the following address: Russia, 143002, Moscovskaya oblast, Odintsovskiy r-n, s. Akulovo, ul. Novaya, 120. Tel: +7 (495) 933-2400, 981-1133 E-mail: Info@doorhan.com www.doorhan.com...
