6.7 FINAL OPERATIONS AND FUTURE EXPANSIONS

Complete the configuration and once the system is blocked, press the HOME button on the bar at the bottom.

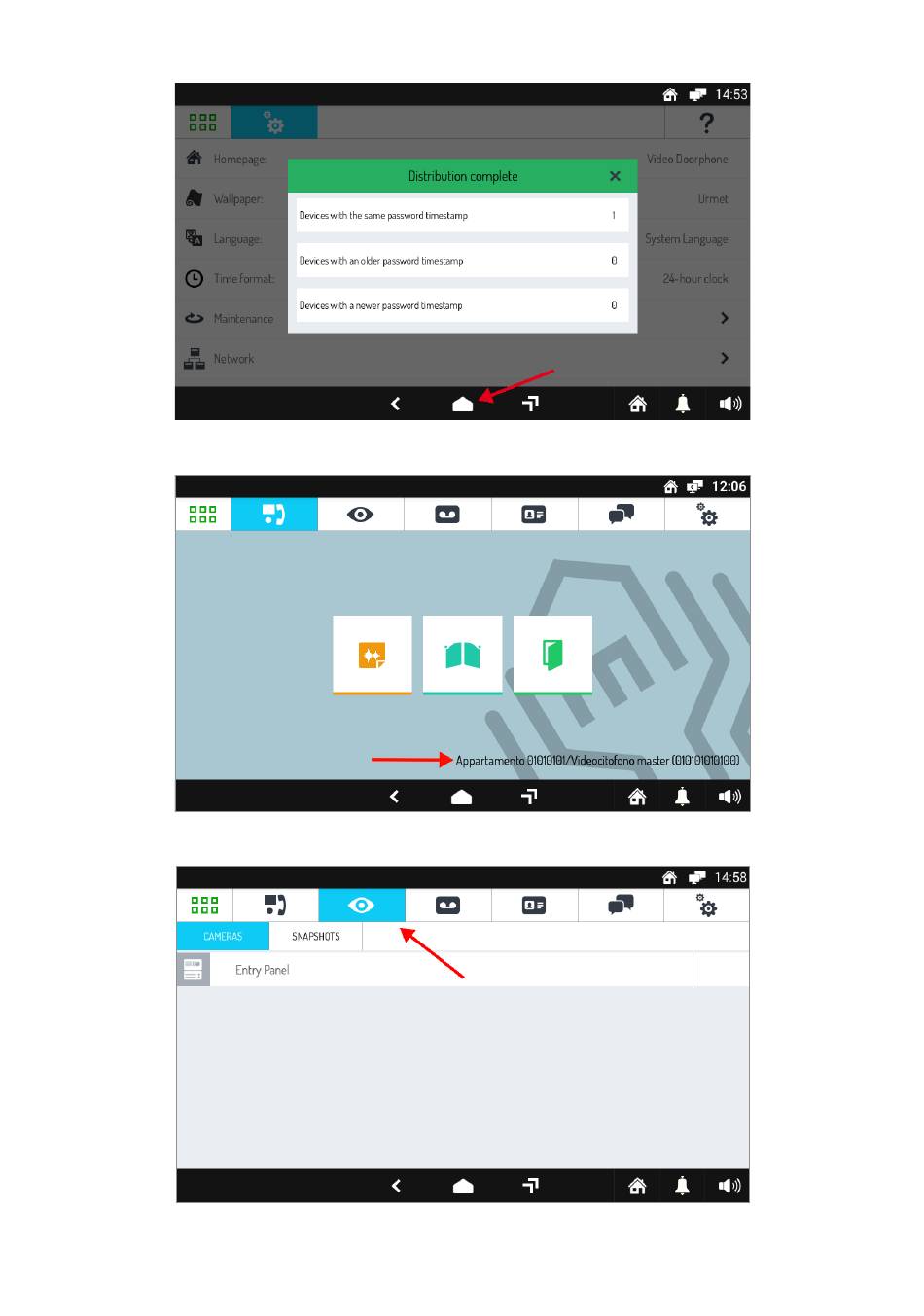

Figure 35: HOME Button
In this way, the video door phone screen appears, where it is possible to see some of the setting made in the configuration, as illustrated in figure.
Figure 36: Video door phone systems
In the rooms list, it is possible to see the Door Unit set previously.
Figure 37: Rooms List
To verify the functioning of the system, call the Video door phone from the Door Unit and check that the call is received correctly; then carry out the auto-on
function on the Door Unit and check that it takes place correctly.
To make changes to the configuration or expand the system, please see the System technical manual for the installer version 2.1.0.
