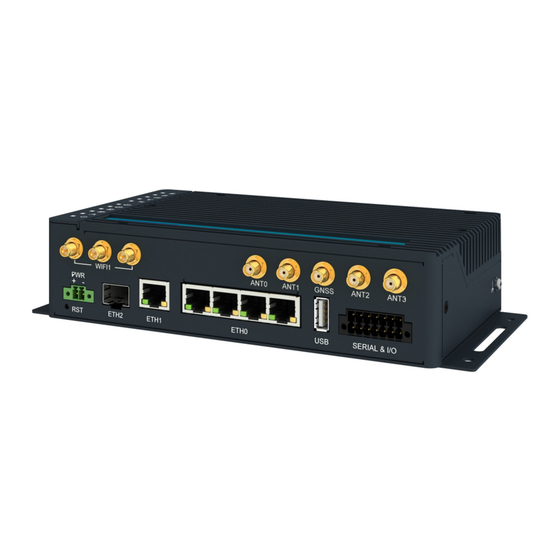

- Page 1 Start Guide ICR-4401, ICR-4434, ICR-4453...
- Page 2 Start Guide Safety Instructions Please take care to following instructions: Use the router in compliance with national and international law and in compliance with any special or additional restrictions regulating the use of the router in various applica- tions and environments. To avoid possible injury and/or damage to the device, observe the relevant provisions and standards.
- Page 3 flash drive medium. If you are interested in obtaining the source, please get in touch with us at: techSupport@advantech-bb.com Modifications and debugging of LGPL-linked executables: The device manufacturer hereby grants the right to use debugging techniques (e.g., de- compilation) and making customer modifications of any executable linked with an LGPL library...
- Page 4 ICR-4401 routers are not equipped with a cellular module, which means that the SIM card slots together with the cellular and GNSS antenna connectors are not available on the router.
- Page 5 Start Guide 2. SIM Card The SIM card reader for two mini-SIM cards (2FF with size of 25.0 x 15.0 x 0.76 mm) is located on the router’s rear panel under a metal cover. If you intend to use this device to communicate over a cellular network, please place an activated data-provisioned SIM card into the SIM card reader.
- Page 6 Start Guide 3. Power The router requires an external DC power supply. The DC voltage required is between +9 and +48 V DC. The router has built-in protection against reverse polarity without signaling. Connect the power supply cable to the PWR connector on the router’s front panel; see the figure below.
- Page 7 Start Guide Configuration 1. Configuring the Device Using the Web Browser You can use a web browser running on your PC to get access to the router web interface. Here you can perform router monitoring, configuration, and administration. First, connect the PC to the default LAN interface as described in the Ethernet chapter.
- Page 8 Hereby we, Advantech Czech s.r.o., declare that the radio equipment type ICR-4401 (WiFi version), ICR-4434, and ICR-4453 comply with Directive 2014/53/EU. ICR-4401 (non-WiFi version) complies with Directives 2014/30/EU and 2014/35/EU. The full text of the EU Declaration of Conformity is available at the following internet address: icr.advantech.cz/eudoc...
