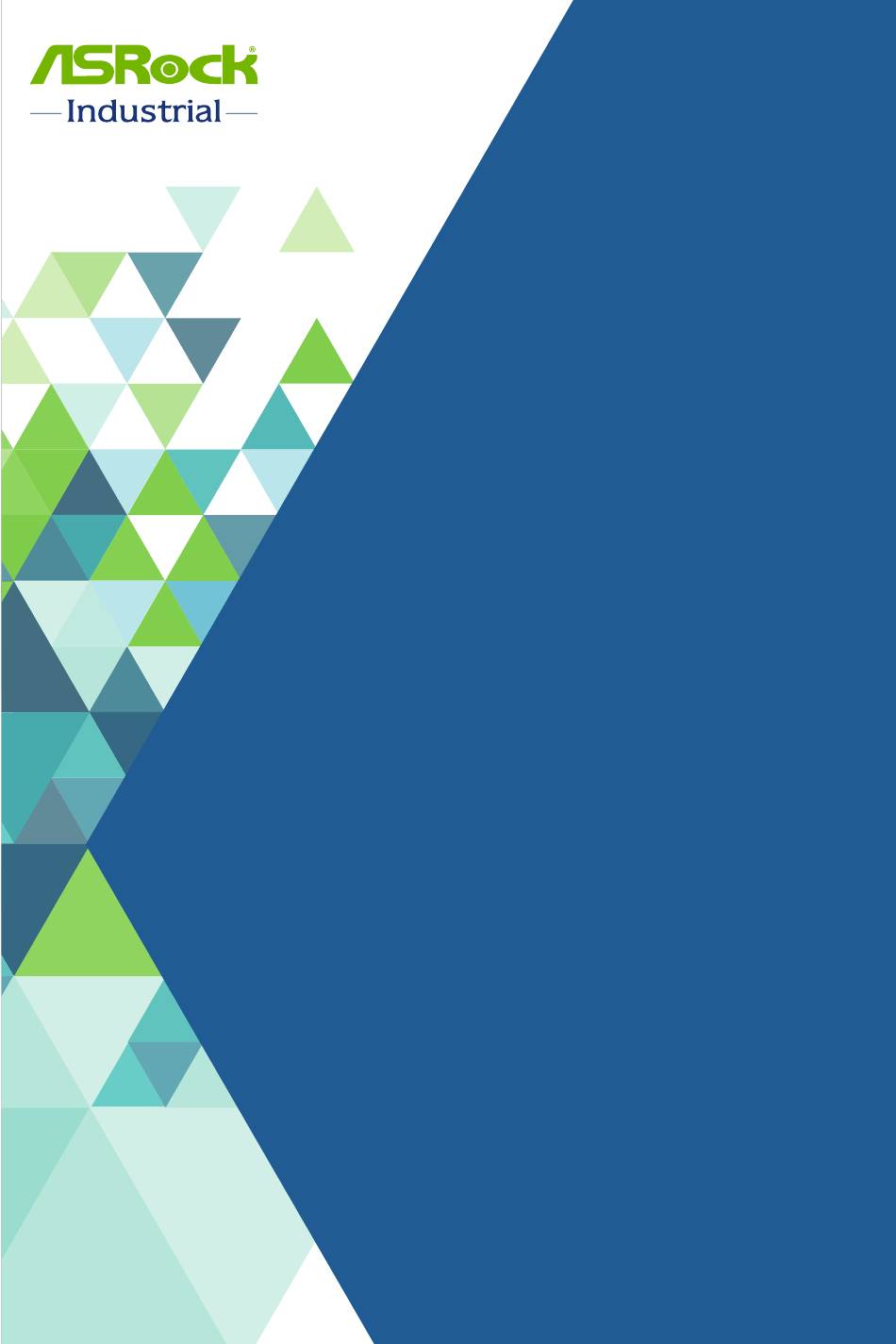

iBOX 1200 Series
iBOX 1300/D5 Series
User Manual
Version 1.0
Published June 2022
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBOX 1300/D5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASRock Industrial iBOX 1300/D5 Series

Summary of Contents for ASRock Industrial iBOX 1300/D5 Series

  • Page 1 1200 Series iBOX 1300/D5 Series User Manual Version 1.0 Published June 2022 User Manual...
  • Page 2 Version 1.0 Published April 2023 Copyright©2023 ASRockInd INC. All rights reserved. Copyright Notice: No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRockInd Inc.
  • Page 3 AUSTRALIA ONLY Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
  • Page 4 Check local regulations for disposal of electronic products. Contact Information If you need to contact ASRock Industrial or want to know more about ASRock Industrial, you’re welcome to visit ASRock Industrial’s website at https://www.asrockind.com; or you may contact your dealer for further information.

  • Page 5: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Product Specifications Block Diagram Chapter 2 Product Overview Front View Rear View Inside View Chapter 3 Hardware Installation How to Remove the Bottom Case How to Install the WiFi Module How to Remove the M.2 SSD and the Bracket How to Install the M.2 SSD How to Install the 2.5-inch Hard Drive How to Install the Memory Modules...
  • Page 6 Onboard Headers and Connectors Installation of ROM Socket Expansion Slots (M.2 Slots) Chapter 5 UEFI Setup Utility Introduction 5.1.1 UEFI Menu Bar 5.1.2 UEFI Menu Bar 5.1.3 Navigation Keys Main Screen (Advanced Mode) Advanced Screen 5.3.1 CPU Configuration 5.3.2 Chipset Configuration 5.3.3 Storage Configuration 5.3.4 Super IO Configuration 5.3.5 AMT Configuration...

  • Page 8: Chapter 1 Introduction

    Because the hardware specifications might be updated, the content of this documentation will be subject to change without notice. 1.1 Package Contents • 1 x iBOX 1300/D5 Series • 1 x 19V/90W Power Adapter • 1 x Wall Mount Kit •...

  • Page 9: Product Specifications

    1.2 Product Specifications Watchd Processor System Intel 13th Gen (Raptor Lake-P) Core™ Processors ® Output iBOX-1365UE/D5 ( i7-1365UE, 2P+8E) Interval iBOX-1335UE/D5 ( i5-1335UE, 2P+8E) iBOX-1315UE/D5 ( i3-1315UE, 2P+4E) Power R Chipset Input PWR AMI SPI 256 Mbit BIOS Power On Memory Technology Dual Channel DDR5 4800 MHz...
  • Page 10 Storage 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD iBOX 1300/D5 Series *M.2 Key M 2280(Supported by bracket) SATA 1 x SATA3.0 (6.0 Gb/s) Front I/O 2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt 4 (Supports DP 2.1 display output)

  • Page 11: Block Diagram

    1.3 Block Diagram Hayden Type-C TCP0 + USB 2.0#5 DDR5 4800MHZ Bridge SO-DIMM Connector JHL9040R Type-C TCP1 + USB 2.0#6 DDR5 4800MHZ SO-DIMM Connector TCP2 SATA (#0) SATA Port Display port PCIe x1 (#6) HDMI HDMI DDIB CNVi M.2 Key E IT66318 Connector USB 2.0 (#10)

  • Page 12: Chapter 2 Product Overview

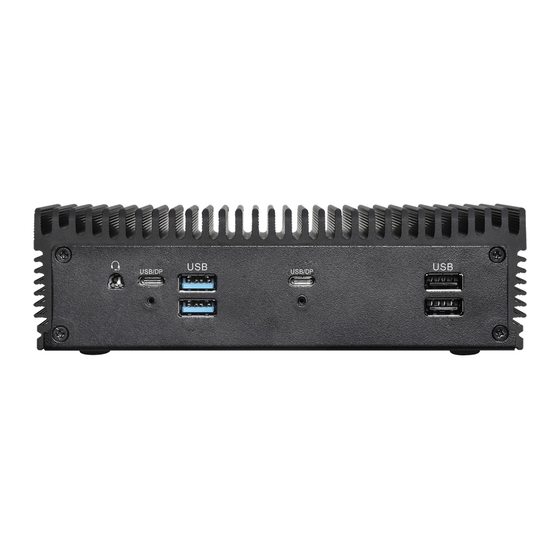

    1300/D5 Series Chapter 2 Product Overview This chapter provides diagrams showing the location of important components of the iBOX 1300/D5 Series. 2.1 Front View Description Audio (Mic-in, Line-out) USB 4/Thunderbolt™ 4 (5V/3A, supports DP2.1a display output) 2 x USB 3.2 Gen2 (Type A) USB 3.2 Gen2x2 (Type C, 5V/1.5A, supports DP1.4a display...

  • Page 13: Rear View

    2.2 Rear View Description Power Button 2 x USB 3.2 Gen2 Ports (Type A) HDMI 2 x RJ-45 (2.5G LAN)* DisplayPort** DC-IN COM Port * There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port...

  • Page 14: Inside View

    1300/D5 Series 2.3 Inside View Description M.2 Slot (Key E) M.2 Slot (Key M) SATA 3.0 Connector SO-DIMM Slots SO-DIMM memory, hard drive and M.2 SSD are not included with this system.

  • Page 15: Chapter 3 Hardware Installation

    Chapter 3 Hardware Installation This chapter helps you install or remove important components. 3.1 How to Remove the Bottom Case 1. Remove the six screws on the bottom case. 2. Then lift up and remove the bottom panel.

  • Page 16: How To Install The Wifi Module

    1300/D5 Series 3.2 How to Install the WiFi Module 1. Locate the WiFi Module slot on the motherboard. 2. Carefully insert the WiFi Module into the slot at a 30-degree angle. 3. Tighten the screw to secure the WiFi Module to the motherboard.

  • Page 17: How To Remove The M.2 Ssd And The Bracket

    3.3 How to Remove the M.2 SSD and the Bracket 1. Release the screw and carefully remove the M.2 SSD (2280). 2. Release the screw and remove the bracket from the motherboard.

  • Page 18: How To Install The M.2 Ssd

    1300/D5 Series 3.4 How to Install the M.2 SSD 1. Locate the M.2 slot on the motherboard. 2. Carefully insert the M.2 SSD into the slot at a 30-degree angle. 3. Tighten the screw to secure the M.2 SSD to the motherboard.

  • Page 19: How To Install The 2.5-Inch Hard Drive

    3.5 How to Install the 2.5-inch Hard Drive 1. Remove the six screws on the bottom case. Then lift up and remove the bottom panel. 2. Attach the HDD cage to the bottom panel and secure it using the four screws. Then connect the SATA cable to the HDD.
  • Page 20 4. Connect the SATA Cable to the connector. 5. Then reinstall the bottom panel. For iBOX 1300/D5 Series, it is not recommendedto install 2.5” HDD. If you install the 2.5” HDD, please keep the iBOX 1300/D5 Series in a vertical position to ensure better cooling...

  • Page 21: How To Install The Memory Modules

    3.6 How to Install the Memory Modules (DDR5 Voltage (1.1V)) 1. The iBOX 1300/D5 Series requires DDR5 SO-DIMM (1.1V). 2. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR5 SO-DIMM pairs.

  • Page 22: How To Install Dimm Pads

    1300/D5 Series 3.7 How to Install Dimm Pads Install the top dimm pad and the bottom dimm pad accordingly.

  • Page 23: How To Install M.2 Heatsink

    3.8 How to install M.2 Heatsink 1. Remove the four screws on the front cover and take off the front cover. Then remove the motherboard screw. 2. Install the nut.
  • Page 24 1300/D5 Series 3. Remove the membranes on the both sides of the M.2 heatsink. Attach the M.2 Heatsink to the motherboard and secure it with screws. 4. Reinstall the bottom panel and the front cover.

  • Page 25: How To Install The Vesa Bracket

    3.9 How to Install the VESA Bracket 1. Attach the two screws to the base of the iBOX 1300/D5 Series. 2. Attach the VESA Bracket to the rear of a compatible display using the four screws. *Choose mounting holes depending on the mounting hole pattern of your LCD screen...
  • Page 26 1300/D5 Series 3. Mount the iBOX 1300/D5 Series by sliding it into place.

  • Page 27: How To Install The Wall Mounting Brackets

    3.10 How to Install the Wall Mounting Brackets 1. Attach the wall mounting brackets to the base of the iBOX 1300/D5 Series and secure them with screws. 2. The iBOX 1300/D5 Series is installed with the wall mounting brackets. 197.4mm...
  • Page 28 1300/D5 Series Dimension of the iBOX 1300/D5 Series with Wall Mounting Brackets Installed 197.4mm 187.1mm 99.2mm 110.4mm...

  • Page 29: How To Install The Din Rail Mounting Bracket (Optional)

    3.11 How to Install the Din Rail Mounting Bracket (Optional) 1. Attach the Din Rail Bracket to the base of the iBOX 1300/D5 Series. 2. Then secure it with screws. Din Rail Bracket is not provided by default. Please purchase it seperately if needed.

  • Page 30: Positions Of The Ibox-1300/D5 Series

    3.12 Positions of the iBOX-1300/D5 Series The iBOX 1300/D5 Series can be placed in vertical or horizontal position. Horizontal Position Vertical Position VESA-mounted Please note that keeping the iBOX 1300/D5 Series in a vertical position will ensure better cooling performance.

  • Page 31: Chapter 4 Motherboard

    Chapter 4 Motherboard 4.1 Motherboard Layout AUDIO1 LAN1 TC_TB_0 BIOS (Type C): USB4/ Thunderbolt 4 LAN2 USB3_3_4 (USB 3.2 Gen2): Bottom: USB3_3 USB2_7_8 Top: USB3_4 HDMI_DP_1: COM1 Bottom: HDMI1 Top: D 1 P SATA3_0 NUC-1360P/D5 USB3_1_2 Industrial (USB 3.2 Gen2): Bottom: USB3_1 Top: USB3_2 TC_U3D_1...
  • Page 32 1300/D5 Series FAN1 PWR_BTN1 ESPI1 BAT1 1 : M.2 Key-M Socket (M2_M1) 2 : M.2 Key-E Socket (M2_E1) 3 : USB 2.0 Connector (USB2_7_8) 4 : COM Port Header (COM1)(RS-232/422/485) 5 : SATA3 Port (SATA3_0) 6 : JP1 7 : System Panel Header (PANEL1)

  • Page 33: Onboard Headers And Connectors

    4.2 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause per- manent damage to the motherboard! USB 2.0 Connector (9-pin USB2_7_8) (see p.
  • Page 34 1300/D5 Series SATA3 Port Signal Name (SATA3_0) SATA0_TXP (see p. 24, No. 5) SATA0_TXN SATA0_RXN SATA0_RXP The Serial ATA3 (SATA3) connector supports SATA data cables for internal storage devices. The current SATA3 interface allows up to 6.0 Gb/s data transfer rate.
  • Page 35 PWRBTN (Power Switch): Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch. RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.
  • Page 36 1300/D5 Series ESPI Header Signal Name (ESPI1) ESPI_CLK (see p. 25, No. 12) ESPI_CS# ESPI_RESET# SMB_CLK SMB_DATA ESPI_IO0 ESPI_IO1 ESPI_IO2 ESPI_IO3 +3VSB Internal Use Internal Use ESPI_ALERT#...

  • Page 37: Installation Of Rom Socket

    • Make sure the white dot on the ROM is installed outwards of the socket. • For further details of how to install ROM, please refer to ASRock Industrial website. Warning: If the installation does not follow as the picture, then it may cause severe damage...

  • Page 38: Expansion Slots (M.2 Slots)

    1300/D5 Series 4.4 Expansion Slots (M.2 Slots) There are 2 M.2 sockets on this motherboard. M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4x4 for SSD. * M.2 Key M 2280 (Supported by bracket) M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless M.2 Key-M Socket...

  • Page 39: Chapter 5 Uefi Setup Utility

    Chapter 5 UEFI Setup Utility 5.1 Introduction ASRock Industrial UEFI (Unified Extensible Firmware Interface) is a BIOS utility which offers tweak-friendly options in an advanced viewing interface. The UEFI system works with a USB mouse and offers users a faster, sleeker experience.

  • Page 40: Uefi Menu Bar

    1300/D5 Series 5.1.2 UEFI Menu Bar The top of the screen has a menu bar with the following selections: Main For setting system time/date information For advanced system configurations Advanced H/W Monitor Displays current hardware status Security For security settings...

  • Page 41: Navigation Keys

    5.1.3 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter> to get into the sub screen.

  • Page 42: Main Screen (Advanced Mode)

    1300/D5 Series 5.2 Main Screen (Advanced Mode) When you enter the UEFI Setup Utility, the Main screen will appear and display the system overview. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.

  • Page 43: Advanced Screen

    5.3 Advanced Screen I n t h i s s ec t ion, you may s et t he con f ig u r at ions for t he fol low i ng items: CPU Configuration, Chipset Configuration, Super IO Configuration, AMT Configuration, ACPI Configuration, USB Configuration and Trusted Computing.

  • Page 44: Cpu Configuration

    1300/D5 Series 5.3.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Configuration options: [Enabled] [Disabled] Active Processor P-Cores This allows you to select the number of cores to enable in each processor package.
  • Page 45 Enhanced Halt State (C1E) The option allows you to enable Enhanced Halt State (C1E) for lower power consumption. Configuration options: [Enabled] [Disabled] Package C State Support The option allows you to enable CPU, PCIe, Memory, Graphics C State Support for power saving.
  • Page 46 1300/D5 Series Intel Turbo Boost Technology Intel Turbo Boost Technology enables the processor to run above its base operating frequency when the operating system requests the highest performance state. The default value is [Enabled]. Configuration options: [Enabled] [Disabled] CPU Thermal Throttling CPU Thermal Throttling allows you to enable CPU internal thermal control mechanisms to keep the CPU from overheating.

  • Page 47: Chipset Configuration

    5.3.2 Chipset Configuration VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance. Configuration options: [Enabled] [Disabled] Re-Size BAR Support If system has Resizable BAR capable PCIe Devices, this option enables or disables Resizable BAR Support.
  • Page 48 1300/D5 Series Render Standby Power down the render unit when the GPU is idle for lower power consumption. Configuration options: [Enabled] [Disabled] Onboard LAN1 This allows you to enable or disable the Onboard LAN1 feature. Configuration options: [Enabled] [Disabled] Onboard LAN2 This allows you to enable or disable the Onboard LAN2 feature.

  • Page 49: Storage Configuration

    5.3.3 Storage Configuration SATA Controller(s) The option allows you to enable or disable the SATA controllers. Configuration options: [Enabled] [Disabled] SATA Mode Selection AHCI supports new features that improve performance. Configuration option: [AHCI] AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk performance.
  • Page 50 1300/D5 Series SATA Aggressive Link Power Management SATA Aggressive Link Power Management allows SATA devices to enter a low power state during periods of inactivity to save power. It is supported only by AHCI mode. Configuration options: [Enabled] [Disabled] Hard Disk S.M.A.R.T.

  • Page 51: Super Io Configuration

    5.3.4 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Type Select Use this to select COM1 port type: [RS232], [RS422] or [RS485]. WDT Timeout Reset Use this to set the Watch Dog Timer. Configuration options: [Enabled] [Disabled]...

  • Page 52: Amt Configuration

    1300/D5 Series 5.3.5 AMT Configuration USB Provisioning of AMT Use this to enable or disable AMT USB Provisioning. The default is [Disabled]. MAC Pass Through The option enables or disables MAC Pass Through function. Dynamic Lan Switch This allows switching AMT support from Integrated LAN to Discrete LAN.
  • Page 53 One Click Recovery(OCR) Configuration Configuration setting for One Click Recovery. This allows access for AMT to boot a recovery OS application Remote Platform Erase Configuration Remote Platform Erase configuration menu. MEBx This Formset contains forms for configuring MEBx.

  • Page 54: Acpi Configuration

    1300/D5 Series 5.3.6 ACPI Configuration Suspend to RAM Suspend to R A M a l lows you to select [Disabled] for ACPI suspend t y pe S1. It is recommended to select [Auto] for ACPI S3 power saving. Configuration options: [Auto] [Disabled]...

  • Page 55: Usb Configuration

    5.3.7 USB Configuration USB Power Control Use this option to control USB power. Configuration options: [Always Enabled] [Default Setting]...

  • Page 56: Trusted Computing

    1300/D5 Series 5.3.8 Trusted Computing NOTE: Options vary depending on the version of your connected TPM module. Security Device Support Security Device Support allows you to enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
  • Page 57 Pending Operation Pending Operation allows you to schedule an Operation for the Security Device. NOTE: Your computer will reboot during restart in order to change State of the Device. Configuration options: [None] [TPM Clear] Platform Hierarchy This item allows you to enable or disable Platform Hierarchy. Configuration options: [Enabled] [Disabled] Storage Hierarchy This item allows you to enable or disable Storage Hierarchy.

  • Page 58: Hardware Health Event Monitoring Screen

    1300/D5 Series 5.4 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed, chassis fan speed, and the critical voltage.

  • Page 59: Security Screen

    5.5 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has the authority to change the settings in the UEFI Setup Utility.

  • Page 60: Boot Screen

    1300/D5 Series 5.6 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 The item allows you to set the system boot order. Boot From Onboard LAN The item allows the system to be waked up by the onboard LAN.

  • Page 61: Exit Screen

    5.7 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop out. Select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, the following message “Discard changes and exit setup?”...

  • Page 62: Chapter 6 Software Support

    1300/D5 Series Chapter 6 Software Support 6.1 Install Operating System ® ® This motherboard supports various Microsoft Windows operating systems: 11 64-bit/10 64-bit. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general reference only. Refer your OS documentation for more...
