- Page 1 ® R&S Frequency Multiplier Manual (;ÝWÑ2) 1179396702 Version 02...
- Page 2 All other trademarks are the properties of their respective owners. ® 1179.3967.02 | Version 02 | R&S Throughout this manual, products from Rohde & Schwarz are indicated without the ® symbol , e.g. ® R&S SZM is indicated as R&S SZM.
-
Page 3: Table Of Contents
2.3 Korea certification class B..............11 3 Documentation overview............ 12 3.1 Manual....................12 3.2 Data sheet and brochure..............12 4 Welcome to the R&S SZM........... 13 5 Preparing for use..............15 5.1 Unpacking and checking..............15 5.2 Choosing the operating site.............. 15 5.3 Setting up the R&S SZM..............16 5.4 Considerations for test setup............ - Page 4 ® Contents R&S 7 Transporting.................29 8 Maintenance, storage and disposal........30 8.1 Cleaning....................30 8.2 Storage....................30 8.3 Disposal....................30 9 Contacting customer support..........32 Index..................33 Manual 1179.3967.02 ─ 02...
-
Page 5: Safety Information (Multilingual)
® Safety information (multilingual) R&S Safety information (multilingual) This option or accessory is designed for a specific Rohde & Schwarz prod- uct. Multilingual safety information is delivered with the product. Follow the provi- ded installation instructions. Esta opción o este accesorio están diseñados para un producto Rohde &... - Page 6 ® Safety information (multilingual) R&S Detta tillval eller tillbehör är avsett för en särskild produkt från Rohde & Schwarz. Säkerhetsinformation på flera språk medföljer produkten. Följ de medföljande installationsanvisningarna. Tämä vaihtoehto tai lisävaruste on suunniteltu tietylle Rohde & Schwarz -yrityk- sen tuotteelle.
- Page 7 ® Safety information (multilingual) R&S Tato varianta nebo příslušenství je určeno pro konkrétní produkt Rohde & Schwarz. S produktem jsou dodávány vícejazyčné bezpečnostní infor- mace. Řiďte se přiloženými pokyny k instalaci. Táto verzia alebo príslušenstvo je navrhnutá pre špecifický výrobok Rohde &...
- Page 8 ® Safety information (multilingual) R&S Bu opsiyon veya aksesuar, belirli bir Rohde & Schwarz ürünü için tasarlanmış- tır. Çok dilli güvenlik uyarıları ürünle birlikte teslim edilir. Size sağlanan kurulum talimatlarına uyun. Şu opsiýa ýa-da esbap Rohde & Schwarz anyk önüm üçin niýetlenilen. Dürli dil- däki howpsuzlyk barada maglumat önüm bilen bile üpjün edilýär.
- Page 9 ® Safety information (multilingual) R&S Esta opção ou acessório foi desenvolvido para um produto Rohde & Schwarz específico. Informações de segurança em vários idiomas acompanham o pro- duto. Siga as instruções de instalação disponibilizadas. Manual 1179.3967.02 ─ 02...
-
Page 10: About The R&S Szm
The product is intended for industrial use, for example for production and con- formance testing, maintenance and engineering laboratories. Use the product only for its designated purpose. Observe the operating conditions and perfor- mance limits stated in the data sheet before using the R&S SZM with any signal generator. Target audience This document targets at all users, including technicians, operators, administra- tors and maintenance personnel. -
Page 11: Warning Messages In The Documentation
R&S Korea certification class B Table 2-1: Labels regarding R&S SZM and environment safety Labeling in line with EN 50419 for disposal of electrical and electronic equipment after the product has come to the end of its service life. For more information, see "Dispos-... -
Page 12: Documentation Overview
Manual This manual introduces the R&S SZM and describes how to set up and work with the product. It also provides information on maintenance, storage and disposal. A printed version is delivered with the product. -
Page 13: Welcome To The R&S Szm

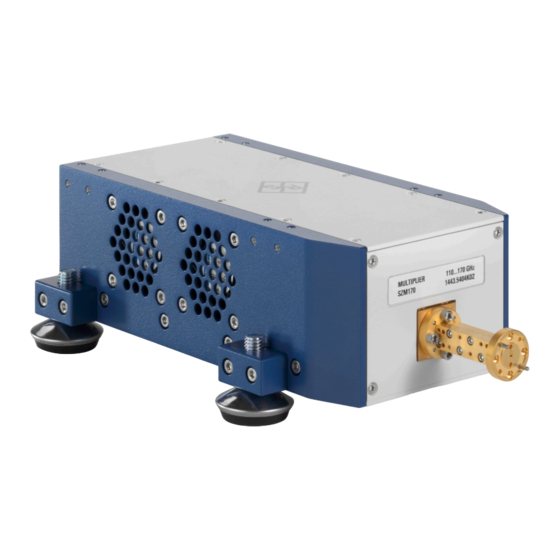

The R&S SZM frequency multipliers expand the range of microwave systems implemented in a compact one-box solution, exceeding the upper frequency limits of classical microwave signal generators by far. You can operate the R&S SZM with the analog RF and microwave signal generator R&S SMA100B via USB. - Page 14 Rohde & Schwarz: www.rohde-schwarz.com/prod- uct/szm In addition to the R&S SZM base instrument, the following options are available. For the specification of the R&S SZM, its options, order numbers and possible configurations, see the data sheet.
-
Page 15: Preparing For Use
Rohde & Schwarz. Choosing the operating site Specific operating conditions ensure proper operation and avoid damage to the R&S SZM and connected devices. For information on environmental conditions such as ambient temperature and humidity, see the data sheet. Electromagnetic compatibility classes The electromagnetic compatibility (EMC) class indicates where you can operate the product. -
Page 16: Setting Up The R&S Szm
R&S SMA100B. To place the R&S SZM on a bench top 1. Place the R&S SZM on a stable, flat and level surface. Ensure that the sur- face can support the weight of the R&S SZM. For information on the weight, see the data sheet. -
Page 17: Considerations For Test Setup
Preparing for use R&S Considerations for test setup Figure 5-1: Positions for mounting the adjustable feet Connect the R&S SZM to the other devices in the test setup as described in Chapter 5.10, "Completing the test setup", on page 21. -
Page 18: Connecting To Power
2. Connect the other end of the DC power cable to the DC power supply. If the power switch is on, the R&S SZM starts automatically when you connect the DC power supply. On the rear panel of the R&S SZM, the "Power" LED switches to green. -
Page 19: Switching On Or Off
The R&S SZM is off, but connected to power. The "Power" LED is gray. See Table 5-1. ► On the rear panel of the R&S SZM, set the "Power" switch to position [I]. See Chapter 6.2.2, "Main power switch", on page 27. -
Page 20: Connecting To Rf In
3. If your test setup has a DC component at the RF input, insert a DC blocker. 4. Align the connector of the cable with the "RF In" connector of the R&S SZM. 5. Carefully join the connectors so the pin of the device connector fits in the socket of the cable connector. -
Page 21: Completing The Test Setup
Completing the test setup The frequency multiplier R&S SZM operates properly only when connected to a signal generator that meets the requirements of the R&S SZM in terms of input power and input frequency range, e.g. a R&S SMA100B. The R&S SMA100B offers the advantage of controlling the R&S SZM via USB. - Page 22 The generator reads all parameters for identifica- tion and the calibration table of the frequency multiplier. 4. Connect the RF output of the signal generator to "RF In" of the R&S SZM. See also Chapter 5.8, "Connecting to RF...
- Page 23 Completing the test setup b) Set the frequency multiplying factor on the signal generator. Note: You can set the RF output power of the R&S SZM only when the mechanically controlled attenuator option is installed. It is not possible to adjust the R&S SZM output power if no attenuator or the electronically control-...
-
Page 24: Instrument Tour
Front and top panel Instrument tour This chapter provides an overview of the control elements and connectors of the R&S SZM. The meanings of the labels on the R&S SZM are described in Chapter 2.1, "Labels on R&S SZM", on page 10. - Page 25 If the screw is turned out to the top position, maximum power is provided at the output of the R&S SZM. If the screw is turned in to the bottom position, minimum power is provided at the output of the R&S SZM.
-
Page 26: Rear Panel
Dismounting the test port adapter If the R&S SZM is equipped with the optional test port adapter (TPA), you can dis- mount the TPA using a hex ball driver (accessory). Without the TPA, the calibra- tion is no more valid (e.g. - Page 27 6.2.2 Main power switch The main power switch is located on the rear panel of the instrument. ● Position 1: The R&S SZM is switched on. ● Position O: The R&S SZM is switched off. For details, refer to Chapter 5.5, "Connecting to power",...
- Page 28 2.92 mm coaxial connector with an impedance of 50 Ω for RF signal input. Connect the signal generator or any other device providing the RF input signal to the "RF In" connector on the R&S SZM. Use a cable equipped with an appropri- ate connector.
-
Page 29: Transporting
Securing When moving the R&S SZM in a vehicle or using transporting equipment, make sure that the R&S SZM is properly secured. Only use items intended for securing objects. Transport altitude Unless otherwise specified in the data sheet, the maximum transport altitude with- out pressure compensation is 4500 m above sea level. -
Page 30: Maintenance, Storage And Disposal
® Maintenance, storage and disposal R&S Disposal Maintenance, storage and disposal The product does not require regular maintenance. It only requires occasional cleaning. It is however advisable to check the nominal data from time to time. Cleaning Do not use any liquids for cleaning. Cleaning agents, solvents (thinners, acetone), acids and bases can damage the front panel labeling, plastic parts and display. - Page 31 ® Maintenance, storage and disposal R&S Disposal fulfills its obligation to take back and dispose of electrical and electronic waste. Contact your local service representative to dispose of the product. Manual 1179.3967.02 ─ 02...
-
Page 32: Contacting Customer Support
® Contacting customer support R&S Contacting customer support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer support center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, program- ming or applications of Rohde &... -
Page 33: Index
