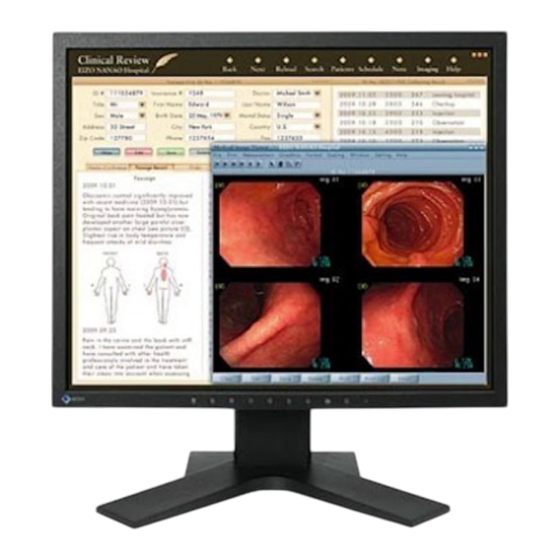

Eizo RadiForce MX191 Installation Manual

Color lcd monitor
Hide thumbs Also See for RadiForce MX191:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation Manual
Color LCD Monitor
Important
Please read this Installation Manual, and "Instructions for Use"
(separate volume) carefully to familiarize yourself with safe and
effective usage.
• Please refer to the "Instructions for Use" for basic information
ranging from connection of the monitor to a PC to using the monitor.
• The latest Installation Manual is available for download from our web
site:
http://www.eizoglobal.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RadiForce MX191 and is the answer not in the manual?

Questions and answers

Related Manuals for Eizo RadiForce MX191

Summary of Contents for Eizo RadiForce MX191

  • Page 1 Installation Manual Color LCD Monitor Important Please read this Installation Manual, and “Instructions for Use” (separate volume) carefully to familiarize yourself with safe and effective usage. • Please refer to the “Instructions for Use” for basic information ranging from connection of the monitor to a PC to using the monitor. •...
  • Page 2 EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 3: Table Of Contents

    Analog Signal Input ........13 2-5. Adjusting Sharpness ........16 Chapter 3 Setting Monitor ....... 17 3-1. Setting Language .........17 3-2. Displaying or Hiding the EIZO Logo ..17 3-3. Locking Operation Buttons ......18 3-4. Resetting to Default ........19 ● Resetting the Color Adjustments ....19 ●...

  • Page 4: Chapter 1 Basic Operations And Functions

    Chapter 1 Basic Operations and Functions 1-1. Basic Adjustment Menu Operations ● Displaying the Adjustment Menu Pressing the function button to change the setting or pressing allows you to display the adjustment menu. When pressing the input signal selection, mode or brightness control When pressing the menu button ●...

  • Page 5: Functions

    1-2. Functions The following table shows setting items of the adjustment menu. Icon Function Overview Icon Function Overview Determines the setting. Selecting the Saturation The color saturation can be adjusted. icon repeatedly allows you to close Adjustable range: -100 to 100 the adjustment menu.
  • Page 6 Icon Function Overview Off Timer This function allows the monitor to automatically turn off after a specified time has passed. This function serves to protect the monitor from after-images caused when the same image is left displayed for a long time. Use this function when an image is displayed throughout the day.

  • Page 7: Chapter 2 Adjusting Screens

    Chapter 2 Adjusting Screens 2-1. Compatible Resolutions For compatible resolutions of this product, refer to Instruction for Use "Compatible Resolutions". 2-2. Setting the Resolution ● Windows 10 1. Right-click the mouse anywhere on the desktop except for icons. 2. From the displayed menu, click “Display Settings”. 3.

  • Page 8: Mac Os X 10.7

    ● Mac OS X 10.7 1. Select “System Preferences” from the Apple menu. 2. When the “System Preferences” dialog box is displayed, click “Displays” for “Hardware”. 3. On the displayed dialog box, select the “Display” tab and select desired resolution in the “Resolutions”...

  • Page 9: Adjustable Settings In Each Mode

    ● Adjustable Settings in Each Mode According to the CAL Switch mode selected, the adjustable function differs. (You cannot select any non-adjustable or non-settable function.) √: Adjustable, - : Unadjustable CAL Switch mode Icon Function DICOM-CL Brightness √ √ Contrast √...

  • Page 10: Adjusting Contrast

    ● Adjusting Contrast The luminance of the screen is adjusted by varying the video signal level. Setting Range 0 to 100 % Procedure 1. Press The adjustment menu appears. 2. Select (Color). 3. Adjust the contrast with (Contrast). 4. Select The adjustment is completed.

  • Page 11: Adjusting Gamma

    ● Adjusting Gamma Gamma can be adjusted. The brightness of the monitor varies depending on the input signal, however, the variation rate is not proportional to the input signal. To keep the balance between the input signal and the brightness of the monitor is called as “Gamma correction”. Setting Range 1.8, 2.0, 2.2 Procedure...

  • Page 12: Adjusting Hue

    ● Adjusting Hue The hue can be adjusted. If you set the hue to a high value, the image turns greenish. If low, the image turns purplish. Setting Range -100 to 100 Procedure 1. Press The adjustment menu appears. 2. Select (Color).

  • Page 13: Adjusting Screens

    2-4. Adjusting Screens ● Digital Signal Input When digital signals are input, images are displayed correctly based on the preset data of the monitor, but if you perform more advanced adjustment, see ““2-3. Adjusting Color” (page 8)” and subsequent pages. ●...
  • Page 14 Prepare to use analog screen adjustment patterns. Download the “Screen adjustment pattern files” from our site: http://www.eizoglobal.com Note • For details and instructions on opening the “Screen adjustment pattern files”, refer to the Readme.txt file. Perform the auto adjustment again with the analog screen adjustment pattern displayed.
  • Page 15 ● To remove flickering or blurring Procedure 1. Adjust the phase with (Phase) to remove flickering or blurring. Attention • Flickering or blurring may not be eliminated depending on your PC or graphics board. ● To correct the screen position Note •...

  • Page 16: Adjusting Sharpness

    Adjusting color gradation. ● To adjust color gradation automatically Every color gradation (0 to 255) can be displayed by adjusting the signal output level. Procedure 1. Display Pattern 2 in full screen on the monitor using the “Screen adjustment pattern files”. 2.

  • Page 17: Chapter 3 Setting Monitor

    The EIZO logo can be displayed or hidden. Procedure 1. Press to turn off the monitor. 2. Hold down and press to turn on the monitor. The EIZO logo display setting is toggled by performing the operation in step 2. Chapter 3 Setting Monitor...

  • Page 18: Locking Operation Buttons

    3-3. Locking Operation Buttons The settings can be locked to prevent them being changed. There are two types of locks: “Key Lock” and “Menu Lock”. Key Lock: Locks buttons other than the Power button. Menu Lock: Locks buttons other than the Power, Input, and Mode buttons.

  • Page 19: Resetting To Default

    3-4. Resetting to Default There are two different Resets: Color Reset for only resetting the color adjustments to the default settings and All Reset for resetting all settings to the defaults. Attention • After resetting, you cannot undo the operation. Note •...

  • Page 20: Chapter 4 Power Saving Functions

    Chapter 4 Power Saving Functions 4-1. Power Saving Mode Attention • When not using the monitor, you can disconnect the power plug so that the power is completely cut. • Five seconds before the monitor enters the power saving mode, it displays a preliminary message. ●...

  • Page 21: Setting Auto Brightness Adjustment Of The Monitor

    4-3. Setting Auto Brightness Adjustment of the Monitor The sensor on the front side of the monitor detects the environmental brightness to adjust the screen brightness automatically and comfortably by using the Auto EcoView function. Attention • This function is not available in the DICOM-CL or CAL modes. Procedure 1.

  • Page 22: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting If a problem still remains after applying the suggested remedies, contact your local EIZO representative. 5-1. No Picture Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected properly. • Power indicator does not light.

  • Page 23: Imaging Problems (For Both Digital And Analog)

    (The LCD monitor backlight has a limited life span. When the screen becomes dark or begins to flicker, contact your local EIZO representative.) 2. Characters are blurred. • Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see “Compatible Resolutions”...

  • Page 24: Imaging Problems (For Analog Only)

    5-4. Imaging Problems (for analog only) Problem Possible cause and remedy 1. Display position is incorrect. • Use “Position” in the Adjustment menu to correct the image position (see “To correct the screen position” (page 15)). • If the problem persists, use the graphics board’s utility if available to change the display position.

  • Page 25: Chapter 6 Reference

    Chapter 6 Reference 6-1. Attaching Arm An optional arm (or an optional stand) can be attached by removing the stand section. For supported optional arms (or optional stands), refer to the EIZO website: http://www.eizoglobal.com Attention • When attaching an arm or stand, follow the instructions of their User’s Manual.

  • Page 26: Connecting Multiple Pcs

    6-2. Connecting Multiple PCs The product has multiple connections to PCs and allows you to switch to one of the connections for display. Connection examples 15-pin D-Sub DVI-D connector (mini) connector Digital Analog (DVI) (D-Sub) To PC 1 To PC 2 15-pin D-Sub DVI connector (mini) connector...

  • Page 27: Setting Input Signal Switching Procedure

    ● Setting Input Signal Switching Procedure Setting Function Auto The monitor recognizes the connector through which PC signals are input. When a PC is turned off or enters the power saving mode, the monitor automatically displays another signal. Manual The monitor displays the signal from the selected connector despite the signal input. Select an active input signal with Procedure 1.

  • Page 28: Main Default Settings

    6-4. Main Default Settings CAL Switch Mode: The default display setting is DICOM-CL. Mode Brightness Temperature Gamma value DICOM-CL 170 cd/m 7500K DICOM Text approx. 100 cd/m 7500K Custom approx. 300 cd/m Native 170 cd/m 7500K DICOM Others Auto EcoView Disable Off Timer Disable...

  • Page 29: Preset Timing

    6-5. Preset Timing The following table shows factory preset analog signal timing. Attention • Display position may be deviated depending on the PC connected, which may require screen adjustment using Adjustment menu. • If a signal other than those listed in the table is input, adjust the screen using the Adjustment menu. However, screen display may still be incorrect even after the adjustment.

  • Page 30: Limited Warranty

    Warranty Period for the LCD panel of the Product is limited to three (3) years from the date of purchase of the Product. EIZO and Distributors shall bear no liability or obligation with regard to the Product in relation to the Original Purchaser or any third parties other than as provided under this Warranty.
  • Page 31 Betriebsstunden des Produkts (im Weiteren als „Garantiefrist“ bezeichnet); die Garantiefrist für das LCD-Panel des Produkts ist jedoch auf drei (3) Jahre ab dem Erstverkaufsdatum des Produkts beschränkt. EIZO und die Vertriebe übernehmen über den Rahmen dieser Garantie hinaus hinsichtlich des Produkts keinerlei Haftung oder Verpfl ichtung dem Erstkäufer oder Dritten gegenüber.
  • Page 32 Produit (ci-après dénommée « Période de Garantie »), sous réserve, toutefois, que la Période de Garantie du panneau LCD du Produit est limitée à trois (3) ans à partir de la date d’achat du Produit. EIZO et ses Distributeurs déclinent toute responsabilité...
  • Page 33 EIZO y los distribuidores utilizarán repuestos que cumplan con nuestros estándares de control de calidad. Si no se puede reparar la unidad debido a su estado o si se han agotado las existencias de una pieza importante, EIZO y sus distribuidores podrían ofrecerle sustituirlo por un producto con rendimiento equivalente en lugar de repararlo.
  • Page 34 GARANZIA LIMITATA EIZO Corporation (a cui si farà riferimento da qui in poi con “EIZO”) ed i Distributori autorizzati da EIZO (a cui si farà riferimento da qui in poi con “Distributori”) garantiscono, secondo i termini di questa garanzia limitata (a cui si farà...
  • Page 35 Nät skärmen repareras använder EIZO och distributörer reservdelar som uppfyller våra kvalitetsstandarder. Om enheten inte kan repareras på grund av skicket eller att en del inte fi nns i lager kan EIZO och dess leverantörer erbjuda sig att byta ut produkten mot en produkt med likvärdig prestanda istället för att reparera den.
  • Page 36 «Εγγύηση»), στον αρχικό αγοραστή (στο εξής «Αρχικός Αγοραστής») ο οποίος αγόρασε το προϊόν που καθορίζεται στο παρόν έγγραφο (στο εξής «Προϊόν») από την EIZO ή τους Διανομείς, η οποία εξασφαλίζει ότι η EIZO και οι Διανομείς, σύμφωνα με τη διακριτή ευχέρειά τους, είτε θα επισκευάσουν είτε θα αντικαταστήσουν το Προϊόν χωρίς χρέωση εάν ο...
  • Page 37 30 000 часов использования Продукта (называемый в дальнейшем “Гарантийный период”), при условии, что Гарантийный период для панели ЖКД ограничен сроком три (3) года от даты приобретения Продукта. EIZO и Дистрибуторы не несут никакой ответственности и не берут обязательств относительно Продукта по отношению к...
  • Page 38 有限责任保证书 EIZO Corporation（以下简称 “EIZO”）和 EIZO 授权的经销商（以下简称 “ 经销商 ”） ，接受并依照本有限责任保证书（以 下简称 “ 保证书 ”）之条款，向从 EIZO 和经销商购买本文中所规定产品（以下简称 “ 产品 ”）的原买方（以下称 “ 原买方 ”） 提供保证 ： 在保证期内（规定如下） ，如果原买方发现按本产品所附使用说明书（以下简称 “ 用户手册 ”）所述方式正常使 用本产品过程中，本产品出现故障或损坏，EIZO 和经销商根据其独自的判断免费修理或更换该产品。 本保证期限定为 (i) 自本产品购买之日起的五 (5) 年期间或限定为到达（ii）使用本产品 3 万小时的期限（以下简称 “ 保证期...
  • Page 39 1st Edition-December, 2015 03V25589A1 Copyright © 2015 EIZO Corporation All rights reserved. (U.M-MX191-X-INSTALL)
