Eizo RadiForce MX243W Instructions For Use Manual

Color lcd monitor
Hide thumbs Also See for RadiForce MX243W:
Table of Contents

Advertisement

Quick Links

Download this manual

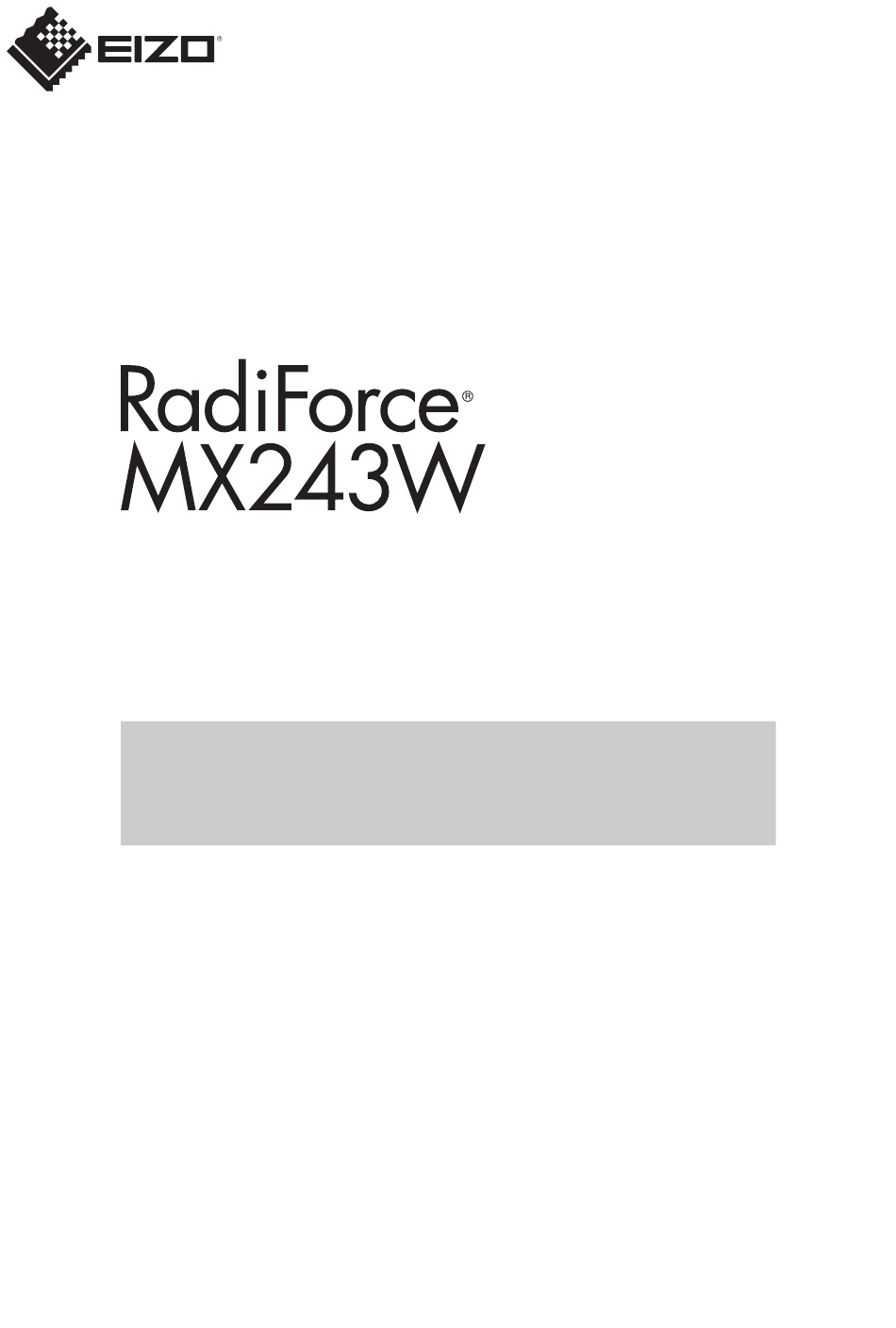

Instructions for Use
Color LCD Monitor
Important
Please make sure you read the Instructions for Use and Installation
Manual before use.
Please retain this manual for future reference.
• See the Installation Manual for monitor settings and adjustments.
• The latest product information, including the Instructions for Use, is
available on our web site.
www.eizoglobal.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RadiForce MX243W and is the answer not in the manual?

Questions and answers

Related Manuals for Eizo RadiForce MX243W

Summary of Contents for Eizo RadiForce MX243W

  • Page 1 Instructions for Use Color LCD Monitor Important Please make sure you read the Instructions for Use and Installation Manual before use. Please retain this manual for future reference. • See the Installation Manual for monitor settings and adjustments. • The latest product information, including the Instructions for Use, is available on our web site.
  • Page 2 EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information.

  • Page 3: Precautions

    PRECAUTIONS PRECAUTIONS Important This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specifications. To personal safety and proper maintenance, please read carefully the "PRECAUTIONS" section and the caution statements on the monitor.
  • Page 4 PRECAUTIONS Symbol This symbol indicates Importer in the EU Mark signifying compliance with UK regulations UK Responsible Person Authorised representative in Switzerland...
  • Page 5 A unit placed on an inadequate surface may fall and result in injury. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electrical shock.
  • Page 6 PRECAUTIONS WARNING Use the unit in an appropriate location. Otherwise, fire, electrical shock, or equipment damage may result. • Do not place outdoors. • Do not place in any form of transportation (ships, aircraft, trains, automobiles, etc.). • Do not place in dusty or humid environments. •...
  • Page 7 Before installation, make sure that desks, walls, or any other installation surface has adequate mechanical strength. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electrical shock.
  • Page 8 PRECAUTIONS CAUTION CAUTION Check the operational state before use. Begin use after ensuring that there are no problems with the displayed image. When using multiple units, begin use after ensuring that the images are displayed appropriately. CAUTION Securely fix cables / cords that have a fixing feature. If they are not fixed securely, cables / cords may disconnect, and subsequently images may be cut off and your operations may be disrupted.
  • Page 9 PRECAUTIONS CAUTION Do not touch the power plug with wet hands. Touching them may result in electrical shock. CAUTION Do not place any objects around the power plug. This is to facilitate disconnecting the power plug in case of a problem to avoid fire or electrical shock.

  • Page 10: Notice For This Monitor

    • The specifications noted in this manual are only applicable when using the power cords provided together with the product and EIZO-specified signal cables. • Only use EIZO accessories products specified by EIZO with this product. Precautions for Use • Parts (such as the LCD panel and the fan) may deteriorate over extended periods of time.

  • Page 11: To Use The Monitor For A Long Time

    Notice for this monitor To Use the Monitor for a Long Time Quality control • The display quality of monitors is affected by the quality level of input signals and the degradation of the product. Perform visual checks and periodic constancy tests (including grayscale check) to comply with medical standards / guidelines according to your application, and carry out calibration as necessary.

  • Page 12: Cybersecurity Warnings And Responsibilities

    • Look at the screen from a proper distance and from a proper angle. Cybersecurity Warnings and Responsibilities • Firmware update should be performed through EIZO Corporation or its distributor. • If EIZO Corporation or its distributor instructs to update the firmware, update it immediately.

  • Page 13: Table Of Contents

    Quality control ..................15 1.1.4 Monitor operation from the mouse and keyboard ........15 Package Contents ....................15 1.2.1 EIZO LCD Utility Disk................16 1.2.2 RadiCS LE ....................16 1.2.3 To use RadiCS LE .................. 17 Controls and Functions..................17 1.3.1...
  • Page 14 CONTENTS 4.1.5 Physical Specifications ................25 4.1.6 Operating Environmental Requirements..........25 4.1.7 Transport / Storage Conditions ............... 25 Compatible Resolutions..................25 Accessories ......................25 Appendix ........................27 Medical Standard....................27 Classification of Equipment..............27 EMC Information....................28 Environments of Intended Use..............28 Technical Descriptions................

  • Page 15: Introduction

    Introduction | 1 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1.1 Features 1.1.1 Hybrid monochrome and color display When the Hybrid Gamma PXL function is enabled, this product automatically differentiates between monochrome and color parts of the same image at a pixel level and displays them respectively in optimal gradients.

  • Page 16: Eizo Lcd Utility Disk

    • Power cord • Digital signal cable (DisplayPort - DisplayPort): PP300 x 1 • USB cable: UU300 x 1 • EIZO LCD Utility Disk (CD-ROM) • Instructions for Use 1.2.1 EIZO LCD Utility Disk The CD-ROM contains the following items. Refer to "Readme.txt" on the disk for software startup procedures or file reference procedures.

  • Page 17: To Use Radics Le

    Introduction | 1 1.2.3 To use RadiCS LE For information on how to install and use RadiCS LE, refer to RadiCS LE User’s Manual (on the CD-ROM). When using RadiCS LE, connect the monitor to your PC using the supplied USB cable. For more information about how to connect the monitor, see Connecting Cables [} 19].

  • Page 18: Rear

    1 | Introduction 1.3.2 Rear 1. Handle This handle is used for transportation. Attention • Firmly hold the monitor by the handle and the bottom while carrying it, and do not put pressure on the LCD panel or drop the monitor. 2. Stand Adjusts the height and angle (tilt, swivel.

  • Page 19: Installation / Connection

    Installation / Connection | 2 2 Installation / Connection 2.1 Before installation Carefully read PRECAUTIONS [} 3] and always follow the instructions. If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to the composition of the rubber. Check the desk surface before use. 2.1.1 Installation conditions When installing the monitor in a rack, ensure that there is adequate space around the sides, back and top of the monitor.
  • Page 20 When connecting other monitors using a daisy-chain connection The signal input to is output to another monitor. Attention • Visit the EIZO web site for information about monitors and graphics boards that can be used for the daisy-chain connection: (www.eizoglobal.com) • Remove the cap before connecting the signal cable.

  • Page 21: Turning On The Power

    Installation / Connection | 2 2.3 Turning On the Power 1. Touch to turn on the power to the monitor. The power switch indicator of the monitor lights up green. If the indicator does not light up, see No-Picture Problem [} 22]. Note •...

  • Page 22: Picture Problem

    • Turn off the main power, and then turn it on again. Power switch indicator blinks: Orange, Green • Connect via the signal cable specified by EIZO. Turn off the main power, and then turn it on again. The message "No Signal" appears on the screen Example: •...
  • Page 23 No-Picture Problem | 3 The message "Signal Error" appears on the screen Example: • Check whether the PC is configured to meet the resolution and vertical scan frequency requirements of the monitor (see Compatible Resolutions [} 25]). • Reboot the PC. • Select an appropriate setting using the graphics board’s utility. Refer to the User’s Manual of the graphics board for details.

  • Page 24: Specifications

    4 | Specifications 4 Specifications 4.1 List of Specifications 4.1.1 LCD Panel Type IPS (Anti-Glare) Backlight Size 24.1" (61 cm) Resolution 1920 dots x 1200 lines Display Size (H x V) 518.4 mm x 324.0 mm Pixel Pitch 0.270 mm x 0.270 mm Display Colors 10-bit color (DisplayPort): Up to 1.07 billion colors (from a palette of approx.

  • Page 25: Physical Specifications

    Specifications | 4 4.1.5 Physical Specifications Dimensions (W x H x D) 552.0 mm x 430.8 mm – 520.8 mm x 200.0 mm (Tilt: 0˚) 552.0 mm x 459.2 mm – 549.2 mm x 229.9 mm (Tilt: 30˚) Dimensions (W x H x D) (Without Stand) 552.0 mm x 361.6 mm x 64.5 mm Net Weight Approx.
  • Page 26 4 | Specifications Calibration Kit RadiCS UX2 Ver.5.0.12 or later RadiCS Version Up Kit Ver.5.0.12 or later Network QC Management Software RadiNET Pro Ver.5.0.12 or later Cleaning Kit ScreenCleaner Comfort Light for Reading Rooms RadiLight AAH-02B3W LA-011-W VESA Adapter for Thin Client or Mini-PC PCSK-R1 Signal Cable (DVI-D - DVI-D) DD200...

  • Page 27: Appendix

    Appendix Appendix Medical Standard • It shall be assured that the final system is in compliance to IEC60601-1-1 requirement. • Power supplied equipment can emit electromagnetic waves, that could influence, limit or result in malfunction of the monitor. Install the equipment in a controlled environment, where such effects are avoided.

  • Page 28: Emc Information

    Appendix EMC Information The RadiForce series has a performance that appropriately displays images. Environments of Intended Use The RadiForce series is intended to be used in Professional healthcare facility environments such as clinics and hospitals. The following environments are not suitable for the RadiForce series to be used: •...

  • Page 29: Technical Descriptions

    • Be sure to use the cables attached to the product, or cables specified by EIZO. Use of cables other than those specified or provided by EIZO of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and improper operation.
  • Page 30 Appendix Electromagnetic immunity The RadiForce series has been tested at the following compliance levels according to the testing requirements for professional healthcare facility environments specified in IEC / EN60601-1-2. The customer or the user of the RadiForce series should assure that it is used in such an environment.
  • Page 31 Appendix Immunity test Test level for Compliance level Electromagnetic environment - professional Guidance healthcare facility environments Portable and mobile RF communications equipment should be used no closer to any part of the RadiForce series, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
  • Page 32 Appendix abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the RadiForce series. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
  • Page 33 Appendix Recommended separation distances between portable or mobile RF communication equipment and the RadiForce series The RadiForce series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the RadiForce series can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the RadiForce series.
  • Page 34 Appendix The RadiForce series is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. For other portable and mobile RF communication equipments (transmitters), minimum distance between portable and mobile RF communications equipment (transmitters) and the RadiForce series as recommended below, according to the maximum output power of the communications equipment.

  • Page 35: Information For Radio Interference

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. • AC Cord •...

  • Page 36: Declaration Of Compliance With India Rohs

    Appendix Declaration of compliance with India RoHS We, EIZO Corporation, hereby declare and guarantee that this product has been designed and manufactured in compliance with the E-Waste management rule 2016 which prohibit the inclusion of the following substances except for the exemptions listed in schedule II.
  • Page 37 Carl-Benz-Straße 3, 76761 Rülzheim, Germany 中国苏州市苏州工业园区展业路8号中新科技工业坊5B 1 Queens Square, Ascot Business Park, Lyndhurst Road, Ascot, Berkshire, SL5 9FE, UK Moosacherstrasse 6, Au, CH-8820 Wädenswil, Switzerland 00N0N305B1 www.eizoglobal.com IFU-MX243W Copyright © 2022 EIZO Corporation. All rights reserved. 2nd Edition – April 14th, 2022...
