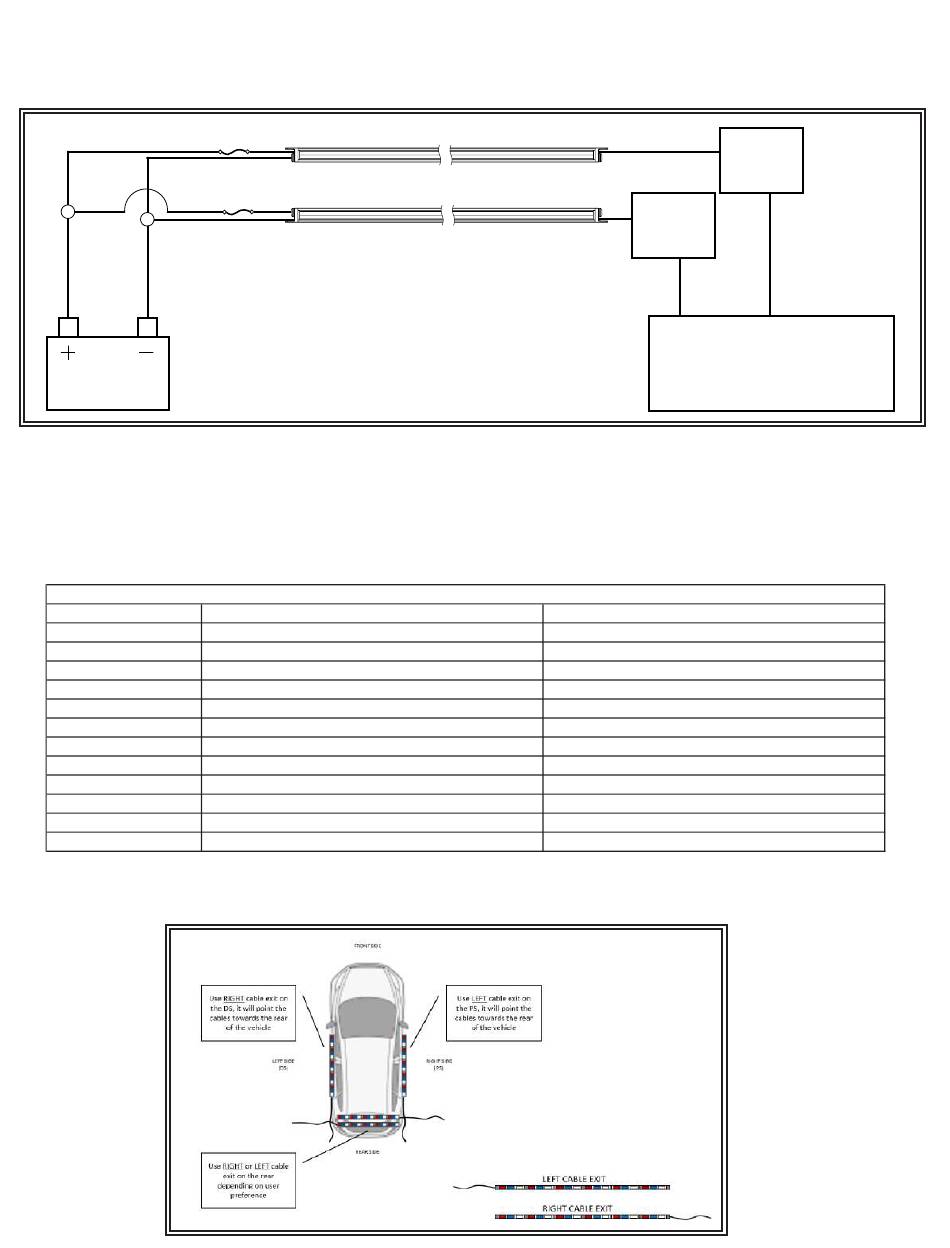

Code 3 Matrix Outliner OL72R-RBW-CM Installation And Operation Instruction Manual page 14

Wiring Instructions:
Red - Positive (12V)
Black - Negative
RED
RED
Each Outliner comes with an Outliner control box. Connect the Outliner "Left" connector to the "Left" port on the Outliner control box.
Connect the Outliner "Right" connector to the "Right" port on the Outliner control box. Connect the CAT5 cable from the Z3 to the Outliner
Flash Patterns:
Outliner Side
Default
Level 3
Level 2
Level 1
Cruise
Dim
Left Scene
Right Scene
Driver Front Door
Passenger Front Door
Driver Rear Door
Passenger Rear Door
Installation on a vehicle:
For vehicles with an equipment tray in the rear of the vehicle, we recommend placing the products as follows:
RIGHT OUTLINER
10A
BLACK
10A
BLACK
Left
Description
Pursuit (Primary and Secondary with Tertiary Pops
Triple Flash 115 (Primary, Secondary and Tertiary)
Primary Sweep
Dim, Primary Cruise
30%
Tertiary Steady
-
Timed Left Cut
-
Timed Left Cut
-
LEFT OUTLINER
Default Flash Patterns
Right
Description
Pursuit (Primary and Secondary with Tertiary Pops
Triple Flash 115 (Primary, Secondary and Tertiary)
Primary Sweep
Dim, Primary Cruise
30%
-
Tertiary Steady
-
Right Cut
-
Right Cut
OUTLINER
CONTROL
BOX
OUTLINER
CONTROL
BOX
CAT5
CAT5
PRI-1 SEC-2
CENTRAL NODE
(Z3 OR SIB)
B Y
Page 14 of 18
