Operating instructions

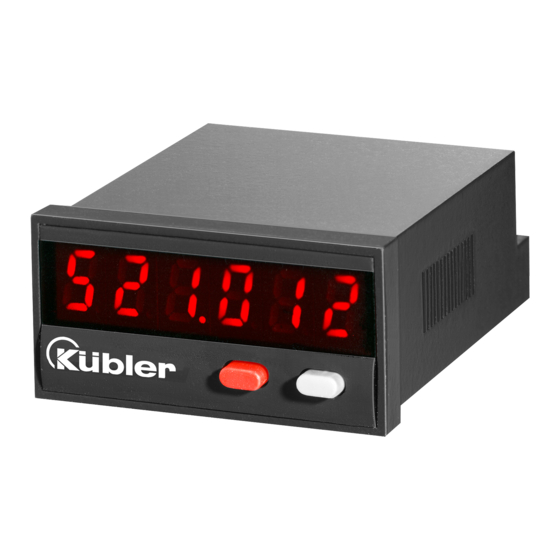

Electronic display counter
Codix 521, 522, 523 and 524
1.1 Safety instructions and warnings
Only use this display
– in a way according to its
! intended purpose
– if its technical condition is
perfect
– adhering to the operating
instructions and the general
safety instructions.
1.2 General safety instructions
1. Before carrying out any installation or mainten-
ance work, make sure that the power supply of
the digital display is switched off.
2. Only use this digital display in a way according
to its intended purpose:
If its technical condition is perfect.
Adhering to the operating instructions and the
general safety instructions.
3. Adhere to country or user specific regulations.
4. The digital display is not intended for use in
areas with risks of explosion and in the branches
excluded by the standard EN 61010 Part 1.
5. The digital display shall only operated if it has
been correctly mounted in a panel, in accord-
ance with the chapter "Technical features".
1.3 Use according to the intended purpose
The digital display may be used only as a
panel-mounted device. Applications of this
product may be found in industrial processes
and controls, in manufacturing lines for the
metal, wood, plastics, paper, glass, textile and
other processing industries. Over-voltages at the
terminals of the digital display must be kept within
the limits in Category II.
If the digital display is used to monitor machines
or processes in which, in case of a failure of the
device or an error made by the operator, there
might be risks of damaging the machine or caus-
ing accidents to the operators, it is your respons-
ibility to take appropriate safety measures.
www.kuebler.com
1.4 Description
Codix 521
Please note: Read first chapter 2 of Codix 524
and go on on page 2.
Codix 522
Please note: Read first chapter 2 of Codix 524
and go on on page 4.
Codix 523
Please note: Read first chapter 2 of Codix 524
and go on on page 6.
Codix 524
Codix 524 is a multipurpose device. Depending
on the programmed basic function, the device
operates like
• the pulse counter Codix 521 (see page2) or
• the frequency meter Codix 522 (see page 4) or
• the time meter Codix 523 (see page 6)
2. Setting of the operating pa ra me ters
a. Press both front side keys keys and switch on
the supply voltage or, if the supply voltage is
already on, press both keys simultaneously
during 5 s.
b. The display shows
c. After releasing the keys, the display shows
c1. Hold the left key pressed and press the right
key to leave the programming operation.
c2. Press the right key to switch to
d. Hold the left key pressed and press the right
key to switch to the first parameter.
e. After releasing the keys, the display alter-
nates between the menu title and the current
menu item setting. After pressing any key,
only the menu item setting is displayed.
f. Pressing the right key, the menu item setting
will be switched to the next value. If figures
are to be input (e.g. when setting the scaling
factor), select first the decade using the left
key, and then set the value using the right
key.
g. Hold the left key pressed and press the right
key to switch to the next menu item.
h. The last menu title "EndPro" allows, when
Page 1
