Pulse Counters, electronic

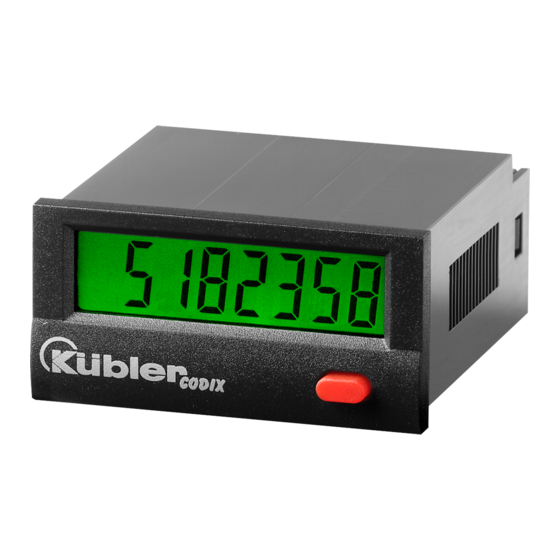

LCD Pulse Counters – Codix 130
Technical data:
Power supply:
internal lithium battery,
approx. 8 years at 20 °C (68 °F)
Backlighting:
external electrical source
24 V DC +/-20 %, 50 mA
Display:
LCD, 8 digits, height of the figures 8 mm [0.315]
Mode:
adding or subtracting (selectable)
Display range:
–9999999 ... 99999999, with overflow display
Reset:
manual and electrical
EMC:
Emitted interference EN55011 Class B
Immunity to interference: EN61000-6-2
Device safety:
design to:
protection:
application area:
Housing:
dark grey RAL 7021
Operating temperature:
–10 ... +55 °C [14 ... 131 °F] non-condensing
Ambient temperature:
–10 ... +60 °C [14 ... 140 °F] non-condensing
Storage temperature:
–20 ... +70 °C [–4 ... 158 °F]
Altitude:
to 2000 m
Protection:
IP 65 front
UL certified:
file: E128604
Weight:
approx. 50 g [1.764 oz]
Connection diagram:
DC type:
6.130.012.8x0
max. 30 V DC
INP A
1
INP B
2
Reset
3
Reset
4
Enable
Mode
5
GND
6
(-) BL
7
24 V DC ±20 %, 50 mA
(+) BL
8
Clearwater Tech - Phone: 800.894.0412 - Fax: 208.368.0415 - Web: www.clrwtr.com - Email: info@clrwtr.com
• Low-price and high efficiency
• Large 8-digit LCD display, height of the
figures 8 mm [0.315"]
• Optional backlighting
• Simple counter for fast and slow count
pulses, counting direction switchable via
RoHS
control input
• High voltage input for 10 ... 260 V AC/DC
voltage pulses
• Unified Codix design, matches the
extensive Codix family
• IP 65
EN61010 Part 1
Class: 2
Soiling Level 2
DC type:
6.130.012.8x2
max. 5 V DC
INP A
INP B
Reset
Reset
Enable
Mode
GND
(-) BL
(+) BL
• Screw terminals, RM 5 mm [0.197"]
• Lifetime of the battery
• Locking of the reset key via the input
• Ambient temperature
• For positive and negative count edges,
• Filter function for bounce-free counting
Counting inputs:
Counting input of the DC-versions (max. 30 V DC)
Slow counting input:
Fast counting input:
Switching level:
Counting input of the high voltage versions (10 ... 260 V DC/V AC)
Counting input:
Min. pulse time:
Switching level:
Counting direction switching (only DC-version)
Mode:
Contact input:
Switching level:
Reset Input (only DC and high voltage)
Minimum pulse time:
Contact input DC:
High voltage input:
Electrical reset key locking (for DC and AC)
Contact input:
Switching level:
max. 30 V DC
max. 5 V DC
1
2
3
4
5
6
7
24 V DC ±20 %, 50 mA
8
BL = backlight
approximately 8 years
'Reset Enable'
10 ... +60 °C
[14 ... 140 °F]
depending on version
with mechanical contacts.
max. 30 Hz NPN
max. 12 kHz (PNP), 7 kHz (NPN)
NPN:
low: 0 ... 0.7 V, high: 3 ... 30 V DC
PNP:
low: 0 ... 0.7 V, high: 4 ... 30 V DC
optocoupler input, max. 30 Hz
16 ms
Low: 0 ... 2 V DC/V AC, High: 10 ... 260 V DC/V AC
see order table
open collector NPN (switching at 0 V DC)
NPN:
low: 0 ... 0.7 V, high: 3 ... 5 V DC
DC: 50 ms, high voltage: 16 ms
NPN:
low: 0 ... 0.7 V, high: 3 ... 30 V DC
10 ... 260 V DC/V AC
open collector NPN (switching at 0 V)
NPN:
low: 0 ... 0.7 V, high: 3 ... 5 V DC
AC type:
max. 5 V DC
6.130.012.8x3
INP A
1
10 .. 260
VAC/VDC
Common
2
AC/DC
10 .. 260
VAC/VDC
INP B
3
Reset
4
Enable
n.c.
5
GND
6
(-) BL
7
24 V DC ±20 %, 50 mA
(+) BL
8
