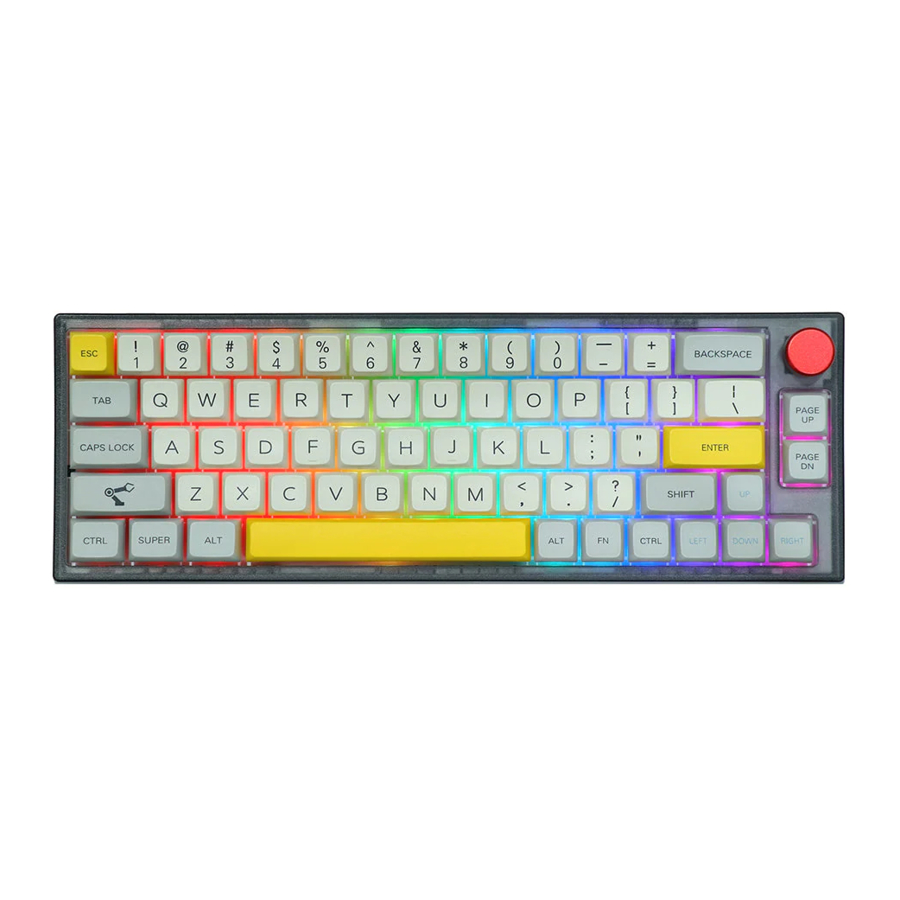

EPOMAKER TH66 - 65% Hot-Swap Wired/Wireless Mechanical Keyboard Manual

SPECIFICATIONS

MODEL: EPOMAKER TH66
SIZE: 323 x 113 x 25mm
NKRO: Yes
SYSTEM: Windows / Mac
WEIGHT: 780g ± 50g
HOTSWAP: YES
KEYCAPS: PBT
LAYOUT: 66 Keys
CONNECTION: USB-C, 2.4GHz Bluetooth 3.0, Bluetooth 5.0.

WINDOWS SHORTCUTS

FN + 1	F1
FN + 2	F2
FN + 3	F3
FN + 4	F4
FN + 5	F5
FN + 6	F6
FN + U	PrtSc
FN + PGDN	Del
FN + A	Play
FN + S	Last song
FN + D	Next song
FN + WIN	Lock/Unlock Windows
FN + 7	F7
FN + 8	F8
FN + 9	F9
FN + 0	F10
FN + -	F11
FN + =	F12
FN + K	Home
FN + L	End-

MACOS SHORTCUTS

FN + 1	Screen Brightness-
FN + 2	Screen Brightness +
FN + 3	Task View
FN + 4	Call Siri
FN + 5	Keyboard brightness -
FN + 6	Keyboard brightness +
FN + 7	Last Song
FN + 8	Play/ Pause
FN + 9	Next Song
FN + 0	Mute
FN + -	VOL -
FN + =	VOL +
FN + PGDN	Del
FN + K	Home
FN + L	End

GENERAL FUNCTION SHORTCUTS

FN + Q	Bluetooth Device 1
FN + W	Bluetooth Device 2
FN + E	Bluetooth Device 3
FN + R	2.4GHz Wireless
FN + T	Wired
FN + SHIFT+ ESC	~
FN + ALT_R + SPACE	Long press to enter/exit power saving mode
CTRL_L + ALT_L_+ Q	Long Press to Restore Keyboard to Default Setting
FN + ↑	Backlight Brightness +
FN + ↓	Backlight Brightness -
FN + ←	Backlight Effect Speed -
FN + →	Backlight Effect Speed +
FN + \\|	Toggle the light mode
FN + P	Toggle the backlight color
FN + ALT_L	Long Press to Switch to Windows/macOS mode
FN + BACKSPACE	Turn on/off the RGB
FN + Y (IN WIRELESS MODE)	Check Battery Status

CHANGE RGB EFFECTS

Pressing Fn + \| at the same time allows you to switch the RGB effect of your TH66 Keyboard.

PAIRING BLUETOOTH

FN + Q/W/E Long Press for 3 seconds to pair Bluetooth device
FN + Q/W/E Short Press to switch to last paired device
Long press the FN+Q/W/E for 3 seconds, the keyboard will start pairing and the light will flash. If there's no connection, the keyboard will enter into sleep mode.

PAIRING WIRELESS 2.4GHz

FN + R Switch to Wireless Mode
Press Fn + R to the 2.4Ghz mode, then hold Fn + R for 3s till the indicator flashes at a fast speed, insert the receiver into your device. When the indicator stay for 2s and then off, the keyboard is connected successfully.

BLUETOOTH & WIRELESS 2.4 GHz SPECIFICATIONS

Operating system should be windows 8 or above to support the Bluetooth function. The device should support Bluetooth 5.0 or a higher version to use Bluetooth 5.0.

KEYBOARD SHORTCUTS

If you switch devices and/or systems, please make sure to press FN + ALT_L to switch the keyboard layout according to the system you used, or some shortcuts/multimedia keys may not work properly.

KEYBOARD WAKE UP

If your keyboard is sleeping press any key to wake it up, it will remember the last device connected.

REPLACING KEYCAPS AND SWITCHES

For a full guide on how to remove keycaps and switches scan the QR Code or type in your browser: https://epomaker.com/blogs/guides/diy-guide-how-to-remove-and-replace-your-mechanical-keyboard-switches

Before installing switches, be sure the pins are clean and straight.

Push Straight Down
Please be gentle. Be sure the pins are aligned with the slots.

Included Tools

Mechanical Switch
Example of a switch as seen from top after you remove the keycap to prepare for switch removal.

The Switch Puller tool aligns Vertically to the Switch to unclip the plastic securing the switch to the plate.

Remove Switches

Grab your Switch Removal Tool and align the gripping teeth vertically (on the Y-Axis) at the center of the switch, as shown in the example graphic above.
Grab the switch with the Switch Puller and apply pressure until the switch releases itself from the plate.
Using firm but gentle force pull the switch away from the keyboard using a vertical motion.

Install Switches

Check that all the switch metallic pins are perfectly straight and clean.
Align the switch vertically to have the Gateron logo facing north. The pins should align themselves to the keyboard PBC.
Press the switch down until you hear a click. This means your switch clips have attached themselves to the keyboard plate.
Inspect the switch to ensure it's properly attached to your keyboard, and test it.

caution Note: If the key doesn't work its possible you may have bent one of the switches while installing it. Pull the switch out and repeat the process.
Pins may be damaged beyond repair and need replacement if this process is not done correctly. Never apply excessive force when replacing keycaps or switches. If you cannot remove or install keycaps or switches please contact customer service as soon as possible to avoid damage to the keyboard due to operating errors.

TECHNICAL ASSISTANCE

For technical assistance, please email to support@epomaker.com with your purchase order number and a detailed description of your issue.
We normally respond to enquiries within 24 hours. If you purchased your keyboard from a distributor or not from any official store of Epomaker, please contact them directly for any additional help.
