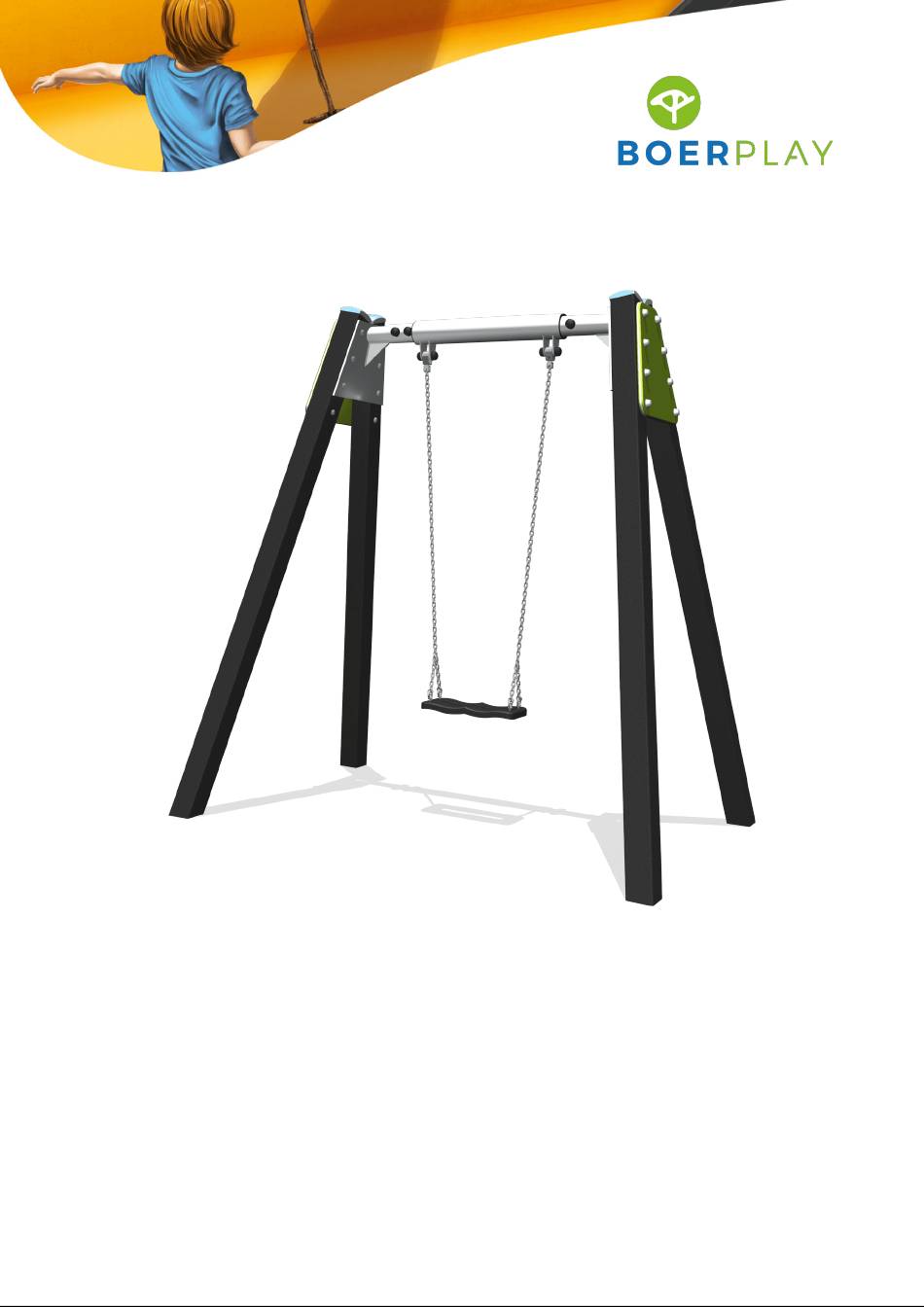

- Page 1 Solo Swing Anti-wrap H2.12 BBPE035.1K...
- Page 2 1,39 m 0,69 m 0,00 m 2,18 m 2,12 m 0,00 m Benaming TOE BBP 035 1K Enkele schommel Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 21-10-2016 Date SPEELTOESTELLEN...
- Page 3 5,08 m 2,76 m 1,75 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE BBP 035 1K Enkele schommel Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 21-10-2016 Date SPEELTOESTELLEN...
- Page 4 1,52 m 2,01 m 1,55 m 0,30 m Typeplaatje Identification plate Grondmarkering Ground level marker 0,53 m Benaming TOE BBP 035 1K Enkele schommel Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Bodemplan Groundplan 21-10-2016 Date SPEELTOESTELLEN...
- Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 2,18 m 0,46 m 0,00 m 2,19 m 2,12 m 0,00 m Benaming TOE BBP 035 1K Enkele schommel Title Tekening Opmerking Boer Basic play Drawing Comment BOER Datum Afmetingen Dimensions 21-10-2016 Date SPEELTOESTELLEN...
- Page 7 LOGBOOK Type indication Basic Play Article number BBPE035.1K Product Name Solo Swing Anti-wrap H2.12 Maximum fall height 1,4 m Construction year 2024 Certificate 138096 Inspection body Keurmerkinstituut Groeneweg 2e, Zoetermeer 2718AA Zoetermeer Manufacturer name Boer Speeltoestellen Hyacintstraat 2 - 4255 HX Nieuwendijk...
- Page 8 LOGBOOK Inspection and maintenance Date of Time of Name Name Parts to be inspection inspection executor of executor of Found defects replaced maintenance maintenance inspection maintenance Accidents Date Age of Measures taken Probable cause of injury Occurred injury accident victim after accident...
-
Page 9: Inspection And Maintenance Intervals
Inspection and maintenance intervals months Nr. Inspection Maintenance between inspections Verify equipment's stability, junctions and Add missing parts, secure joints, apply missing parts. Inspect bolts, screws and nuts for missing fixing agent and replace absence, jams, corrosion and wear. corroded parts. Replace worn parts and/or remove non- Check suspension for wear. - Page 10 7. Remember that bad maintenance leads to unsafe conditions and notably faster impoverishment of the playground area. 8. Replacement parts can be ordered at the manufacturer with the OEM part numbers on the module drawing. Drawings can be found in the user guide. 9.
- Page 12 8 10 12 8 10 12 Type Progr. Bew. Rev. Benaming Volgnr. Opmerking Schroef Assy 5 x 50 - RVS A2-70 Borgmoer M10 - VZ 8.8 Zeskantmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 100 - VZ 8.8 Slotbout M10 x 145 - VZ 8.8 Slotbout...
- Page 13 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Borgmoer M10 - RVS A2-70 M10 x 70 - RVS A2-70 Zeskantbout SLUITRING Schommelscharnier RVS A2-70 Zwart Zitje CNK + bevm Lagerring BBP Schommel Donut zwart Beschermdop M10-M12 Dop zwart Beschermdop M10-M12 Schommelketting 5mm Met vork 1,45 m UBP Schommelbuis Schommel dubbel...
