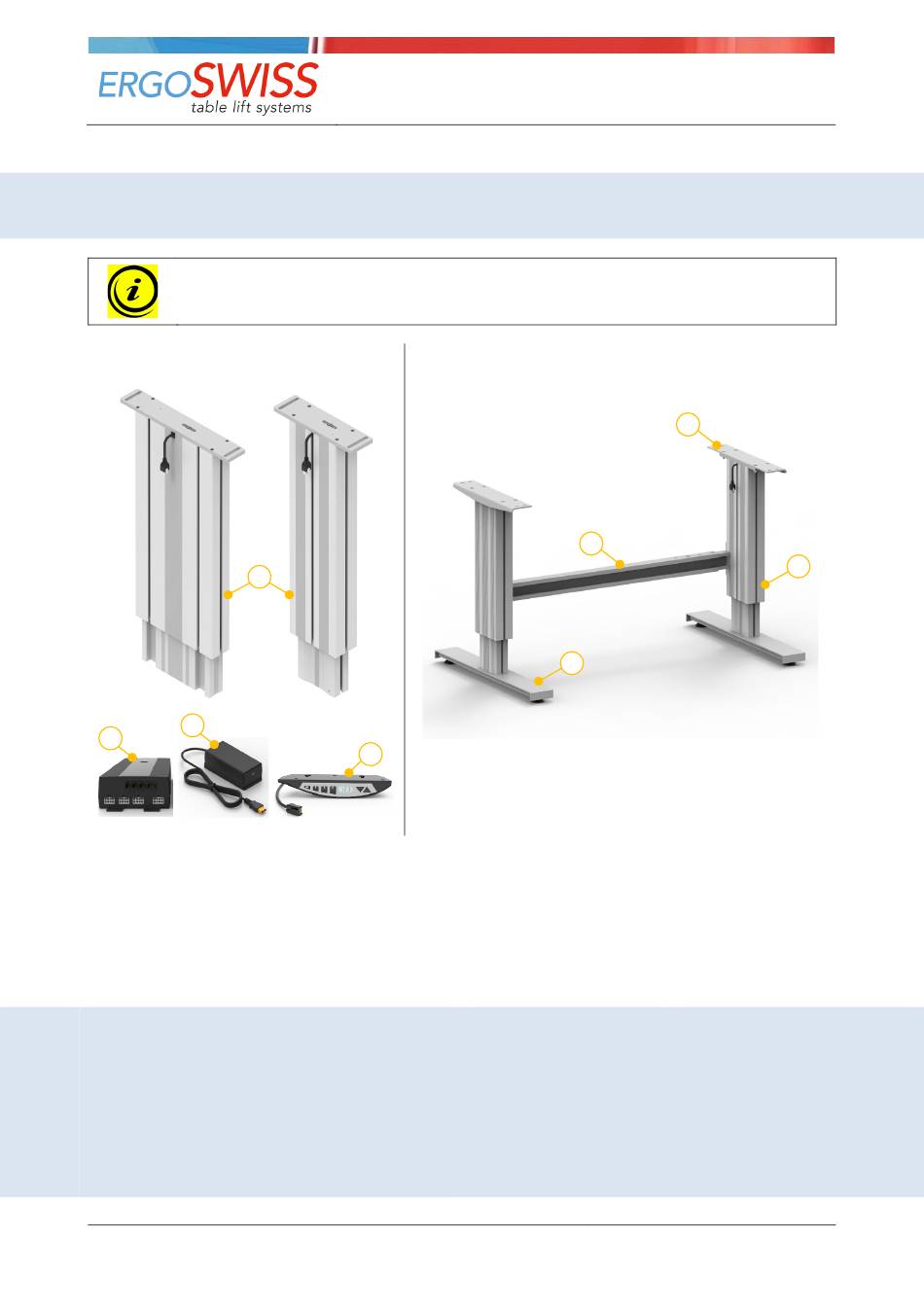

Operating instruction – Spindle lifting system SL/SK/SM 14xx
with SCT iSMPS 24V and Exchangeable battery
It is essential to read this operating instruction thoroughly before commissioning the system.
The manual must be kept in close proximity to the system for future reference.
1
3
2
Spindle lifting column of Type SL, SK or SM
Control box SCT iSMPS 24V
Exchangeable battery 24V
Hand switch Memory
Errors and technical changes reserved.
Ergoswiss AG does not assume any liability for operating errors or
using the products outside of the intended purpose use.
At the time of delivery Ergoswiss AG will replace or repair defect
products within accordance with the warranty provisions.
In addition, Ergoswiss assumes no other liability.
For your questions and special custom demand Ergoswiss AG will
be at your disposal.
Document no.: B-00411
Edition 2024 02
with SCT4 iSMPS 24V and Exchangeable battery
4

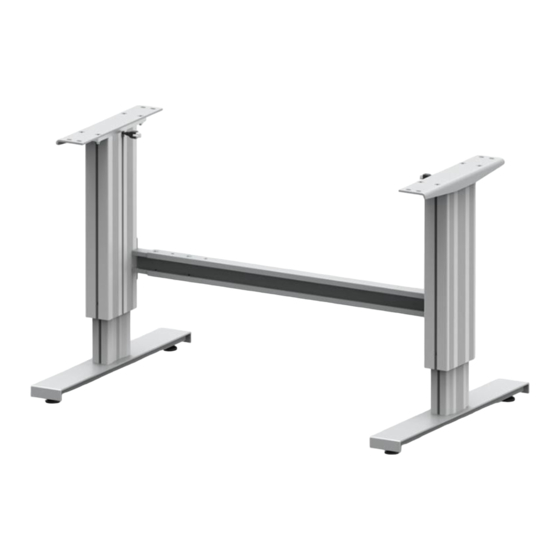

Example of a frame with two lifting columns:
Table plate support
Cross bar
Table feet
Operating instruction EN
Copyright by Ergoswiss AG
Operating instruction
Spindle lifting system SL/SK/SM 14xx
5
6
7
Ergoswiss AG
Nöllenstrasse 15
CH-9443 Widnau
Tel.: +41 (0) 71 727 06 70
Fax: +41 (0) 71 727 06 79
info@ergoswiss.com
www.ergoswiss.com
1
Page 1 of 32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL 14 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ergoswiss SL 14 Series

  • Page 1 CH-9443 Widnau Tel.: +41 (0) 71 727 06 70 At the time of delivery Ergoswiss AG will replace or repair defect Fax: +41 (0) 71 727 06 79 products within accordance with the warranty provisions.
  • Page 2 The declaration of incorporation is only valid for the Ergoswiss lifting system and not for the overall system created by the further-user.
  • Page 3: Table Of Contents

    Error codes and trouble shooting ..................30 Error codes on the display ..................... 30 Trouble shooting ........................31 10 Declaration of Incorporation ....................32 Document no.: B-00411 Operating instruction EN Page 3 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 4: Safety Requirements

    NOTE Indicates general information, useful user tips and work recommendations, which have no im- pact on the health and safety of staff. Document no.: B-00411 Operating instruction EN Page 4 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 5: System Description

    2 System description 2.1 General The basic functionality of a spindle lifting system SL/SK/SM by Ergoswiss AG is the lifting and lowering of work surfaces, machine parts, profile systems, etc. An operative spindle lifting System SL/SK/SM consists of a minimum of following components: →...
  • Page 6: General Safety Instructions

    (e.g. through constructive measures or through instructions in the oper- ating instructions and/or through safety indication on the system). In the event of improper use, the liability of Ergoswiss AG and the general operating permit for the lifting system will expire. 2.3 Target group and prior knowledge Before installing and operating the lifting system, this operating instruction must be read and understood.
  • Page 7: Handling The Lithium-Ion Battery Pack

    Sea freight: IMDG Code • International Maritime Code for Dangerous Goods Air freight: IATA DGR • International Air Transport Association Dangerous Goods Regulations Document no.: B-00411 Operating instruction EN Page 7 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 8: Performance Characteristics

    1/9   dyn. = during the lifting movement  Duty Cycle 1/9; operating max. 1 min, pause 9 min Document no.: B-00411 Operating instruction EN Page 8 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 9: Control Box Sct4 Ismps 24V

    2.5.3 Hand switch Up/Down and Memory RJ-12 plug 6 Pin Electrical connection Cable length 2 m (79”) Protection class (DIN EN 60529) IP 30 Document no.: B-00411 Operating instruction EN Page 9 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 10: Exchangeable Battery Package

    When the short circuit has been eliminated, the battery can be Short-circuit fuse used again. If necessary, the battery must be loaded  Duty Cycle 1/9; operating max. 1 min, pause 9 min Document no.: B-00411 Operating instruction EN Page 10 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 11: System Data

    High pulse / impact forces due to the discontinuation of loads are not allowed. (e.g. discontinuation of loads in feed with crane or forklift) Document no.: B-00411 Operating instruction EN Page 11 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 12: Mounting Instructions

    Mounting on T-slot (Cross bar) Mounting at bottom Outer profile with T-slots Inner profile 4x Screw M6x20 self-tapping (included in scope of delivery) Document no.: B-00411 Operating instruction EN Page 12 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 13  Torque max. 6 Nm (0.6”)  Screw-in depth mind. 15 mm 4x Screw M6x20 self-tapping included in the scope of delivery (drawing in mm) Document no.: B-00411 Operating instruction EN Page 13 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 14: Mounting Instructions Battery Set

    … → the exchangeable battery can be easily removed and → the LED power indicator can be read without removal. Document no.: B-00411 Operating instruction EN Page 14 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 15 Nur diese gewährleistet eine ausreichende Sicherheit. The exchangable battery may only be charged with the included docking station! This is the only way to ensure adequate security. Document no.: B-00411 Operating instruction EN Page 15 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 16: Mounting Instructions Control Box

    3 extension cables. They have a length of 1’000 mm each. (39’’)  124.00290: Extension cable Hand switch SCT 1m Document no.: B-00411 Operating instruction EN Page 16 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 17 → Are the plugs of the motor cable connected to the correct sockets (1 to 4)? → Is the entire lifting system assembled according to the assembly instructions? 8. Connect the Exchangeable battery onto the Holder. Document no.: B-00411 Operating instruction EN Page 17 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 18: Mounting Instructions Hand Switch

    The control panel must overhang below the work sur- face! 2. Fasten the hand switch using the mounting screws. Be careful not to drill through the table top! Document no.: B-00411 Operating instruction EN Page 18 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 19: Initial Operation

    The maximum continuous operating time is 1 minutes. Afterwards a pause of at least 9 minutes needs to be observed before the system can be operated again. Document no.: B-00411 Operating instruction EN Page 19 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 20: Operation With Hand Switch Type Memory

    The memory position is now stored under the pressed button. To approach a stored memory position: Keep one of the buttons pressed until the desired working height is reached. Document no.: B-00411 Operating instruction EN Page 20 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 21: Limit The Stroke Length (Container-Stop/Shelf-Stop)

    NOTE To delete a set Container-stop position, a new one has to be done with the same procedure. Document no.: B-00411 Operating instruction EN Page 21 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 22: Setting The Shown Height On The Display "S 06

    The unit of measurement on the display has now been changed from centimeters (cm) to inches (inch) or from inches to centimeters (2.54 cm = 1 inch). Document no.: B-00411 Operating instruction EN Page 22 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 23: Deactivating / Activating The Tilt Sensor "S 08

    4. If the tilt sensor is activated, the message «E dd» appears. For the new initialization of the tilt sensor, a «Reference drive» must now be performed. Document no.: B-00411 Operating instruction EN Page 23 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 24: Locking The Movement (Child Protection)

      The control gives an acoustic signal to confirm the deactivation. The system is not locked anymore and can be operated normally. Document no.: B-00411 Operating instruction EN Page 24 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 25: Reference Drive - Referencing The End Positions

    4. Let go of the buttons After reaching the block position, the lower and the upper position will be stored automatically. The Reference drive is completed. Document no.: B-00411 Operating instruction EN Page 25 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 26: Restore To Factory Settings - Factory Reset "S 00

    6. Press the button to leave the menu mode.  The display shows «E dC». 7. Do an initial operation according to chapter 4. Document no.: B-00411 Operating instruction EN Page 26 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 27: Operation With Hand Switch Type Up-Down

    4. Let go of the buttons After reaching the block position, the lower and the upper position will be stored automatically. The Reference drive is completed. Document no.: B-00411 Operating instruction EN Page 27 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 28: Safety Strip - Squeezing Protection

    SCT4 iSMPS 24V and Exchangeable battery 7 Safety strip – Squeezing protection ATTENTION With lifting systems of Ergoswiss AG it is important to make sure that no objects or people are trapped during the lifting movement. Danger of squeezing during lifting movement! Attach the safety strip to an assumed squeeze zone.
  • Page 29: Maintenance And Disposal

    The lifting system is not covered by the Electrical and Electronic Equipment Act (WEEE Directive 2012/19/EU). Lifting systems from Ergoswiss AG are intended for installation in an overall system (e.g. assembly table) and classified under the category of incomplete machines in accordance with the Machinery Directive 2006/42/EC.
  • Page 30: Error Codes And Trouble Shooting

    Motor turns faster than expected by E CC Contact customer support the control box Document no.: B-00411 Operating instruction EN Page 30 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 31: Trouble Shooting

    Drive only move to one direction Hand switch defective Replace the hand switch Drive only moves downwards System overload Remove weight from the system Document no.: B-00411 Operating instruction EN Page 31 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
  • Page 32: Declaration Of Incorporation

    Operating instruction Spindle lifting system SL/SK/SM 14xx with SCT4 iSMPS 24V and Exchangeable battery 10 Declaration of Incorporation Document no.: B-00411 Operating instruction EN Page 32 of 32 Edition 2024 02 Copyright by Ergoswiss AG...
