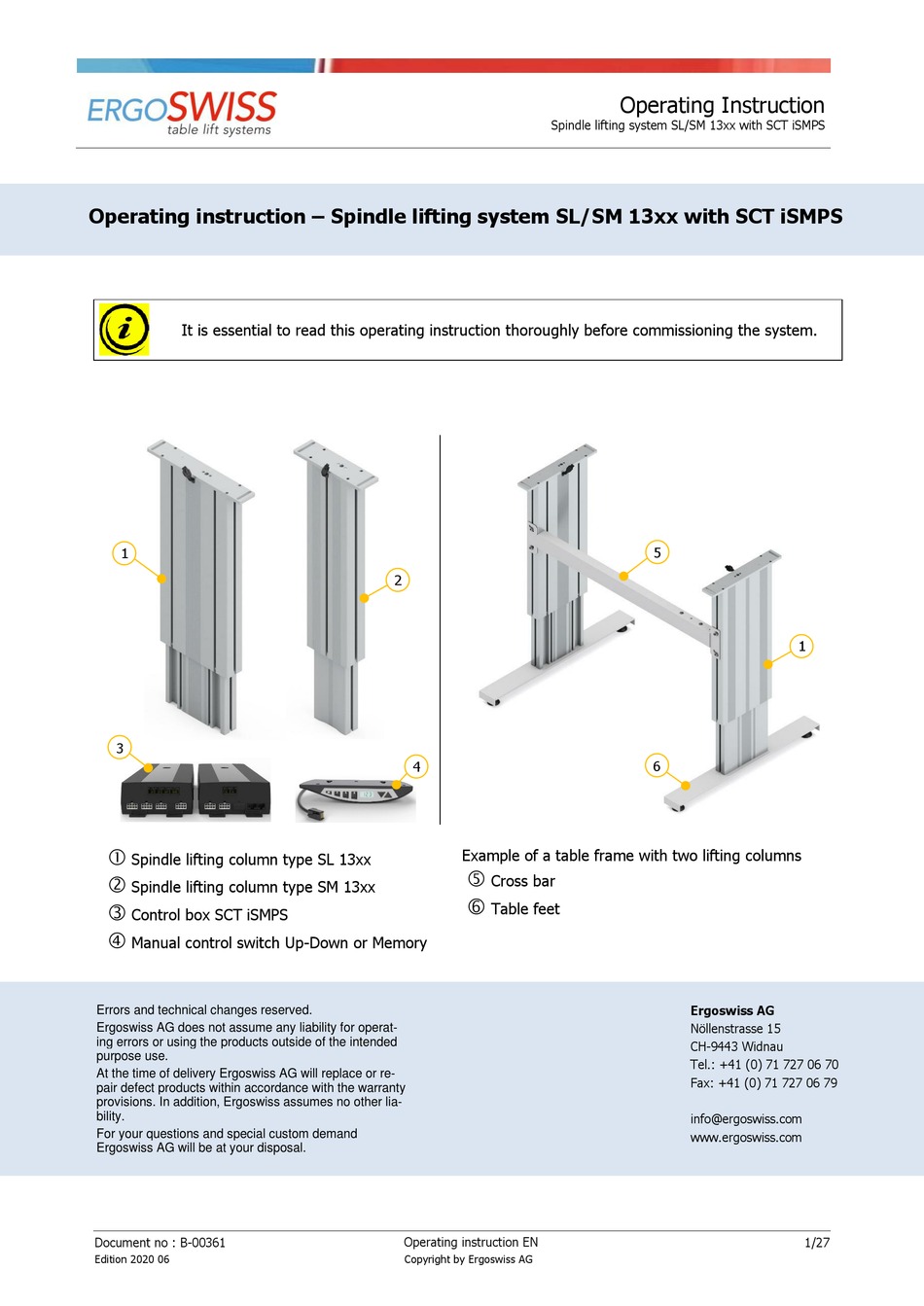

Operating instruction – Spindle lifting system SL/SM 13xx with SCT iSMPS
It is essential to read this operating instruction thoroughly before commissioning the system.
1
3
Spindle lifting column type SL 13xx
Spindle lifting column type SM 13xx
Control box SCT iSMPS
Manual control switch Up-Down or Memory
Errors and technical changes reserved.
Ergoswiss AG does not assume any liability for operat-
ing errors or using the products outside of the intended
purpose use.
At the time of delivery Ergoswiss AG will replace or re-
pair defect products within accordance with the warranty
provisions. In addition, Ergoswiss assumes no other lia-
bility.
For your questions and special custom demand
Ergoswiss AG will be at your disposal.
Document no : B-00361
Edition 2020 06
Spindle lifting system SL/SM 13xx with SCT iSMPS
2
4
Example of a table frame with two lifting columns
Cross bar
Table feet
Operating instruction EN
Copyright by Ergoswiss AG
Operating Instruction
5
6
Ergoswiss AG
Nöllenstrasse 15
CH-9443 Widnau
Tel.: +41 (0) 71 727 06 70
Fax: +41 (0) 71 727 06 79
info@ergoswiss.com
www.ergoswiss.com
1
1/27

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL 13 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ergoswiss SL 13 Series

  • Page 1 CH-9443 Widnau purpose use. Tel.: +41 (0) 71 727 06 70 At the time of delivery Ergoswiss AG will replace or re- Fax: +41 (0) 71 727 06 79 pair defect products within accordance with the warranty provisions. In addition, Ergoswiss assumes no other lia- info@ergoswiss.com...
  • Page 2 Special version: adapter plate, table foot, fitting length, color, etc. Notes on the operating instructions: Lifting systems of Ergoswiss AG are intended for installation in a complete system and are classified in the category of incomplete machines in accordance with the Machinery Directive 2006/42/EC. This manual con- tains information on the commissioning, handling and safety of the lifting system and is intended for the re- user and manufacturer of the entire system.
  • Page 3: Table Of Contents

    10 Error codes and trouble shooting ......................25 10.1 Error codes on the display ........................25 10.2 Trouble shooting ..........................26 11 Declaration of Incorporation ........................27 Operating instruction EN Document no : B-00361 3/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 4: Safety Requirements

    Non-compliance with this information can result in damage to property or light to medium personal injuries. NOTE Indicates general notes, useful operator advice and operating recommendations which do not affect safety and health of the user. Operating instruction EN Document no : B-00361 4/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 5: System Description

    2 System description 2.1 General The basic functionality of a spindle lifting system SL/SM by Ergoswiss AG is the lifting and lowering of work surfaces, machine parts, profile systems, etc. An operative spindle lifting System SL/SM consists of a minimum of following components: •...
  • Page 6: Intended Purpose Use

    (e.g. by constructive measures or by means of instructions in the operat- ing instructions or/and by safety instructions on the system). In the event of improper use, the liability of Ergoswiss AG as well as the general operating licence of the lifting system expires. 2.3 Target group and prior knowledge Before installing and operating the lifting system, this operation instruction must be read and understood.
  • Page 7: Performance Characteristics

    3000 N pressure load, duty cycle 2/40   dyn. = during the lifting movement  Duty Cycle 2/40; operating max. 2 min, pause 40 min Operating instruction EN Document no : B-00361 7/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 8: Control Box Sct2 Ismps And Sct4 Ismps

    2.4.3 Manual control switch Up / Down and Memory RJ-12 plug 6 Pin Electrical connection Cable length 2000 mm (78.7”) Protection class (DIN EN 60529) IP 30 Operating instruction EN Document no : B-00361 8/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 9: System Data

    ATTENTION High pulse / impact forces due to the discontinuation of loads are not allowed. (e.g. discontinuation of loads in feed with crane or forklift) Operating instruction EN Document no : B-00361 9/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 10: Mounting Instructions

    (e.g. 4 motor extension cables of 1500 mm Attachment to T-slot (cross bar) External profile with T-slots Fixing bottom Inner profile 4 x M6 x 20 self-tapping screw (included) Operating instruction EN Document no : B-00361 10/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 11 ➔ Torque max. 6 Nm ➔ Screw-in depth (0.6”) mind. 15 mm 4x M6x20 self-tapping screw included in the scope of delivery. (drawing in mm) Operating instruction EN Document no : B-00361 11/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 12: Mounting The Control Box And Connecting The Cables

    (Automatic plug detection on all sockets) Connect the hand switch to the control box ( Connect the power cable to the control box Connect the power cable to the mains Operating instruction EN Document no : B-00361 12/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 13: Mounting The Hand Switch (Cable Remote Control)

    The control panel must overhang below the work surface! Fix the hand switch by using the mounting screws. Be careful not to drill through the tabletop! Operating instruction EN Document no : B-00361 13/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 14: Initial Operation

    The maximum continuous operating time is 2 minutes. Afterwards a pause of at least 40 minutes needs to be observed before the system can be operated again. Operating instruction EN Document no : B-00361 14/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 15: Operation With The Hand Switch Type Memory

    The memory position is now stored inside the pressed button. To approach a stored memory position: Keep one of the buttons pressed until the desired working height is reached. Operating instruction EN Document no : B-00361 15/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 16: Limit The Stroke Length

    Press the button to leave the menu mode. To delete a set Shelf-stop position, a new one has to be done with the same procedure. Operating instruction EN Document no : B-00361 16/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 17: Locking The Movement (Child Protection)

    Measure the height of the table Press the button to select the measured height Confirm with the button M Press the button to leave the menu mode. Operating instruction EN Document no : B-00361 17/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 18: Restore Factory Settings

    -> A signal tone sounds Press the button to leave the menu mode. -> The display shows «EdC» Do an initial operation according to chapter 4. Operating instruction EN Document no : B-00361 18/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 19: Reset / Initialize The End Positions

    -> The control box will give a signal sound and the system will drive out a few millimeters. -> After the drive out, control box will give another two signal sounds. The reset is now completed. Operating instruction EN Document no : B-00361 19/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 20: Deactivating /Activating The Tilt Sensor

    If the inclination sensor is activated, the message "Edd" appears. For the new initialization of the tilt sensor, a reset according to chapter 5.8 must now be performed. Operating instruction EN Document no : B-00361 20/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 21: Operation With The Hand Switch Type Up-Down

    -> The control box will give a signal sound and the system will drive out a few millimeters. -> After the drive out, control box will give another two signal sounds. The reset is now completed. Operating instruction EN Document no : B-00361 21/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 22: Synchronize 2 Control Boxes

    Connect the hand switch to one of the control boxes. Connect the power cable to the control box. Connect the power cable to the mains. Do an initial operation according to chapter 4. Operating instruction EN Document no : B-00361 22/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 23: Safety Strip

    Spindle lifting system SL/SM 13xx with SCT iSMPS 8 Safety strip With lifting systems from Ergoswiss AG, care must be taken to ensure that no objects or people are trapped during a lifting movement. -> Risk of crushing By attaching the safety strip to a potential pinch zone, the system stops immediately when opening or crush- (3.9’’)
  • Page 24: Maintenance And Disposal

    2012/19/EU), since the lifting system – in accordance with the intended purpose use – is not intended for end-users (business-to-customer) but for industrial applications (business-to-Business) is designed. Operating instruction EN Document no : B-00361 24/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 25: Error Codes And Trouble Shooting

    Reset (see chapter 5.8) The control box has the slave role. E 7C Engine setting commands are not per- Reset to factory settings (see chapter 5.7) mitted. Operating instruction EN Document no : B-00361 25/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 26: Trouble Shooting

    Drive only move to one direction Manual control switch defective Replace the manual control switch Drive only moves downwards System overload Remove weight from the system Operating instruction EN Document no : B-00361 26/27 Edition 2020 06 Copyright by Ergoswiss AG...
  • Page 27: Declaration Of Incorporation

    Operating Instruction Spindle lifting system SL/SM 13xx with SCT iSMPS 11 Declaration of Incorporation Operating instruction EN Document no : B-00361 27/27 Edition 2020 06 Copyright by Ergoswiss AG...
